Лидер продаж, линия прорезьбовых катушек из листового металла
US $40000-$60000
Прецизионная узкая медная лента аморфная компактная катушка режущая машина для мин.1мм из
- Категория: Бобинорезательный станок >>>
- Поставщик: Baoji,Xintai,Precision,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7178.51 $* | 7537.39 $* |
| Aug-16-2025 | 7118.85 $* | 7474.24 $* |
| Jul-16-2025 | 5972.84 $* | 6271.25 $* |
| Jun-16-2025 | 6997.89 $* | 7347.22 $* |
| May-16-2025 | 6092.36 $* | 6397.54 $* |
| Apr-16-2025 | 6876.34 $* | 7220.12 $* |
| Mar-16-2025 | 6816.89 $* | 7157.92 $* |
| Feb-16-2025 | 6756.6 $* | 7094.65 $* |
| Jan-16-2025 | 6696.86 $* | 7031.61 $* |
Характеристики
Why Choose Us
Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, built in 1995, mainly working on researching, development and production of electron, metallurgy and special grinding equipment. It Produces all kinds of equipment for slitting material used for electrolysis and capacitor, such as: aluminum foil, copper foil, metal foil, paper slitting, foil slitting, membrane cutting and metal bar material slitting.
We hope to honestly cooperate with all friends in different world and develop together.
Product Description
Product Application
The precision cutting machine is used to cutting stainless steel, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.
Slitting Machine For XTF-80 | ||
Type | XTF80 | |
raw materials thickness | 0.01mm-0.3 mm | |
Width of raw materials less than | 80 mm | |
Outer diameter of raw material | < 320mm | |
Raw material inner diameter | 80mm (customizable) | |
Weight of raw materials less than | 300Kg | |
Finished product width | 1mm-80mm | |
Outer diameter of finished coil | ≤320mm | |
Inner diameter of finished coil | 80mm (customizable) | |
Number of sliced strips | 20 (depending on the thickness of the cut) | |
Width tolerance of finished product | ±0.02mm | |
Equipment speed | 7-30 m/min | |
Coverage of equipment | L*W*H 1.5m*1m*1.2m | |
Equipment weight | 350KG | |
Main Features
1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.
2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment.
3. Equipment color: green and white (customizable)
4. Date of production: 25 days
5. Support overseas after-sales service.

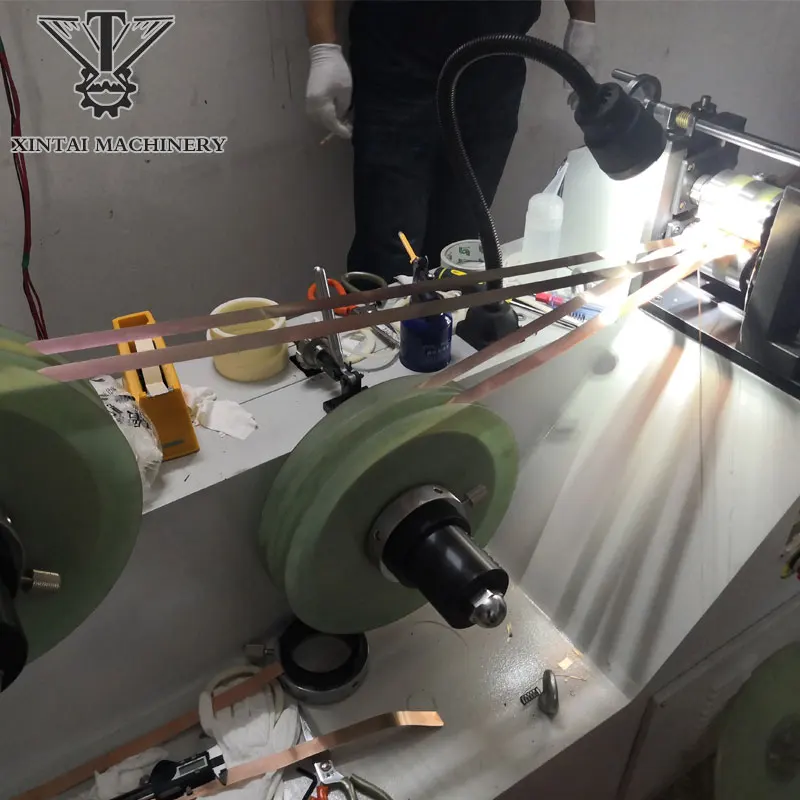

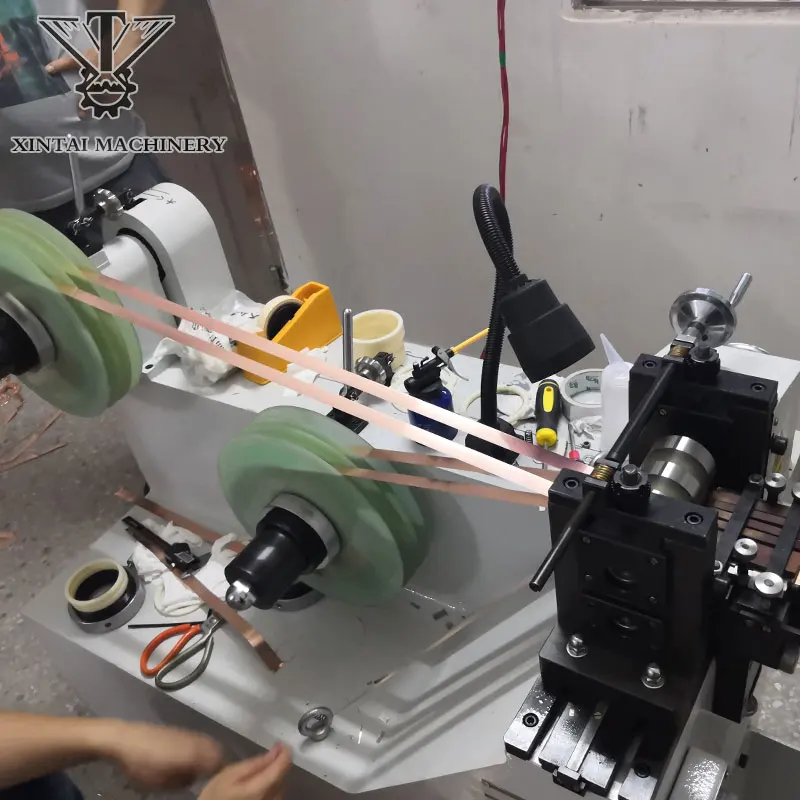

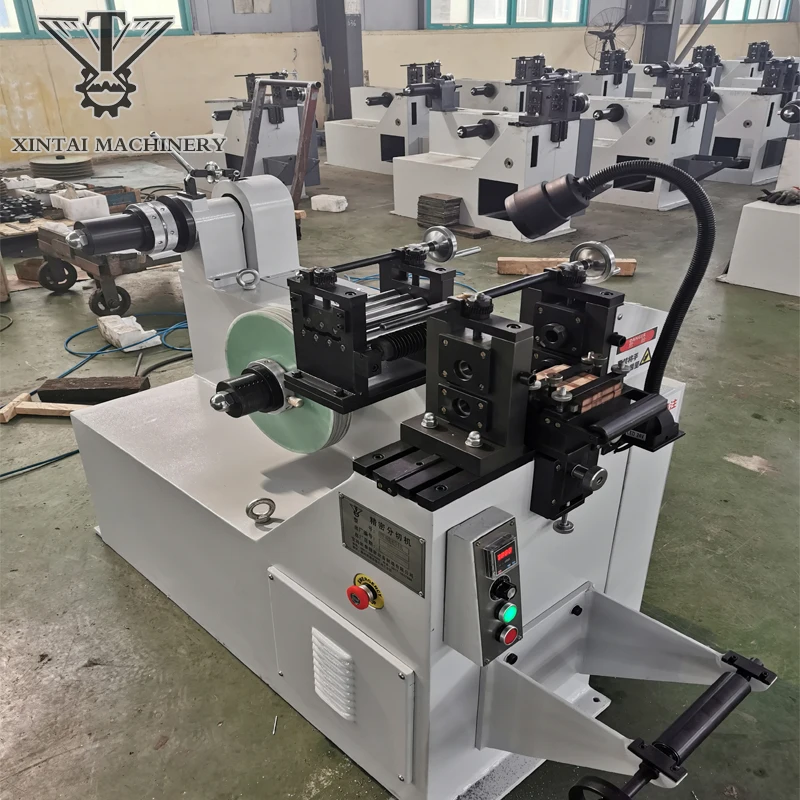

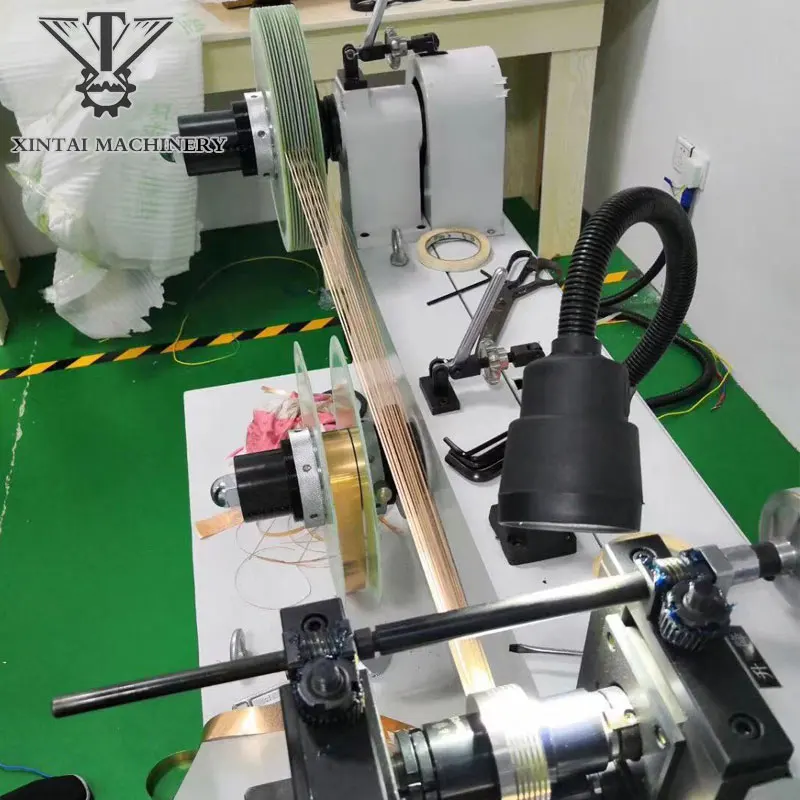

Detailed Images
Raw material parameter
1. Raw materials: stainless steel/copper strip/galvanized strip/aluminium strip/tin strip
2. Sheet thickness :0.01mm-0.3 mm
3. Width of raw materials less than :80 mm
4. Outer diameter of raw material: < 320mm
5. Raw material inner diameter :80mm (customizable)
6. Weight of raw materials less than :300Kg
Finished product parameters
1. Finished product width:1mm-80mm
2. Outer diameter of finished coil less than :≤320mm
3. Inner diameter of finished coil: 80mm (customizable)
4. Number of sliced strips: 24 (depending on the thickness of the cut)
5. Width tolerance of finished product : ±0.002mm
Device parameters
1. Operating direction of equipment:right to left
2. Equipment speed: 7-30 m/min
3. Equipment capacity :1.1KW
4. Coverage of equipment :L*W*H 1.5m*1m*1.2m
5. Equipment weight: 350kg
Electrical parameters
1. Inverter Audit (China)
2. Intelligent Voltmeter Faction (China)
3. Intermediate Relay Omron (Japan)
4. Electrical Switching Components Zhengtai (China)
5. Power supply for equipment, three fires and one place, AC380V, 50HZ
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* video support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1.5m (L) * 1m (W) *1.2m (D) | |
Weight | 500kg | |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Our Company

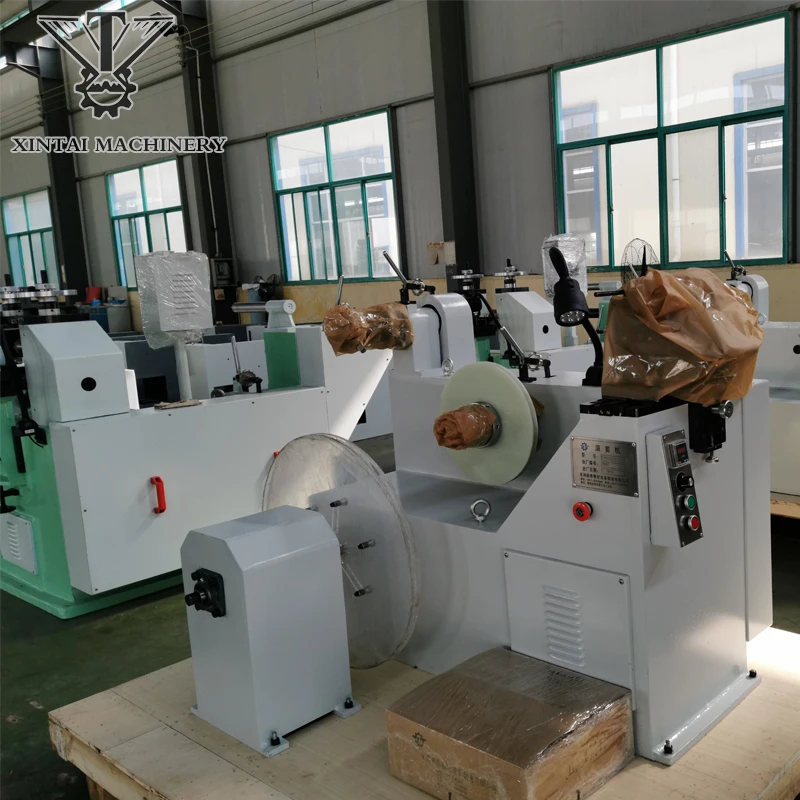

Production workshop
In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.
Customer satisfaction is eternal target of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, high qualified, warm and thoughtful service are eternal commitment of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD for you.
Service commitment To ensure that the maintenance service and fault fixing are carried out in time, fast and effective, we are equipped with full time staff, spare parts and special savings.
We are equipped with full time maintenance engineers talking about business.
Contact Us
Name | Alice Wang |
Tel | 0086 917 3620122 |
Whatsapp/Wechat/Skype | 0086 15619251763 |
Email | alice@xintaimachinery.com |
Web | http://en.xintaimachinery.cn |
Address | Bawangriver,Industrial Park,Meixian County,Baoji city,Shaanxi Province, China. |
