Products Description

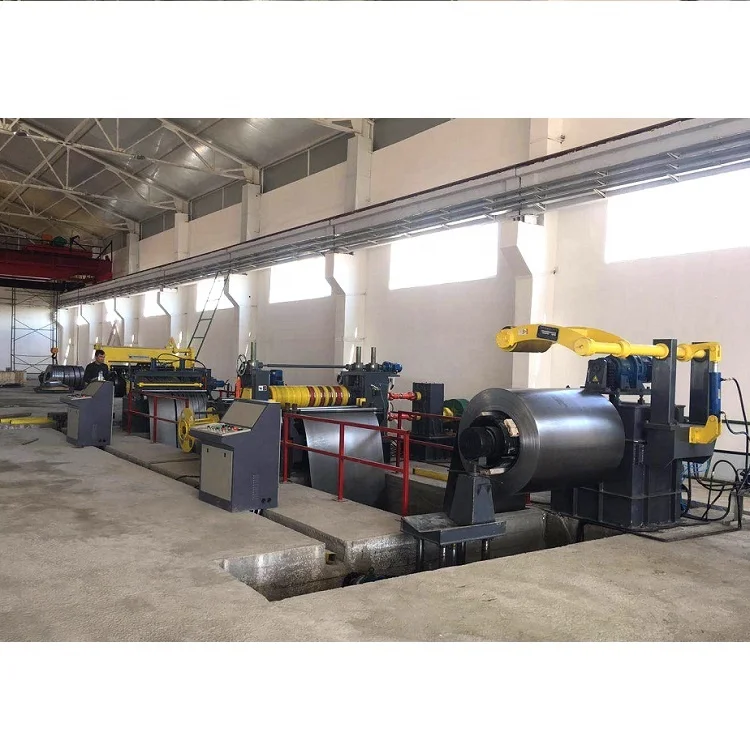

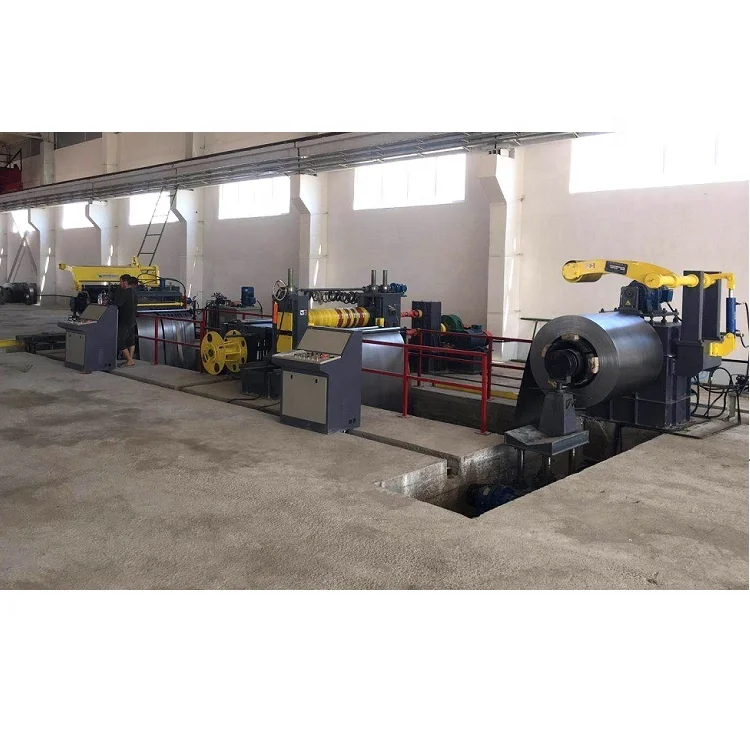

Roll metal sheet steel coil slitting and rewinding line machine

Roll metal sheet steel coil slitting and rewinding line machine is a complete line to slit the big steel coil into strips and then rewinding. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc, into varioussize you need.

Roll metal sheet steel coil slitting and rewinding line machine is an semi-automatic design which is composed of coil car,pinch device,slitter,scrap winder,tension stand ,recoiler and exit coil car.

It is widely adopts to those customers with less than 1000T production amount per month.

Standard specifications of simple hydraulic slitting line(if other size,can be customlized)

Product Paramenters

Standard specifications of simple hydraulic slitting line(if other size,can be customlized)

Model	Thickness(mm)	Width(mm)	No. of slitting	Tolerance(±mm/m)	Speed(m/min)	Weight(T)
ZJX-1.5X650	0.2-1.5	100-650	5-15	±0.05	0-40	5
ZJX-1.5X1250	0.2-1.5	500-1250	5-15	±0.05	0-40	5、10
ZJX-2X1250	0.2-2	500-1250	5-15	±0.05	0-40	5、10
ZJX-3X1250	0.3-3	500-1250	5-15	±0.05	0-40	10
ZJX-3X1600	0.3-3	500-1600	5-15	±0.05	0-30	10、15
ZJX-4X1250	0.5-4	500-1250	5-15	±0.1	0-30	10
ZJX-4X1600	0.5-4	500-1600	5-15	±0.1	0-30	10、15、20

Standard specifications of automatic slitting line(if other size,can be customlized)

Model	Thickness(mm)	Width(mm)	No. of slitting	Tolerance(±mm/m)	Speed(m/min)	Weight(T)
ZJX-2X650	0.2-2	100-650	10-30	±0.05	0-120	10
ZJX-2X1250	0.2-2	500-1250	10-30	±0.05	0-120	10、15
ZJX-3X1250	0.3-3	500-1250	65-30	±0.05	0-120	10、15
ZJX-3X1600	0.3-3	500-1600	5-30	±0.05	0-120	15、20
ZJX-4X1600	0.5-4	500-1600	5-30	±0.05	0-100	20、25
ZJX-6X1600	1-6	500-1600	5-20	±0.1	0-80	20、25
ZJX-8X2000	3-8	800-2000	5-15	±0.1	0-40	25、30
ZJX-10X2000	3-10	800-2000	5-10	±0.1	0-40	25、30
ZJX-12X2000	4-12	800-2000	5-10	±0.1	0-30	25、30
ZJX-16X2200	6-16	800-2200	4-8	±0.1	0-20	30、35

Details Images

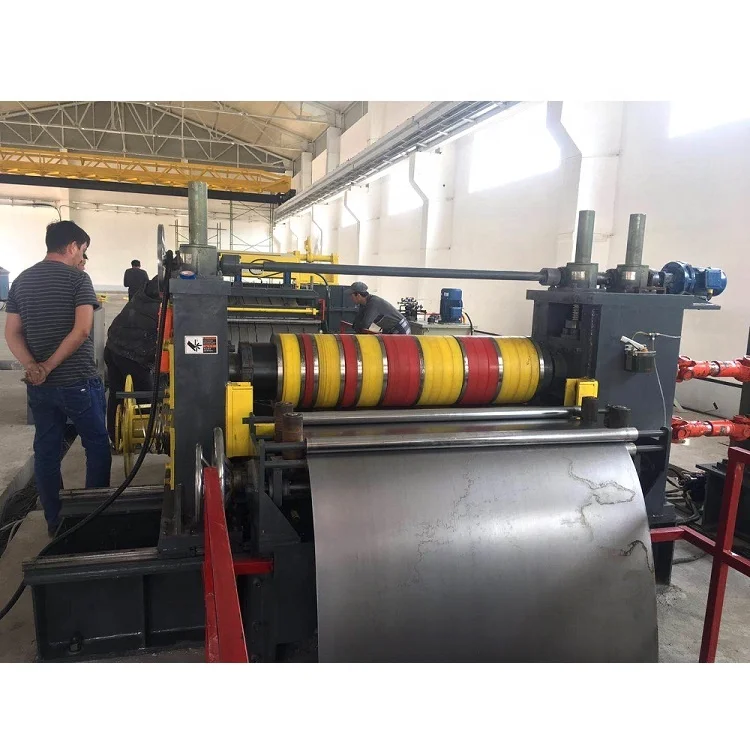

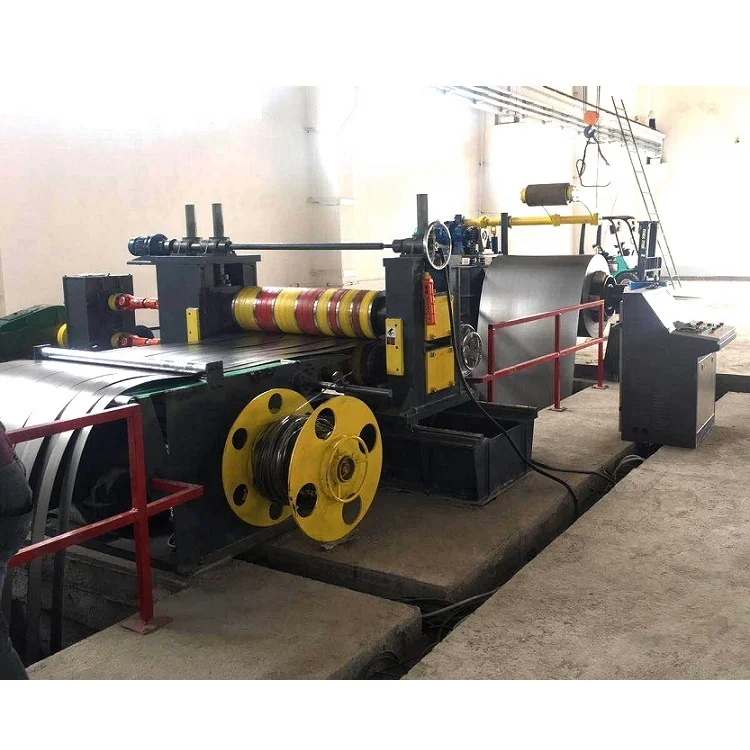

Slitter

Composed of side guide device to achieve positioning strip and stop the jumping of strip, bottom-stand, knife pivot, movable bracket

It is the important part to slit good-quality coil strips

Can slit the different size according as blade adjustment

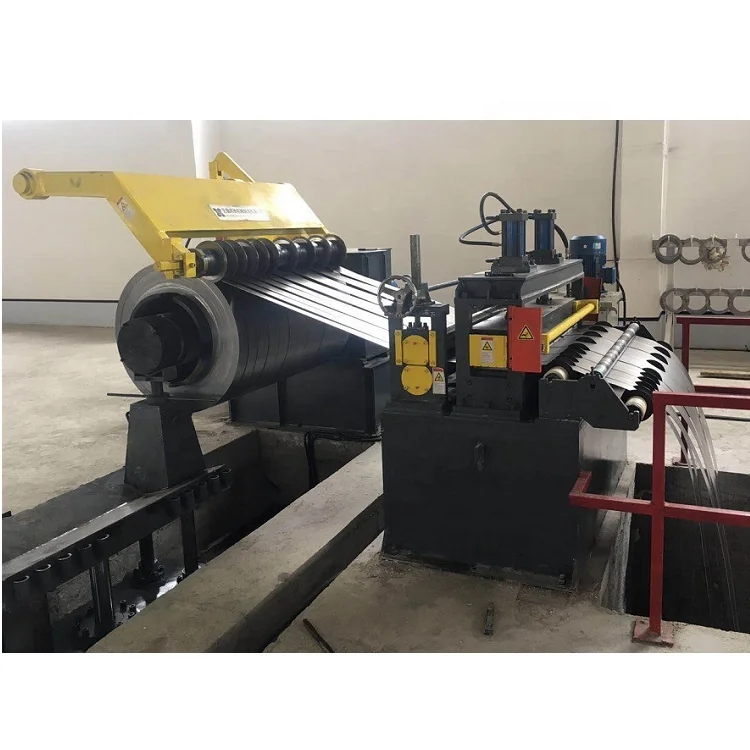

Recoiler

Designed with Overall steel plate cantilever structure

Designed with hydraulic expand and shrink model.

Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.

Product packaging

Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.

After loading to the container,it will be fixed by lifting rope.

Company Profile

WUXI BANGZHOU MACHINERY

We are the manufacturer specialized in steel coil straightening machine, slitting line, cut to length line and flat bar straightening and chamfering machine for about15 years.

It is professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.

Certifications

Customer Photos

Our compnay will attend professional exhibition of this industry every year.

Always welcome to visit our factory.

Customer feedback

We will visit customers periodically to keep good relationship and ask the use sense of machine

Customer feedback

We will visit customers periodically to keep good relationship and ask the use sense of machine

FAQ

What is your advantages?

A1:More than 15 years experience in manufacturing the machines. Professional and humanized .

A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.

A3: Can produce 3-4 lines per month.

Do you have after sales support?

Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.

How to visit your company?

Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport.
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport

What information you need to prepare the quotation?

1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
