Автоматическая Многожильная машина для резки и зачистки проводов с 1 2 3 4 5 6 7 ядер обшитого
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Suzhou,Sanao,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.92 $* | 0.83 $* |
| Aug-16-2025 | 0.63 $* | 0.89 $* |
| Jul-16-2025 | 0.10 $* | 0.98 $* |
| Jun-16-2025 | 0.85 $* | 0.66 $* |
| May-16-2025 | 0.82 $* | 0.64 $* |
| Apr-16-2025 | 0.88 $* | 0.21 $* |
| Mar-16-2025 | 0.69 $* | 0.98 $* |
| Feb-16-2025 | 0.18 $* | 0.11 $* |
| Jan-16-2025 | 0.21 $* | 0.8 $* |
Характеристики
Product Description

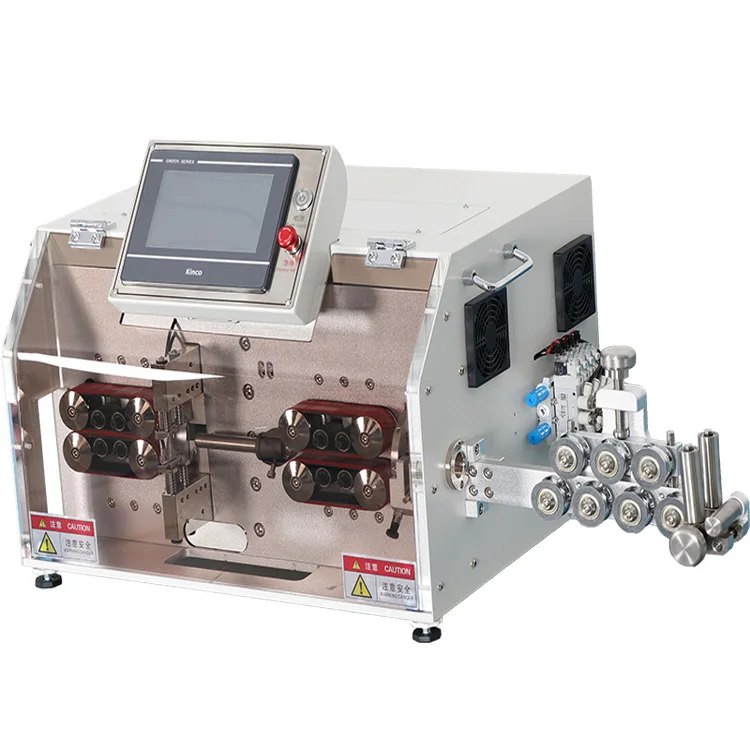

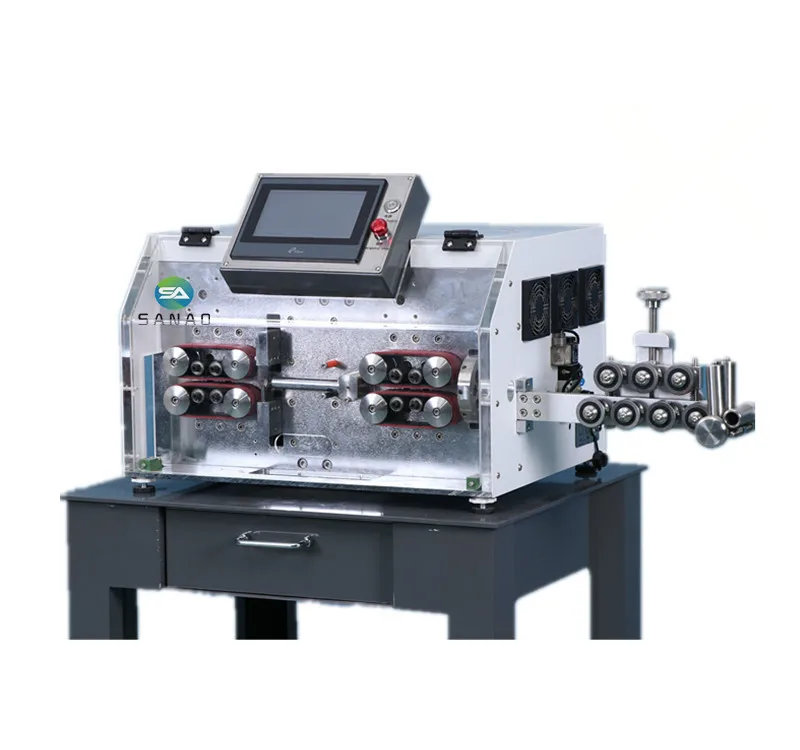

The SA-H03 is designed for multi-cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 7 cores sheathed cable processing.Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.Advantage:
* Belt feeding wires, no embossing and scratches
* Fully automatic cutting and peeling wires and cables
* Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously
* Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm
* Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240MM
* Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
* Belt feeding wires, no embossing and scratches
* Fully automatic cutting and peeling wires and cables
* Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously
* Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm
* Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240MM
Model | SA-H03 | SA-H03-Y |
Conductor Cross-Section | 6-30mm² | 4-30mm² |
Cutting Length | 1-99999mm | 1-99999mm |
Cutting Length Tolerances | ≤(0.002*L) mm | ≤(0.002*L) mm |
Jacket Stripping Length | Head 10-120mm; Tail 10-240mm | Head 1-200mm; Tail 1-120mm |
Inner Core Stripping Length | Head 1-120mm; Tail 1-240mm | / |
Conduit Diameter | Φ16mm | Φ15mm |
Production Rate | Single wire :2300pcs/h Sheath wire :800pcs/h (base on wire and cutting length) | single wire : 2800pcs/h Sheath wire 800pcs/h (base on wire and cutting length) |
Display Screen | 7 inch touch screen | 7 inch touch screen |
Drive Method | 16 wheels drive | 32 wheels drive |
Wire Feed Method | Belt feeding wire, no indentation on cable | Belt feeding wire, no indentation on cable |
Weight | 110 kg | 110 kg |
Detail picture
7-inch English touch screen
The number and parameters can be set arbitrarily.
lifetime use once set , Have save program function .
Very easy operate
16-wheel feeding can't hurt wire
Ensure the smooth cutting and strippingprocess .
16-wheel feeding can't hurt wire
Very stable feeding
High quality tungsten steel blade
Tungsten steel blade is durable with longer service life

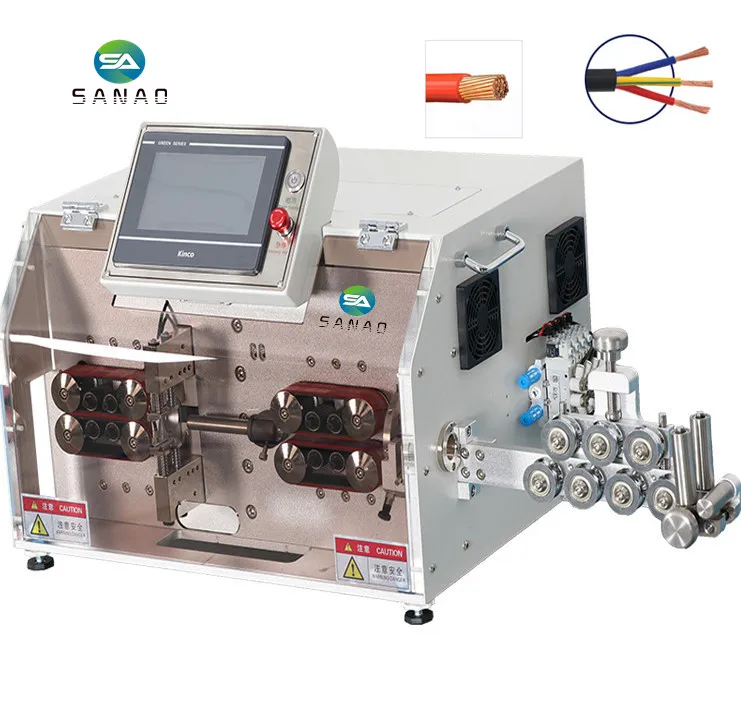

Can custom made blades let stripping effect without burr .SA-H03 wire stripping machine
Designed for multi cable stripping and cutting machine

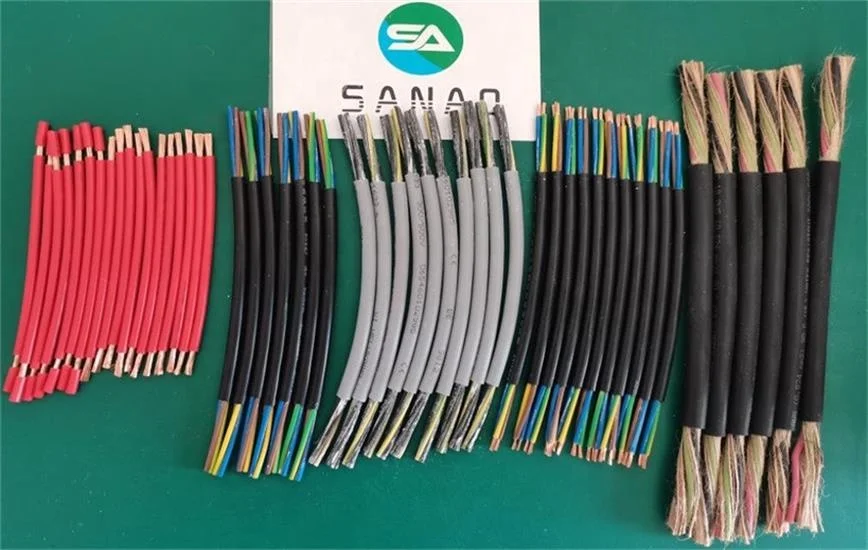

Outer jacket or outer jacket and inner stripping at one time
Packing&Shipping
Company Introduction
Our company is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us.
Our products rang
1 computer cable wire stripping machine
2 Auto. cable terminal crimping machine
3 Cable feeder machine
4 Wire tying machine
After Sales Service
Efficient and professional after-sales service
1.24 hours online service
2. All Machine with English manual and tutorial video .
3.we will arrange profession Engineer to provide Lifetime technical service if you have any question
* Please contact our sales staff that he will provide professional introduction for you
FAQ
Q: What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it
will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can
also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
A: The delivery date is about 5-7 working days after receive the payment.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it
will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can
also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
