Product Description

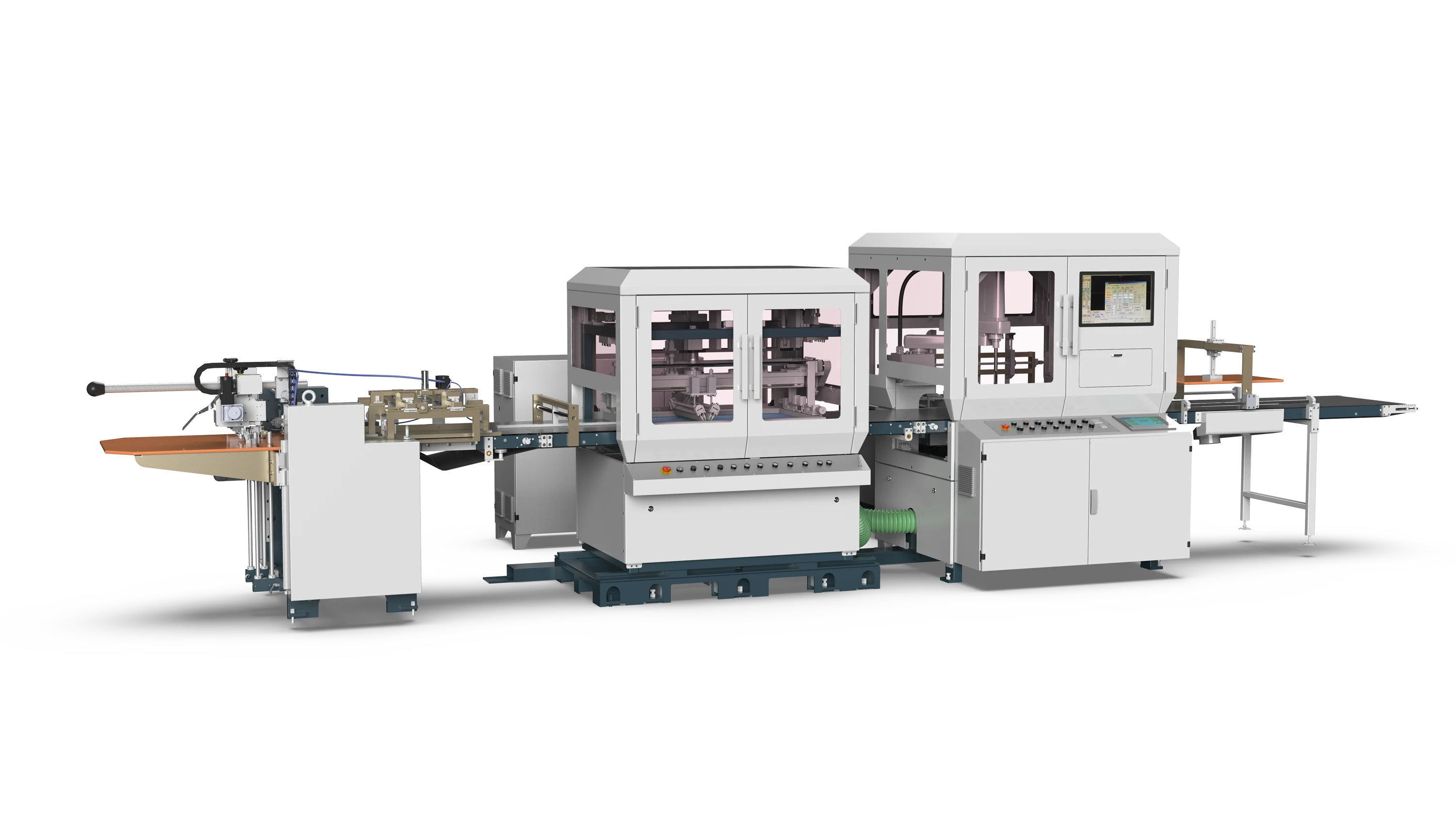

HM-600ES Automatic Screen Glue and Spotter Machine is an automatic equipment with multifunction for high-precision positioning of book cover and premium boxes, it is suitable to all kinds of rigid box positioning process, and all kinds of hard cover positioning process.

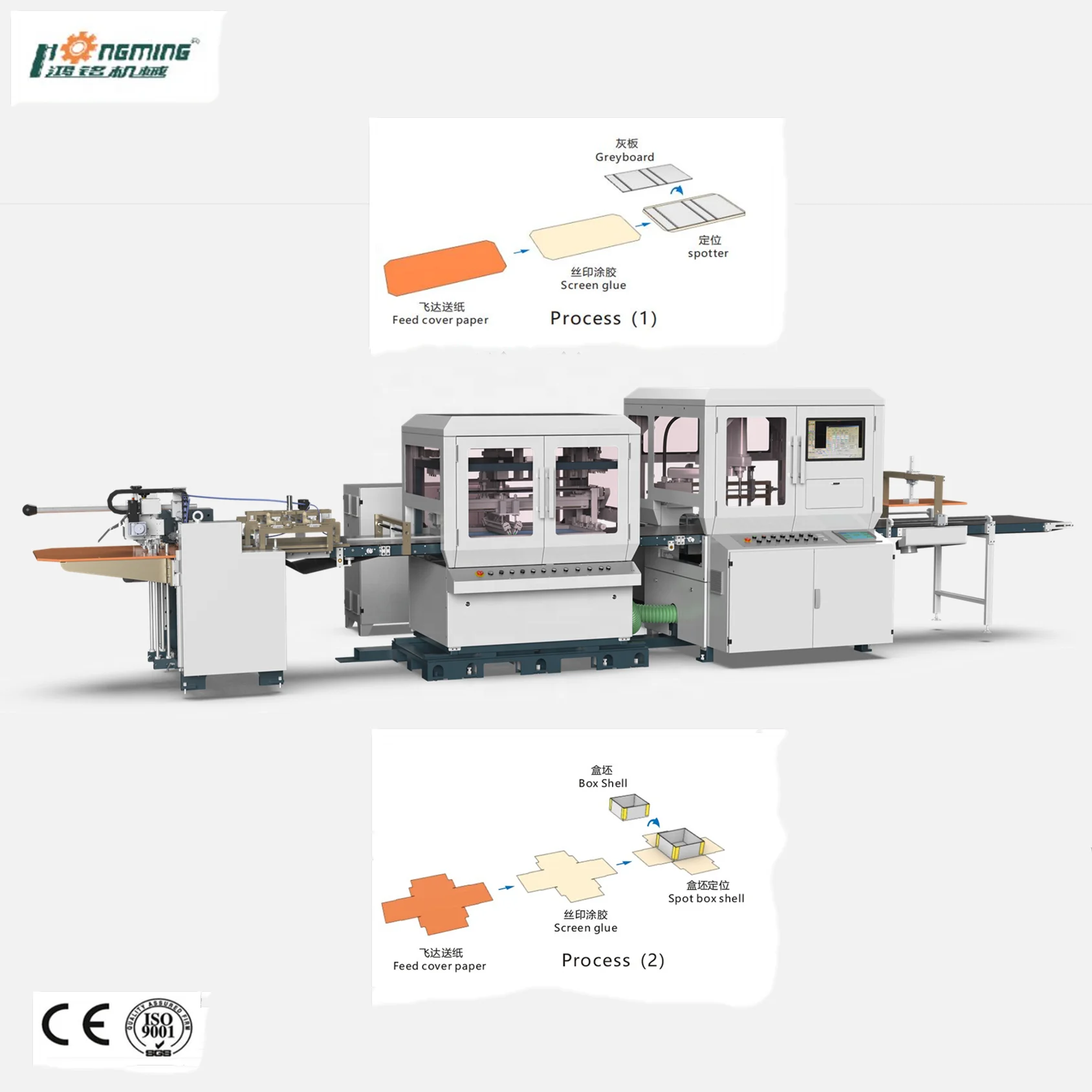

This machine adopts PLC, man-machine control and CCD positioning system, which enable the machine to feed paper, screen glue and spotter the box automatically and fluently. The feeder, screen gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and high efficiency. Reduce height at the same time, easy to operate, screen glue can control the gluing area. The spotting unit adopts camera tracing sysytem and robot arm to pick and spot the greyboard , enhancing the spotting accuracy to ±0.05mm, with even faster speed.
This machine adopts PLC, man-machine control and CCD positioning system, which enable the machine to feed paper, screen glue and spotter the box automatically and fluently. The feeder, screen gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and high efficiency. Reduce height at the same time, easy to operate, screen glue can control the gluing area. The spotting unit adopts camera tracing sysytem and robot arm to pick and spot the greyboard , enhancing the spotting accuracy to ±0.05mm, with even faster speed.
Features and Function
1. Suit to all kinds of rigid boxes positioning process
2. Suit to all kinds of hard cover positioning process
3. Parameter adopts computer digital setting.
4. Automatic feed paper.
5. Adopts servo motor control system.
6. CCD positioning system and robot arm for positioning .
7. Multiple cardboard positioning function (optional)
2. Suit to all kinds of hard cover positioning process
3. Parameter adopts computer digital setting.
4. Automatic feed paper.
5. Adopts servo motor control system.
6. CCD positioning system and robot arm for positioning .
7. Multiple cardboard positioning function (optional)
Specification

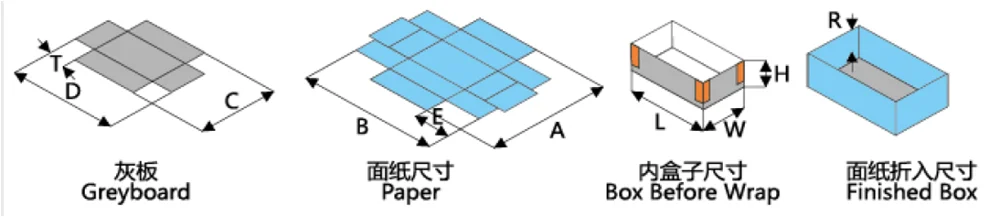

Model | HM-ZD600ES | ||
Greyboard Size (D=Length, C=Width) | D(Max) | 800mm | |
D(Min.) | 120mm | ||
C(Max.) | 500mm | ||
C(Min,) | 80mm | ||
Paper Size B=Length, A=Width | B(Max.) | 600mm | |
B(Min.) | 180mm | ||
A(Max.) | 550mm | ||
A(Min.) | 95mm | ||
Box Shell Size (L=Length W=Width H=Height) | L(Max.) | 500mm | |
L(Min.) | 120mm | ||
W(Max.) | 400mm | ||
W(Min.) | 50mm | ||
H(Max.) | 190mm | ||
H(Min.) | 12mm | ||
Air Supply | 100L/min, 0.8MPa | ||
Speed | ≤30pcs/min | ||
Total Power/Voltage | 11kW/AC380V | ||
Power Consumption | 3kW/h | ||
Net Weight | 1900kg | ||
Machine Dimension | 7400 x 2560 x 1835mm | ||
Packing & Delivery
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
