Индукционные нагревательные конденсаторы RFM 0 75-1000-1S безопасный прочный
- Категория: Passive Components >>>
- Поставщик: Luoyang,Ruixinsheng,Industrial,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.68 $* | 0.56 $* |
| Aug-16-2025 | 0.58 $* | 0.57 $* |
| Jul-16-2025 | 0.1 $* | 0.83 $* |
| Jun-16-2025 | 0.42 $* | 0.34 $* |
| May-16-2025 | 0.13 $* | 0.27 $* |
| Apr-16-2025 | 0.55 $* | 0.36 $* |
| Mar-16-2025 | 0.63 $* | 0.39 $* |
| Feb-16-2025 | 0.3 $* | 0.55 $* |
| Jan-16-2025 | 0.55 $* | 0.10 $* |
Характеристики
Products Description
Electric heating capacitor
Electrothermal capacitors are mainly used in induction heating systems to improve power factor or improve loop characteristics.It is mainly used in controlled or adjustable ac power systems with rated voltages not greater than 3.6kV and frequencies ranging from 40 to 24000Hz to improve the power factor of induction heating, melting, stirring or casting devices, and similar applications
Electric heating capacitor is mainly composed of core and shell, which isfilled with high quality macerating agent, core is welded with cooling water supply container for cooling.
Product Paramenters
Name | Electric heating capacitor |
Rated voltage | ≤3.6kv |
Rated Frequency | ≤30HZ |
Water Volume: | ≥6L/min |
Inlet temperature of cooling water | ≤30℃ |
Out let temperature of cooling water | ≤45℃ |
No. | model | Rated voltage (KV) | Rated Capacity (KVar) | Frequency KHz | Rated Capacitance |
1 | RFM40.25-500-3S | 0.25 | 0.25 | 3 | 424.4 |
2 | RFM20.375-1000-8S | 0.375 | 1000 | 8 | 141.5 |
3 | RFM20.5-180-1AF | 0.5 | 180 | 1 | 114.6 |
4 | RFM20.65-1000-20S | 0.65 | 1000 | 20 | 18.8 |
5 | RFM20.5-400-40S | 0.5 | 400 | 40 | 6.366 |
6 | RFM20.5-640-20S | 0.5 | 640 | 20 | 20.37 |
7 | RFM50.65-1000-0.5S | 0.65 | 1000 | 0.5 | 753.4 |
8 | RFM30.65-1000-1S | 0.65 | 1000 | 1 | 376.7 |
9 | RFM30.65-1000-8S | 0.65 | 1000 | 8 | 47.09 |
10 | RFM20.75-160-8SB | 0.75 | 160 | 8 | 5.659 |
11 | RFM20.75-250-2.5S | 0.75 | 250 | 2.5 | 28.29 |
12 | RFM20.75-360-1S | 0.75 | 360 | 1 | 101.9 |
13 | RFM20.75-360-50S | 0.75 | 360 | 50 | 2.037 |
14 | RFM20.75-560-4S | 0.75 | 560 | 4 | 39.61 |
15 | RFM20.75-640-8S | 0.75 | 640 | 8 | 22.64 |
16 | RFM30.75-720-1S | 0.75 | 720 | 1 | 203.7 |
17 | RFM320.75-720-1S | 0.75 | 720 | 1 | 203.7 |
18 | RFM30.75-750-0.5S | 0.75 | 750 | 0.5 | 424.4 |
19 | RFM40.75-1000-0.5S | 0.75 | 1000 | 0.5 | 565.9 |
20 | RFM320.75-1000-1S | 0.75 | 1000 | 1 | 282.9 |
Relevant Issues
Service Conditions
service conditions
A.Indoor use:altitude less than 1000m;
B.No vioent mechanical vibration,no harmful gas and vapor,no explosive dust in location;
C.Temperature of cool flowing in less 30℃ .Flowing water volume of capacito less 1000K var not less than 4L per min.1000Kvar or more than norless than 6L per min．
D.Long term over voltage(less 4 hours within 24)lessl.1 Un,long term over current(including harm onic current)less 1.35In.
B.No vioent mechanical vibration,no harmful gas and vapor,no explosive dust in location;
C.Temperature of cool flowing in less 30℃ .Flowing water volume of capacito less 1000K var not less than 4L per min.1000Kvar or more than norless than 6L per min．
D.Long term over voltage(less 4 hours within 24)lessl.1 Un,long term over current(including harm onic current)less 1.35In.
E.No vibration is allowed in the installation of the capacitor. It is allowed to install the capacitor close to the heater. However, the capacitor shall be enclosed or placed in a separate metal cabinet with a non-burning material as a compact partition.

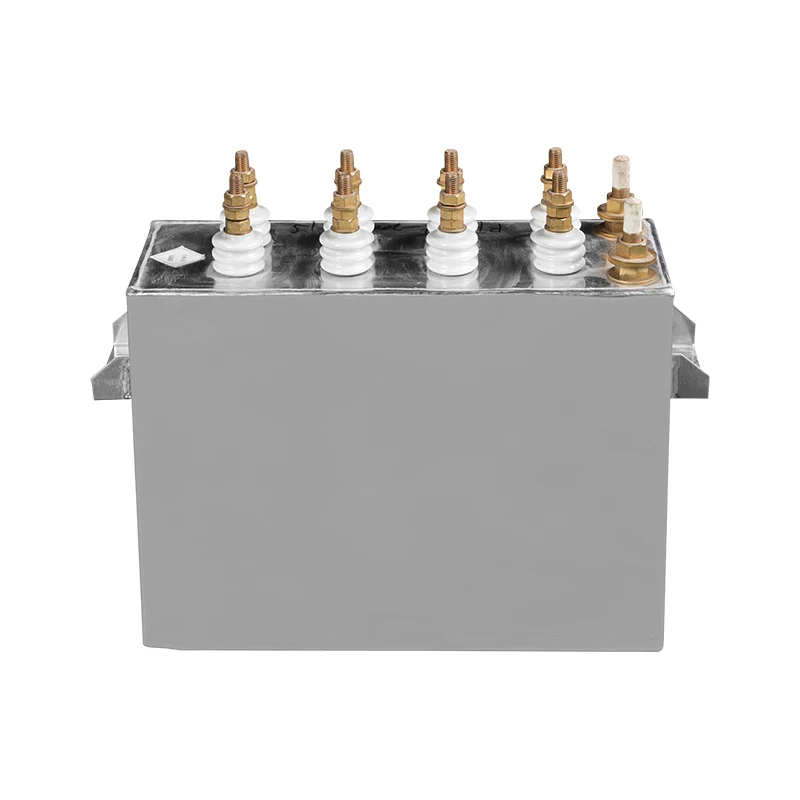

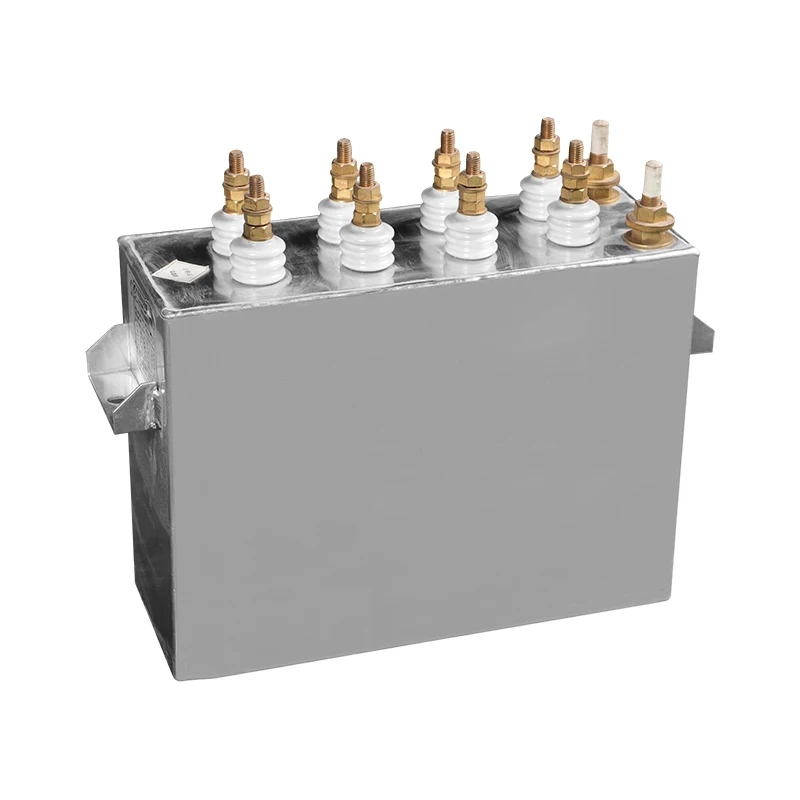

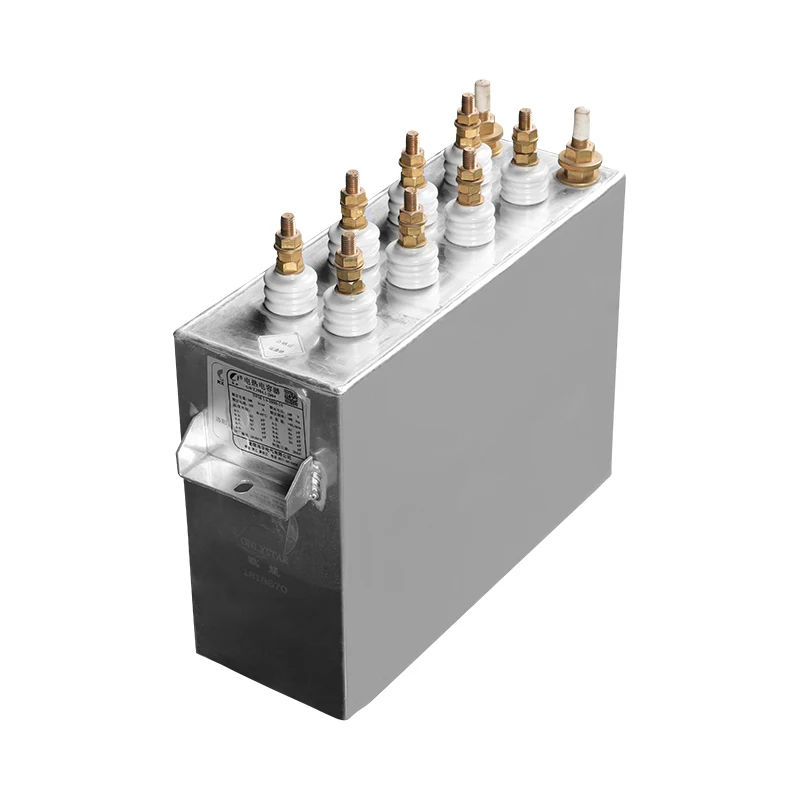

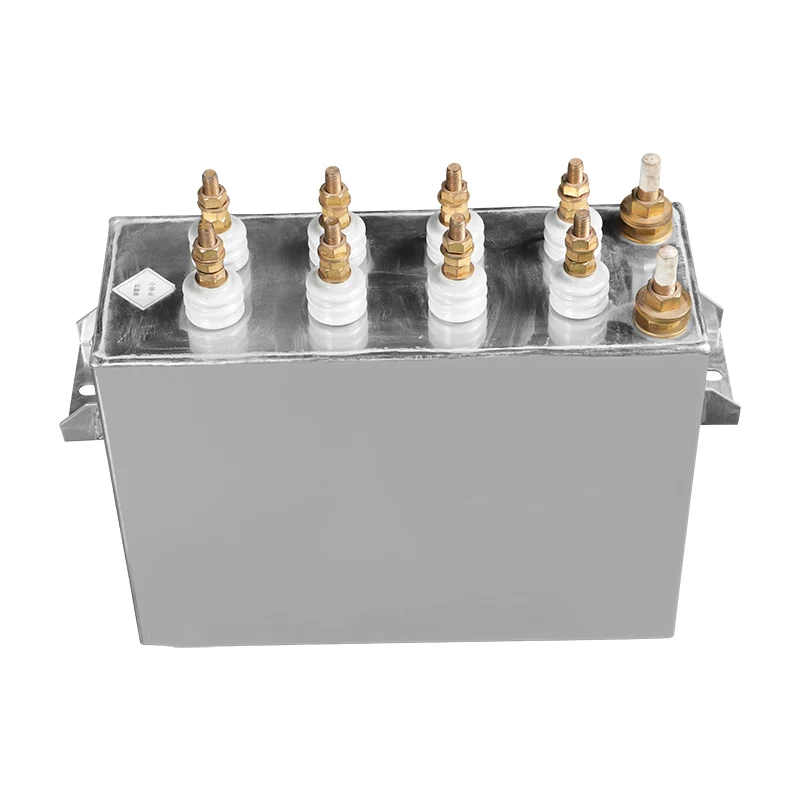

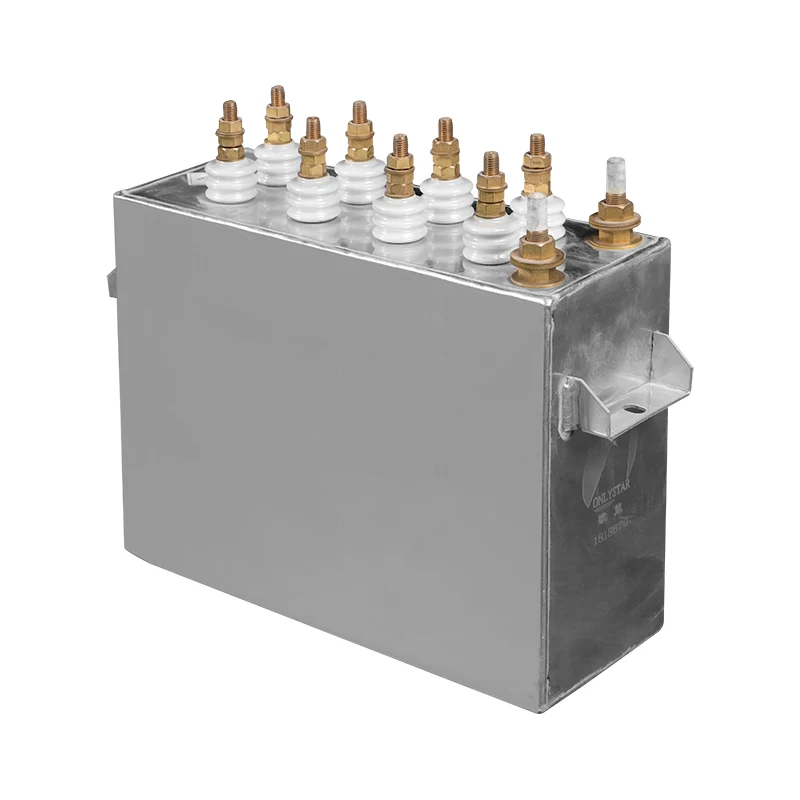

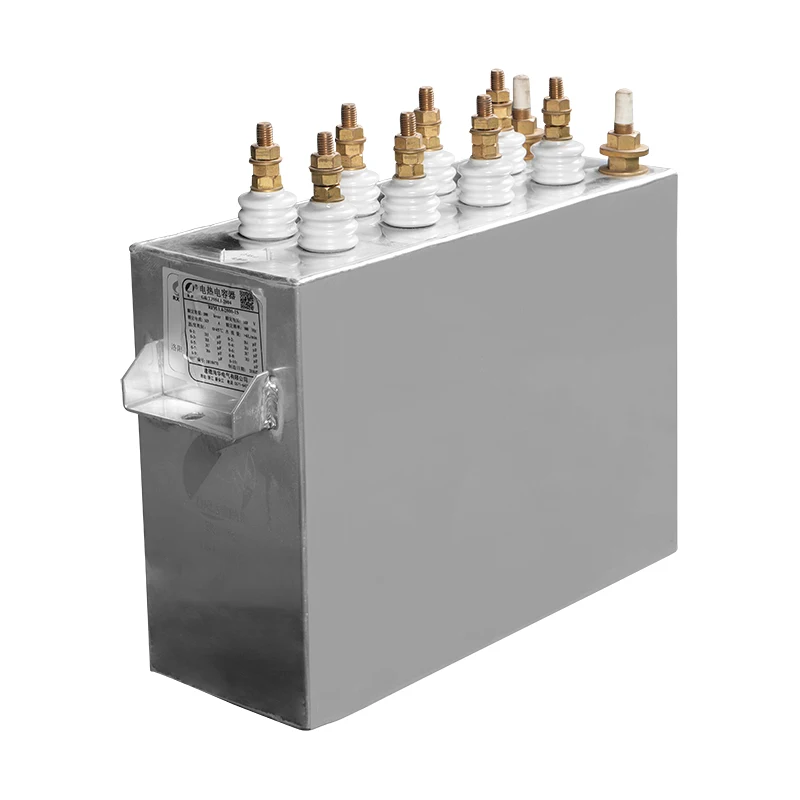

Details Images
Packing & Delivery
Packing: Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.
Ship: By sea/air/train/car
Lead Time :
Quantity(Set) | 1 | >1 |
Est. Time(days) | 15 | To be negotiated |
About Us
Series resonant dual-supply induction melting furnace and parallel resonant induction melting furnace independently researched anddeveloped by the company, no matter in the power saving rate, melting rate, stability or humanization of the operation, it is in the leading position in the industry, and has been well received by users.
Specialized advanced technology and excellent equipment manufacturing are our company's characte-ristics. Metal induction smelting and induction heating industry is our service target. At present, our mature products include: 0.25t-40t intermediate frequency smelting, heat preservation, heat treatment, quenching and other series rectifier and series inverter equipment.
