Потенциометр b10k 3590 S Bourns
- Категория: Passive Components >>>
- Поставщик: Tong,Yue,Xin,Commercial,And,Trading,Co.,Ltd.,(Chengdu)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.28 $* | 0.64 $* |
| Aug-15-2025 | 0.36 $* | 0.42 $* |
| Jul-15-2025 | 0.59 $* | 0.69 $* |
| Jun-15-2025 | 0.17 $* | 0.17 $* |
| May-15-2025 | 0.5 $* | 0.59 $* |
| Apr-15-2025 | 0.62 $* | 0.34 $* |
| Mar-15-2025 | 0.50 $* | 0.16 $* |
| Feb-15-2025 | 0.25 $* | 0.44 $* |
| Jan-15-2025 | 0.45 $* | 0.91 $* |
Характеристики
Precision Multiturn Wirewound Potentiometers 3590 1K 2K 5K 10K 20K 50K 100K 100R 200R 500R 50 100ohm， Potentiometer WXD3590 WXD3590S 3590S-2-102 3590S-2-103L 3590S-2-104 3590S-2-104L 3590S-2-104LF 3590S-2-202L 3590S-2-203L 3590S- 2-502L 3590S-2-503L
Product Description

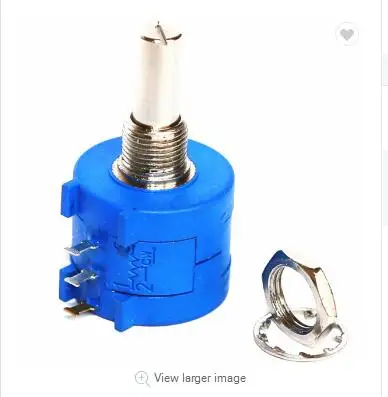

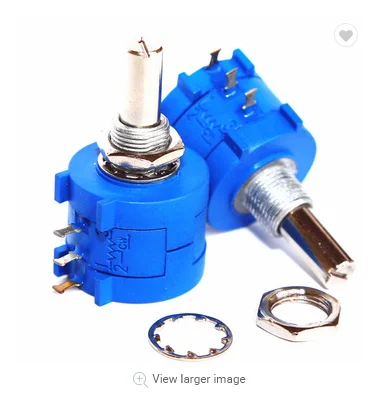

Wirewound Potentiometer 3590S
This is the precision multi-turn wire wound potentiometer 3590 series models have 3590S-2-102 3590S-2-103L 3590S-2-104 3590S-2-104L 3590S-2-104LF 3590S-2-202L 3590S-2-203L 3590S- 2-502L 3590S-2-503L, WXD3590 potentiometer resistance value 1K 2K 5K 10K 20K 50K 100K 100 1000 ohm, 3590S potentiometer with 10 turn dial knob and without knob, rated power 2W, our potentiometer WXD3590S adopts High-quality material, high precision, long service life, support customization, you can take samples, welcome to consult and place an order.
Electrical Characteristics
Resistance tolerance:±2%, ±5%
Terminal resistance:≤±0.2%R or 5Ω
Peak Noise:≤100Ω
Insulation resistance:≥ 200MΩ (100V AC)
Withstand voltage:500V (DC or AC peak value)
Electrical angle:3600° ± 10 °
Environment Characteristics
Rated power:2W ( 300V 70 °C )
Temperature range: -55°C~+125°C
TCR:±100×10-6/°C
Collision (390m/S2, 4000 times):ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h):ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles):ΔR≤±2%R,
ΔUab/Uac≤±2%R
Climate category (IEC68-2-2):ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (2W, 1000h):ΔR≤± 3%R
Mechanical endurance (200 cycles):ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Temperature range: -55°C~+125°C
TCR:±100×10-6/°C
Collision (390m/S2, 4000 times):ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h):ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles):ΔR≤±2%R,
ΔUab/Uac≤±2%R
Climate category (IEC68-2-2):ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (2W, 1000h):ΔR≤± 3%R
Mechanical endurance (200 cycles):ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Physical Characteristics
Total mechanical travel:3600° ± 10 °
Rotational torque:2-10mN.m
Standard package:50 pcs /box
Rotational torque:2-10mN.m
Standard package:50 pcs /box

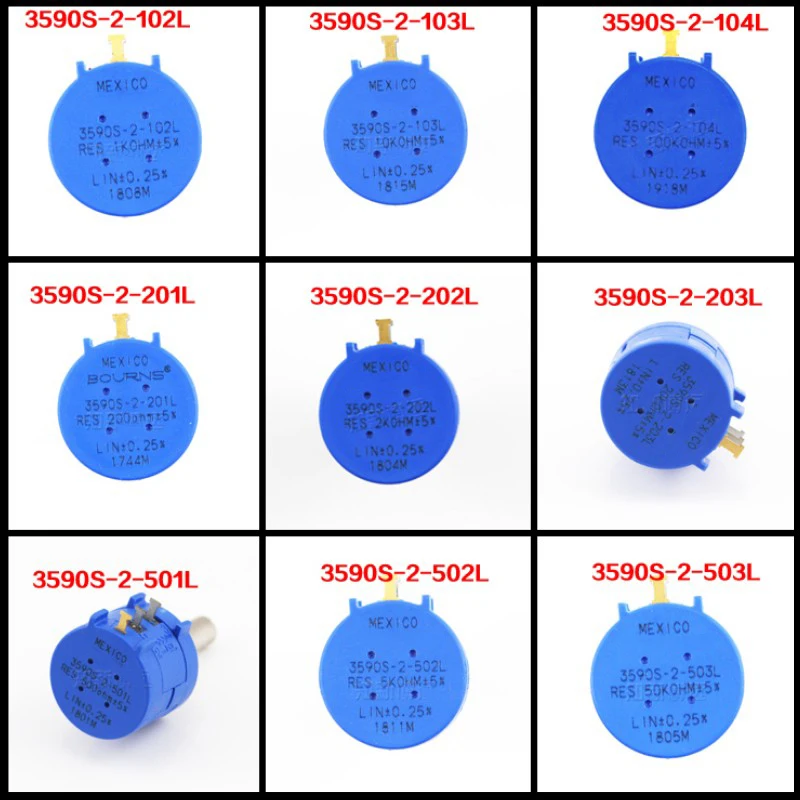

Precision Multiturn Wirewound Potentiometer 3590S Specifications
3590S-2-102L \\ 3590S-2-103L \\ 3590S-2-104L \\ 3590S-2-201L \\ 3590S-2-202L \\ 3590-2-202L \\ 3590S-2-203L \\ 3590S-2-501L \\ 3590S-2-502L \\ 3590S-2-503L

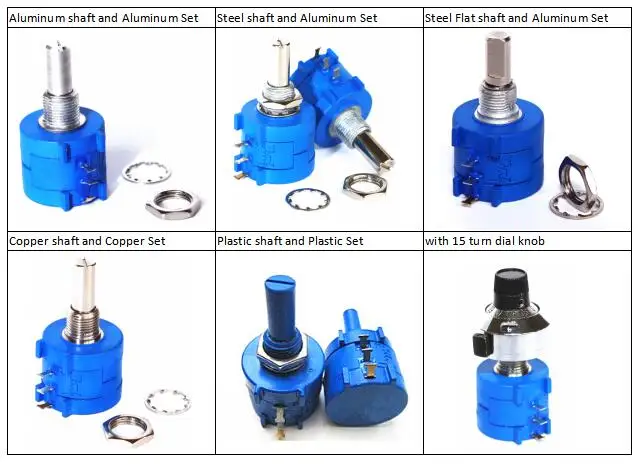

Potentiometer 3590S shaft.
The potentiometer 3590S shaft has two materials: stainless steel metal shaft and plastic shaft, there are M-shaped shaft, U-shaped shaft, T-shaped shaft. For details, please contact customer service
3590S Wirewound Potentiometer Knob
Wirewound potentiometer 3590S shaft diameter 6.3mm can match 10 turn dial knob

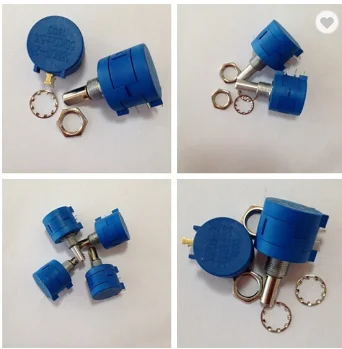

product details
Stainless steel shaft
Wire wound potentiometer 3590S shaft adopts stainless steel shaft, anti-rust and wear-resistant, long service life
Pure copper pins silver plated contacts
Using pure copper pin silver contacts, good conductivity, high precision and long service life
Specification
Electrical Characteristics | Range of nominal resistance | 100Ω~100KΩ |
Resistance tolerance | ±2%, ±5% | |
Terminal resistance | ≤±0.2%R or 5Ω | |
Peak Noise | ≤100Ω | |
Insulation resistance | ≥ 200MΩ (100V AC) | |
Withstand voltage | 500V (DC or AC peak value) | |
Electrical angle | 3600° ± 10 ° | |
Environment Characteristics | Rated power | 2W ( 300V 70 °C ) |
Temperature range | -55°C~+125°C | |
TCR | ±100×10-6/°C | |
Collision (390m/S2, 4000 times) | ΔR≤±1%R | |
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |
Electrical endurance (2W, 1000h) | ΔR≤± 3%R | |
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m | |
Physical Characteristics | Total mechanical travel | 3600° ± 10 ° |
Rotational torque | 2-10mN.m | |
Standard package | 50 pcs /box |

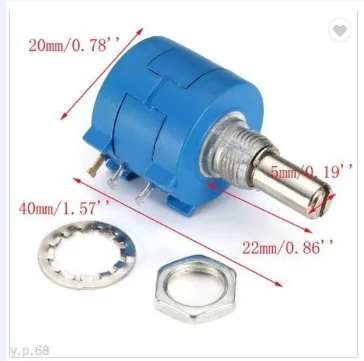

Dimensions
Packing & Delivery
Wirewound potentiometer 3590S is packed in carton, 50 pcs/box, 12 boxes/carton
Generally, it will be shipped within 3-5 working days after receiving the full payment (the specific delivery time depends on the order quantity and requirements)
