Характеристики
Product Description
Plastic Vacuum Forming Machine Heatfloor Foam Laminating
It is used for the second forming of PET, PS, PP. PC, PVC. HIPS,Flocking sheet and so on. Leading design effectively solve the problems such as air leakage during forming, deviation of the zipper pulls, thickness asymmetry of the products. So it can reduce the rejection rate of some complex products.

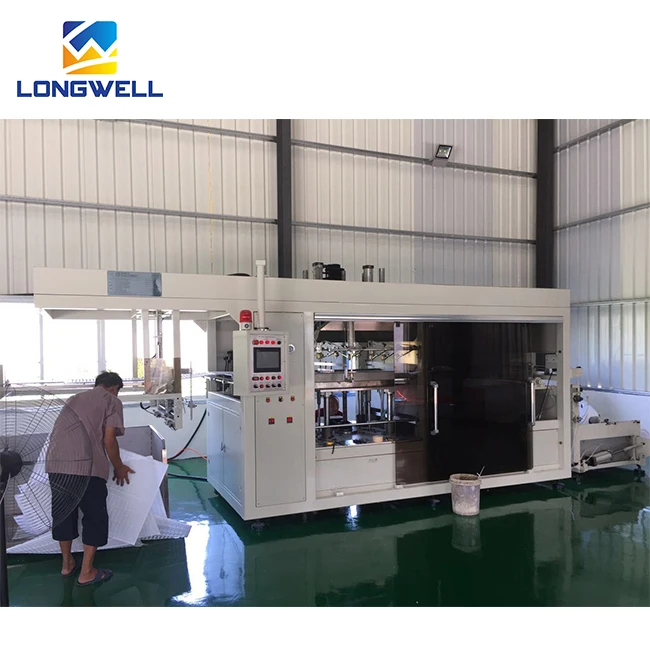

Technical Data of High speed semi-automatic plastic thermoforming vacuum machine | ||
Forming Length | 600-1200mm | |
Forming Width | 420-710mm | |
Upper Mold Travel | 450mm | |
Lower Mold Travel | 350mm | |
Max Base Plate | 350mm | |
Production Speed | 10-25 second/cycle | |
Max Heating Power | 45kw | |
Air Discharge Volume | About 2 m3/h, 6.5-8kg | |
Foam Placement Baseplate | 1200*710mm | |
Power Supply | 3*380V+N+PE, 50Hz | |
Dimension | 7500*2000*2600mm | |
Weight | 4000KG | |
Special Requirments Can Be Negotiable | ||
Improve production efficiencyandquality
Microcomputer temperature control andheating system working with highprecision servo zipper pulls system,which improve the production efficiencyandquality requirements.
- Multi-step controllable boostmakes the forming processmuch better.
The machine use servo system withthe drive system of both upper andlower die
Features
1. Using advanced plastic vacuum forming technology, with classic upper and lower mold structure and uniqueadvantages of the vacuum system.
2. Heating system: 60 pieces of 650W 230, 240V infrared ceramic heating elements, heating module and PLC (one control one), sealed design for heating, faster heating on four sides, stainless steel sheet metal, permanent and durable.
3.the temperature control system adopts the phase-shifting temperature control module and industrial touch tablet computer, a
thermocouple to monitor the temperature and fit the temperature field. PES controls the temperature through the phase-shifting
output, realizes the intelligent detection and control of the temperature, and has the function of storage and memory.
thermocouple to monitor the temperature and fit the temperature field. PES controls the temperature through the phase-shifting
output, realizes the intelligent detection and control of the temperature, and has the function of storage and memory.
4. Automatic feeding system to reduce the labor intensity, hanging electric cutting method for quick conversionof semi-finished products.
5. The whole unit is controlled by PLC with color touch display operation and file backup function.
Application
It is suitable for PVC, HIPS, PP, PET and other thermoplastic sheet, it can produce a variety of boxes,trays, disks, covers and other plastic packaging products.

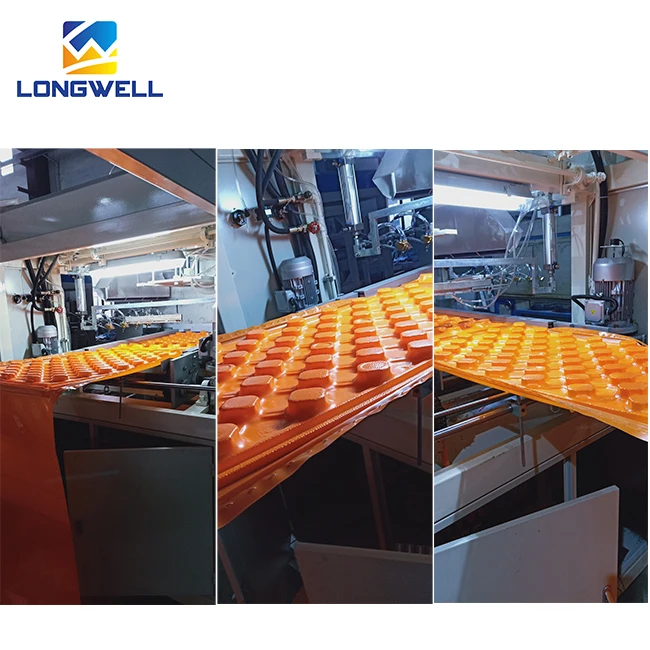

And it also can be used for laminating process of heating underfloor foam plate.
Company information
Hangzhou Fuyang Longwell Industry Co.,Ltd has focused on top quality EPS machines & relevant equipment, With 20 years' experience in EPS industry.
Longwell Industry insist on cooperating with customers, offers one-stop services, including factory checking, machines selection, production arrangement, production tracking, before-delivery inspection, load-container checking, document confirmation and after-sales service. Timely report is given to clients for all details. so as to improve working efficiency, competitiveness and realize mutual benefits.
EPS pre-expander
1. Full automatic and continuous production.
2. Controlled by touch screen and PLC, easy to operate.
3. High output and save energy.
4. Stable quality and less.
EPS shape machine
1. Controlled by PLC and touch screen, easy to operate.
2. With vacuum system creates fast product molding and cooling, while decreasing water content.
3. With multiple de-molding device, it can handle any difficult to de-mold product.
EPS block machine
1. All block mold frames are treated by heat-treatment to ensure strength.
2. Taiwan original hydraulic station and all good quality parts.
EPS mould system
1. Made of high quality aluminum material, and mould frame is made by extruded aluminum alloy profile, strong and long lasting.
2.Processed by CNC machines, mould sizes are precise.
3. All cavities and cores coated by Teflon.
Production Process: whole advanced processing equipment, every procedure under quality control.
Projects in clients' factories
LONGWELL at Exhibitions
Packing & Delivery
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Hangzhou station
By truck from Kashgar, Urumuqi or other checkpoint
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Other payment terms can also be negotiated.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
