Характеристики





Note: This quotation is a custom deposit, which can be customized according to customer requirements, please contact the salesperson for details.


Product Description








Specification


Name
3d letteis light box acrylic sign vacuum thermoforming machine
maximum forming height
300 mm
Size of material
1220 * 2440 mm
Maximum product size
1040 * 226 mm
Voltage
380 v / 220 v 50hz
Power
22 KW
Weight
800 kg
Suitable material
acrylic /pvc/ abs /ps/pp/ pet

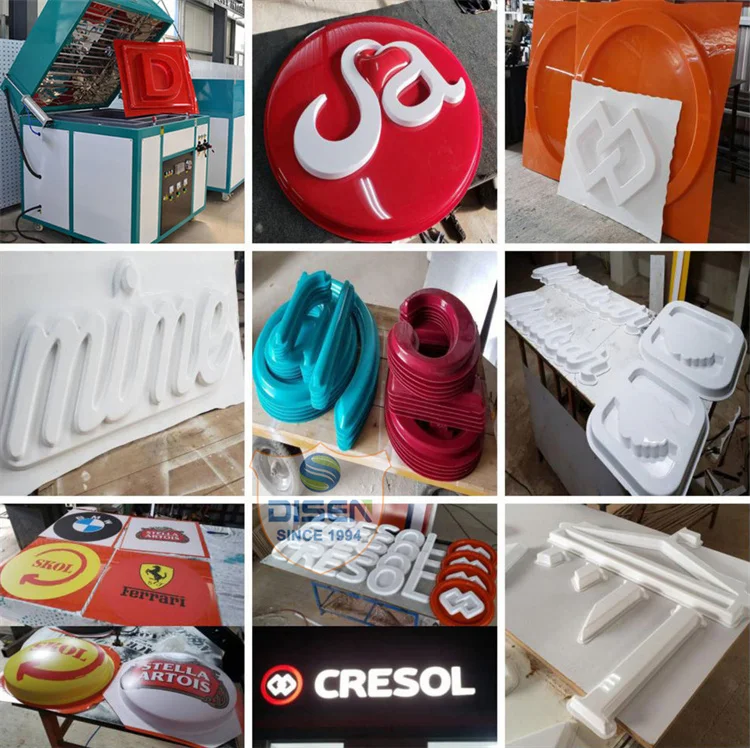

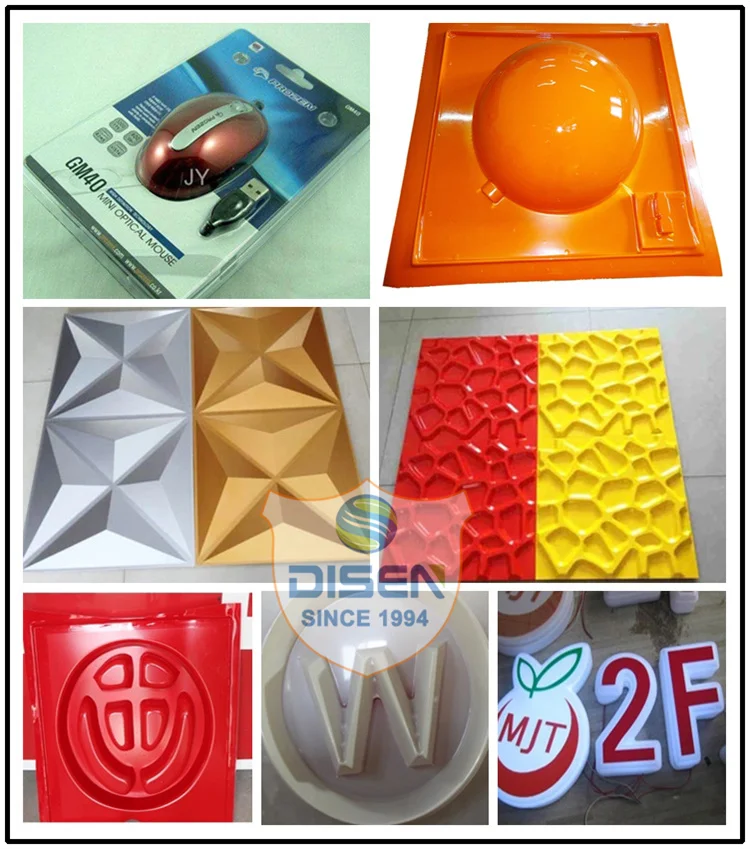

 Application Industry and material :
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.

Feature:
1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2. Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.
4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.
6.More powerful vacuum pump , finish vacuum forming sample more beautiful
7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is stronger and the forming effect is better.
8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.

Other Model Parameter:


Model
DSA-FB6060
DSA-FB1212
DSA-FB1218
DSA-FB1224
DSA-FB2030
Working area(mm)
600* 600
1200*1200
1200*1800
1200* 2400
2000*3000
Forming area(mm)
540* 540
1040* 1040
1040*1640
1040*2240
1840*2840
Power
3.6KW
9KW
18 KW
22 KW
30 KW
Max forming height(mm)
200
300
300
300
300
voltage
380V or 220V
380V
380V
380V
380V
Vacuum pump output
20m3/h
60m3/h
60m3/h
60m3/h
100m3/h
Frequency
50-60HZ
Machine size(mm)
930*950*1300
1670* 1550* 1650
2273* 1550*1650
2873* 1550*1657
3534*2350*1650
