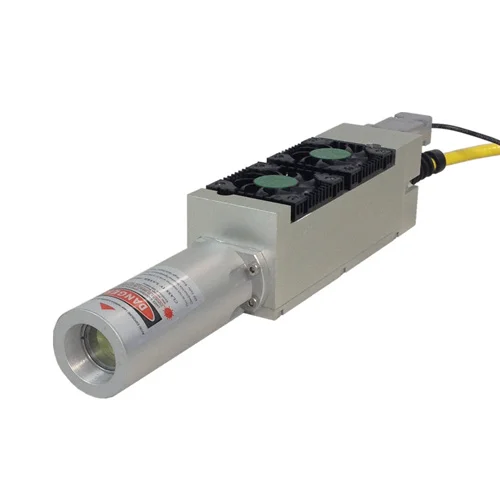

ИК импульсный маркировочный лазерный источник 10 Вт 1064


Поделиться:


Цена:760,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 904.78 $* 949.67 $*
Aug-15-2025 897.99 $* 942.13 $*
Jul-15-2025 752.59 $* 790.56 $*
Jun-15-2025 882.97 $* 926.48 $*
May-15-2025 768.80 $* 806.21 $*
Apr-15-2025 866.65 $* 909.29 $*
Mar-15-2025 859.94 $* 902.33 $*
Feb-15-2025 851.98 $* 894.12 $*
Jan-15-2025 844.19 $* 886.21 $*

Характеристики



Product Description


FL-1064-10w DPSS lasers have the advantages of high peak power, narrow pulse duration <6ns and compact dimension, these lasers are widely used in laser process technology, such as rapid laser shaping, laser welding, laser cutting, laser drilling, laser marking, laser weight adjusting balance, laser etching, laser trimming, laser cleaning, laser heat-treatment and surface treatment.

We can also provide other power marking laser source, such as FL-1064-4w, F-1064-6w, FL-1064-8w.



Features

55kW peak power, higher than ordinary fiber laser marking machine.

7ns short pulse duration, short acting time, low heat effect.

Small volume can match with market mainstream rack.

Scientific research quality standard, <1% power stability.

Industrial product flow, 12 quality inspection procedures, stable and reliable product quality.



Specifications


 Specifications for 1064nm Laser for marking metal
Wavelength (nm)
1064±1
Work pattern
Q-switched
Model
FL-1064-10W
FL-532-3W
Average output power (W)
~10W
~6W
Pulse width (ns)
~7ns
~8ns
Peak power (kW)
~50kW
Pulse repetition rate (kHz)
~25kHz
Power stability (rms, over 8 hours)
<1%,<2%,<3%,<5%
Transverse mode
TEM00
Beam divergence, full angle (mrad)
<1.2mrad
<2mrad
Beam diameter at aperture (mm)
~8.0mm
Beam height from base plate (mm)
16.5mm
Operating Temp. (℃)
0~35℃
Laser head size
297(L)× 45(W)× 53.8(H) mm3, 0.7 kg
Power supply(12VDC)
PSU-FL-FDA (12V/25A DC ) Portable power supply 253(L)×242(W)×100(H) mm3, 3.6kg 
Expected lifetime (hours)
20000
Warranty
1year


Marking Samples




Illumination Steel Bearing Lens


Certifications




Company Information


    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and good laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our convenient and rapid service.
