Головка galvo SG7110 с быстрым сканированием и двойным правым светом головка для волоконной лазерной маркировочной машины


Поделиться:


Цена:350,00 $ - 400,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 417.57 $* 438.57 $*
Aug-15-2025 413.12 $* 434.5 $*
Jul-15-2025 347.72 $* 364.35 $*
Jun-15-2025 406.30 $* 426.95 $*
May-15-2025 354.99 $* 372.40 $*
Apr-15-2025 399.62 $* 419.26 $*
Mar-15-2025 396.65 $* 416.83 $*
Feb-15-2025 392.77 $* 412.57 $*
Jan-15-2025 389.72 $* 408.25 $*

Характеристики

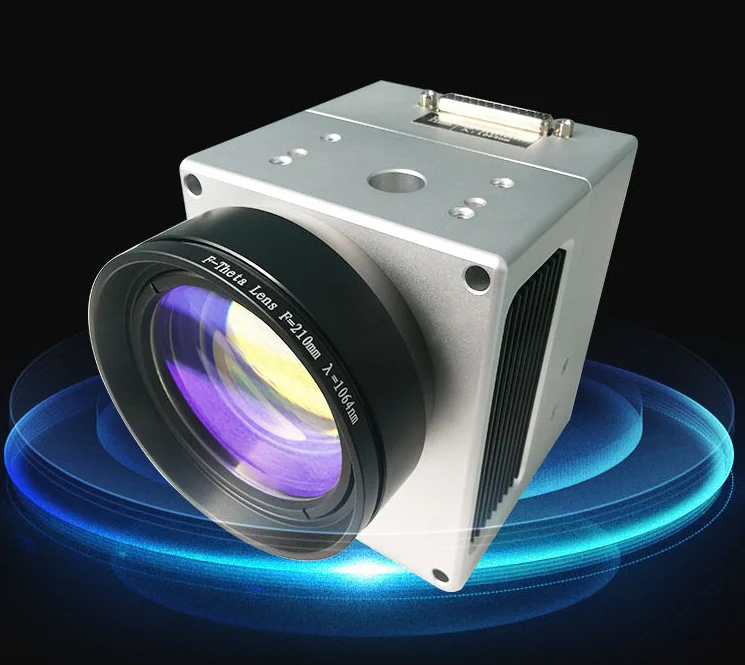

Galvo head SG7110 galvo head for fiber laser marking machine galvo scanner



Product Description











Features:

1. Cost effective high speed galvo scanner. 2. High Speed Scanning, Precise Positioning and Stable Performance. 3. Zero Drift, Small Size and Strong Anti-Interference. 4. Extensive application: Laser deflection and two-dimensional localization,etc.











































































Working temperature


0℃-45℃


Linearity


99.90%


small step response time


≤0.5ms


Proportional drift


<40PPM/℃


Zero drift


<15μRad./℃


Long time drift (8 hours continuous work)


<0.5mRad


Average working current


2.0A


Peak current


15A (Max)


Maximum scanning angle


±15°


Storage temperature


-10 to +60°


Resolution


12μRad.


Repeatability


8μRad


Input aperture


10.0mm


beam displacement


13.5mm


Weight


120g


Frequency


≤700Hz










































Input voltage


±15VDC


Signal interface


Digital (XY2-100)


Input voltage


±15VDC


Position signal input impedance


1KΩ±1%


Position signal input scale factor


0.33V/°


Position signal output scale factor


0.33V/°


Working temperature


0℃-45℃


Driver board size (length×width×height)


75×50×28mm












Packaging & Shipping


 shipmentwhy choose us





Company Information


 Shandong Magick Intelligent Technology Co.,Ltd is a manufacturer specialized in laser marking machines, laser engraving machines,laser cutting machines . At present, we have a young and experienced team,first-class technical center and a professional production base.We have established long and stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing.Technology and innovation is always our focus.We have always been striving to promote the quality and technological innovation of our products. Magick products always give wonderful experience to the customers and we hope to cooperate with the customers from all over the world.Welcome to visit us!
