Характеристики
Product Description
This plastic recycling granulator machine is mainly used for crushing, cleaning and drying of HDPE/LDPE/PP recycled materials.
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;
Detailed Images

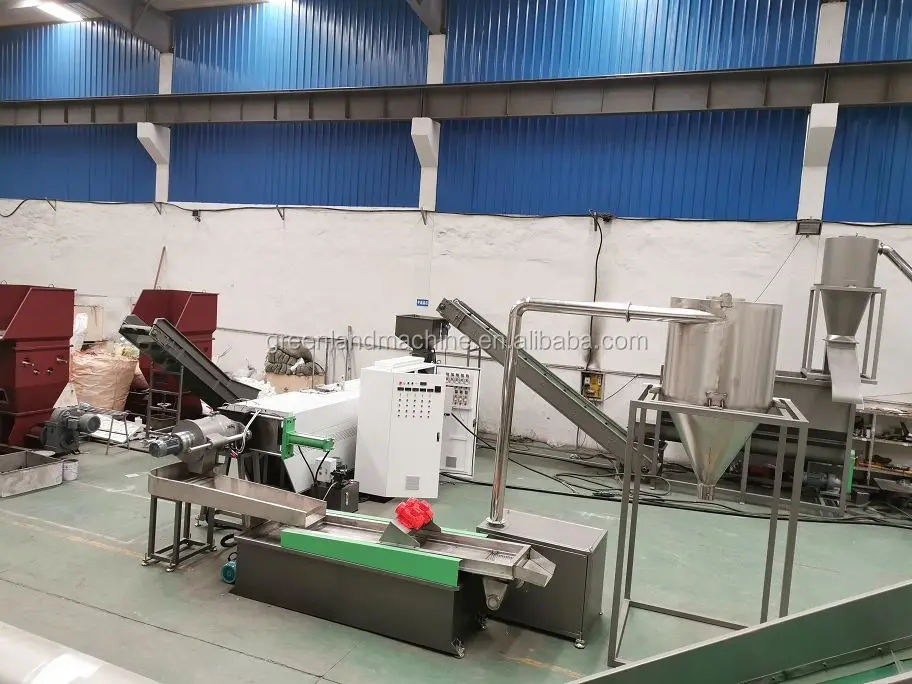

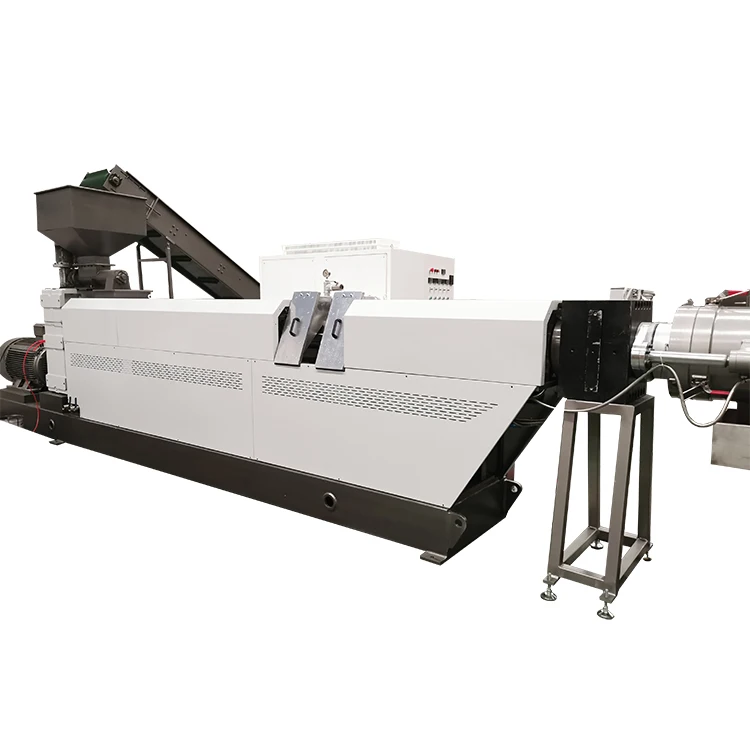

Greenland plastic recycling granulator machine

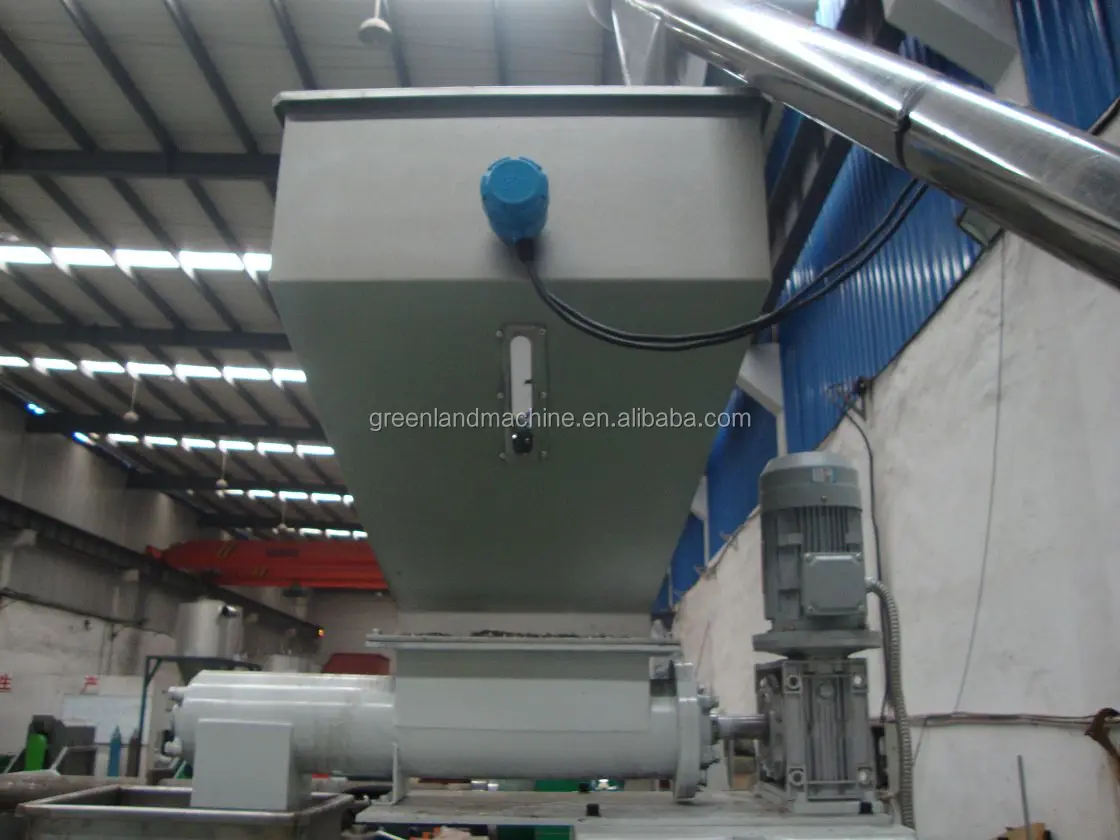

Hopper storage &belt conveyor
To storage and convey material into extruder system easily and conveniently
Dosing feeder.
To feed material smoothly and stably

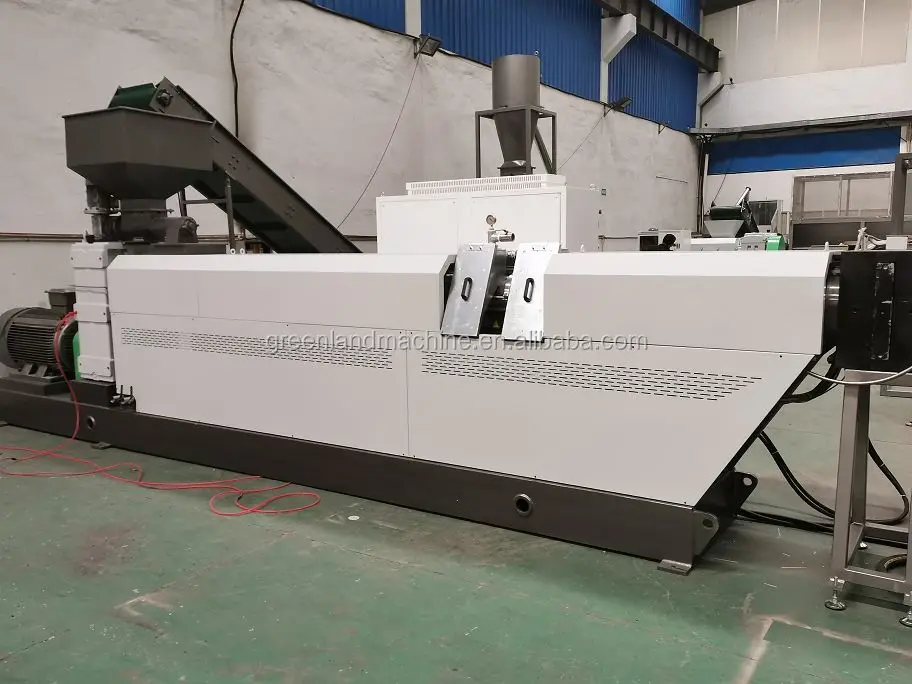

Main extruder
Screw&barrel is 38CrMoAlA superior alloy steel，precise processed and nitriding treatment,
Main extruder
Equip with Stainless steel cover ,more safety and anti-ironing
Vacuum degasing system
Equip with vacuum pump ,double degassing vent
Hydraulic screen changing system
Automatic screen changing system,equip with auto pressure sensor and alarm system
Hydraulic screen changing system
Single plate double station type

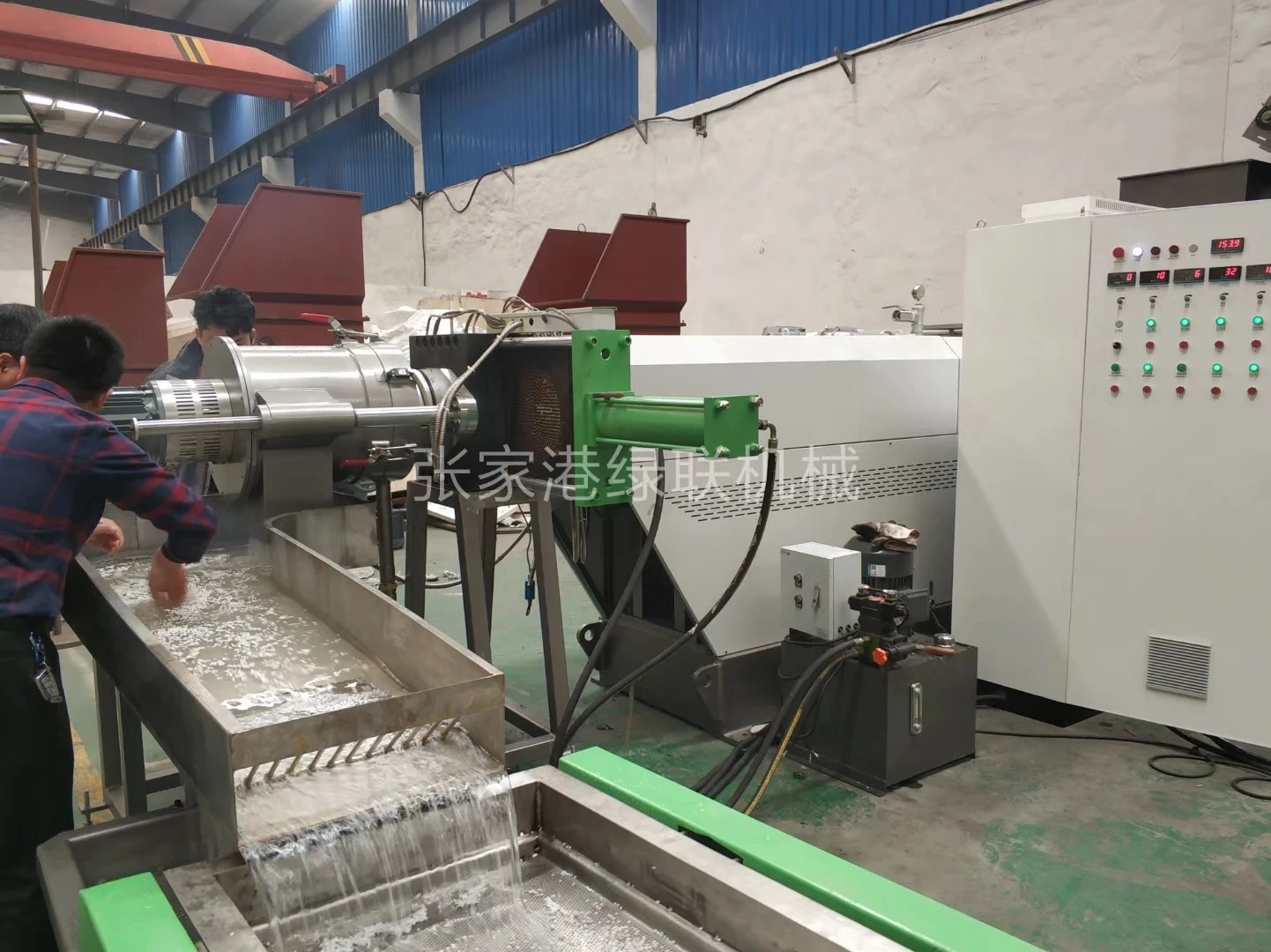

Hydraulic screen changing system&water cooling tank
automatical ,fast,easy to operate
Water ring type pelletizing system
water ring type cutting pelletizing system ,less space needed ,easy to operate ,more beautiful and better quality granules
Water ring cutting system
SKD-11 high quality cutting blade ,frequency control

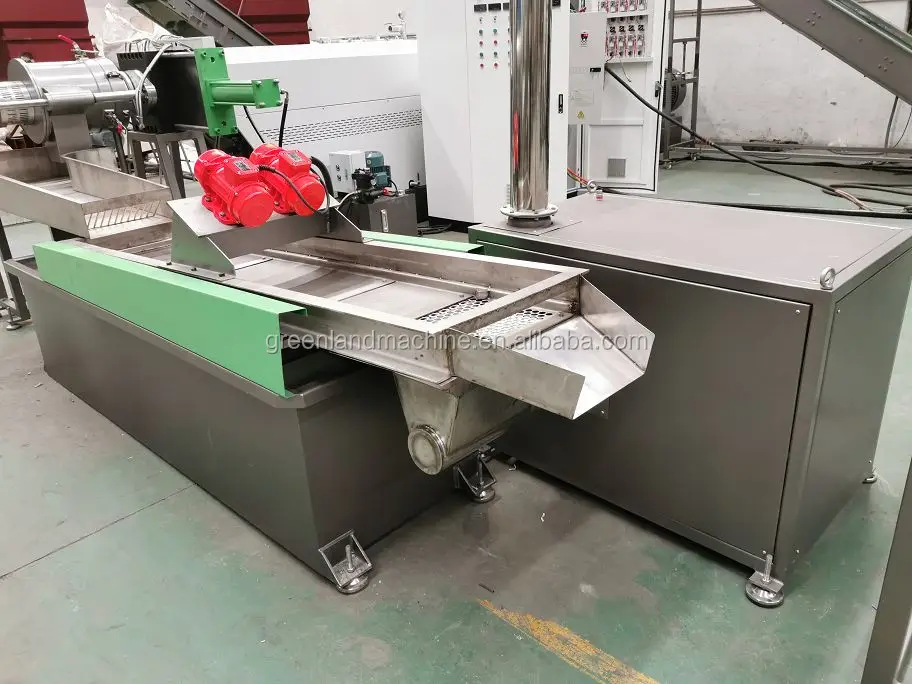

Vibrator dewatering machine&water cooling tank
Vibrator dewatering way,lower electricity power consumtion ,smaller nosie,more quiet
Vibrator dewatering machine
High quality vibrator motor 2pcs ,Sainless steel 304
Blower&hopper
Dewatering type blower ,lower power consumption than normal dewater machine
Blower &hopper storage
Stainless steel hopper storage
Size Information
Technical parameter plastic recycling granulator machine
Model | Scew diameter(mm) | L/D | Capacity |
GL85-85 | 85 | 33/10 | 100-200kgh |
GL100-100 | 100 | 33/10 | 200-300kgh |
GL130-130 | 130 | 33/10 | 300-450kgh |
GL160-160 | 160 | 33/10 | 450-600kgh |
GL180-180 | 180 | 33/10 | 650-750kgh |
GL200-200 | 200 | 33/10 | 750-1000kgh |
Related Products
Packing&Shipping
Standard exporting packing
Greenland plastic recycling granulator machine
After Sales Service
Commissioning &training
Accept commissoining and inspection before delivery ,and offer installation help and technical support ,and instruction after delivery
Company Introduction
ZHANGJIAGANG GREENLAND MACHINERY CO, LTD is a professional plastic recycling machine and extrusion machine manufacturer. We are dedicated to designing and developing the high technology plastic machinery. We have more than 10 years experiences in the plastic machinery manufacturing. We have full processing equipment,skillful and experienced production process .
We are always keeping improve our products by the feedbacks and communication from our customers which makes our products better and better.
Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!
Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!
Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment! .
