Полностью автоматическая установка по переработке шин Piroliz переработанные шины для резинового
- Категория: Rubber Recycling Machinery >>>
- Поставщик: Xuchang,Hongshuo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.11 $* |
| Aug-15-2025 | 0.90 $* | 0.2 $* |
| Jul-15-2025 | 0.5 $* | 0.0 $* |
| Jun-15-2025 | 0.28 $* | 0.19 $* |
| May-15-2025 | 0.11 $* | 0.76 $* |
| Apr-15-2025 | 0.38 $* | 0.7 $* |
| Mar-15-2025 | 0.64 $* | 0.87 $* |
| Feb-15-2025 | 0.7 $* | 0.43 $* |
| Jan-15-2025 | 0.3 $* | 0.54 $* |
Характеристики
Automatic Tire Recycling Piroliz Plant Cost Recycle Tire For Rubber Powder
Product Description
Waste tires---tire circle cutter---tire strip cutter---tire chips cutter---rims separator---rubber crusher---magnetic separator(for separating steel)---fiber separator---rubber powder.
Each machine introduction of rubber recycling production line

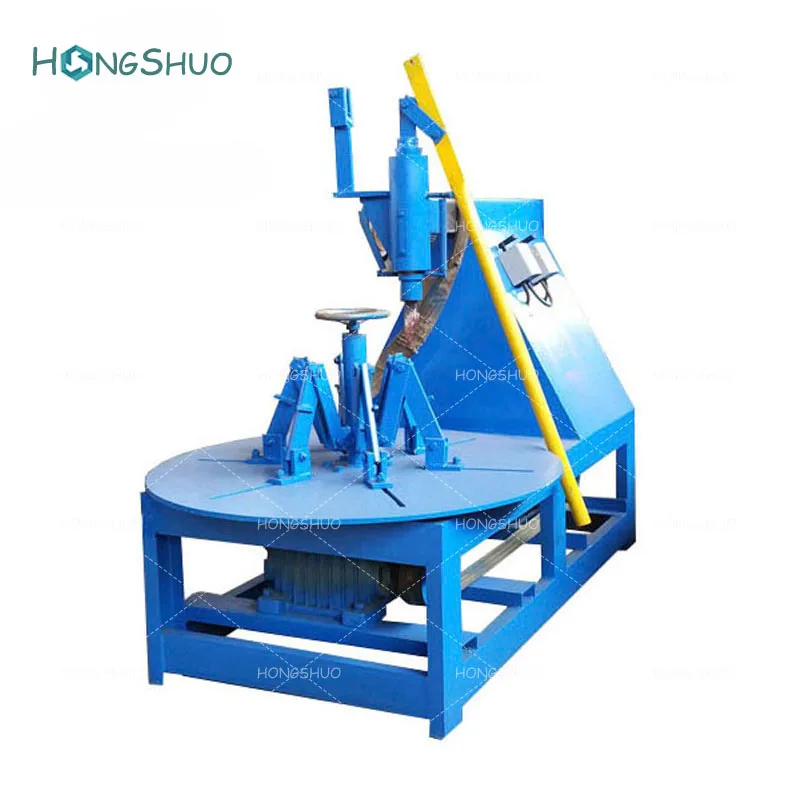

Tire Circle Cutter
to remove the bead tire
tire strip cuter
to cut tires into strip
tire slice cuter
to cut tire strip into tire block
steel wire separator
to separator the steel wire of tire circle

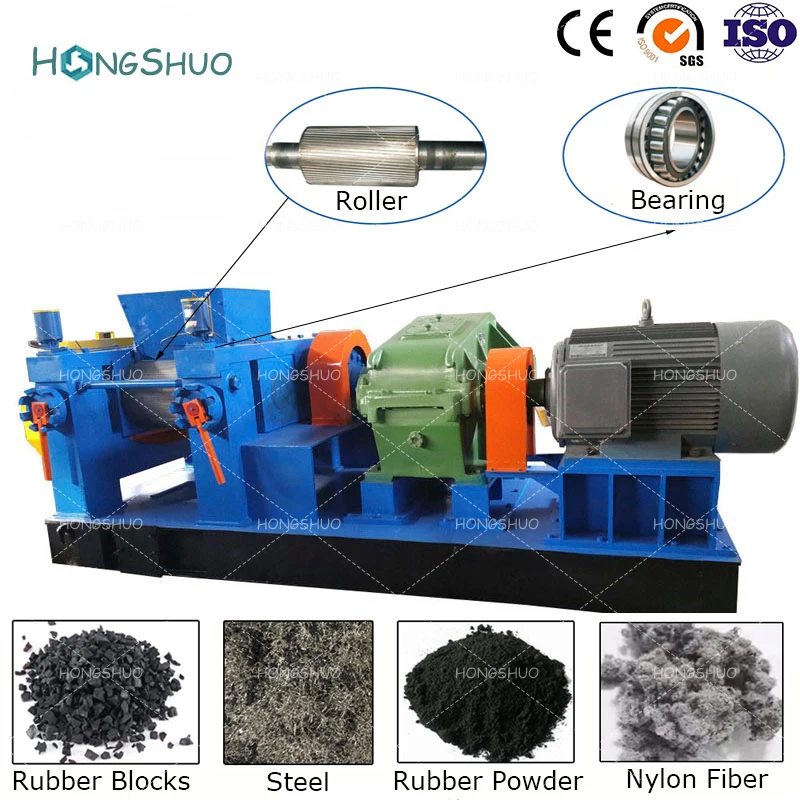

tire crusher
to make 0.63-5mm rubber powder

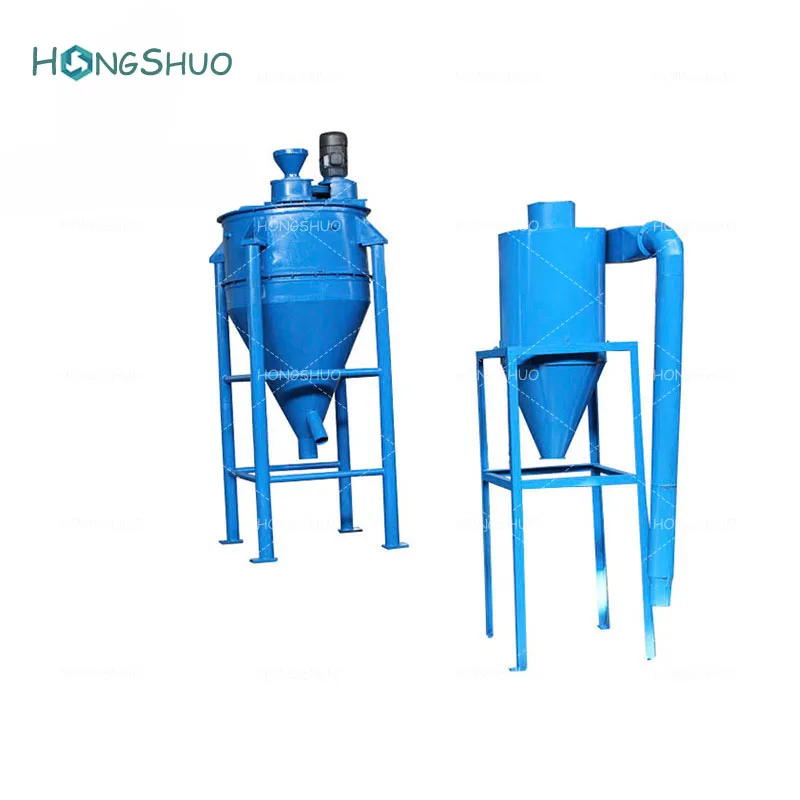

magnetic separater(2sets)
The first magnetic separator is roughing separator, the second one is fine separator, which can separate the steel wire from the rubber powder.
fiber separator
to separate the fiber impurities, nylon
Machine parameter
Model No. | XKP-350 | XKP-400 | XKP-450 | XKP-560 | XKP-560D |
Diameter of front roll | 300 mm (groove) | 400 mm (groove) | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) |
Diameter of back roll | 300 mm (groove) | 400 mm (groove) | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) |
Drum working length | 500mm | 600mm | 760mm | 800mm | 1000mm |
Front roll liner speed | 26.2m/min | 34.5 m/min | 38.0 m/min | 40.6m/min | 44m/min |
Roll ratio | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 |
Max roller spacing | 10mm | 10 mm | 10 mm | 10 mm | 10mm |
Motor power | 30KW/37KW | 45KW/55KW | 75KW /90KW | 90KW/110KW | 132KW/160KW |
Weight | 6T | 8.5 T | 11T | 17.5T | 21T |
L*W*H | 3.5*1.6*1.5m | 4.3*1.8*1.6m | 4.6*2.0*1.65m | 5.3*2.0*1.7m | 5.6*2.0*1.7m |
END PRODUCTS
Packing & Delivery
Our Factory
Certificates
