Портативная буровая установка для бурения скважин с маленьким электродвигателем 20
- Категория: Mine Drilling Rig >>>
- Поставщик: Quzhou,Jugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1785.67 $* | 1874.23 $* |
| Aug-19-2025 | 1770.28 $* | 1859.0 $* |
| Jul-19-2025 | 1485.91 $* | 1559.45 $* |
| Jun-19-2025 | 1740.93 $* | 1827.87 $* |
| May-19-2025 | 1515.79 $* | 1591.31 $* |
| Apr-19-2025 | 1710.70 $* | 1796.39 $* |
| Mar-19-2025 | 1695.95 $* | 1780.6 $* |
| Feb-19-2025 | 1680.93 $* | 1764.28 $* |
| Jan-19-2025 | 1665.53 $* | 1748.38 $* |
Характеристики
Products Description

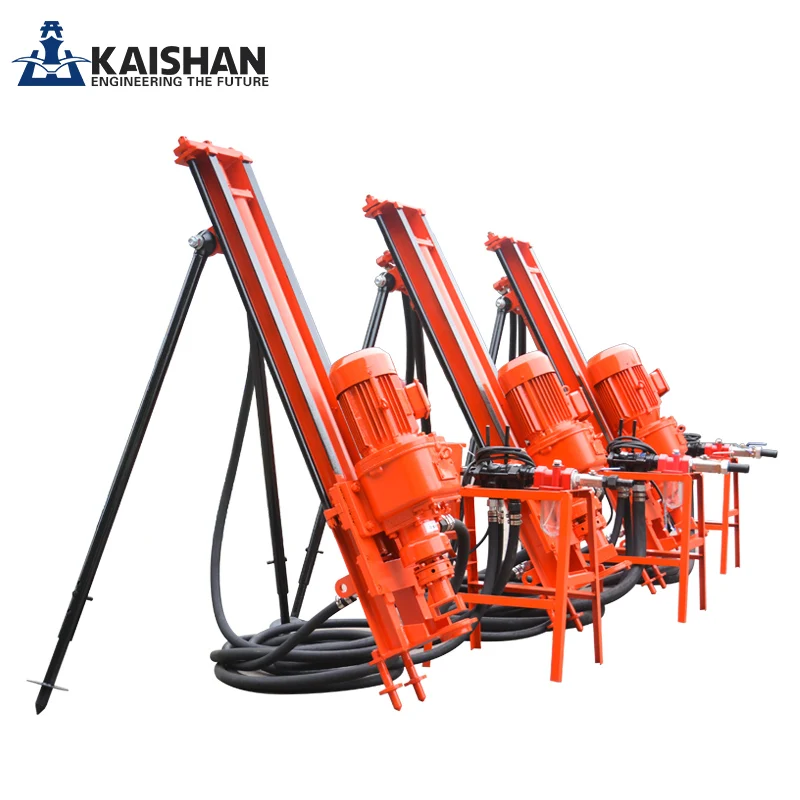

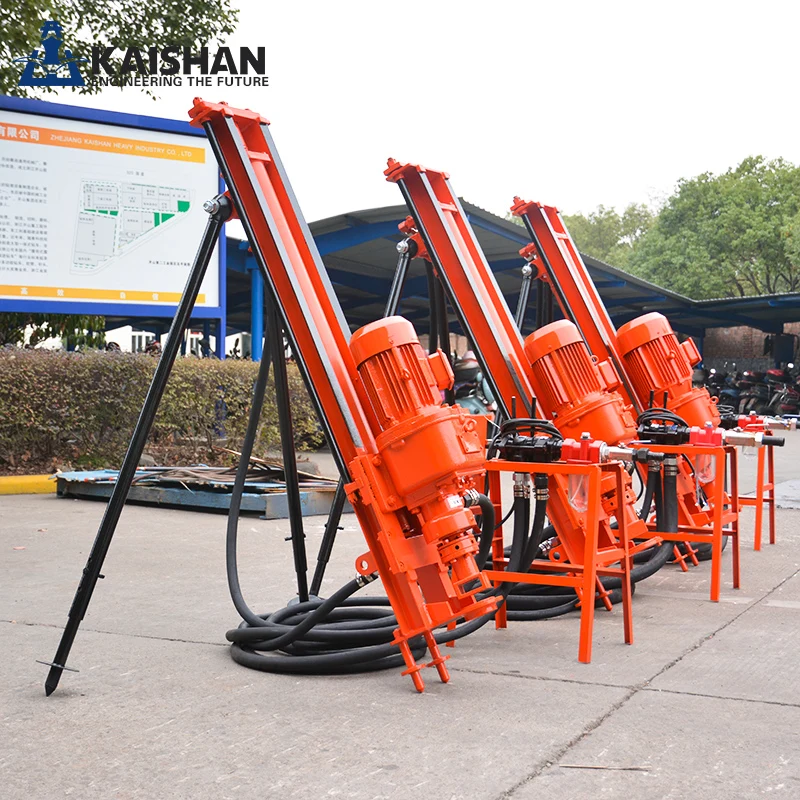

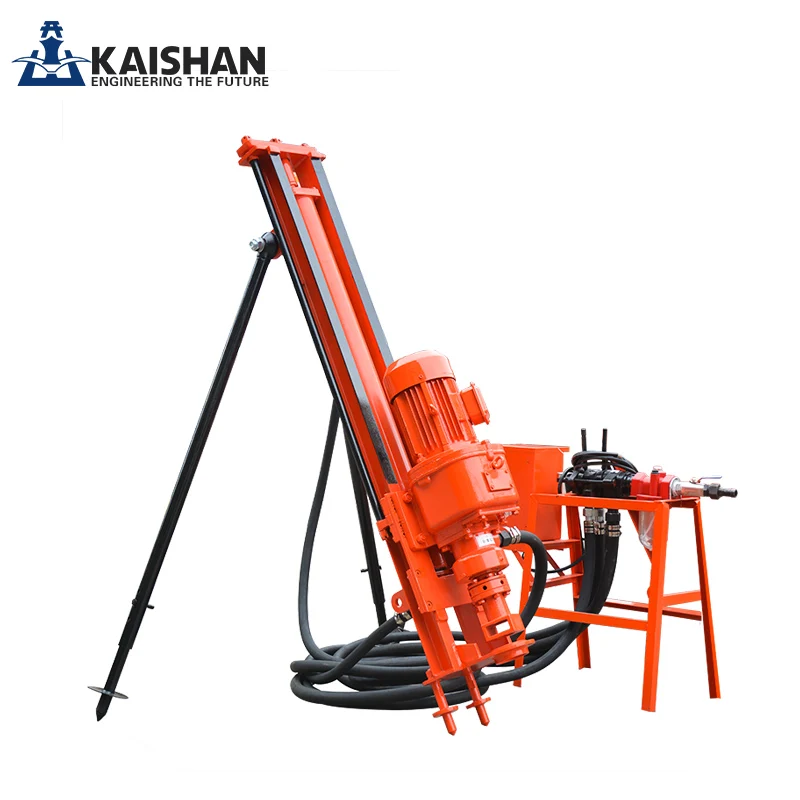

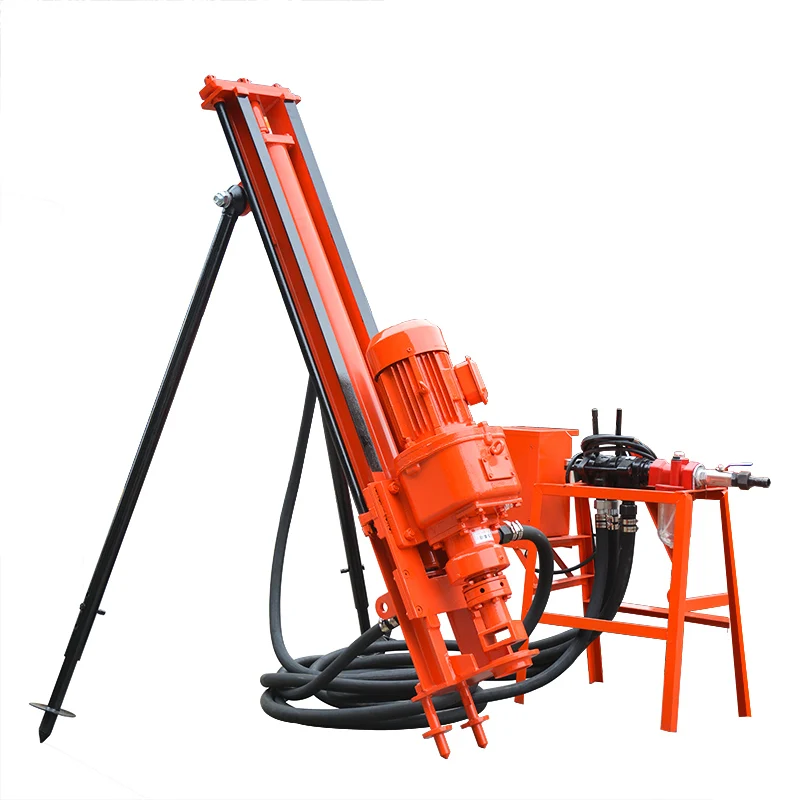

3~11kw electric DTH Rock Drill Rig For Blast-Hole Drilling
KQ series DTH rock drill is a new type of energy-saving and high efficiency drilling equipment.It is widely used in medium and small mines and road construction,national defense,water conservancy and the stone in the engineering of deep hole drilling operation,also is the indispensable drilling open-pit mining equipment ,especially is suitable for rugged terrain;The machine is with compact structure,convenient operation,high speed,high efficiency,good machine detachable,and transportation is extremely convenient.
Model | Hole diameter(mm) | Hole depth(m) | Working pressure (MPa) | Air consumption (m3/min) | Remark |
KQD 70 | 60-80 | ≥15 | 0.5—0.7 | ≥3.5 | 3kw |
KQY90 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
KQD 100 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
KQD 120 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 5.5kw |
KQD145B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
KQD150B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
KQD165 | 90-150 | ≥50 | 0.7-1.4 | ≥15 | 11kw |
Characteristics:
KQY series DTH rock drill is with hydraulic system driven by electrical motor or diesel engine;
KQZ series DTH rock drill is with pneumatic system driven by air compressor;
KQD series DTH rock drill is with electrical system driven by electrical motor.
Advantages:
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment.
5.Drilling rig is suitable for harsh work environment and place that traffic is not convenient.
KQZ series DTH rock drill is with pneumatic system driven by air compressor;
KQD series DTH rock drill is with electrical system driven by electrical motor.
Advantages:
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment.
5.Drilling rig is suitable for harsh work environment and place that traffic is not convenient.

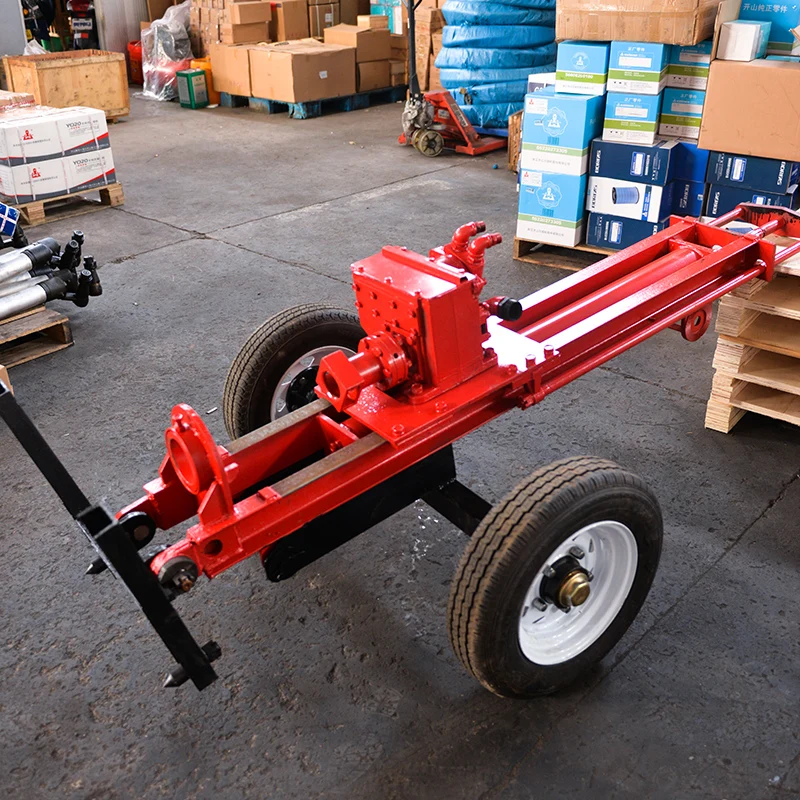

Host body

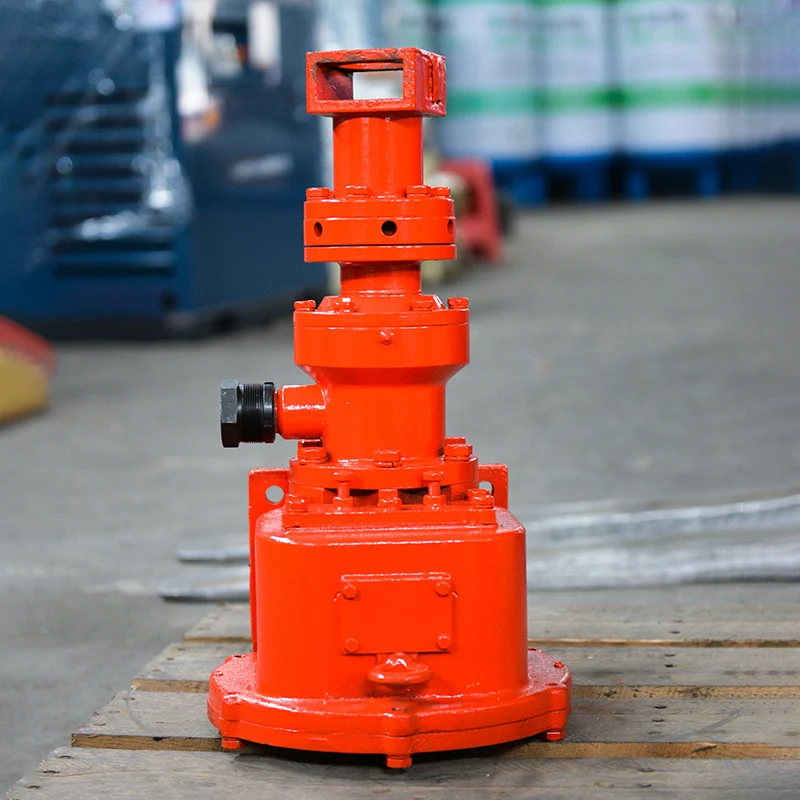

Rotary head
Control table, air hose, drill rod
Shipping
For soil
For hard rock
Application
Spare parts
Recommend Screw Air Compressor for KG920B dth borewell drilling machine | ||||
MODEL | Air capacity | Working pressure | ||
LGCY13-13 | 13m3/min | 1.3mpa | ||
LGCY15-13 | 15m3/min | 1.3mpa | ||
LGCY13-17 | 13m3/min | 1.7mpa | ||
Recommend Drilling tools for KG920B borewell drilling machine | ||||||
Drill Bit Dia. | 90mm | 105mm | 115mm | |||
Drill pipe Dia*L | 64*3000mm | 64*3000mm | 76*3000mm | |||
Drill hammer | CW930 | HD45S | HD45A | |||
Company Profile
About us
Quzhou Jugong Machinery Co.,Ltd.specialized in manufacture and export machines for industrial,mining and construction.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
About Kai Shan Group:
1- Established in 1956 ,Specialized in Portable crawler drill machine line more than 50 years.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
Certifications
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
If you are interested in our products, please feel free to contact us!
