Production Description

Healmed Orthopaedic Electric Reaming Drill

good helper in trauma surgery for drilling and steel plate screwing!



Technical data:
No.	Item	Value	No.	Item	Value
1	Speed	0-350rpm	6	Radial circle run-out	≤0.1mm
2	Torque	5N.m	7	Axial movement	≤0.5mm
3	Sterilization temperature	≤135℃	8	Battery capacity	1600mAh
4	Noise	≤75dB	9	Biggest drill bit diameter	8mm
5	Operation(V) voltage	14.4V





Configuration



No.	Accessory	Quantity(PC)	Note
1	Handpiece	1	Standard

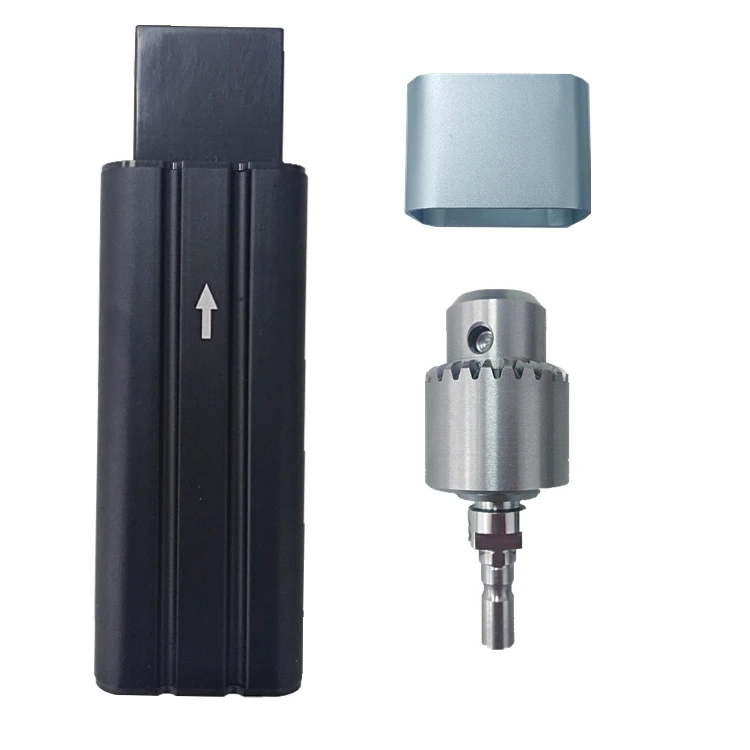

2	Battery	2	Standard

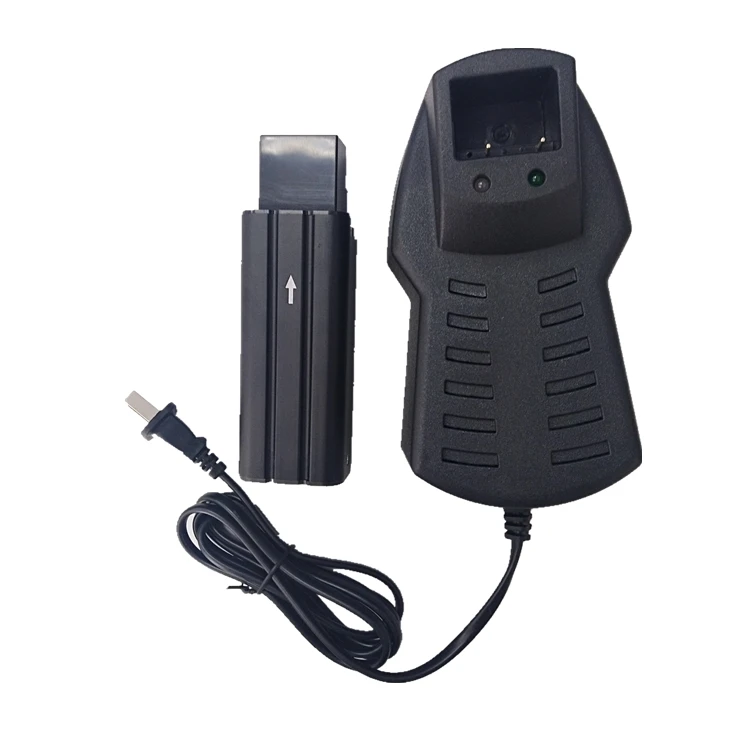

3	Charger	1	Standard

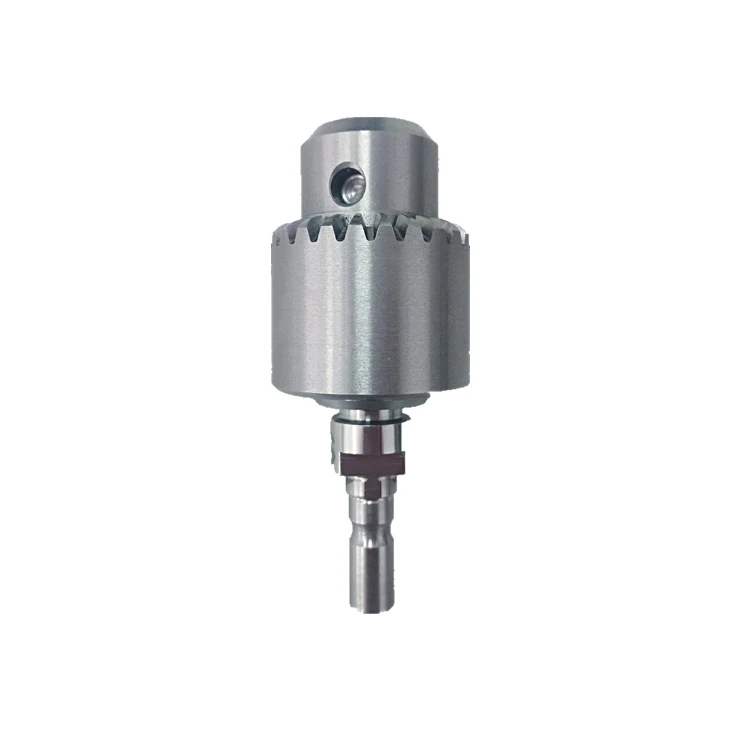

4	Drill chuck	1	Standard
5	Sterilization channel	1	Standard
6	Aluminum alloy case	1	optional

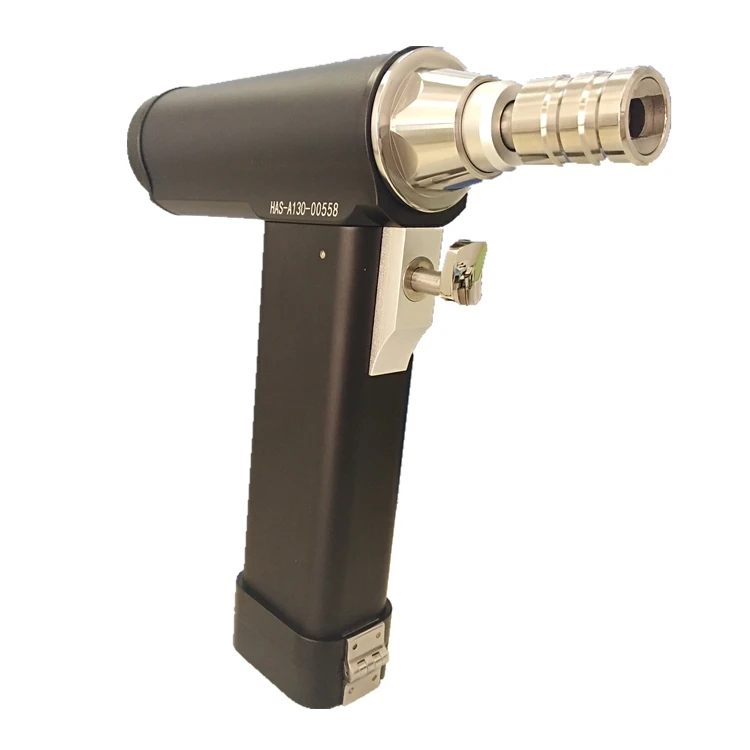

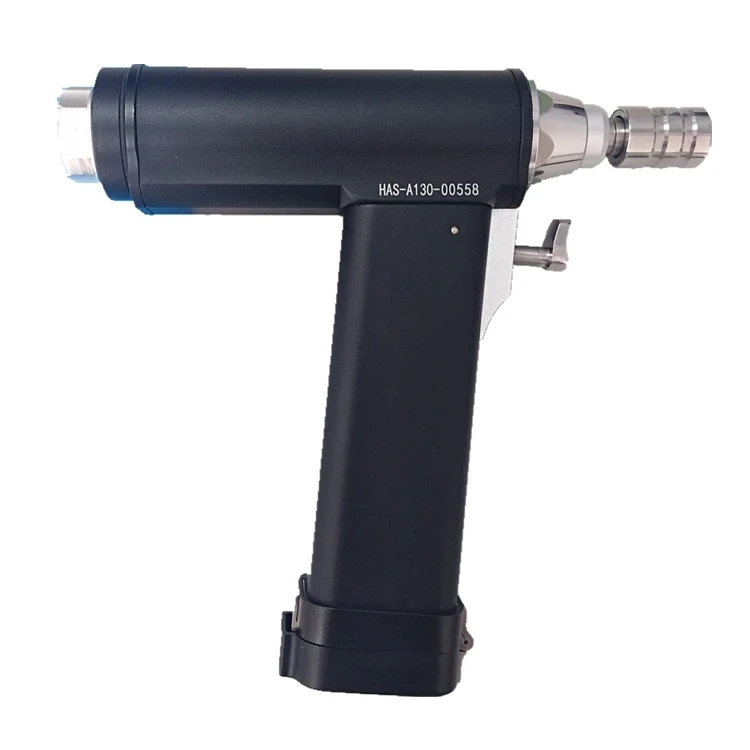

Actual Images

































System A Features:

1. Made of High-strength biochemical stainless steel!!

   2. Ergonomic design, safe and easy to use!!

      3. Imported Motor, excellent performance!!

        4. No Limit speed-changing, convenient!!

           5.High Coaxiality, Low-Noise!!



Warranty:

For whole machine is 1 year.

  For motor is 2 years.

     For the battery and other accessories is 3 months.



Notes:

1.  Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.

2.  Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.

3.  The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.

4.  The battery cannot be sterilized ,it is not autoclavable.

5.  The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.

6.  The battery space in the handpiece of the tool should not have any water,after sterilization.

7.  The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is easy to be attrite,we suggest each blade only use for 1 surgery.







Package:





• Delivery: Within 3 days after payment;


• Shipping: Internal express such as DHL\\TNT\\UPS\\FEDEX, Or shipped by air/sea.



Our Factory



Exhibiton





 Certified with CE and ISO13485



Patents
