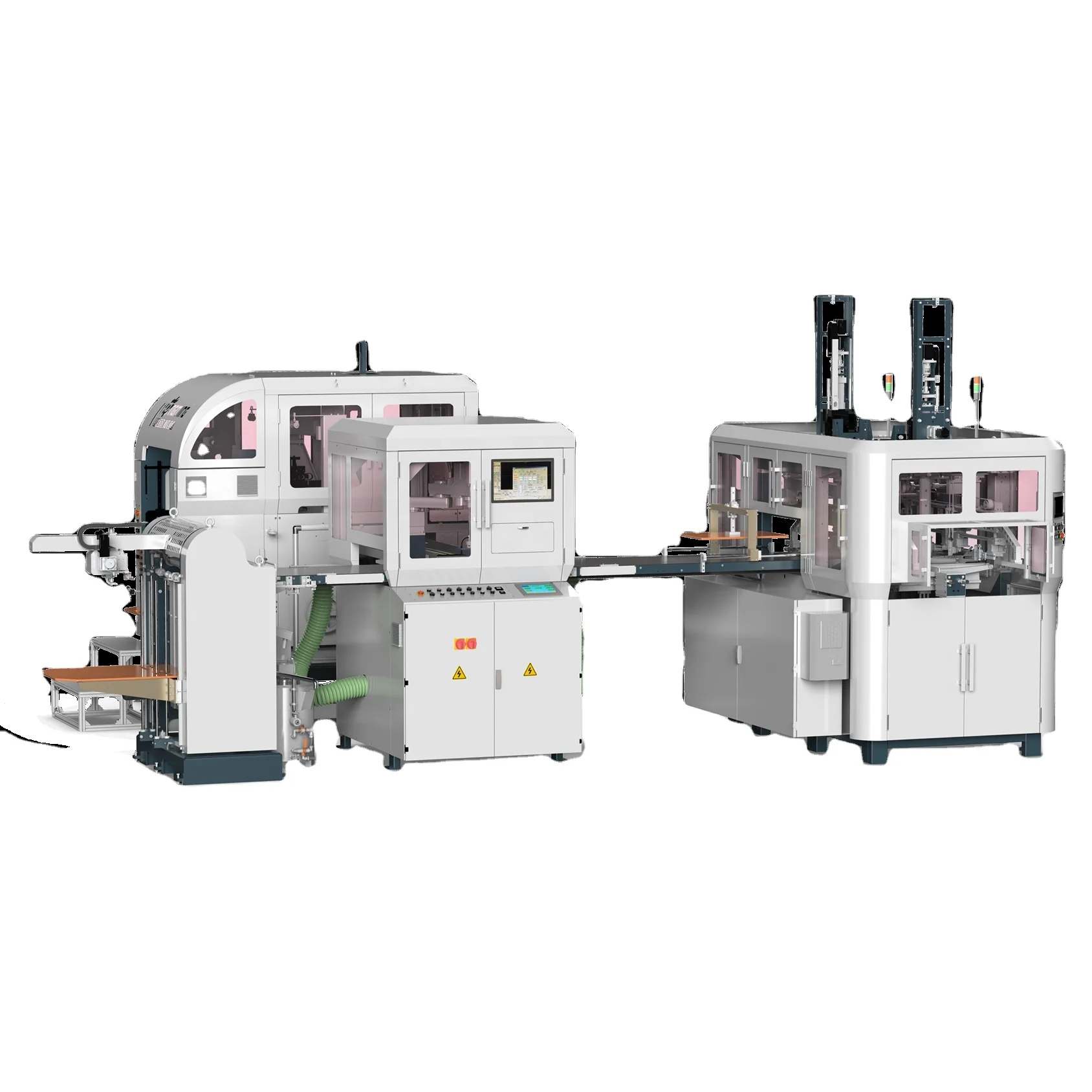

HM-ZD6418D Automatic Rigid Box Machine with Double Wrapper

HM-ZD6418D Automatic Rigid Box Machine with Double Wrapper's Description:

    Automatic Rigid Box Machine with Double Wrapper, which designed for big-size premium boxes. It is suitable to make various types of boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc. Size range is more bigger, more suitable for current packaging market.
Machine's appearance is new design which is safer and more beautiful.

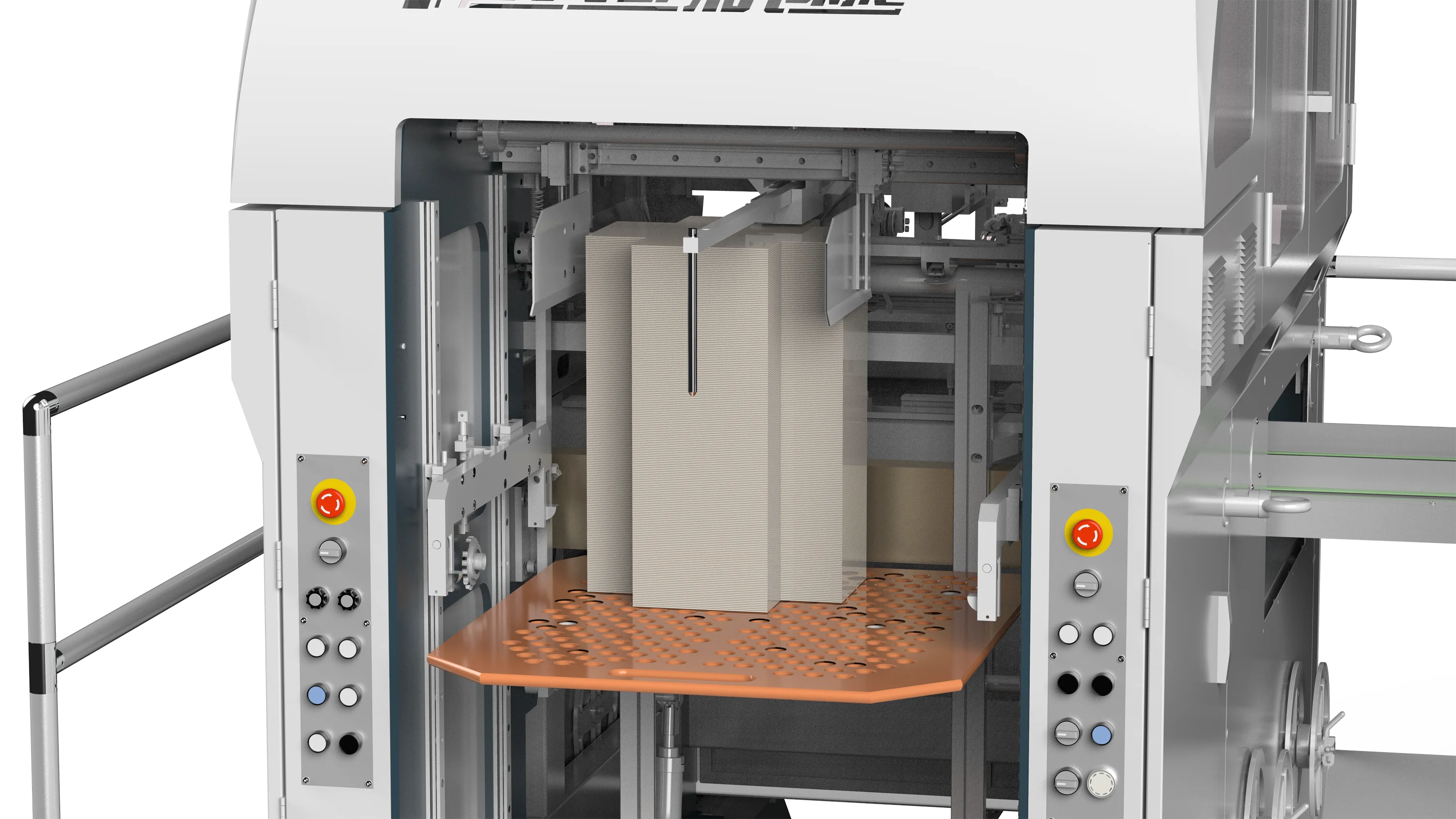

    HM-ZD6418D Automatic Rigid Box Machine with Double Wrapper adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

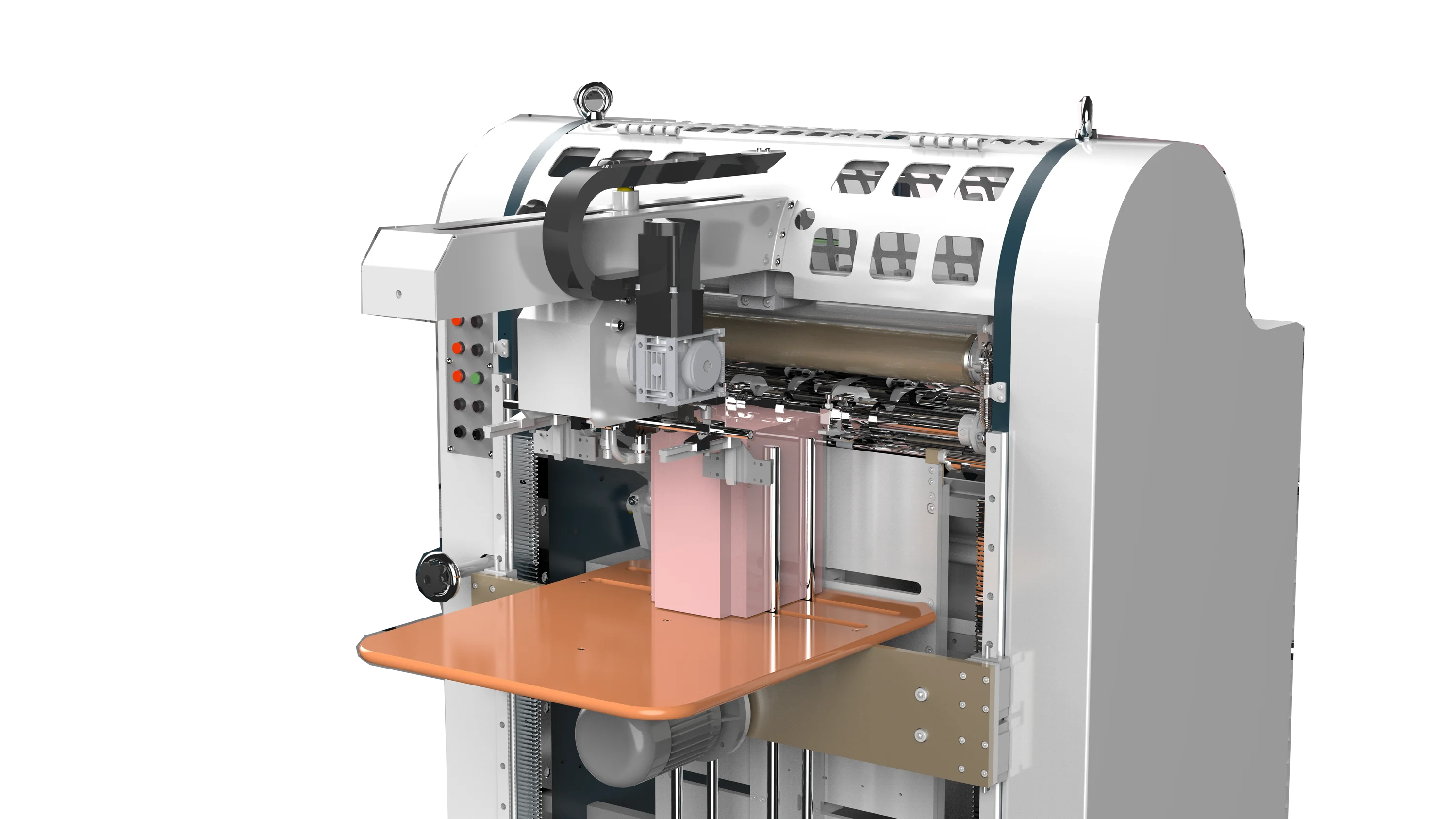

    The feeder, the gluer and the converyor are driven by well known servos which have continuously variable
transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The corner unit can be attached to the tape of different lengths according to the need; The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm,and its spotting and adjusting is more faster:The forming unit employs Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

HM-ZD6418D Automatic Rigid Box Machine with Double Wrapper 's Feature and Function:
1. Suit to all kinds of rigid boxes in mass production;
2. Parameter adopts computer digital setting;
3. Auto error stop and display;
4. Automatically feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and heating system.;
8. Adopts YASKAWA servo control system;

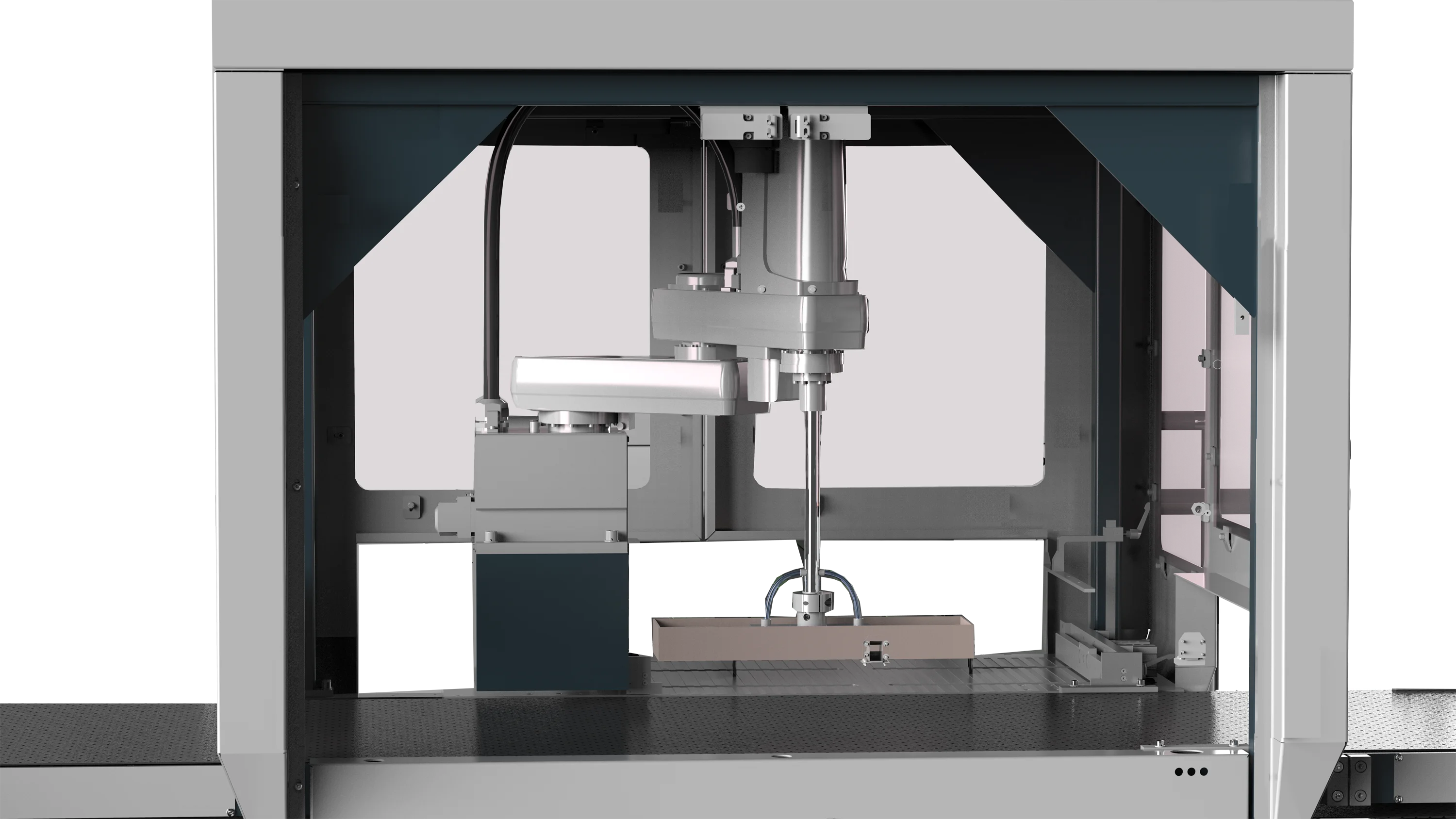

9. Spotter by camera tracing system and SCARA (Selective Compliance
 Assembly Robot Arm) (spotting inaccuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box.
11. Automatic control system for glue viscosity (optional);

HM-ZD6418 Automatic Rigid Box Machine with Double Wrapper is a fully automatic and intelligent machine mainly used to manufacture rigid boxes which is consisted of a cover paper and an inner box, such as gift boxes, phone boxes, big boxes, jewelry boxes, pull up boxes, chocolate boxes, shoe boxes, big boxes, small boxes, cosmetic boxes, watch boxes, chopstick boxes, even T-shape boxes and drawer boxes, etc.


HM-ZD6418 Automatic Rigid Box Machine with Double Wrapper's Technical Parameter:

Model		HM-ZD6418D
Greyboard Size (D=Length, C=Width)	D(Max)	820mm
	D(Min.)	124mm
	C(Max.)	580mm
	C(Min,)	92mm
	Thickness(T)	1-3mm
Paper Size B=Length, A=Width	B(Max.)	850mm
	B(Min.)	180mm
	A(Max.)	610mm
	A(Min.)	95mm
	Thickness	80-160gsm
Finished Box Size (L=Length  W=Width  H=Height)	L(Max.)	600mm
	L(Min.)	100mm
	W(Max.)	400mm
	W(Min.)	50mm
	H(Max.)	130mm
	H(Min.)	12mm
Paper Corner Edge(E)	E	10-125mm
Folding-in Depth(R)	R	15-100mm
Paper Pile Height Max.	750mm
Greyboard Pile Height Max.	850mm
Glue Tank Volume	40L
Air Supply	460L/min, 0.8MPa
Speed	≤40pcs/min
Total Power/Voltage	47kW/AC380V
Power Consumption	12kW/h
Net Weight	7700kg
Machine Dimension	6800 x 5500 x 3300mm

HM-ZD6418D Automatic Rigid Box Machine with Double Wrapper's Making Process:

Finished Products:





NOTE:
1,The Finished Box Max. sizes are determined by paper size.
 A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2, Sizes can not be fulfilled on the same box.
3,The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
4,Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
