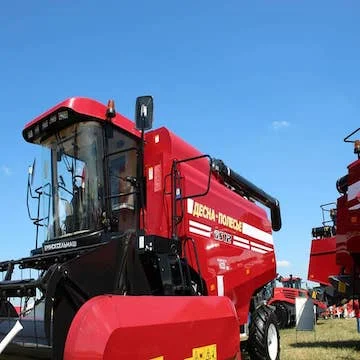

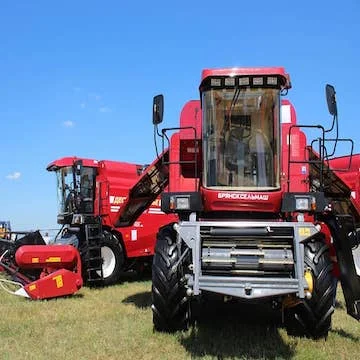

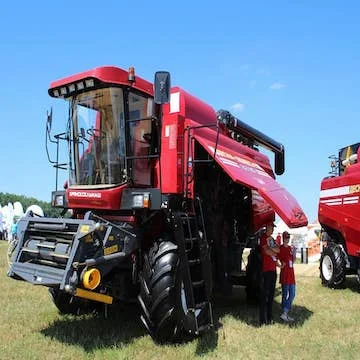

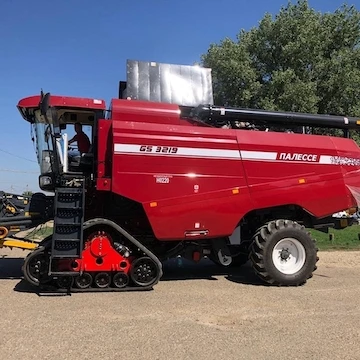

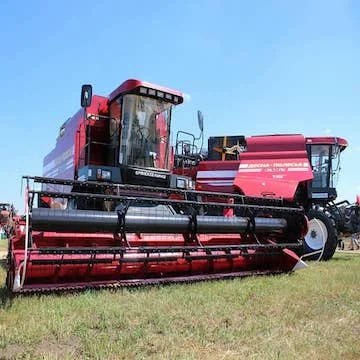

Комбайн для пшеницы по низкой

Описание и отзывы

Трекер стоимости

Характеристики

Engine
Manufacturer/model		JaMZ-238DE-22
Nominal engine power	kW / hp	243 / 330
Fuel tank capacity	l	600
Headers
Grain header	m	6,0 / 7,0 / 9,2
Swath grain header	m	9,0
Conveyer header	m	9,0 / 12,0
Soybean header	m	6,0 / 7,0 / 9,0
Maize header	row/m	6; 8 / 4,2; 5,6
Sunflower header	row/m	8; 12 / 5,6; 8,4
Rapeseed cutterbar table	m	6,0 / 7,0
Grain pick-up	m	3,4 / 4,4
Threshing system
Threshing unit type		drum-type
Threshing drum width	mm	1500
Threshing drum diameter	mm	800
Accelerating drum diameter	mm	600
Threshing drum speed range	rpm	440...875
Concave area	m2	2,39
Concave wrap angle	degrees	213
Separation and cleaning system
Separation type		straw walker
Straw walker	number	5
Straw walker length	mm	4100
Separation area	m2	6,15
Total sieve area	m2	5,0
Cleaning fun speed range	rpm	318...960
Grain tank
Grain tank capacity	m3	8
Unloading height	mm	4000
Unloading rate	l/s	70
Straw chopper blades	number	80
Running gear
Working speed	km/h	8
Road speed	km/h	20
Road clearance	mm	330
Dimensions and weights
Length/Width/Height in working position	mm	11200 / 7600 / 4650
Length/Width/Height in transport position	mm	18100 / 3900 / 4000
Thresher weight	kg	14450
