CH3-10Q/250 2500-3150A 12KV Switchgear изолятор контактной коробки из красной эпоксидной


Поделиться:


Цена:10,00 $ - 20,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 12.17 $* 13.57 $*
Aug-16-2025 12.19 $* 13.85 $*
Jul-16-2025 10.21 $* 11.96 $*
Jun-16-2025 12.42 $* 13.82 $*
May-16-2025 10.93 $* 11.62 $*
Apr-16-2025 11.28 $* 12.28 $*
Mar-16-2025 11.53 $* 12.72 $*
Feb-16-2025 11.73 $* 12.31 $*
Jan-16-2025 11.34 $* 12.81 $*

Характеристики



Product Description


Product Name

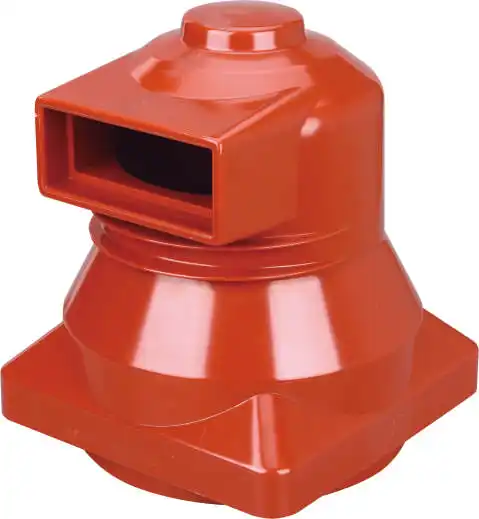

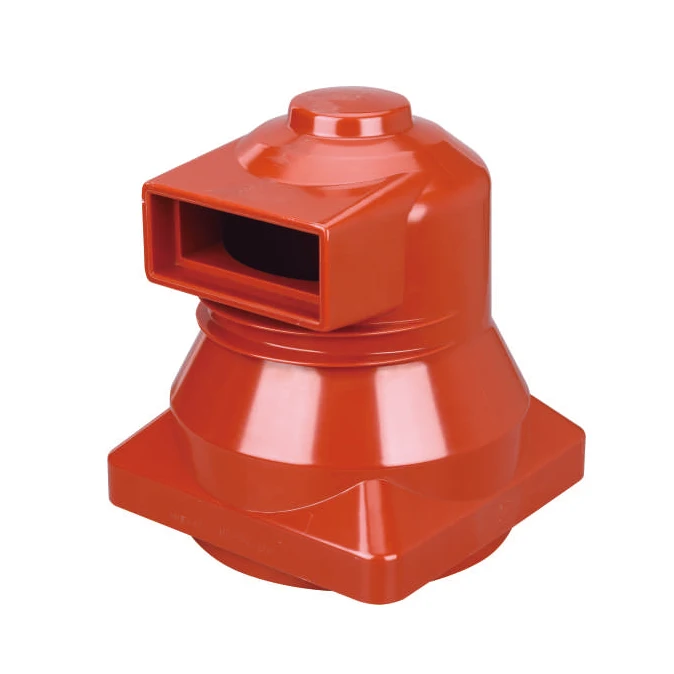

12KV Epoxy Resin Contact Box CH3-10Q/250
Material
Red Epoxy Resin
Function
For insulation in high voltage switchgear
Package
Standard exporting packing


  • Product performance description

  • 产品性能介绍说明

CH3-10Q/250 2500~3150A
The contact box adopt technique of epoxy resin automatic pressure gelatin(APG). It mainly used in 12kV or 10kV  High Voltage switchgear and take the role of  insulation function for the VCB contact.

Rated insulating level: 1 Min power frequence withstand 42kV, Rated lightning impulse withstand voltage 75kV


Manufacturing Technique




Details Images


Application
Usage: High Voltage Switchgear
Material:Epoxy Resin
Specification: CH3-10Q/250 series
Operating Condition
1.Altitude:≤1000m
2. Ambient temperature:+40°C~10°C
3. The relative humidity should not be more than 95%at+20°C ambient temperature


Packing&Shipping


Packaging Details: Standard exporting packing
Delivery Port: Shanghai or Ningbo




Company Introduction


Located in Yueqing, Zhejiang, Yueqing Weisen Electric Co., Ltd is a professional manufacturer of low voltage and high voltage switchgear and vacuum circuit breaker insulating accessories. We have perfect organization structure and associated functional department. As we have cooperated with foreign customers for decades, our business systerm is quite perfect which based on common interest.
Yueqing Weisen Electric Co., Ltd. is a professional power equipment manufacturer integrating research, development, production and sales. Since the company's products were shown in the market, it has won the praise of the majority of users with its superior performance, advanced technology, exquisite technology, reliable quality and high-quality service. The products have been sold in 29 provinces, cities and autonomous regions.




Our Services & Strength
We can design for you according to customers' requirements.
