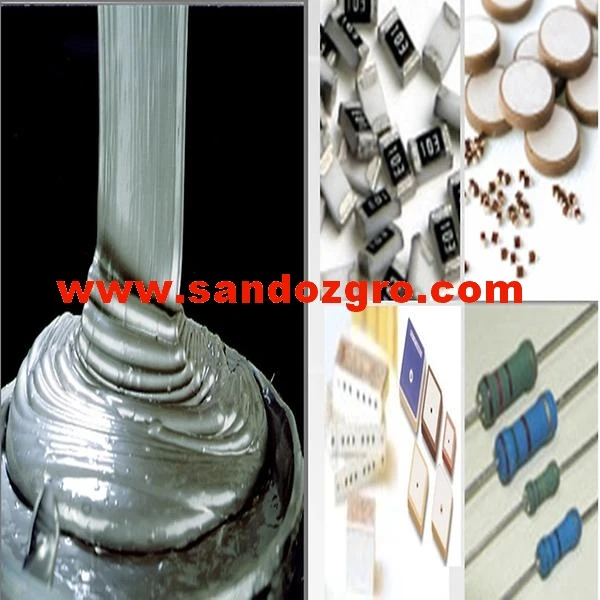

MGD Materials is a supplier of microelectronic thick film inks / thick film pastes for a wide range of electronic applications. The microelectronic thick-film ink / thick-film paste product line includes silver based and gold based conductors, dielectrics and glazes, resistors and thermistors, capacitor materials, substrate plug pastes, etchable conductors, and specialty products.

MGD offer a wide range of silver and carbon paints for use in the manufacture of tantalum chip and solid aluminium organic capacitors as well as a range of materials for ceramic capacitors, varistors and PZT devices.
These materials are useful in applications ranging from automotive electronics to wireless telecommunications, data processing, instrumentation, components, military, consumer, and industrial.

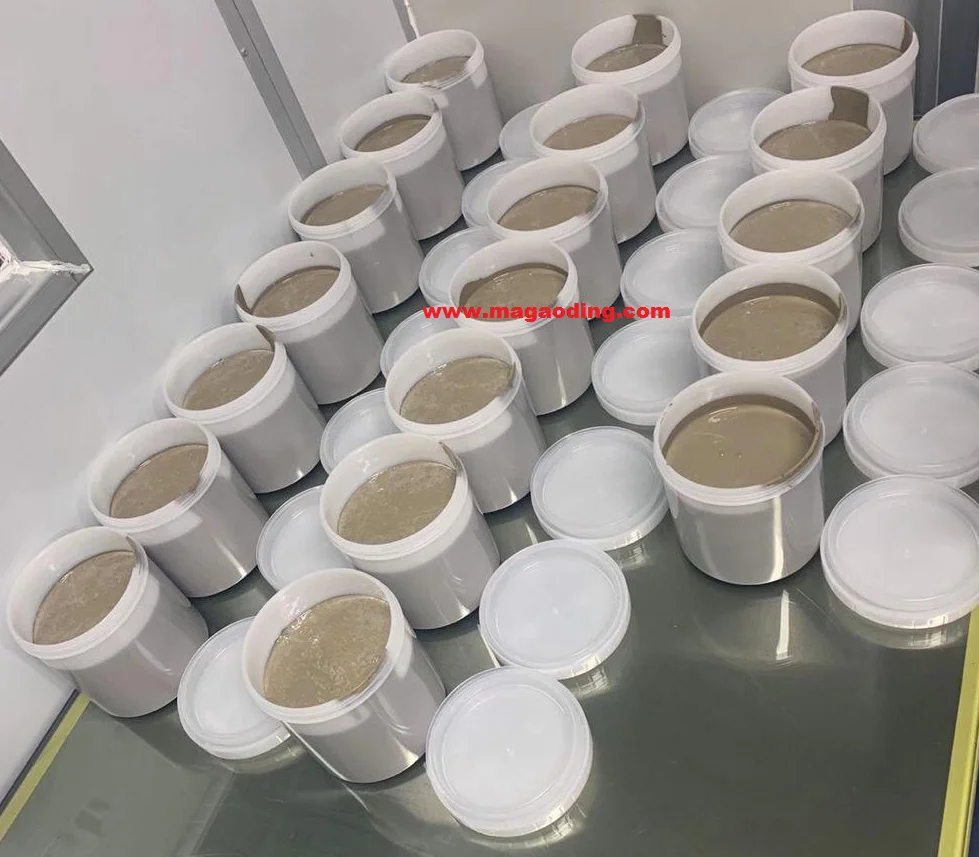

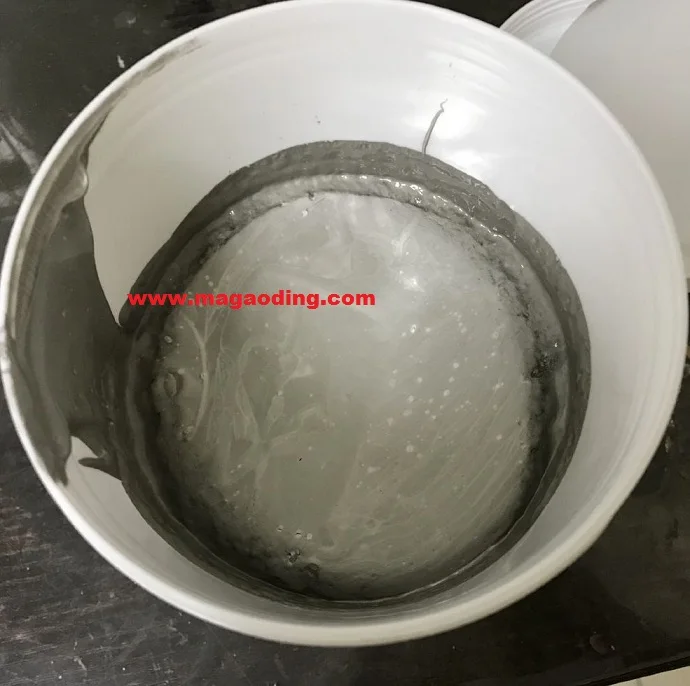

Thick Film Materials is ink paste produced through mixing, kneading, and dispersing of metal powders, glass powders, and inorganic oxides with organic solvent in a three-roll mill.
Major types of pastes are shown below.
Conductive paste with Au/Ag/Pd/Ni/Cu, etc., contained as conductive materials
Resistive paste as a resistor material
Insulation paste used for the protective films of circuits, etc.
In general use, circuit patterns, etc., are screen-printed on ceramic boards or green sheets, and then burned. They are mainly used for various electronic components such as multilayer chip capacitors, chip resistors, etc. These components are used in volume in personal computers, mobile phones, etc.
Also, Ag resin paste, which hardens at low temperatures, is applied to various die attachments used in LEDs and ICs, etc.

Viscosity	70±25Pa·S(10 rpm , 25°C±0.5°C, 1 min)
Fineness	<10μm
Solid Content	82±2%
Screen Mesh	250~300 stainless stell screen
Leveling Time	at room temperature, 2~3min
Drying	120~150°C/(>15 min)
Firing	850°C/(>10min)
Film Thickness (μm)	14±2 μm
