Характеристики
Product Description
Generally, we can classify slitting lines into three groups according to thickness difference, that is, thin sheet high-speed slitting line, middle thick high-speed coil slitting line and thick coil slitting line.

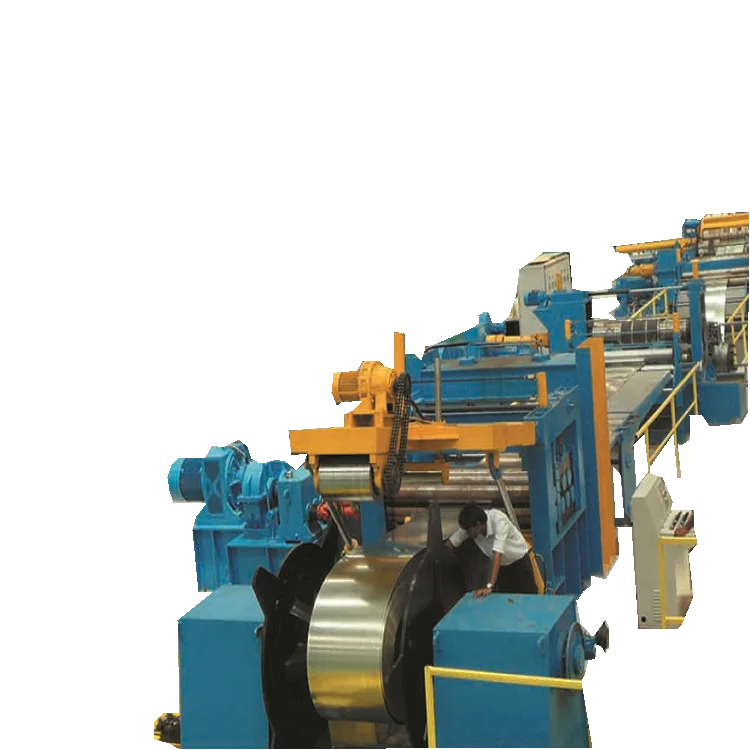

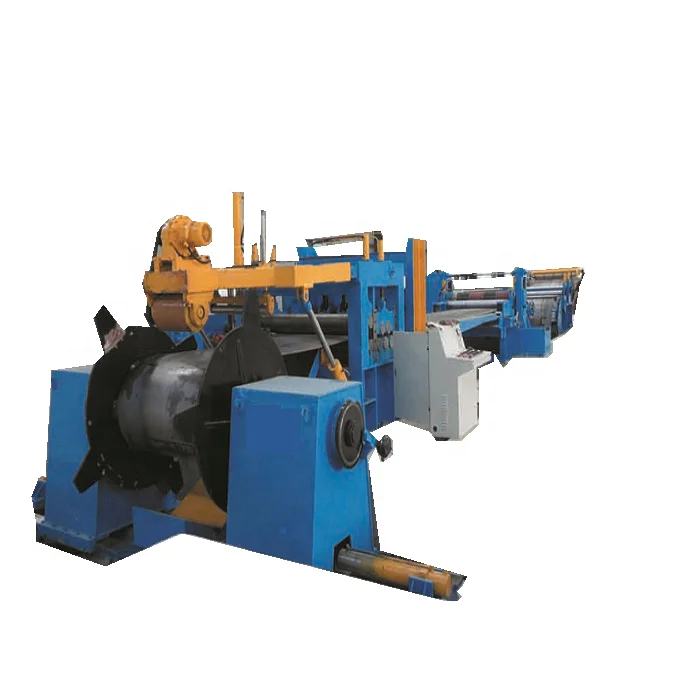

Thin sheet slitting line, also called metal coil slitter, is a kind of production line to cut master coils into smaller coils of
particular widths by disc knives.
The thin sheet slitting line is made up of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinch feeding, three-roller leveling, end-cutting, strip-aligning, disc slitting, scrap reeling, hole accumulator,
pre-separator, tensioning, recoiling ,coil unloading car, hydraulic control, and electric control.
Thin sheet slitting line: strip thickness: (0.2-1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; strip width is changeable: 600mm.1000mm, 1250mm, 1600mm, 1800mm...
Thin sheet slitting line, also called metal coil slitter, is a kind of production line to cut master coils into smaller coils of
particular widths by disc knives.
The thin sheet slitting line is made up of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinch feeding, three-roller leveling, end-cutting, strip-aligning, disc slitting, scrap reeling, hole accumulator,
pre-separator, tensioning, recoiling ,coil unloading car, hydraulic control, and electric control.
Thin sheet slitting line: strip thickness: (0.2-1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; strip width is changeable: 600mm.1000mm, 1250mm, 1600mm, 1800mm...
Detailed Images
Main components of the line:

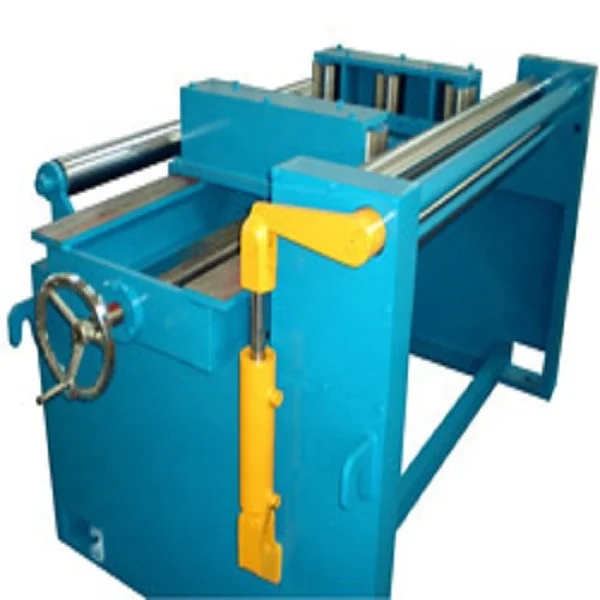

1. 纠偏 Strip aligning
2. 纵剪 Slitter
3. 引头机 Coil-head feeding

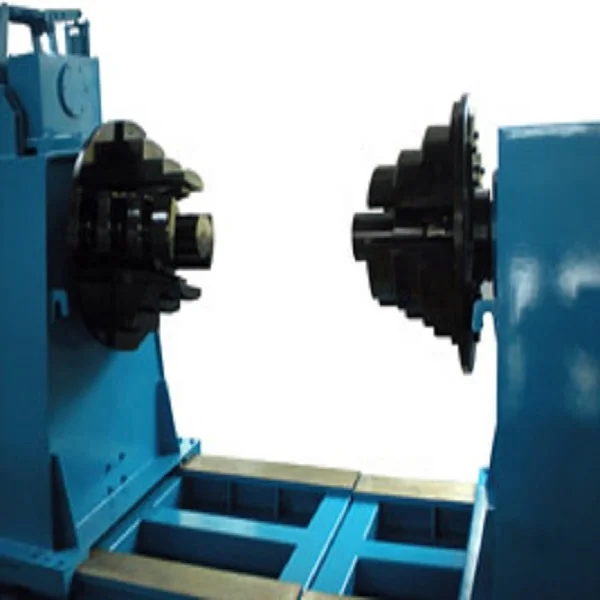

4. 开卷机 Double mandrel uncoiling
1. 纠偏 Strip aligning
2. 纵剪 Slitter
3. 引头机 Coil-head feeding
4. 开卷机 Double mandrel uncoiling
5. 涨紧 Tensioning
6. 2+3辊&剪头 2+3Rollers&shearing machine
6. 2+3辊&剪头 2+3Rollers&shearing machine
Size Information
Main Technical Data
Project | Unit | Rangers |
Thickness | mm | 0.2-1.0,0.3-2,0.3-3,0.4-4 |
Standard board’s width | mm | 600,1000,1250,1600 |
Uncoiler bearing | t | 12,20 |
Finished strip width | mm | ≧20 |
Strip width accuracy | mm | ≦±1.0 |
Max line-speed | m/min | 0-120,150 |
Total power | kw | 160,200 |
Area | ㎡ | 27*7 |
Related Products
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
