\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
floating puffed fish food processing machine
Flow chart :
grinding→mixing→extruding→drying→flavoring→cooling→packaging
Machine parameters:
Model | Installed Power (kw) | Power Consumption (kw) | Capacity(kg/h) | Dimension(m) |
65 processing line | 74 | 52 | 120-180 | 17*1.2*2.2 |
70 processing line | 95 | 70 | 200-300 | 20*1.5*2.2 |
75 processing line | 110 | 82 | 250-400 | 26*1.5*2.2 |
85 processing line | 139 | 104 | 400-800 | 28*3.5*4.3 |
90 processing line | 132 | 75 | 800-1200 | 28*3.5*4.3 |
95 processing line | 165 | 90 | 1500-2000 | 35*3.5*4.3 |
120 processing line | 469 | 380 | 2000-2500 | 45*20*22 |
135 processing line | 712 | 570 | 3000-3500 | 50*20*25 |
Product Details
Raw material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

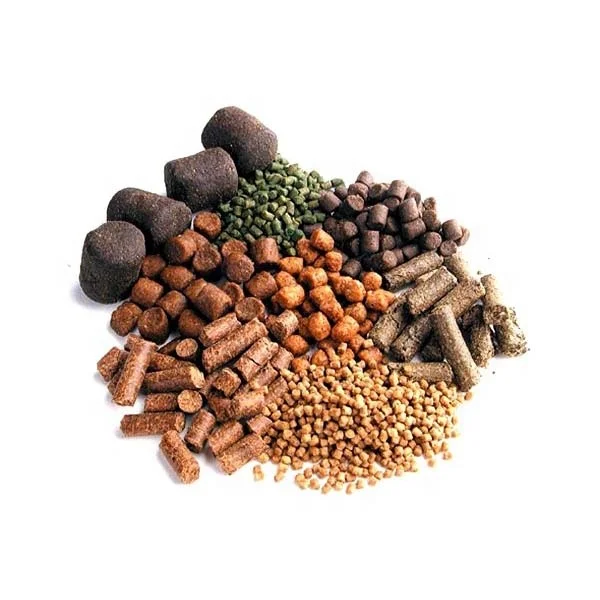

Sample of fish feed pellet:

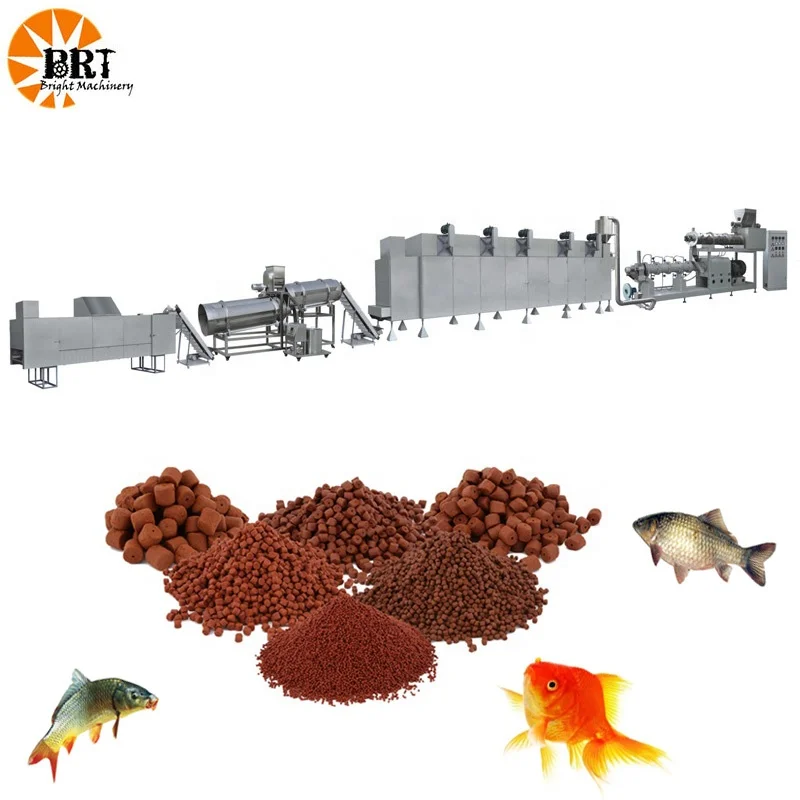

Equipment list in the fish feed production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
Name | grinder |
Usage | corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can do coarse grinding and fine grinding processes |
Type | Hammer Mill |
Motor | 7.5kw, 15kw, 22kw, 55kw, 75kw and so on |
Capacity | 100kg/h to 10 ton/h |
Material | stainless steel, carbon steel |
Name | Mixer |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | including Single axle and double shaft mixer |
Motor | 3kw, 4kw, 7.5kw etc. |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |

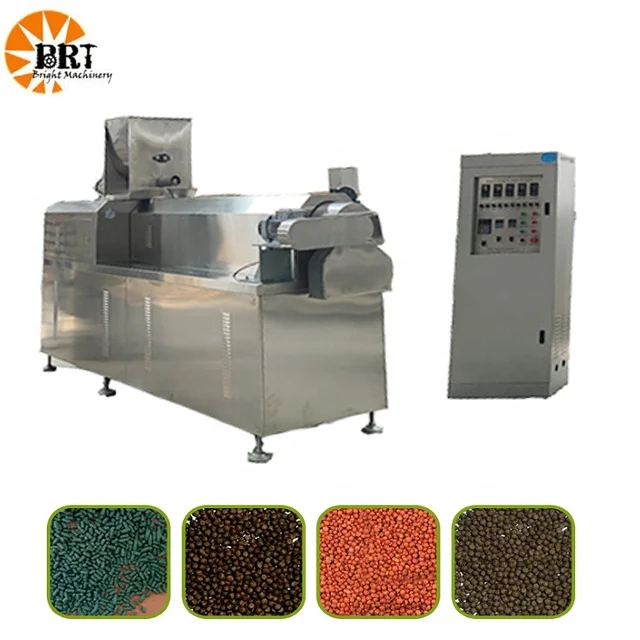

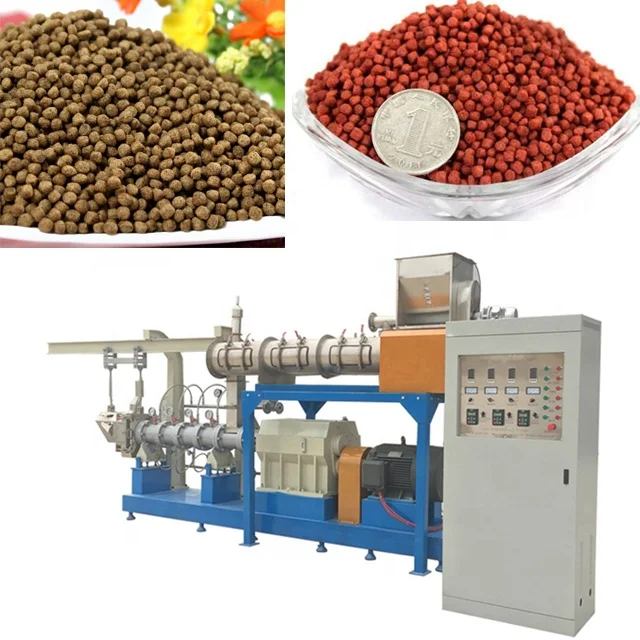

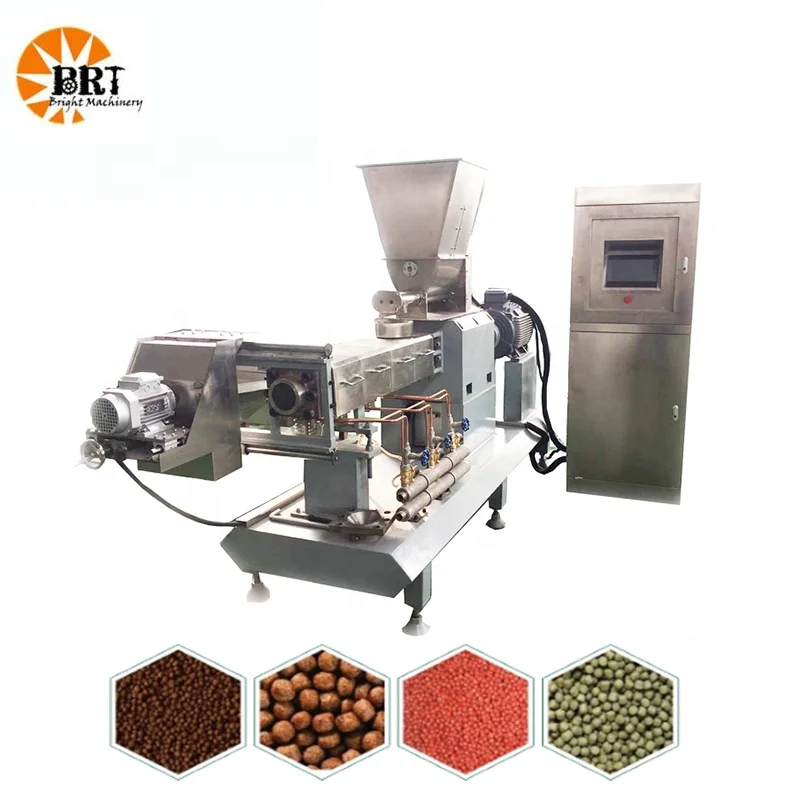

Name | Twin screw extruder(wet type/dry type) |
Usage | To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould |
model | DSE65, 70, 75, 90, 95, 120, 135 |
Motor | 22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc. |
Capacity | 100kg/h to 10 ton/h |
Material | Screw materials 38CrMoAl stainless steel, carbon steel |
Dry type twin screw extruder for fish feed
Capacity ranges from 100 kg/h to 1 ton/h
Wet type twin screw extruder for fish feed
Capacity ranges from 200 kg/h to 10 ton/h
Name | Dryer (oven) |
Usage | the expanded food go through the "s" passage, to be dried to increase the self life. |
Type | electrical, steam, gas fired, diesel fired heating type |
Motor | KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. |
Capacity | 100kg/h to 10 ton/h |
Material | stainless steel, carbon steel |
Electrical heating dryer
Gas or Diesel fired heating dryer
Name | Flavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Type | single and double flavoring drum |
Motor | 0.75kw |
Capacity | 100kg/h to 10 ton/h |
Material | stainless steel |
Name | Packaging machine |
Usage | To pack the fish feed with required weight |
Flowing Process | Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor → Automatic bag sewing or heat sealing |
Weight range | 1-5kg/bag, 5-25kg/bag, 25-50kg/bag |
Material | stainless steel, carbon steel |
Type | Automatic |
Product Highlights
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
1.) Consultation service before, during,and after sales;
3.) Debugging of equipment until everything is functional;
4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
5.) Training of equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and life-time maintenance service.
Company&Customer
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit and check the machine to my factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.
\t\t\t\t\t\t\t\t\tPacking &Delivery \t\t\t\t\t\t\t
1.Use anti-rust oil to wipe the equipment for animal Floating fish feed pellet making extruder machine
2.air cushion film packaging equipment for fish feed manufacturing machine
3.with a wooden box for the final step of packaging for fish feed manufacturing machine
