  Deheng Rogowski Coil current Transformers are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.

A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided

Specifications:

Current Range: 10A to 100kA
Rated output: 0.333Vac at rated current with Integrator,100mV/per 1000A @ 50Hz without integrator

Accuracy:±1% from 5% to 120% of rated current with integrator(45-65Hz)

Phase Angle: ≤±1°5% to 120% from 5% to 120% of rated current

Linear: 0.5%

Frequency: 1Hz-1MHz ,50/60 Hz nominal

Work Voltage: 600V

Power supply: 7-30VDC (9 Vdc,12 Vdc recommended )

Coil Diameter: 10.5mm,12mm or as customer order

Window size: 10mm,15mm or as per customer ordered

Wire lead: 1 meter sheath cable or as customers order

Withstand Voltage:3000V

Operating temperature: -25℃-+70℃

IP class : IP65

CE recognized. RoHS Compliant

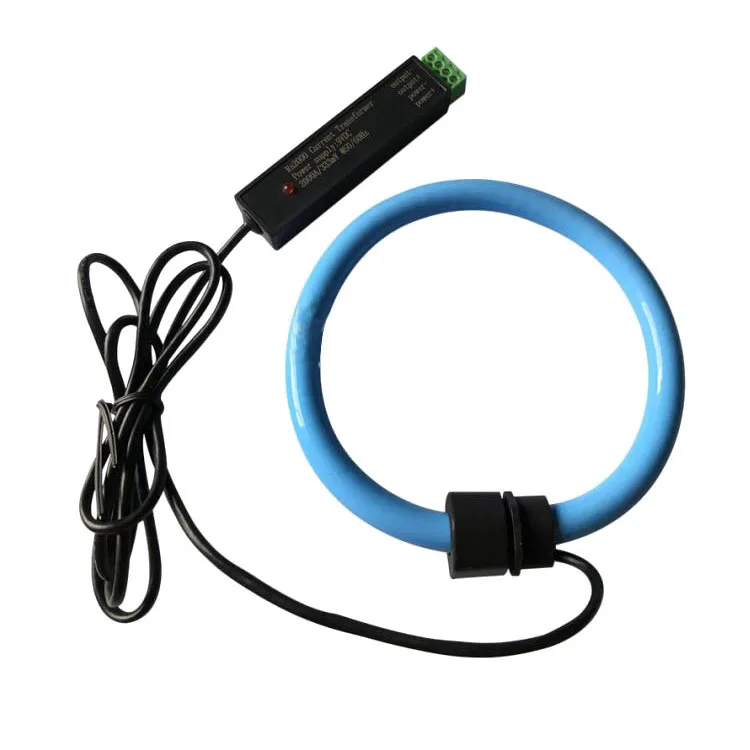

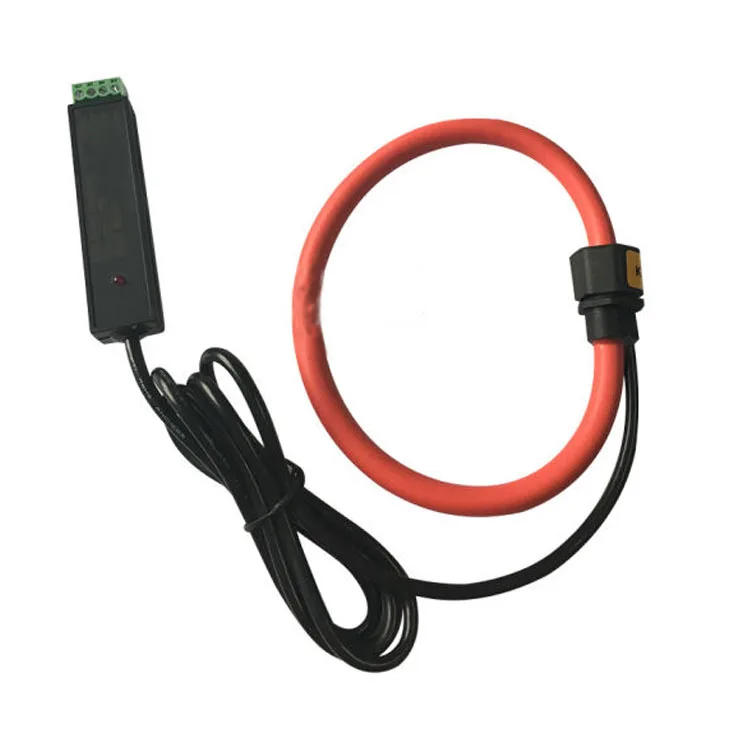

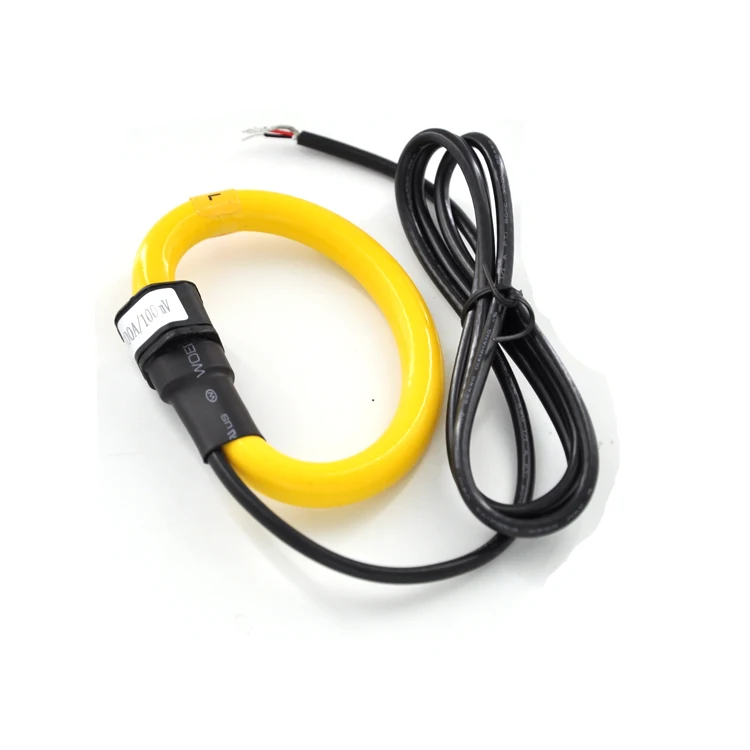

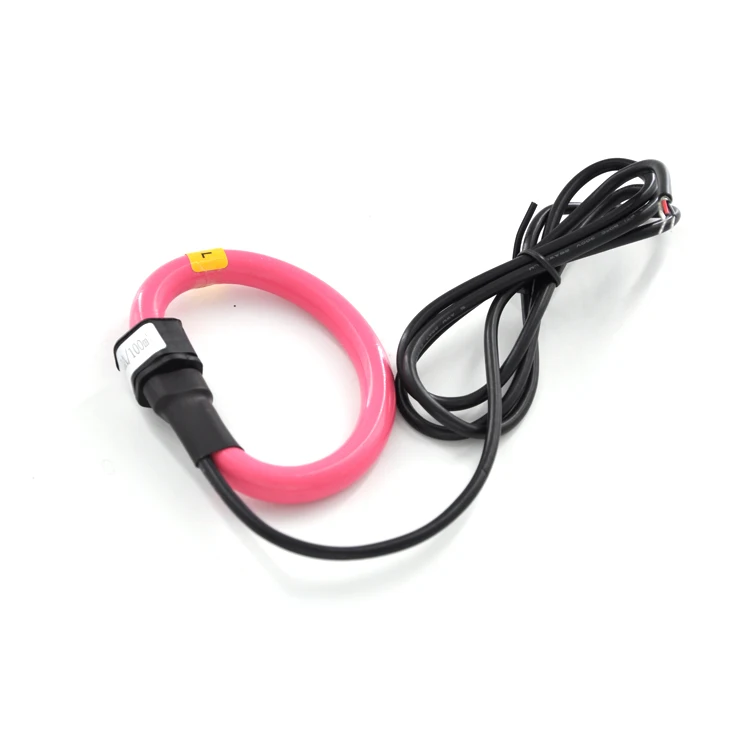

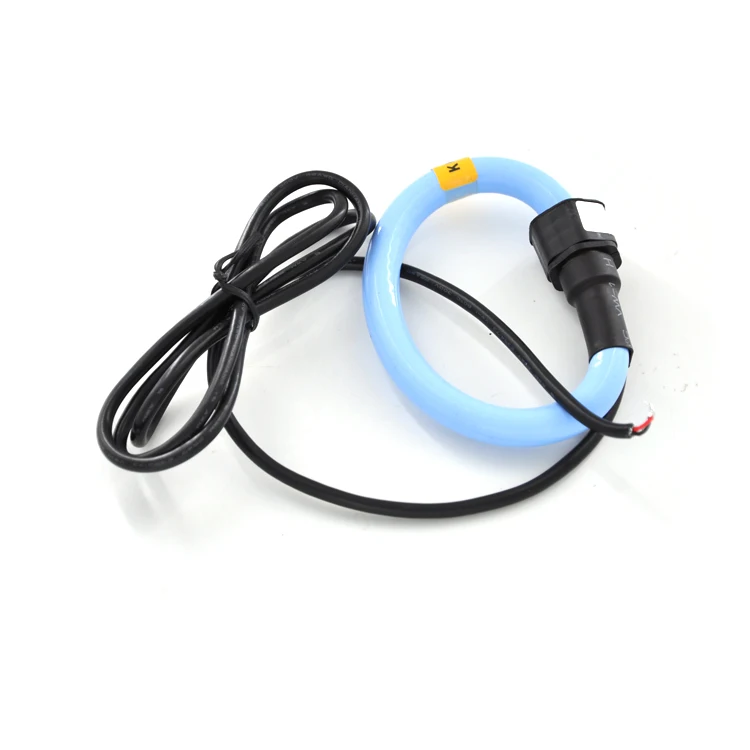

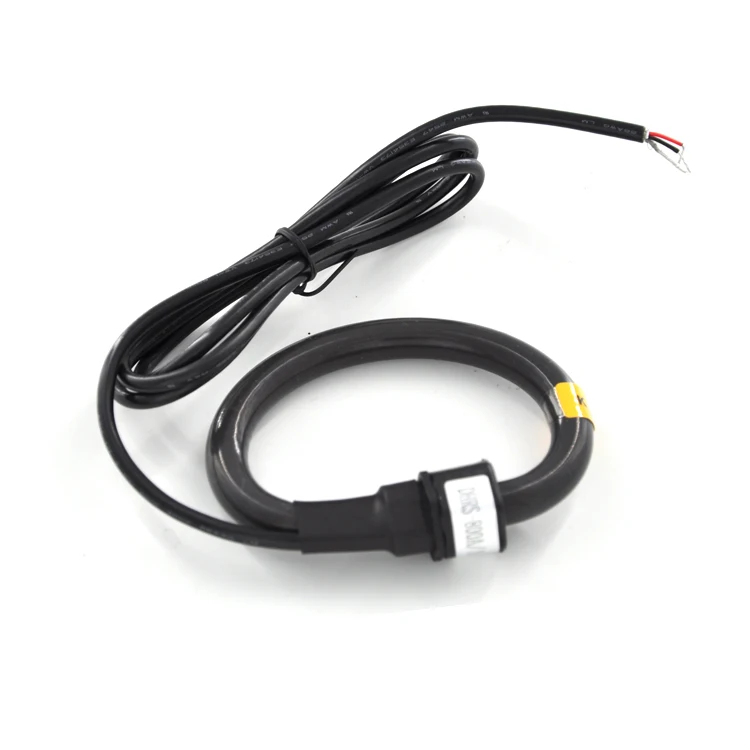

Customozed flexible rogowski coil

  More rogowski coil current sensor, you can choose with integrator or without integtator pls check here
