Трансформатор тока CP / MES для амперметра 1A-3000A шина din-рейка трансформаторы в
- Категория: Transformers >>>
- Поставщик: Yueqing,Heyi,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.2 $* | 0.66 $* |
| Aug-15-2025 | 0.85 $* | 0.29 $* |
| Jul-15-2025 | 0.4 $* | 0.59 $* |
| Jun-15-2025 | 0.12 $* | 0.34 $* |
| May-15-2025 | 0.50 $* | 0.10 $* |
| Apr-15-2025 | 0.52 $* | 0.0 $* |
| Mar-15-2025 | 0.53 $* | 0.42 $* |
| Feb-15-2025 | 0.85 $* | 0.6 $* |
| Jan-15-2025 | 0.59 $* | 0.73 $* |
Характеристики
HEYI ELECTRICAL CO., LTD is a manufacturer not a middle man, morever HEYI own one strong R&D and QC
team continues to innovate new solutions for customers

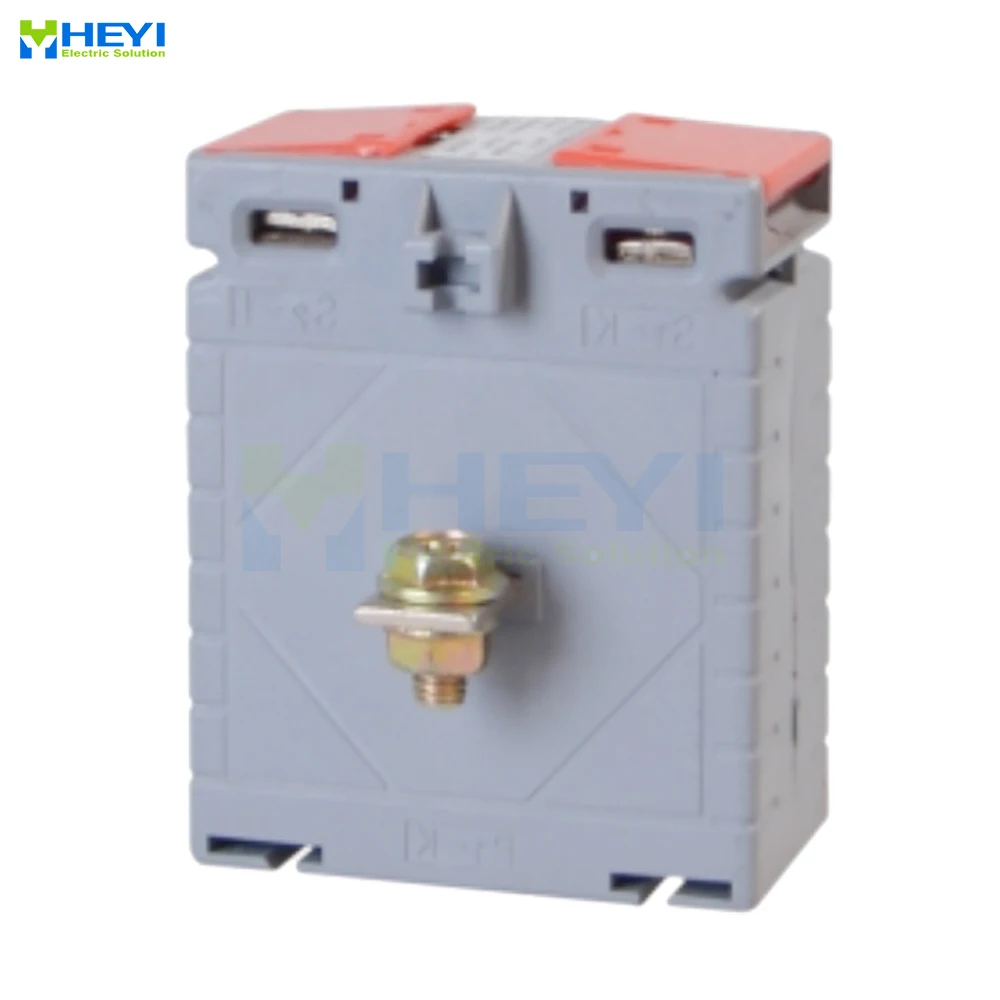

Product Description
CP discription

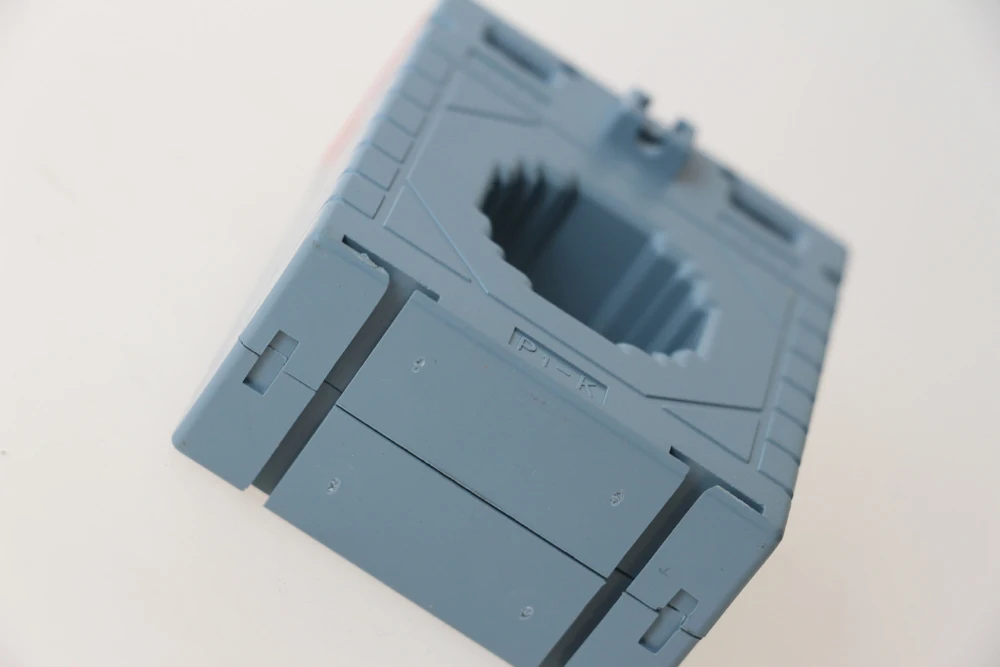

CP range of current transformers are compact-smaller than other models with the current ratio of the transformer
is small. Clamshell-style terminal cover is well protected by the second terminal. With related accessories you can
use Din rail mounting a current from 5A to 3000A.
Features
1) Three built in fixing methods: Panel/Din Rail/Busbar

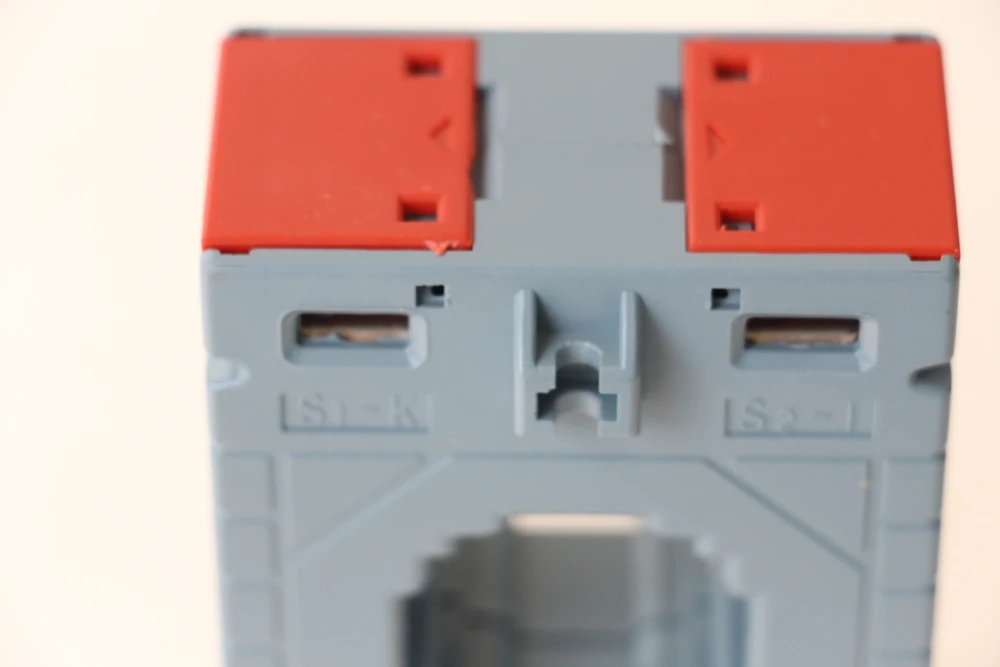

2) Built in hinged terminal cover
3) Compact design
4) Primary current from 5A to 3000A
Technique Indes
| Electrical Parameter | Mechanical Parameter | ||
| Frequency | 50/60Hz | Case | PC/UL94-V0 |
| Rated Input | 5A-3000A | Bobbin | PBT |
| Measuring range | 5%ln-120%ln | Core | Silicon steel |
| Rated Output | 1A, 5A | Construction | Screw |
| Rated Voltage | 0.72KV(AC) | Operating Temp | -25℃ to +75℃ |
| Dielectric strength | 3.0KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩmin | Output Connection | Terminal |

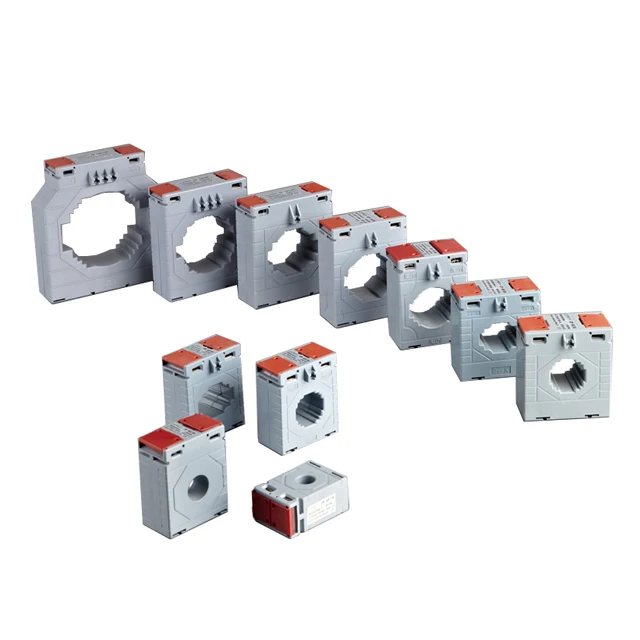

Model Confirm
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| CP-62/B | 5/5A~150/5A | busbar | 1.5~2.5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-45/14 | 5/5A~60/5A | Φ=14mm | 1~2.5 | 0.5/1.0 | 0.72KV(AC) |
| CP-62/20 | 30/5A~200/5A | Φ=20mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-62/30 | 30/5A~200/5A | Φ=30mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-62/40 | 60/5A~300/5A | Φ=40mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-74/50 | 300/5A~600/5A | Φ=50mm | 2.5~5 | 0.5/1.0 | 0.72KV(AC) |
| CP-80/30 | 30/5A~200/5A | Φ=30mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-80/40 | 100/5A~500/5A | Φ=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| CP-86/60 | 250/5A~1000/5A | Φ=60mm | 3.75~15 | 0.5/1.0 | 0.72KV(AC) |
| CP-100/60 | 400/5A~1600/5A | Φ=60mm | 3.75~20 | 0.5/1.0 | 0.72KV(AC) |
| CP-104/80 | 600/5A~2000/5A | Φ=80mm | 10~20 | 0.5/1.0 | 0.72KV(AC) |
| CP-140/100 | 800/5A~3000/5A | Φ=100mm | 15~25 | 0.5/1.0 | 0.72KV(AC) |
Note: The Current Ratio above are common type, that's ok to customise the ration according to
customers' requirement. HEYI ELE. Co.,LTD could provide professional OEM service :)
CP size
Accuracy Class Characteristic
Applications
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.

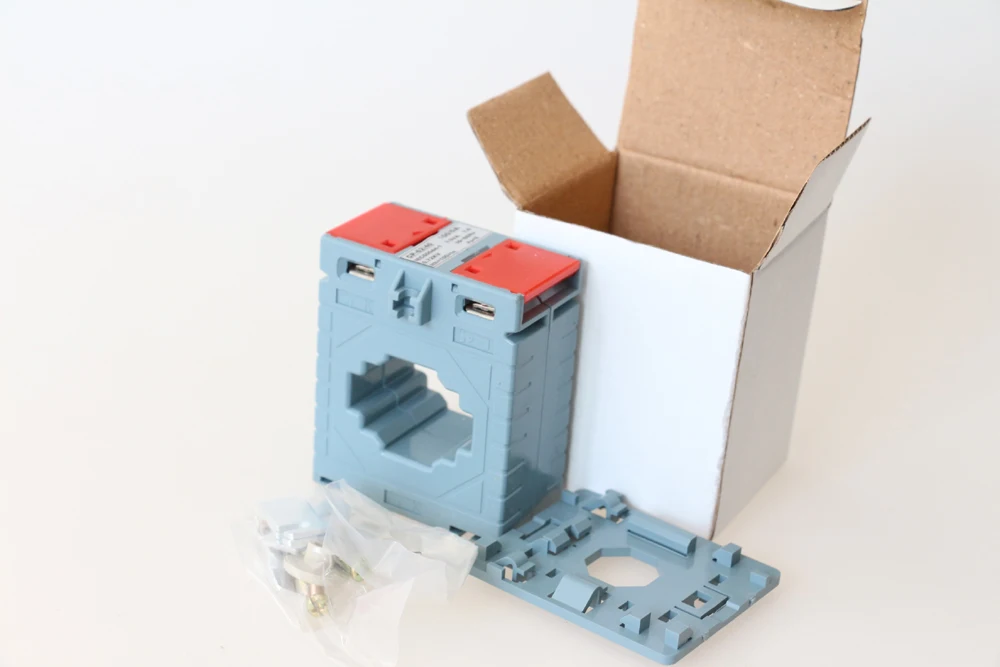

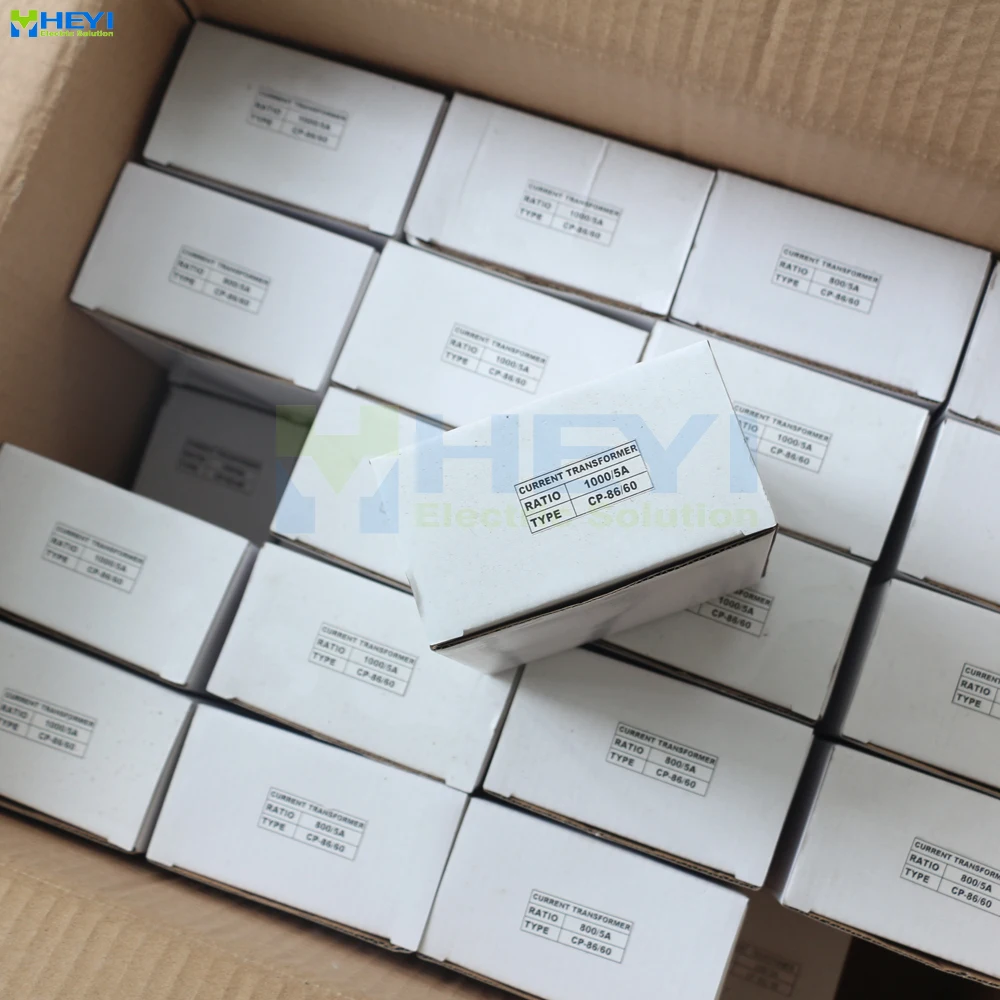

Packaging & Shipping
Delivery (Global courier, Ocean transpor, Air transport)
Related Products
 |  |  |  |
| MSQ current transformer | RCT current transformer | DX current transformer | HEYI split core CTs |
Company Information
About HEYI
HEYI, established in 1992, is a comprehensive multi-business industry and trade integration of high-tech
enterprises. HEYI aim to be a worldwide leader in Energy Management. She focus on research, development
and manufacturing split core CT ,current transformer ,Digital smart meter and all related products, which is
widely used in Smart Grid Industry all covering distribution, Saving&Protecting&Metering Electicty, and Power System.
Mission Statement of HEYI
To supply quality process and packaging solutions with excellent cost-benefit relationship including strong technical
service before and after the installation in order to create solid and long lasting commercial relation with our customers.
Vision Statement of HEYI
To place Sainty as the leader brand in the world that is recognized by its Quality, Cost-Benefit relation, Technical Service
and Productivity in the world can continent during the next 5 years and generate resources that will allow to improve
continuously developing own state of the art technology.
Factory display
Certifications
Certifications
FAQ
FAQ
1) Question: Is HEYI a factory or trading company?
Bethy (HEYI Sales Manager): We are an SGS recognized OEM/ODM manufacturer factory with export license.
We have an outstanding and experienced team made up of "A" player who have a passion for doing something
great to create more value for customers world-wide.
2) Question: Where is HEYI's factory located? How can I visit there?
HEYI :HEYI factory, With an ISO90001 certified, located in Yueqing city , zhejiang Province , P.R. China . It takes
about 4 hours from SHANGHAI by train and 45 minute by air. HEYI all staff and i are looking forward to ur visit.
3) Question: Can HEYI offer OEM Service?
Bethy (HEYI Sales Manager): Yes, we have the ability to do OEM / ODM to meet clients' requirements.
4) Question:How does HEYI factory do regarding quality control?
HEYI: Firstly, to test the core performance ,use the wound core tester. Finished product use the instrument transformer
calibrator. If find defective If can be rework ,will be rework ,if not as wasters.
5) Question: How is HEYI's production & sales strength?
Bethy(Sales Manager) & ShiMin (Production Director): HEYI factory current manufacturing capacity for one month is
2000000Pcs, our company has been making split-core current transformers for more than 10 years.
6) Question: Which parts of the CTs does HEYI company purchase from other suppliers(ex. Raw material for the core,
pre-molded core material, plastic enclosures, winding wire, lead wire, etc.)?
Shimin (HEYI Production Director):Except for the split core CT ,others core all is make by ourselves, Winding wire and
lead wire is by the suppliers.
7) Question:Does HEYI have a Design Engineering capability?
HEYI: Yes ,we have strong R&D department , have experience and expertise in designing custom styles of CTs.
8) Question: What products have HEYI designed?
Bethy(Sales Manager): All the Mini CTs are designed by our engineer, Mr. Huang. HEYI own 90% patent of the design.
Bethy(Sales Manager): All the Mini CTs are designed by our engineer, Mr. Huang. HEYI own 90% patent of the design.
