Оптовая продажа внутренний резервуар для пластиковых бутылок HDPE IBC без
- Категория: Chemical Storage Equipment >>>
- Поставщик: Shouguang,Maoxin,Plastic,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.39 $* |
| Aug-16-2025 | 0.28 $* | 0.70 $* |
| Jul-16-2025 | 0.38 $* | 0.97 $* |
| Jun-16-2025 | 0.21 $* | 0.20 $* |
| May-16-2025 | 0.44 $* | 0.44 $* |
| Apr-16-2025 | 0.74 $* | 0.93 $* |
| Mar-16-2025 | 0.67 $* | 0.87 $* |
| Feb-16-2025 | 0.81 $* | 0.42 $* |
| Jan-16-2025 | 0.98 $* | 0.59 $* |
Характеристики
Product Description
The Technical Date of 1000L HDPE ibc tank | ||
Item Specification Tolerance | ||
Item | Specification | Tolerance |
Rated Volume(L) | 1000 | / |
Brimful Volume(L) | ≥1050 | / |

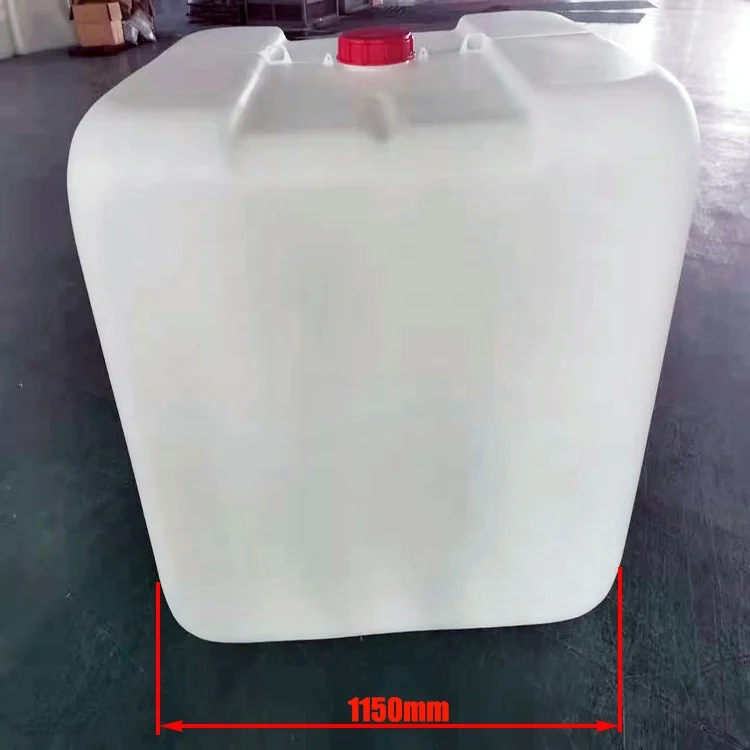

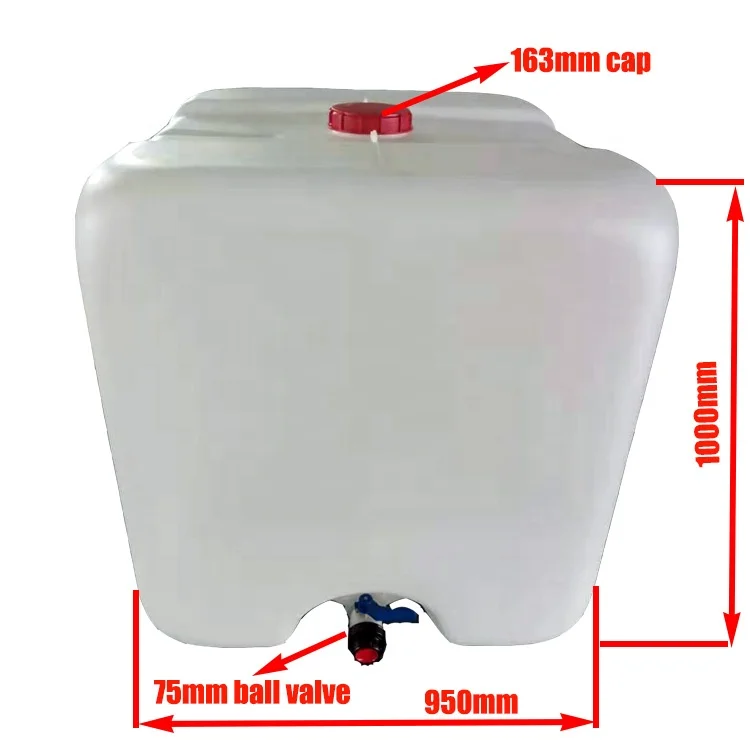

Overall Dimension(mm) | 950x1000x1150 | ±5 |
Top cap Mouth diameter | 142(diameter of thread SLCS 160mm,Pitch 7mm) | ±2 |
Weight for Inner Tank(kg) | 15.5 | ±0.5 |
Valve outside diameter(mm) | 50 | ±1 |
Wall Thickness(min) | ≥1.5mm | / |
Outlet Valve(discharge valve) | DN50 ball valve& butterfly valve | / |
Height for forklift holes(mm) | 90 | / |
Length for forklift holes(mm) | 795 | |
Other detailed date for our IBC Tank 1000L
1.Model:YH-1000L
2.UNMark:each IBC Tank will mark exclusive UN Uumber
3.Overall dimensiobn:9500*1000*1150mm(±5mm)
4.Max Allowable Weight:2013 kg
5.Inner tank Weight:15±0.5kg
6.Allowable Stacking Weight:4056kg
7.Material of inner Receptacle: HDPE
8.Material of outer Casing :Galvanized steel DCD51D
9.Material of pallet: Galvanized steel DC53D
10.Material of seal :EPDM,FKM,Nitrile,PE
11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12.Stacking Test Weight;4056kg
13.Dropping Test Height:1.9mm
14.Hydraulic Test pressure:100kpa
15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
Company Information
Full Automatic Production Equipment-Blow Molding Machine
1.Our factory have large-Scale blow mold machine to prove the high quality of products.
2.IBC Tank is according to international standards
Detailed Images
Pressure and Drop Test
1.Our IBC tank are tested for pressure drop in strict accordance with international standards
2.Products through international quality certification standards, quality assurance
Certificate
Packaging & Shipping
PACKAGE:Standard export carton packing.
DELIVERY TIME:
3-15 days after payment,detail delivery date should be decided according to
production season and order quantity.
Our Advantage
Contact Us
If you want more details,welcome to contact me!
