Вертикальный криогенная компании 230L цилиндр с жидким азотом бак для криосауна
- Категория: Chemical Storage Equipment >>>
- Поставщик: WOBO,Industrial,Group,Corp.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 2272.91 $* | 2317.12 $* |
| Jul-15-2025 | 1843.25 $* | 1880.88 $* |
| Jun-15-2025 | 2236.26 $* | 2281.29 $* |
| May-15-2025 | 2218.41 $* | 2262.61 $* |
| Apr-15-2025 | 1771.93 $* | 1806.69 $* |
| Mar-15-2025 | 2183.44 $* | 2227.28 $* |
| Feb-15-2025 | 2165.12 $* | 2208.99 $* |
| Jan-15-2025 | 2147.39 $* | 2190.64 $* |
Характеристики
Vertical Cryogenic Tank Companies 230L Liquid Nitrogen Cylinder Tank For Cryosauna Cryotherapy
Product Description

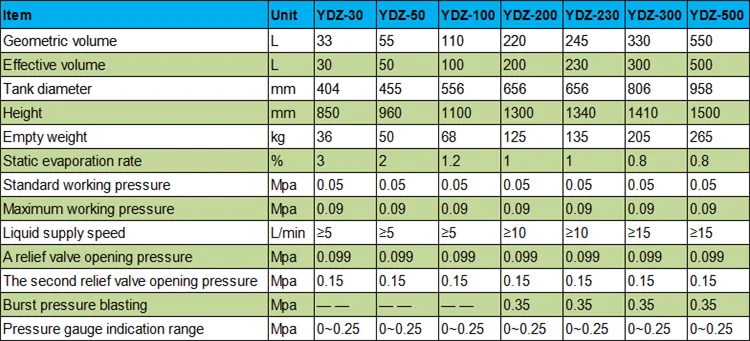

Paramater
| Item | Unit | YDZ-30 | YDZ-50 | YDZ-100 | YDZ-200 | YDZ-230 | YDZ-300 | YDZ-500 |
| Geometric volume | L | 33 | 55 | 110 | 220 | 245 | 330 | 550 |
| Effective volume | L | 30 | 50 | 100 | 200 | 230 | 300 | 500 |
| Tank diameter | mm | 404 | 455 | 556 | 656 | 656 | 806 | 958 |
| Height | mm | 850 | 960 | 1100 | 1300 | 1340 | 1410 | 1500 |
| Empty weight | kg | 36 | 50 | 68 | 125 | 135 | 205 | 265 |
| Static evaporation rate | % | 3 | 2 | 1.2 | 1 | 1 | 0.8 | 0.8 |
| Standard working pressure | Mpa | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum working pressure | Mpa | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Liquid supply speed | L/min | ≥5 | ≥5 | ≥5 | ≥10 | ≥10 | ≥15 | ≥15 |
| A relief valve opening pressure | Mpa | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 |
| The second relief valve opening pressure | Mpa | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Burst pressure blasting | Mpa | — — | — — | — — | 0.35 | 0.35 | 0.35 | 0.35 |
| Pressure gauge indication range | Mpa | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 |
Company Information
Vertical Cryogenic Tank Companies 230L Liquid Nitrogen Cylinder Tank For Cryosauna Cryotherapy
