Буровая установка для бурения горных скважин с дизельным
- Категория: Mine Drilling Rig >>>
- Поставщик: Quzhou,Jugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 15232.3 $* | 15994.67 $* |
| Aug-19-2025 | 15104.39 $* | 15859.4 $* |
| Jul-19-2025 | 12672.1 $* | 13306.89 $* |
| Jun-19-2025 | 14848.71 $* | 15590.58 $* |
| May-19-2025 | 12928.27 $* | 13574.80 $* |
| Apr-19-2025 | 14592.65 $* | 15322.44 $* |
| Mar-19-2025 | 14464.85 $* | 15187.26 $* |
| Feb-19-2025 | 14336.57 $* | 15053.25 $* |
| Jan-19-2025 | 14208.21 $* | 14918.72 $* |
Характеристики
Products Description

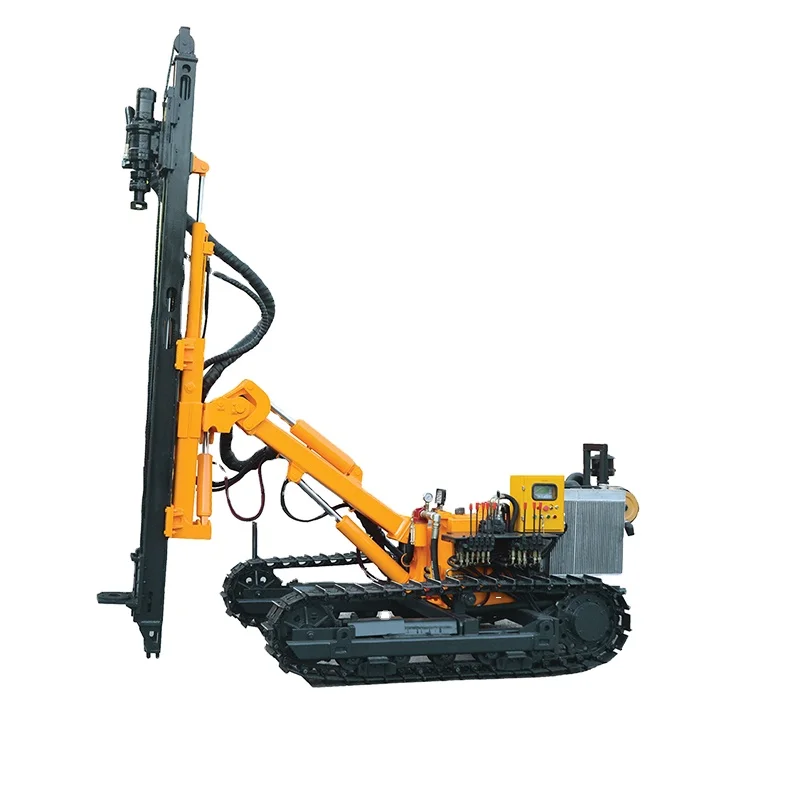

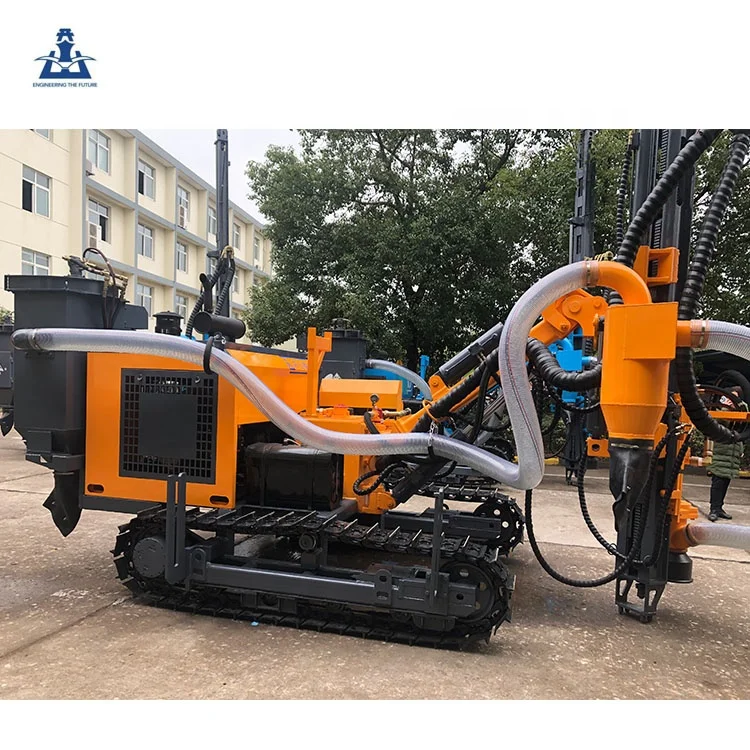

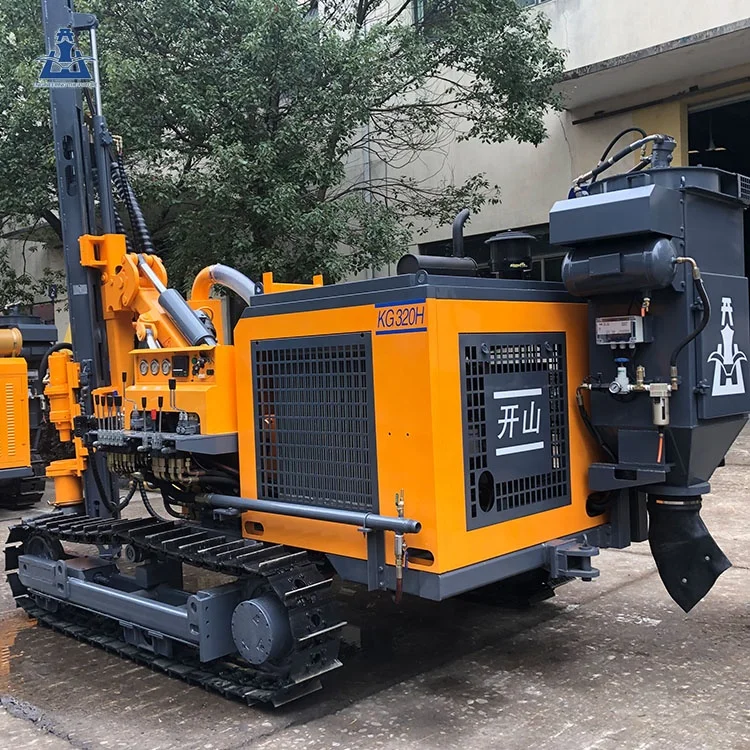

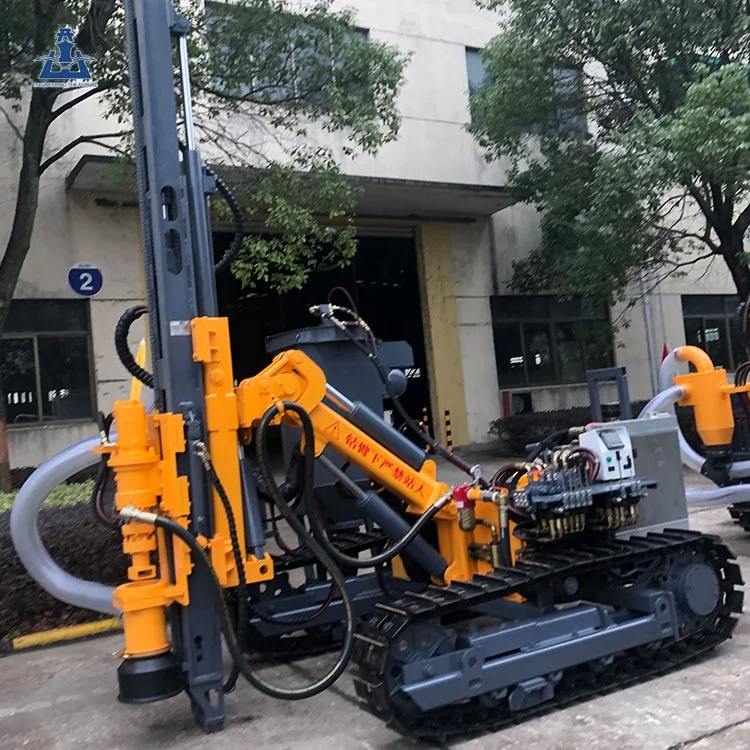

KG320/KG320H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental
protection. Equipped with the Yuchai engine (China 3), the drill rig meets national standards for emissions and environmental. The
ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pith and
lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is
improved, thereby proving increased system flow and rotary. The hydraulic cylinder has been optimized, thus making it more
reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used
for the housing; and the additional ring makes handling and lifting convenient.
protection. Equipped with the Yuchai engine (China 3), the drill rig meets national standards for emissions and environmental. The
ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pith and
lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is
improved, thereby proving increased system flow and rotary. The hydraulic cylinder has been optimized, thus making it more
reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used
for the housing; and the additional ring makes handling and lifting convenient.
Rock rigidity | f=6-20 |
Diameter of hole | Φ80-125mm |
Optium drilling depth | 25m |
Rotation speed | 0-140r/min |
Rotation torque | 1250N·m |
Lift power | 20000N |
Feed way | oil cylinder-chain |
Feed distance | 3000mm |
Walk speed | 0-2.2Km/h |
Gradeability | 30° |
Ground clearance | 465mm |
Size of drill machine | 5750X2100X2650mm |
Sliding carriage pitch angle | Blow 135°,elevation50°, total 185° |
Sliding carriage swing angle | Left100°,right45°,total 145° |
Drill boom pitch angle | Blow 50°,elevation25°, total 75° |
Drill boom pitch swing angle | Left44°, right45°, total 89° |
Sliding carriage suppling length | 900mm |
Power | YC4DKC4G2-80 (58KW/2200r/min) |
Drill pipe | Φ64x3000mm / 76X3000mm |
Air consumption | 7-15m³/min |
Max height of horizontal hole | 2750mm |
Min height of horizontal hole | 350mm |
Recommand air compressor | LGCY-13/17, KSCY-580/13, LGCY-18/17 |
Spare parts
Recommend Screw Air Compressor for KG920B dth borewell drilling machine | ||||
MODEL | Air capacity | Working pressure | ||
LGCY13-13 | 13m3/min | 1.3mpa | ||
LGCY15-13 | 15m3/min | 1.3mpa | ||
LGCY13-17 | 13m3/min | 1.7mpa | ||
Recommend Drilling tools for KG920B borewell drilling machine | ||||||
Drill Bit Dia. | 90mm | 105mm | 115mm | |||
Drill pipe Dia*L | 64*3000mm | 64*3000mm | 76*3000mm | |||
Drill hammer | CW930 | HD45S | HD45A | |||
Company Profile
About us
Quzhou Jugong Machinery Co.,Ltd.specialized in manufacture and export machines for industrial,mining and construction.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
About Kai Shan Group:
1- Established in 1956 ,Specialized in Portable crawler drill machine line more than 50 years.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
Certifications
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
If you are interested in our products, please feel free to contact us!
