US-20 многофункциональная пружинная формовочная машина с компьютерным

US-20 многофункциональная пружинная формовочная машина с компьютерным

Категория: Линия поперечной резки >>>
Поставщик: Union,Spring

Цена:16 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	19040.0 $*	19992.55 $*
Aug-17-2025	18880.99 $*	19824.87 $*
Jul-17-2025	15840.20 $*	16632.87 $*
Jun-17-2025	18560.27 $*	19488.70 $*
May-17-2025	16160.39 $*	16968.89 $*
Apr-17-2025	18240.18 $*	19152.2 $*
Mar-17-2025	18080.54 $*	18984.62 $*
Feb-17-2025	17920.98 $*	18816.89 $*
Jan-17-2025	17760.88 $*	18648.34 $*

Характеристики

Product Description

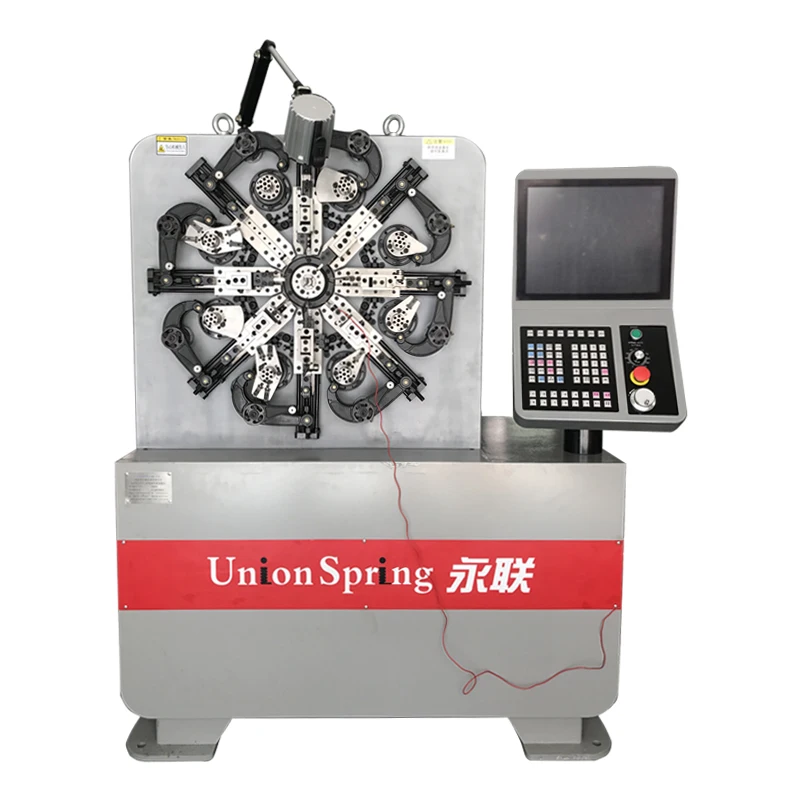

3-Axis /4-Axis Spring Forming Machine

Model	US-20
Axis	3/4
Wire Diameter	0.3-2.5mm
Wire Wheel Sets	2Sets
Cam Axis	2.7KW
Wire Feeding Axis	2.7KW
Rotary Quill Axis	1KW
Spinner Axis	0.4KW
Machine Size	13507501650mm³
Machine Weight	850kg

Machine description:

1. The machine adopts computer control system imported from Taiwan and servo motor imported from Japan.
2. The four axis of the machine are cam axis, wire feeding axis, rotary quill axis, and spinner axis(optional accessory). The four axis can be operated synchronously.
3. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. According to the working conditions on the display, the outer diameter and angle of the product can be modified at any time. It is equipped with precision detection and tracking equipment, which can automatically stop the machine if there are unqualified products.

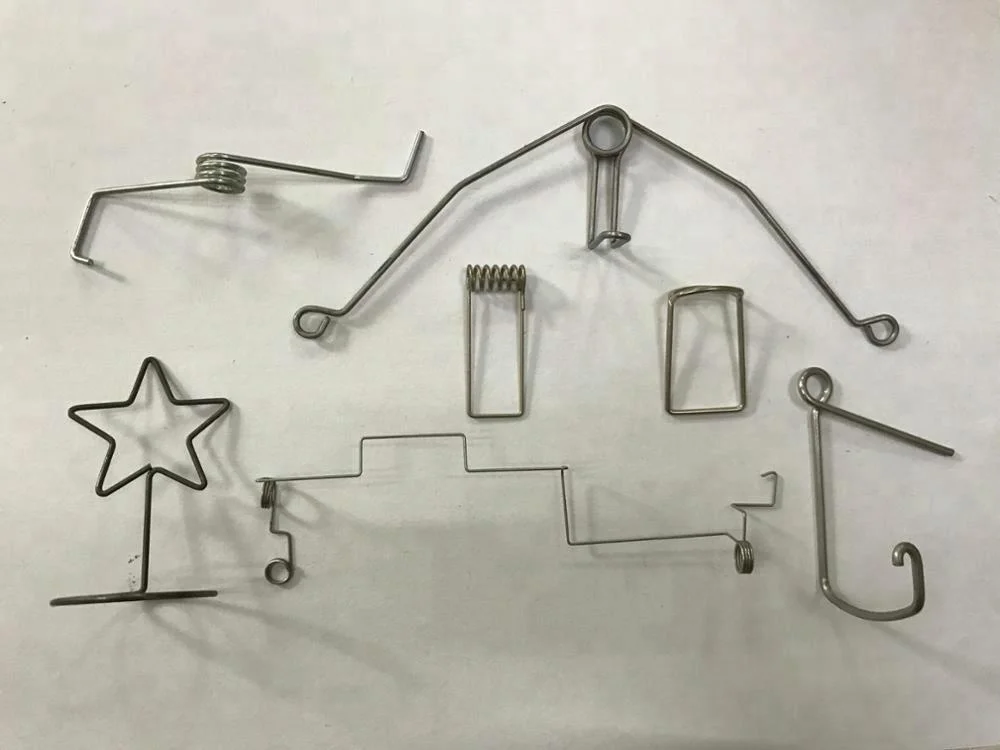

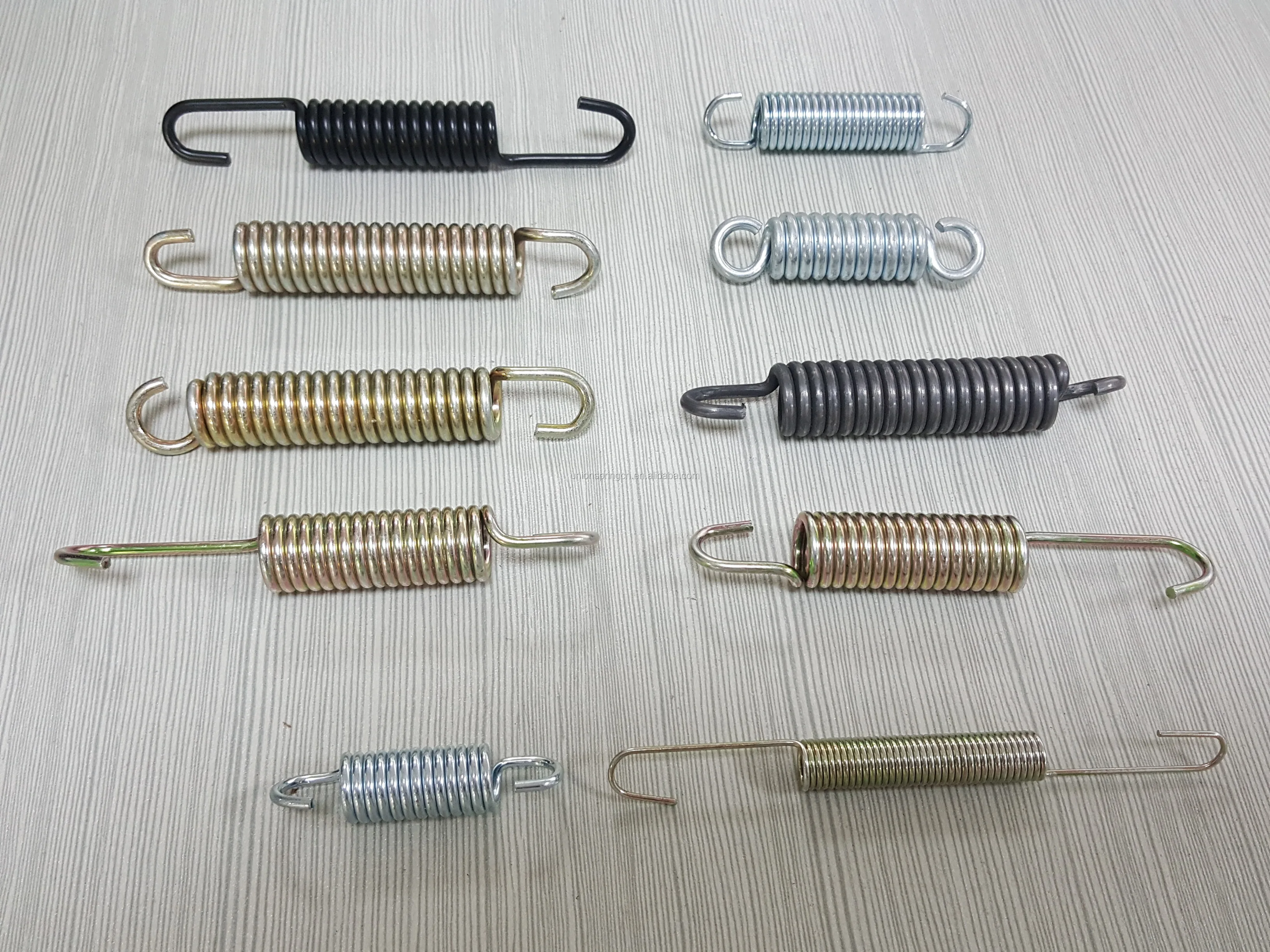

4, The machine is suitable for the production of double torsion springs, straight springs, tower springs, tension springs, rectangular springs, vortex springs and various fancy springs and shaped springs.

Detailed Images

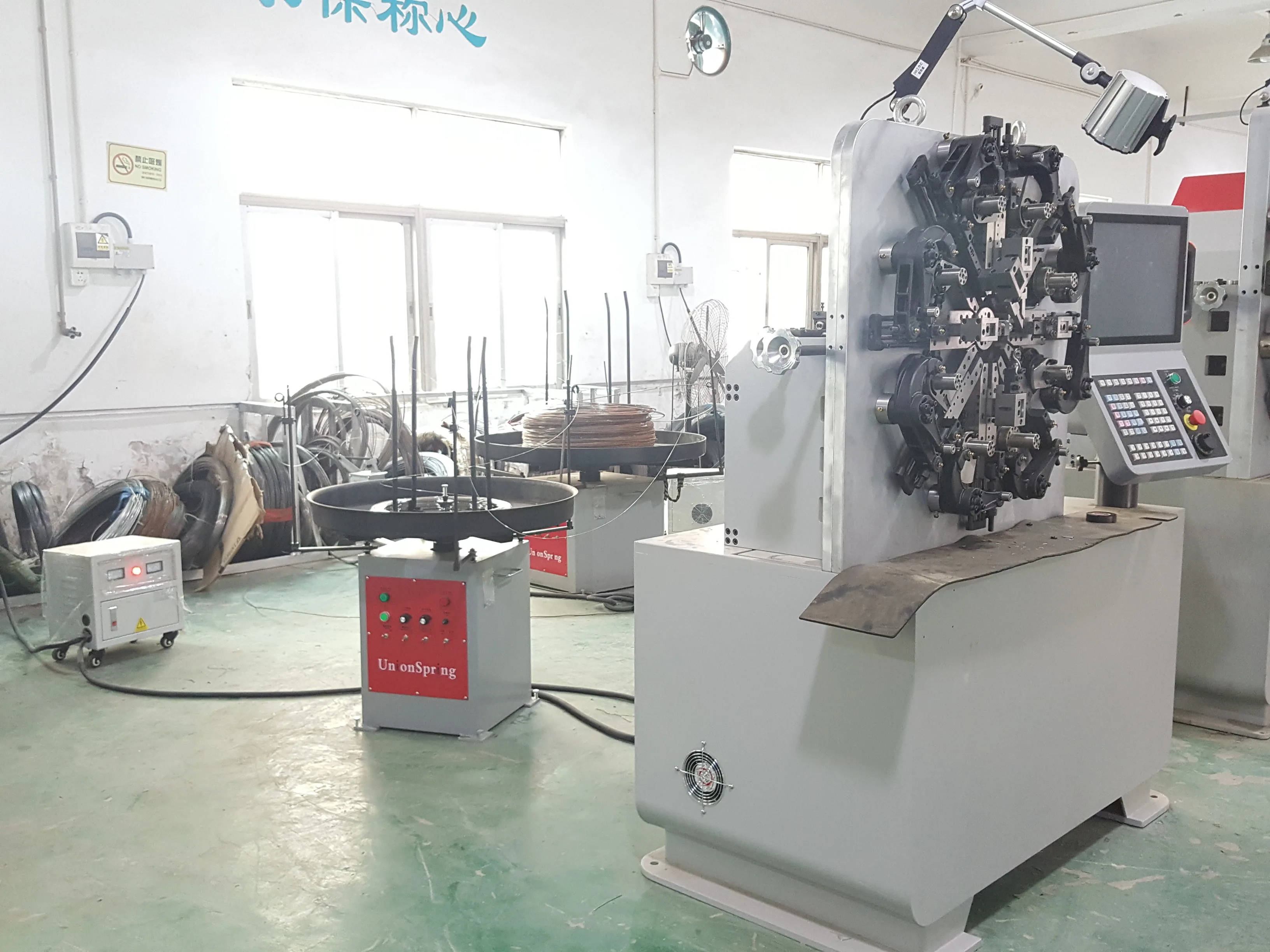

1、Automatic wire decoiler

The automatic wire feeder can adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.

2、Transformer

Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V. Customized

3、Straightener

The straightening device ensures that the steel wire after straightening has no internal stress and the steel wire is smooth, which facilitates the subsequent processing work.

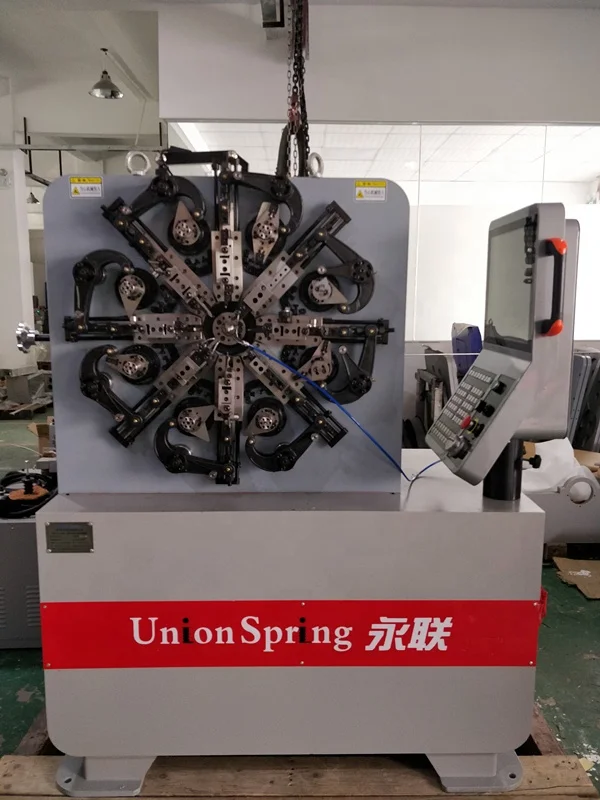

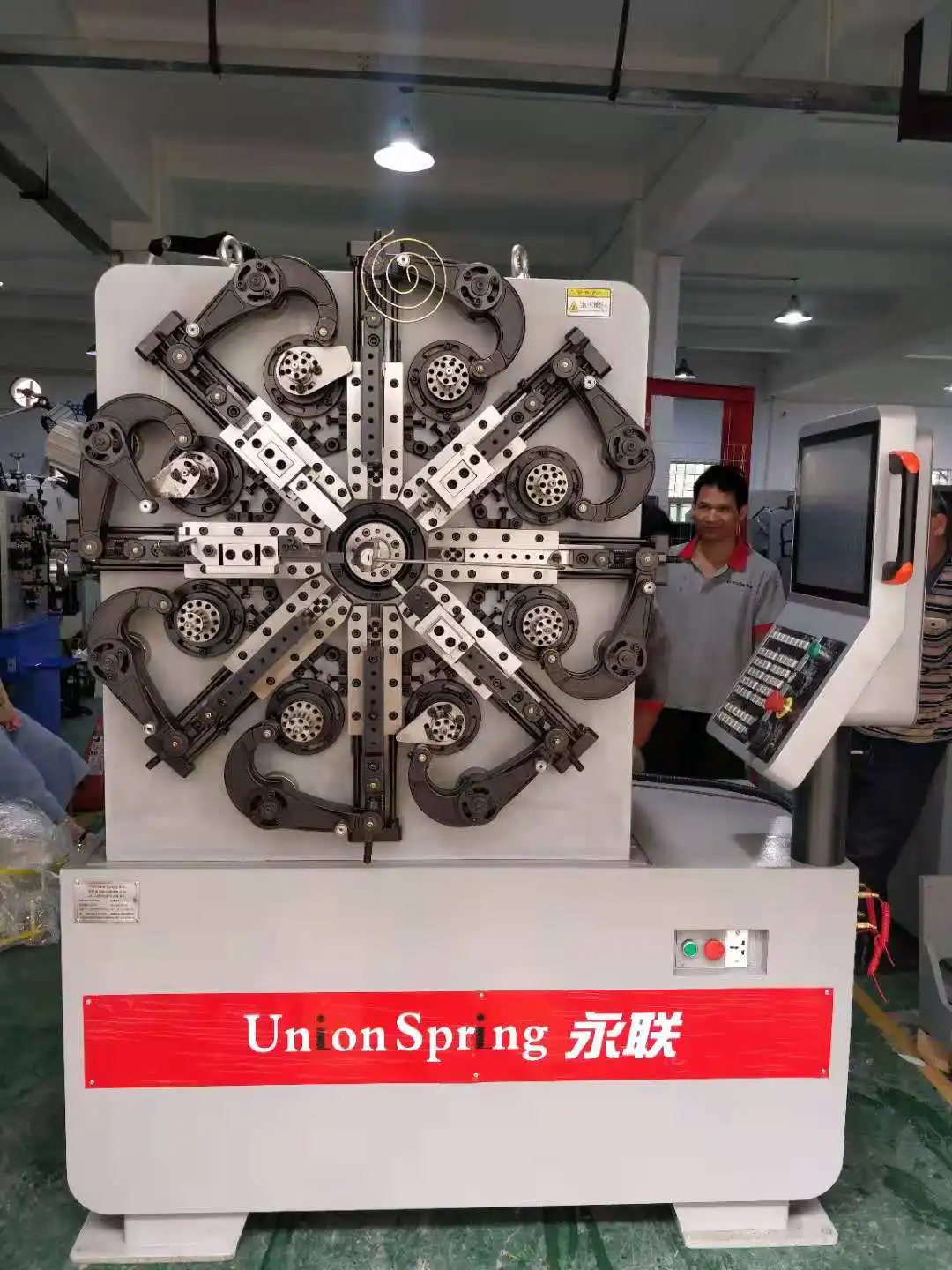

4、Machine panel

The eight slides work together, the assembly precision of the parts is high, and the machine runs for a long time.

5、Sanyo motor

Japan imported Sanyo Electric
Features: high precision motor, good stability, maintenance free, long use time

Packing&Shipping

After Sales Service

"Professional, quality, service, innovation" is our purpose, the company is committed to improve efficiency for customers and create value.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Introduction

UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.

Our Services

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
