Стальная катушка для продольной и резки

Steel coil slitting and cutting to length line

Steel coil slitting and cutting to length line

Steel coil slitting and cutting to length line Components

 Material Introduction

1.Raw material: Galvanized sheet,Hot rolled steel,carbon steel,etc

2.Material thickness:1-4mm (Also can as customers' request)

3.Material width:1250 mm,1500mm or as request

4.Slitting width:as request,adjustable

5.No. of slitting:20 strips or as request

Steel coil slitting and cutting to length line

Components

1.Hydraulic decoiler with loading car

2.Press and pinch device

3.Leveling and cutting device

4.Slitting device

5.Tension device

6.Recoiler with loading car

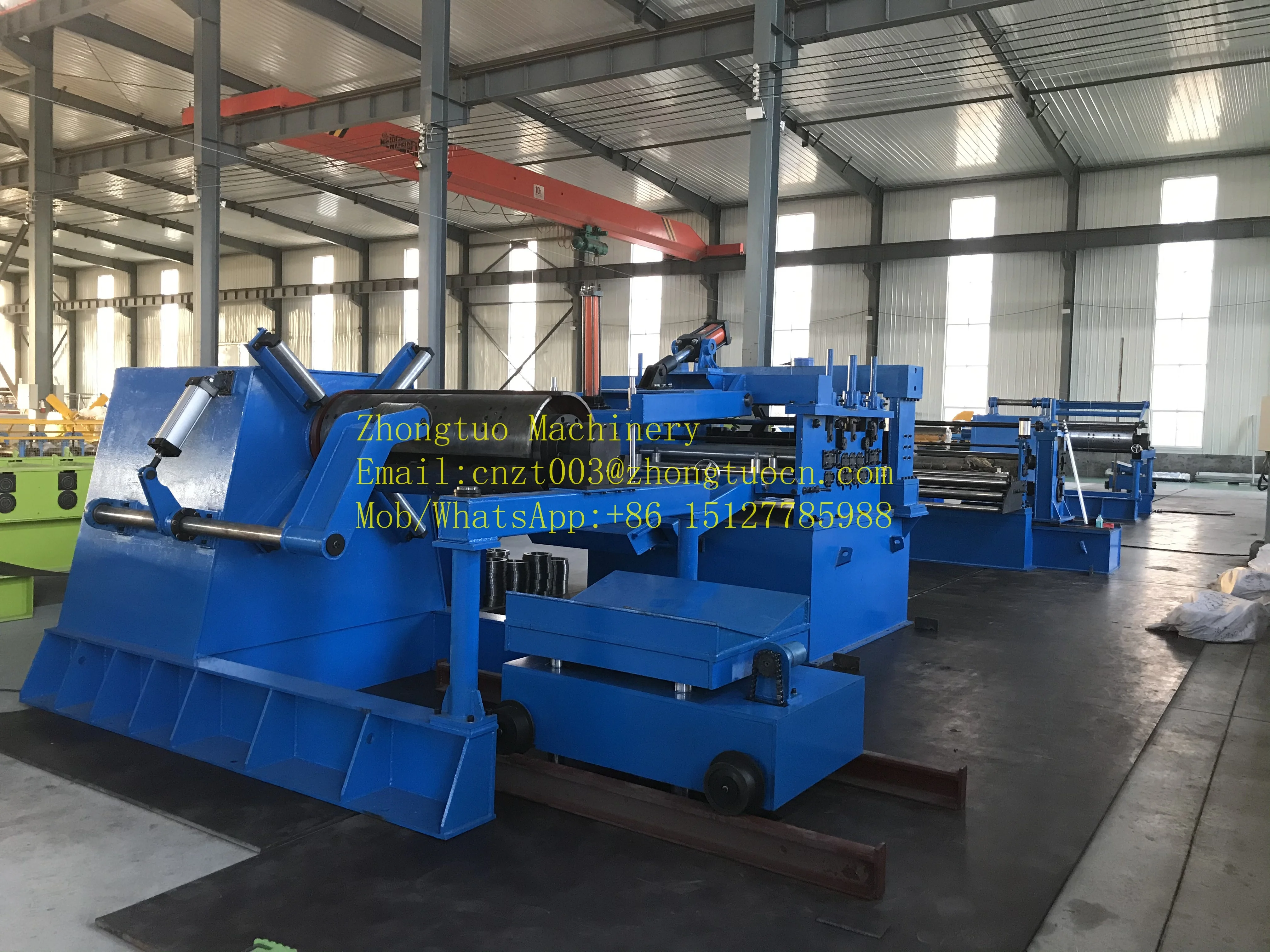

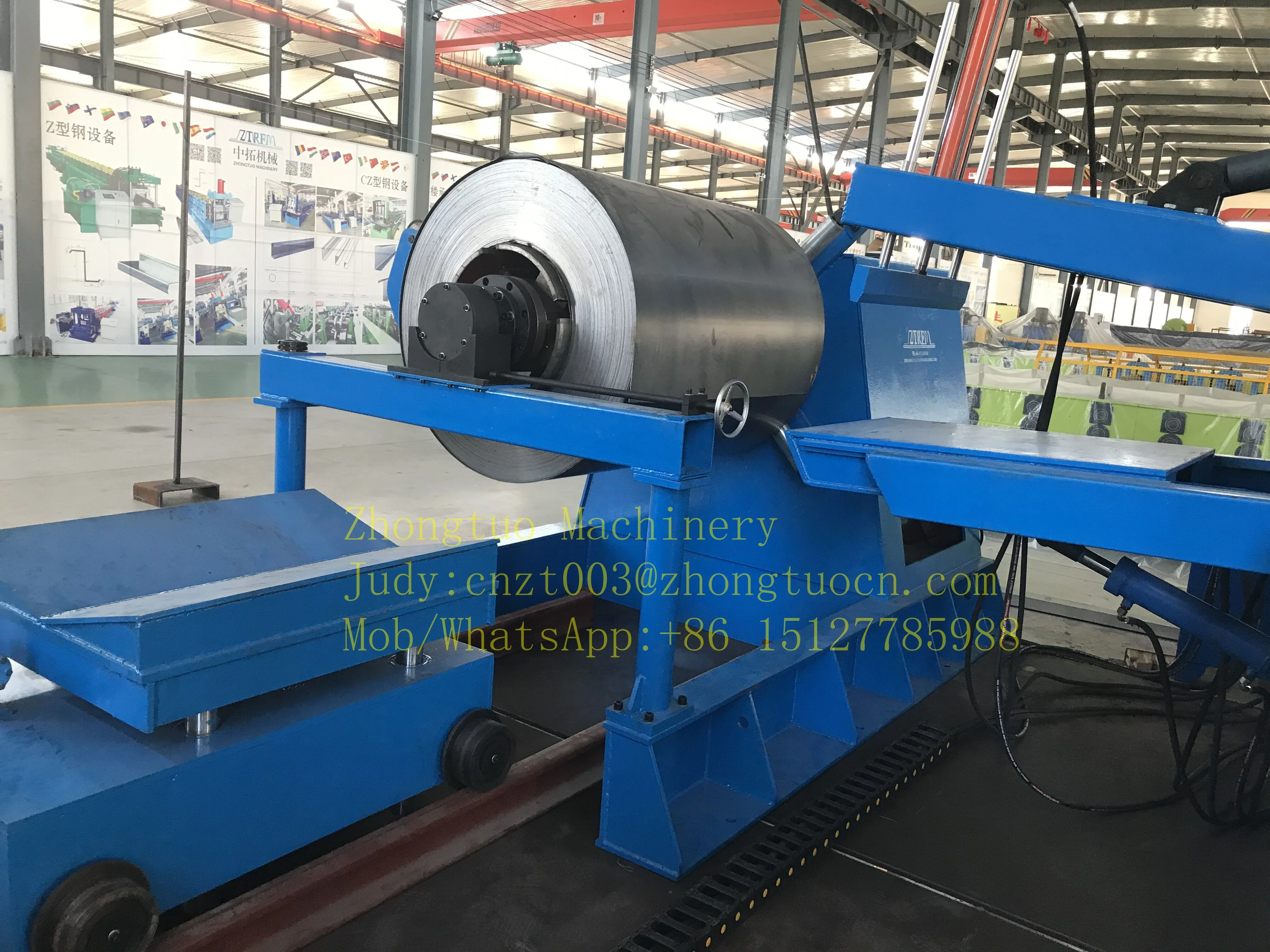

Hydraulic Decoiler with loading car of Steel coil slitting and cutting to length line

1.Load capacity: 10 Tons (as required)

2.Inner diameter: 480-550mm (as required)

3.Tensioning way: hydraulic extend and shrink

4.Design:(1)With arm to protect coil from loosing,pnumatic

               (2)With horizontal bar to protect coil

5.Button: Schneider

6.Hydraulic power:7.5kw

7.Motor power:5.5kw

Press and pinch device of Steel coil slitting and cutting to length line

Function:to keep the coil from loose

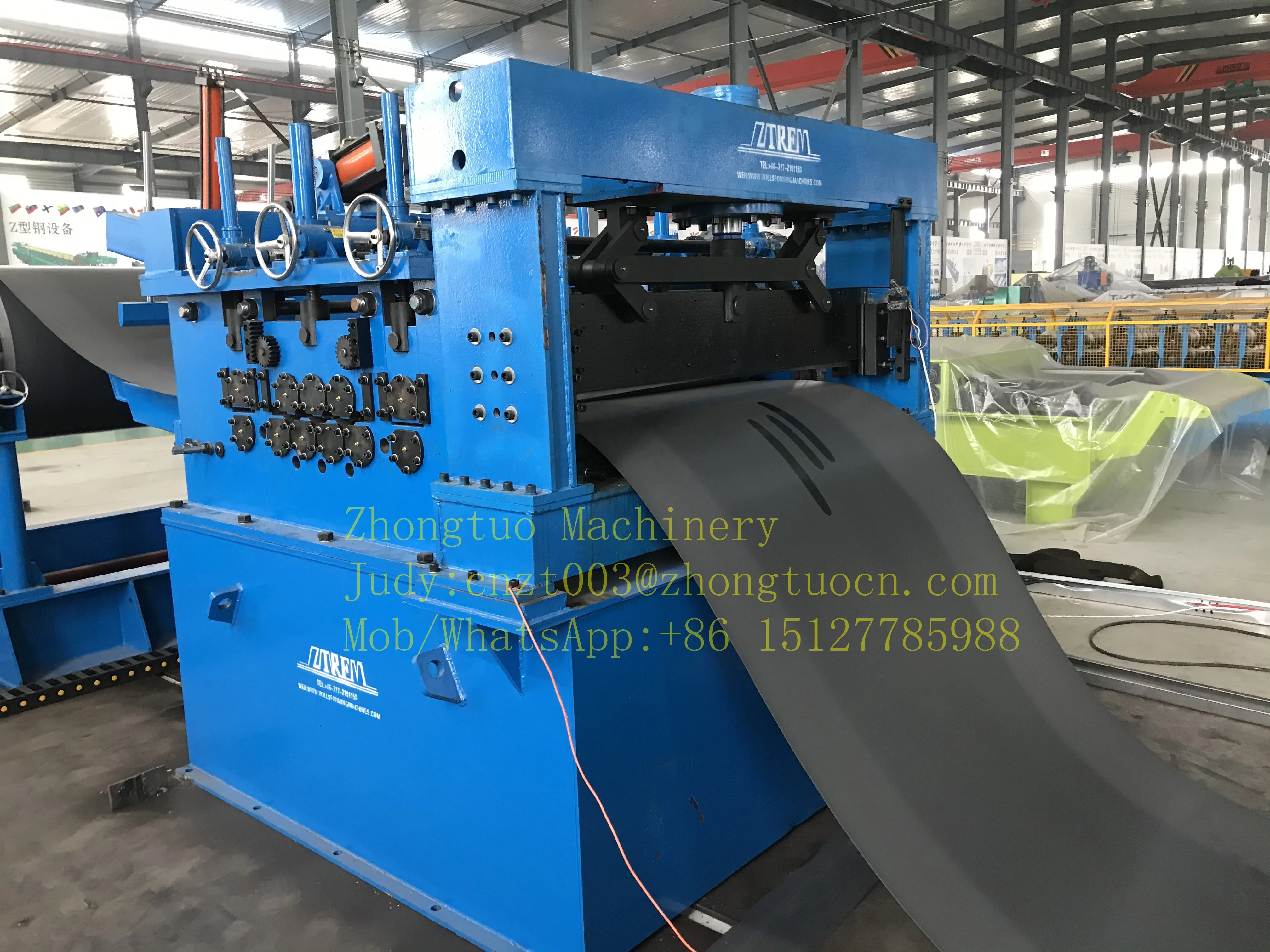

Leveling and cutting device of Steel coil slitting and cutting to length line

1.Leveling roller:9 rollers,up 4 down 5

2.Roller diameter:80mm

3.Power:7.5kw

4.The gap between up and down rollers can be adjusted to fit with the material thickness.

5.Cutting type:hydraulic cutting

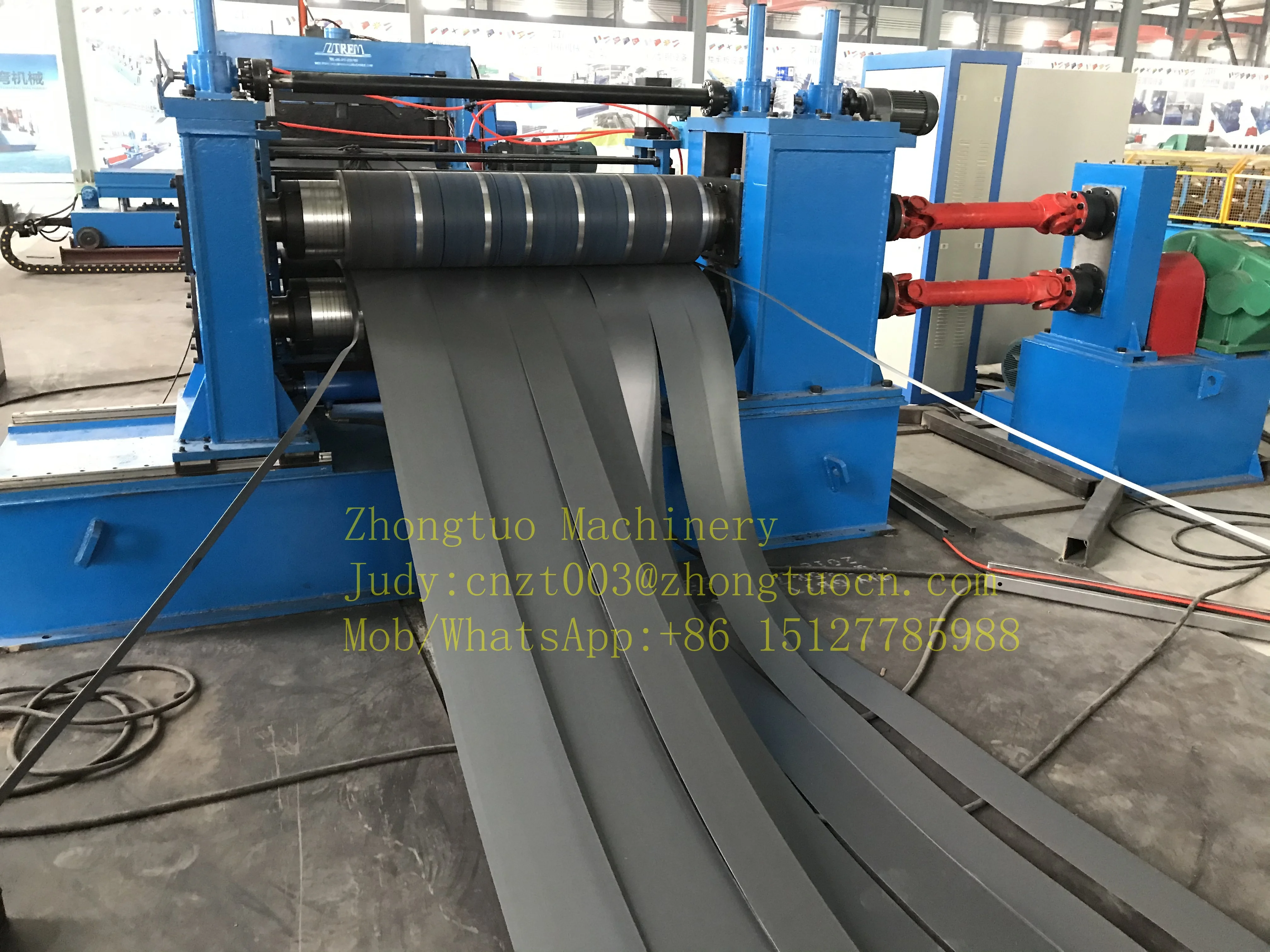

Slitting device of Steel coil slitting and cutting to length line

1.Shaft diameter:220mm,2 pcs

2.Power:75kw

3.Slitter material:6CrW2Si

4.Slitter quantity:20 pcs

Scrap winder of Steel coil slitting and cutting to length line

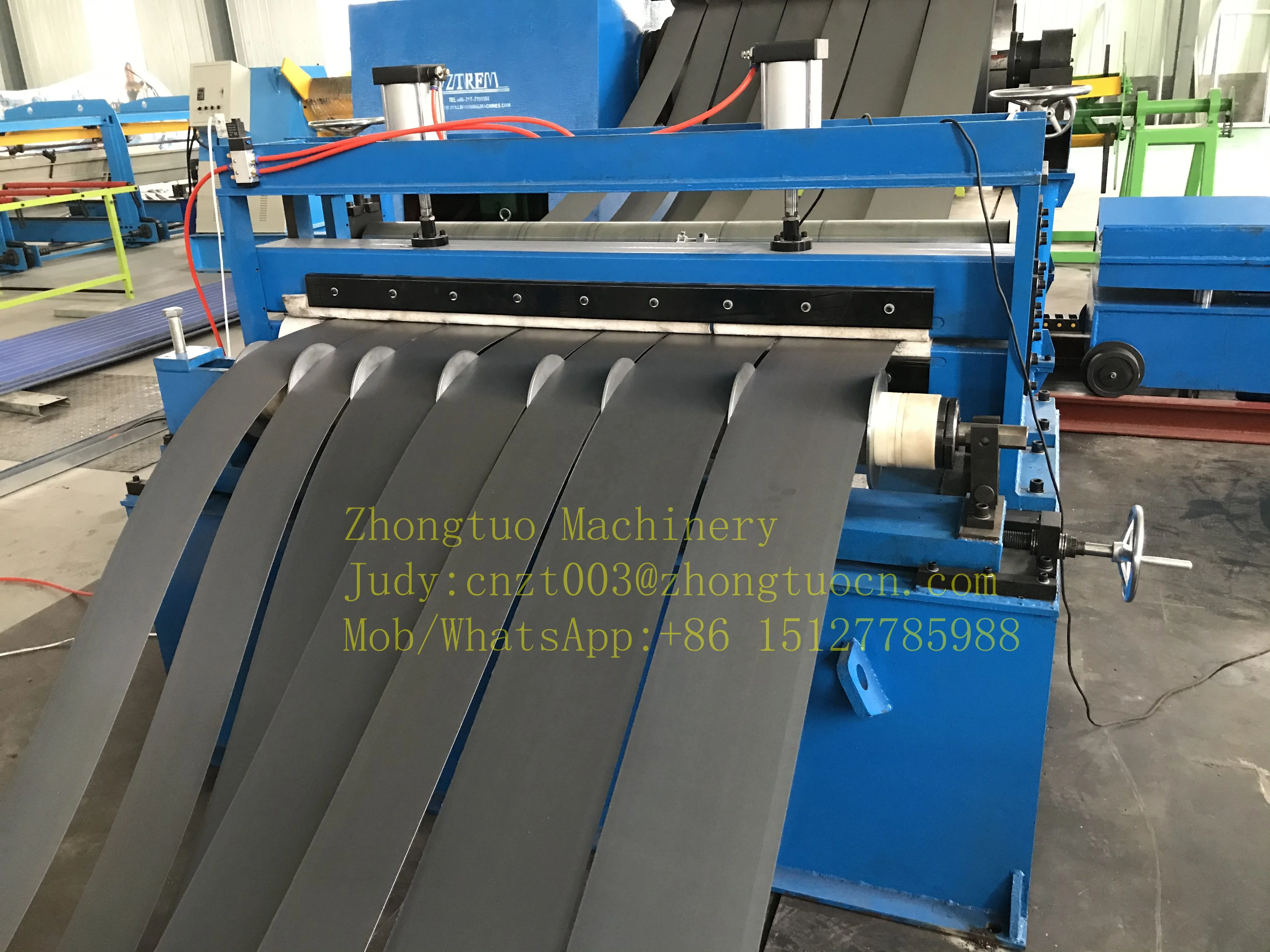

Tension device of Steel coil slitting and cutting to length line

It is composed of the frame, pre-dividing shaft, bracket, press device and hydraulic damping device,lifting device.

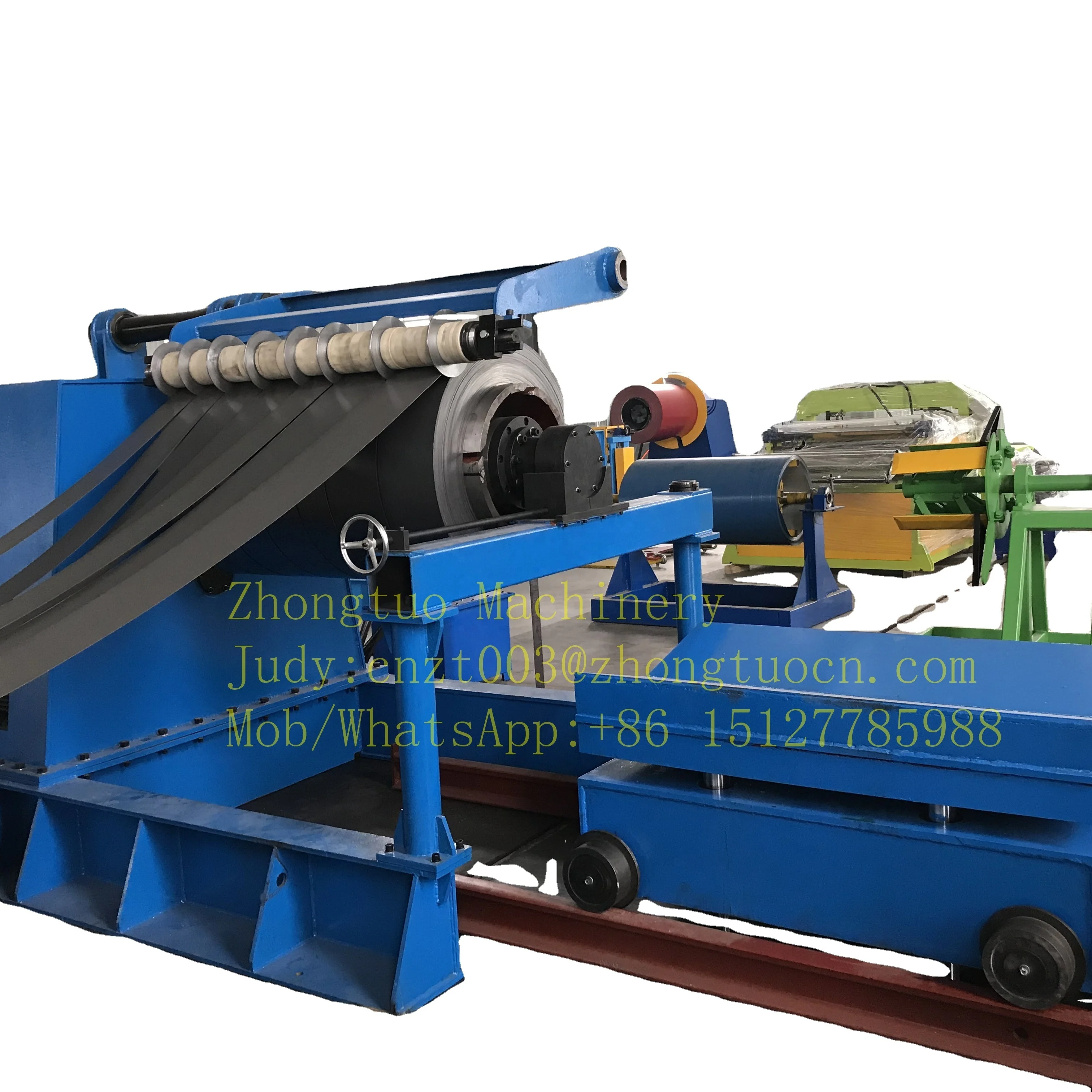

Recoiler with loading car of Steel coil slitting and cutting to length line

1.Capacity:10T

2.Power:132KW

3.It adopts the hydraulic expand and shrink to tight the coils inner diameter.

Control Cabinet of Steel coil slitting and cutting to length line

1.PLC : Delta

2.Inverter:Delta

3.Touch Screen:Siemens

4.Encoder: Schneider/Mitsubishi

5.Plug: Aviation plug

6.Botton: Schneider

7.Cooling systerm: Fans

Hydraulic Station of Steel coil slitting and cutting to length line

1.Oil tube: Standrad brand

2.Solenoid valve:Standrad brand

3.Cooling systerm: Fans

4.46# hydraulic oil

 More details of the whole production line,pls feel free to contact me,thank you!

Q: Are you factory or trade company?

A: We are factory and we have a professional engineer team which can design the machine as customers' request

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available. Our technicians will go to your factory to help you on time.

Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and  after-sale service team.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Which is your main market?

A: We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we have Indian sales manager and branch company in India.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name.
