Глубина бурения от 100 до 1000 м гусеничная пневматическая роторная буровая установка для скважин на воду с буровым насосом
- Категория: Drilling Machines >>>
- Поставщик: Shandong,Hengwang,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7140.42 $* | 7497.37 $* |
| Aug-15-2025 | 7080.51 $* | 7434.62 $* |
| Jul-15-2025 | 5940.64 $* | 6237.53 $* |
| Jun-15-2025 | 6960.82 $* | 7308.13 $* |
| May-15-2025 | 6060.3 $* | 6363.42 $* |
| Apr-15-2025 | 6840.2 $* | 7182.91 $* |
| Mar-15-2025 | 6780.64 $* | 7119.77 $* |
| Feb-15-2025 | 6720.16 $* | 7056.77 $* |
| Jan-15-2025 | 6660.42 $* | 6993.90 $* |
Характеристики
Product Description
****HW-Hydraulic DRILLING RIG
HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
****Main features
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
hydraulic well drilling rig technical specifications： | ||||||
Weight | 600KG/650KG/880KG | Spindle Speed | 64~1045(r/min) | |||
Max.Drilling depth | 160m/190m/230m | Spindle Stroke | 450mm | |||
Soil Open hole dia. | 500mm/500mm/500mm | Winch single rope lift force | 2000kg-2500kg | |||
Rock Open hole dia. | 220mm/220mm/273mm | Winch single rope lift speed | 0.12-1.64(m/s) | |||
End hole dia. | 75mm~200mm | Winch Rope dia. | 9.3mm/9.3mm/12..5mm | |||
Drill rod dia. | 42/50/60 | Winch Rope capacity | 27M/27M/35M | |||
Drill angle | 90-75° | Drill Mast Rated load | 18T | |||
Engine Power | 13/14/16KW | Drill Mast Effective height | 6.5M | |||
Inlet hose dia.(mm) | 51mm | Mud pump Flow | 95~145L/min | |||
Dimension | 2.7*0.9*1.5 | Mud pump Max.pressure | 1.2~2Mpa | |||
Outlet hose dia.(mm) | 32mm | Mud pump reciprocations time | 93 times/min | |||

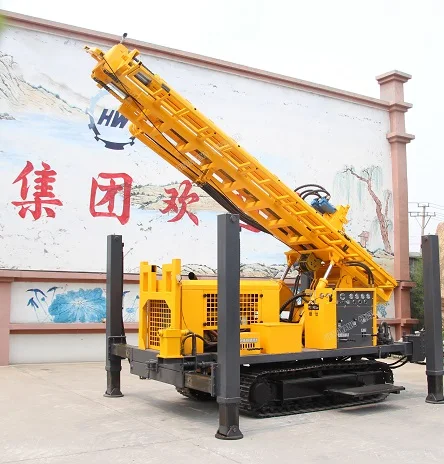

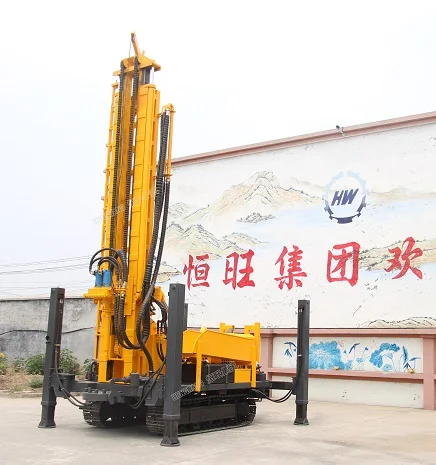

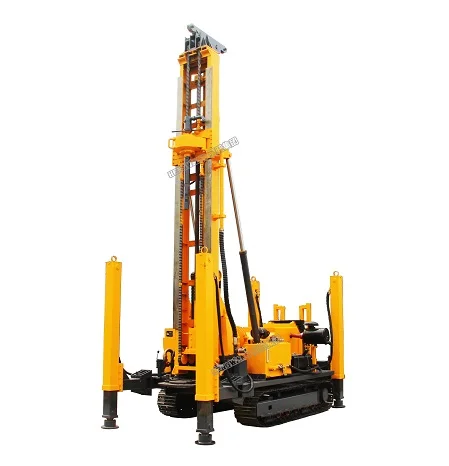

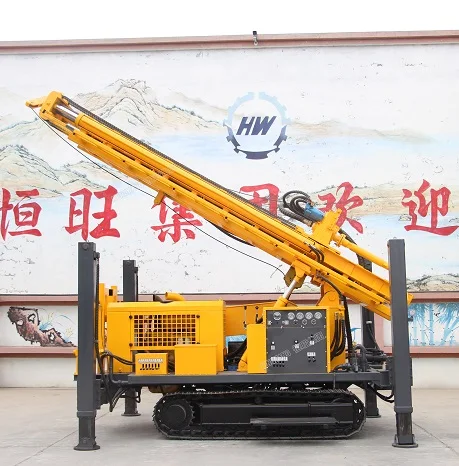

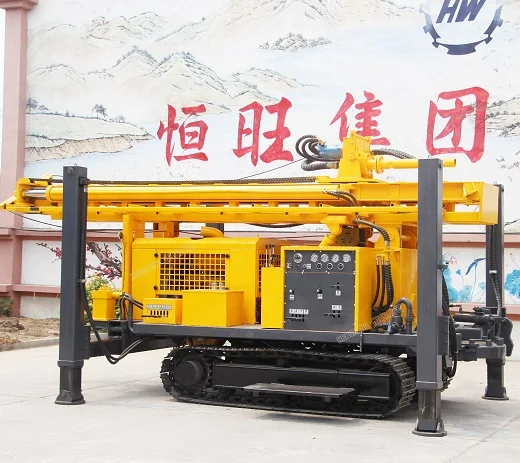

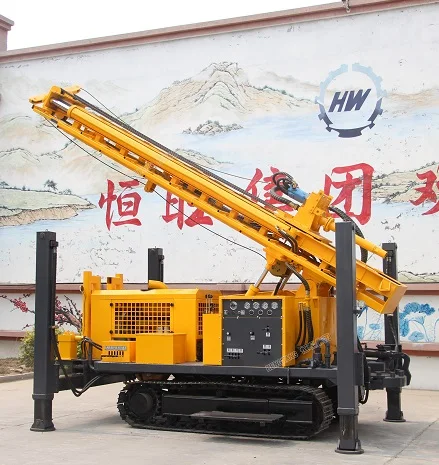

Detailed Images
High Quality portable water well drilling rig rock bore drilling machine
Work shop
230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump
Company Profile
230-300m Deep Portable Water Well Drilling rig with hydraulic drilling rig and mud pump
Certifications
Shandong hengwang group has passed the ISO and CE double certification audit, can be assured to buy all our products...
Shandong hengwang machinery equipment co., LTD. Customers all over the world
Customer exhibition and related photos
Welcome new and old friends at home and abroad to negotiate trade, create great cause, altogether cast brilliant.
The corporate culture of the company is "providing convenient services for customers and creating development opportunities for employees", the management philosophy of the company is "quality is the stepping stone" and the enterprise spirit of "making unremitting efforts to enjoy success".
Packing&Shipping
Shandong hengwang machinery equipment co., LTD. Customers all over the world
The company's business philosophy "quality is the stepping stone" and "enterprise spirit".
FAQ
