2020 китайская машина для продольной резки, цены
US $30000-$50000
Автоматическая тонкая листовая высокоскоростная машина для выпрямления и резки
- Категория: Линия поперечной резки >>>
- Поставщик: Wincoo,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19659.96 $* | 20642.42 $* |
| Aug-19-2025 | 19494.87 $* | 20469.53 $* |
| Jul-19-2025 | 16355.93 $* | 17173.26 $* |
| Jun-19-2025 | 19163.95 $* | 20121.34 $* |
| May-19-2025 | 16685.18 $* | 17519.85 $* |
| Apr-19-2025 | 18833.11 $* | 19775.89 $* |
| Mar-19-2025 | 18668.43 $* | 19601.53 $* |
| Feb-19-2025 | 18502.3 $* | 19427.3 $* |
| Jan-19-2025 | 18337.52 $* | 19254.86 $* |
Характеристики
Product Description
The production line just makes cold-rolled steel coil plates, stainless steels,galvanized steel plate, color steel plates and etc into all specifications of length-gauged plates,via uncoil level and cut to length.
The standard configuration is composed of loading cars, uncoilers, pallet pressure devices, leveling mainframe, storage silos,limited device, servo length-gauged machines, peritoneal devices, shearing machines, transmission platforms, pneumatic nesting racks, hydraulic lifting stations, unloading platforms, hydraulic systems, electrical control systems and etc.
Main components of the production line's hydraulic system adopt Taiwan high-precision components, length-gauged system adopts overall position-fixed servo control system from Japan Yasukawa or Germany Lerue to control.Electrical control adopts controller with imported PLC and touch screen to achieve fully controlling. It has many characteristics, just like, high degree of automation, high quality of leveling,high precision, high efficiency, steady and reliable performance, simple operation, easy maintenance and etc.
The standard configuration is composed of loading cars, uncoilers, pallet pressure devices, leveling mainframe, storage silos,limited device, servo length-gauged machines, peritoneal devices, shearing machines, transmission platforms, pneumatic nesting racks, hydraulic lifting stations, unloading platforms, hydraulic systems, electrical control systems and etc.
Main components of the production line's hydraulic system adopt Taiwan high-precision components, length-gauged system adopts overall position-fixed servo control system from Japan Yasukawa or Germany Lerue to control.Electrical control adopts controller with imported PLC and touch screen to achieve fully controlling. It has many characteristics, just like, high degree of automation, high quality of leveling,high precision, high efficiency, steady and reliable performance, simple operation, easy maintenance and etc.
Detailed Images
Main components of the line:
1. 升降、出料台 Hydraulic lifting&output station
2. 高速剪切机 High-speed shear
3. 高速剪切线局部 Partial view
1. 升降、出料台 Hydraulic lifting&output station
2. 高速剪切机 High-speed shear
3. 高速剪切线局部 Partial view
4. 矫平主机 Mainframe leveler
5. 排料码垛台 Pneumatic piling-up station
6. 传动箱与伺服电机 Transmission case&servo motor

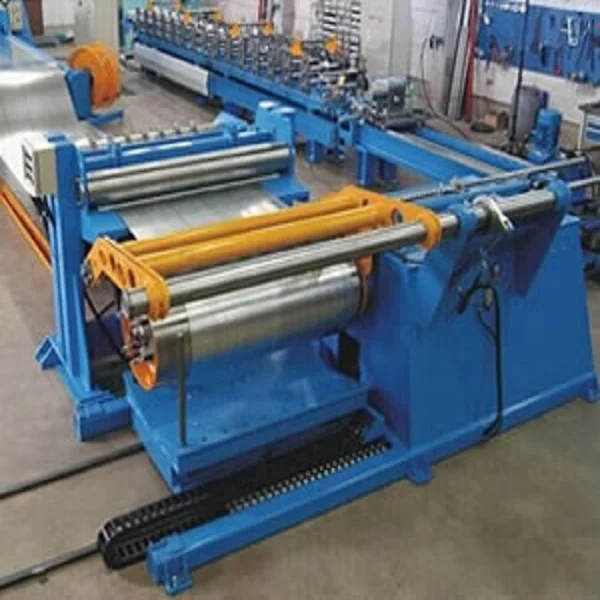

7. 放料机 Decoiling
5. 排料码垛台 Pneumatic piling-up station
6. 传动箱与伺服电机 Transmission case&servo motor
7. 放料机 Decoiling
Size Information
Main Technical Data
Project | Unit | Rangers |
Thickness | mm | 0.2-1.5 0.5-3 |
Standard board’s width | mm | 1250,1500,1900 |
Uncoiler bearing | t | 12,20 |
Leveling precision | mm/㎡ | ≦1.5(Standard) |
Length accuracy | mm | ≦＋0.50 |
Max line-speed | m/min | 0-60,100 |
Total power | kw | -65,-95 |
Related Products
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
