Гибридные системы солнечной энергии немодулированный синусоидальный сигнал 2400 Вт 3000 5000 инвертор переменного
- Категория: Продукты солнечной энергетики >>>
- Поставщик: Hangzhou,Kuvo,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.59 $* |
| Aug-16-2025 | 0.3 $* | 0.16 $* |
| Jul-16-2025 | 0.4 $* | 0.18 $* |
| Jun-16-2025 | 0.58 $* | 0.23 $* |
| May-16-2025 | 0.32 $* | 0.64 $* |
| Apr-16-2025 | 0.6 $* | 0.85 $* |
| Mar-16-2025 | 0.62 $* | 0.26 $* |
| Feb-16-2025 | 0.32 $* | 0.65 $* |
| Jan-16-2025 | 0.67 $* | 0.48 $* |
Характеристики

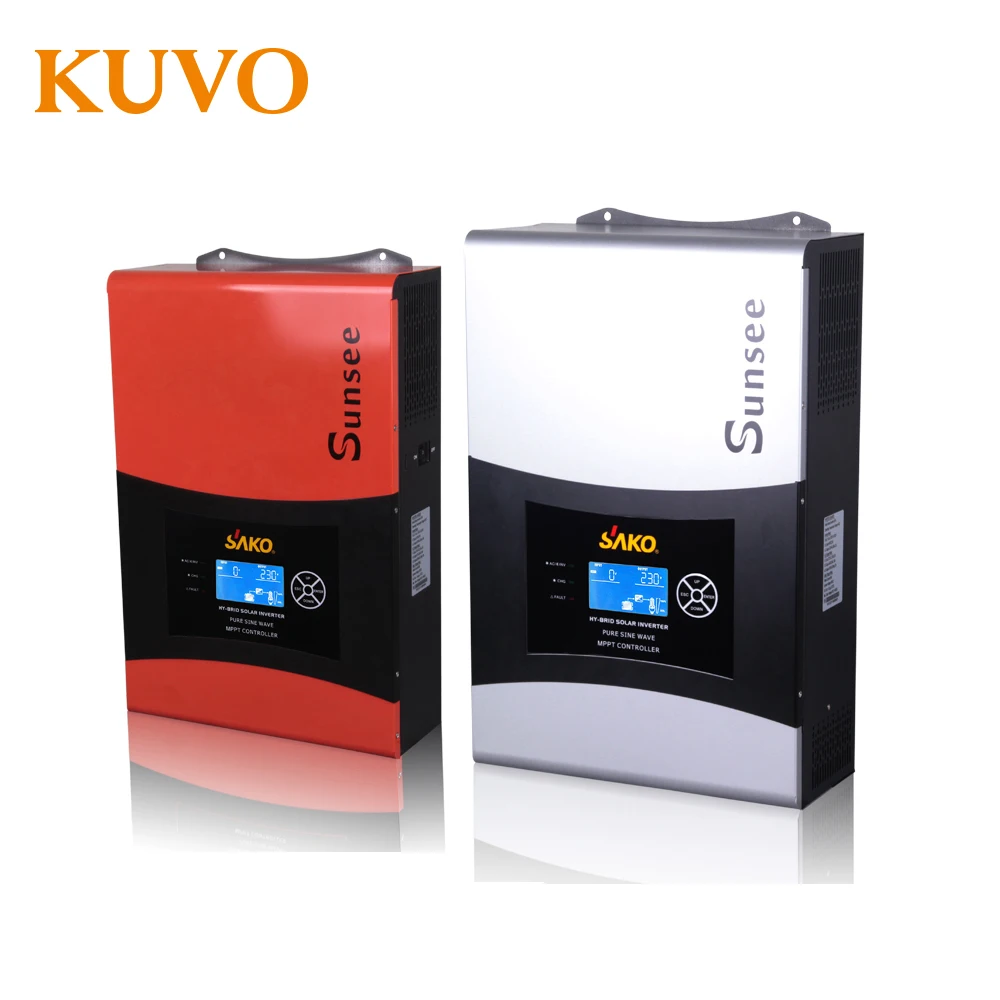

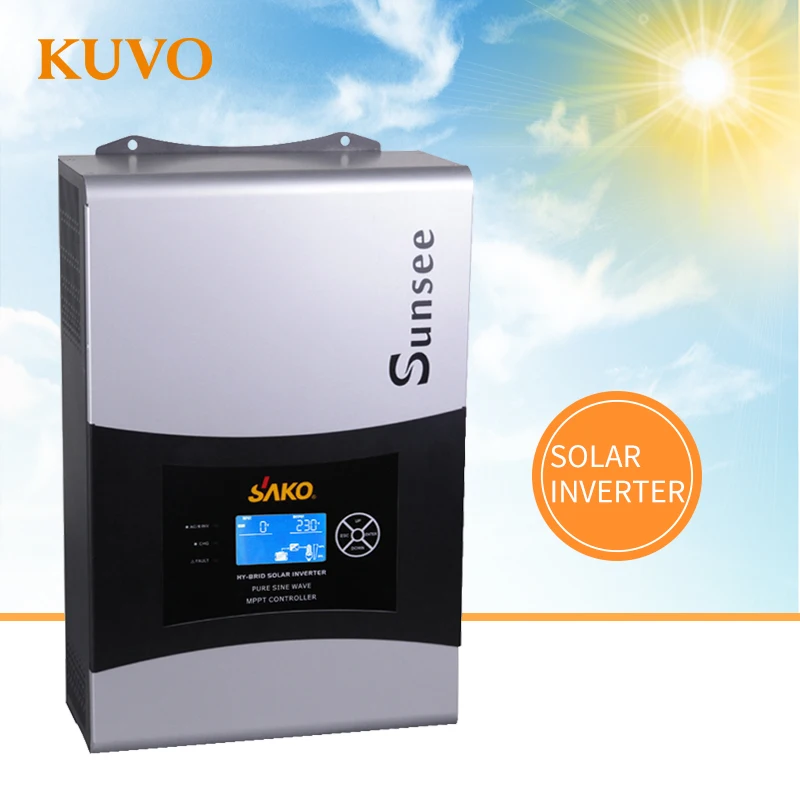

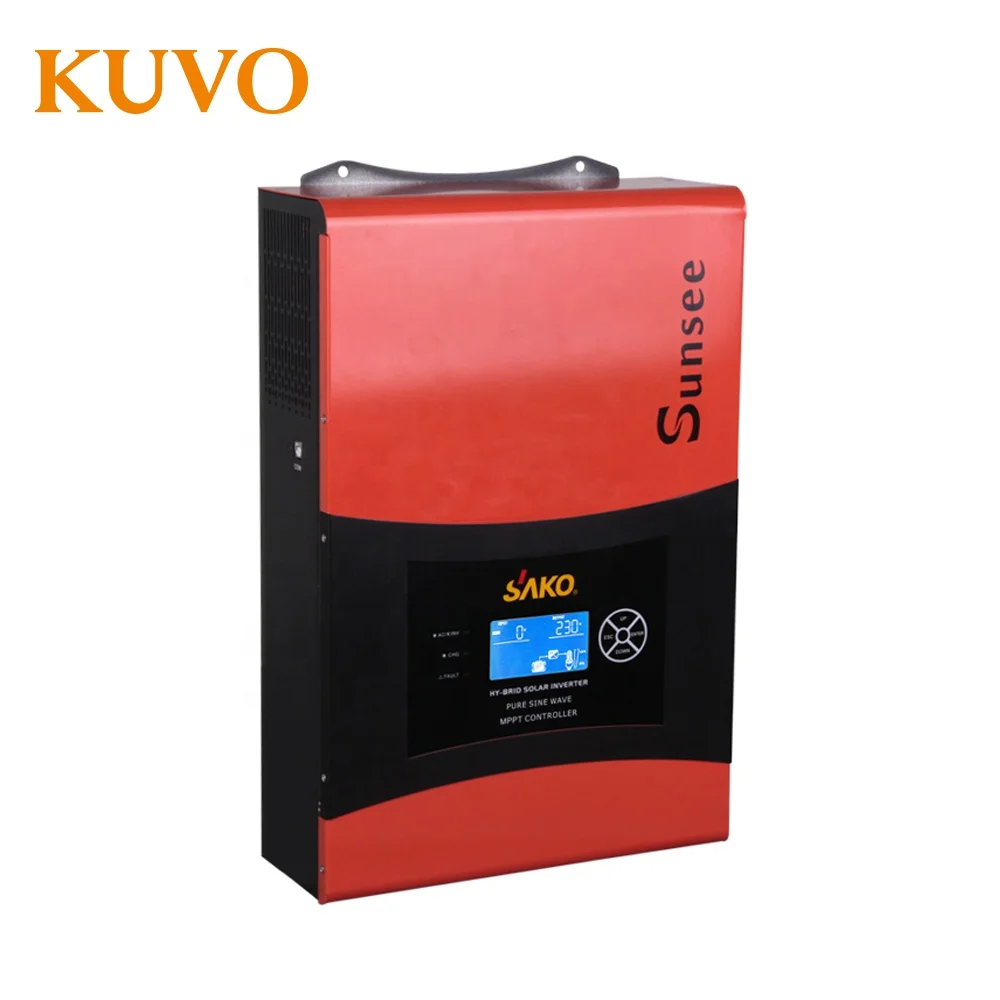

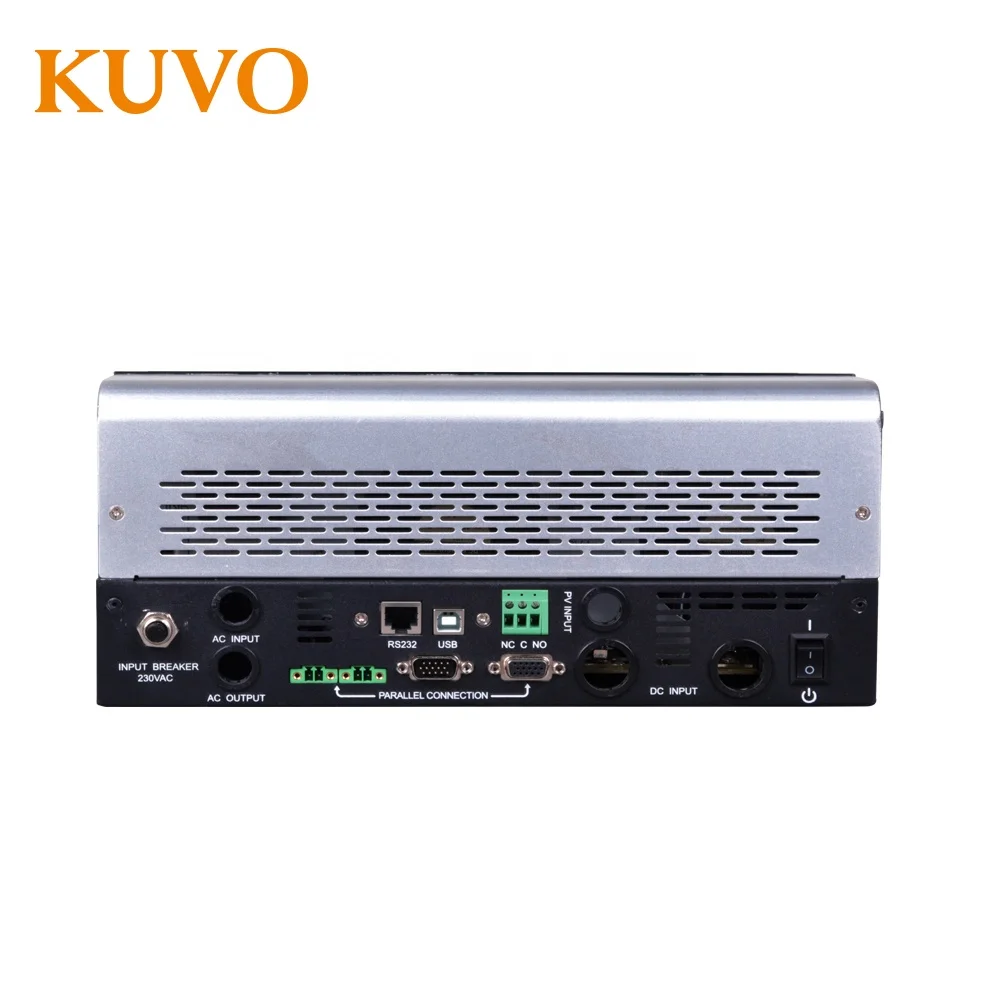

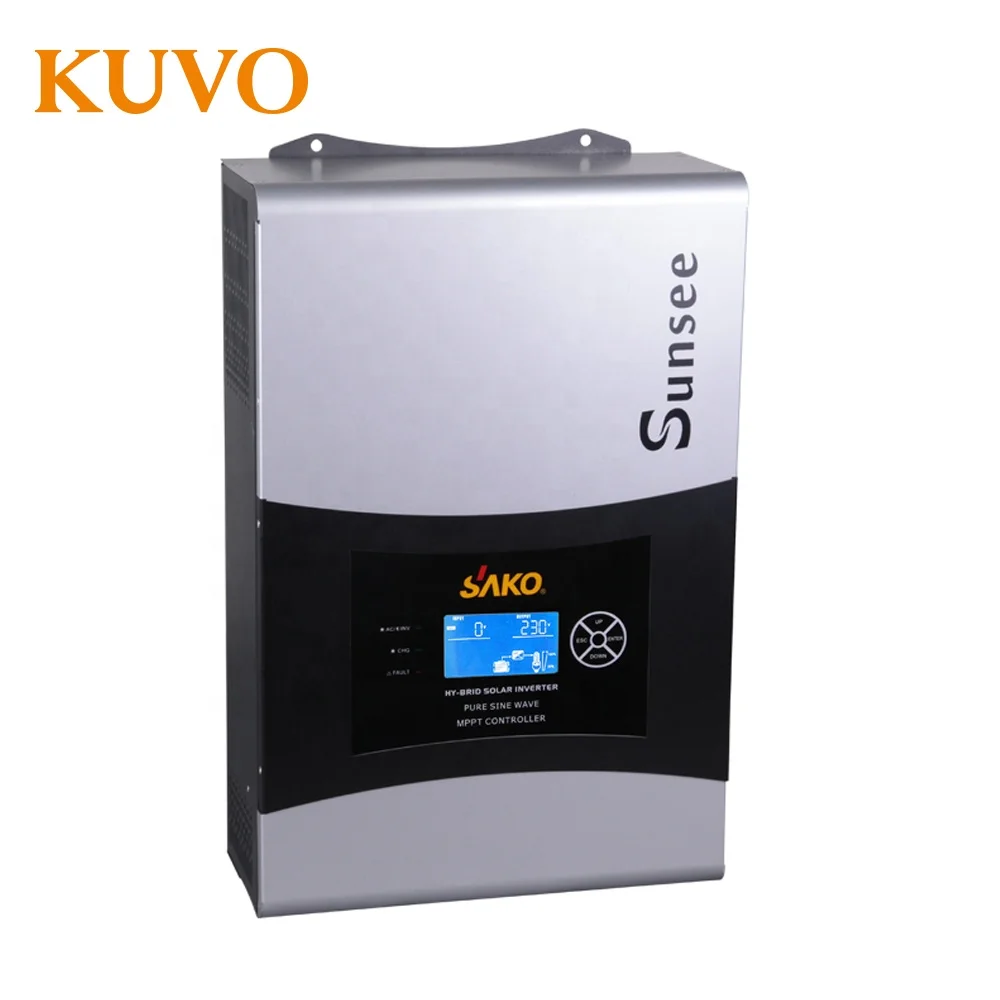

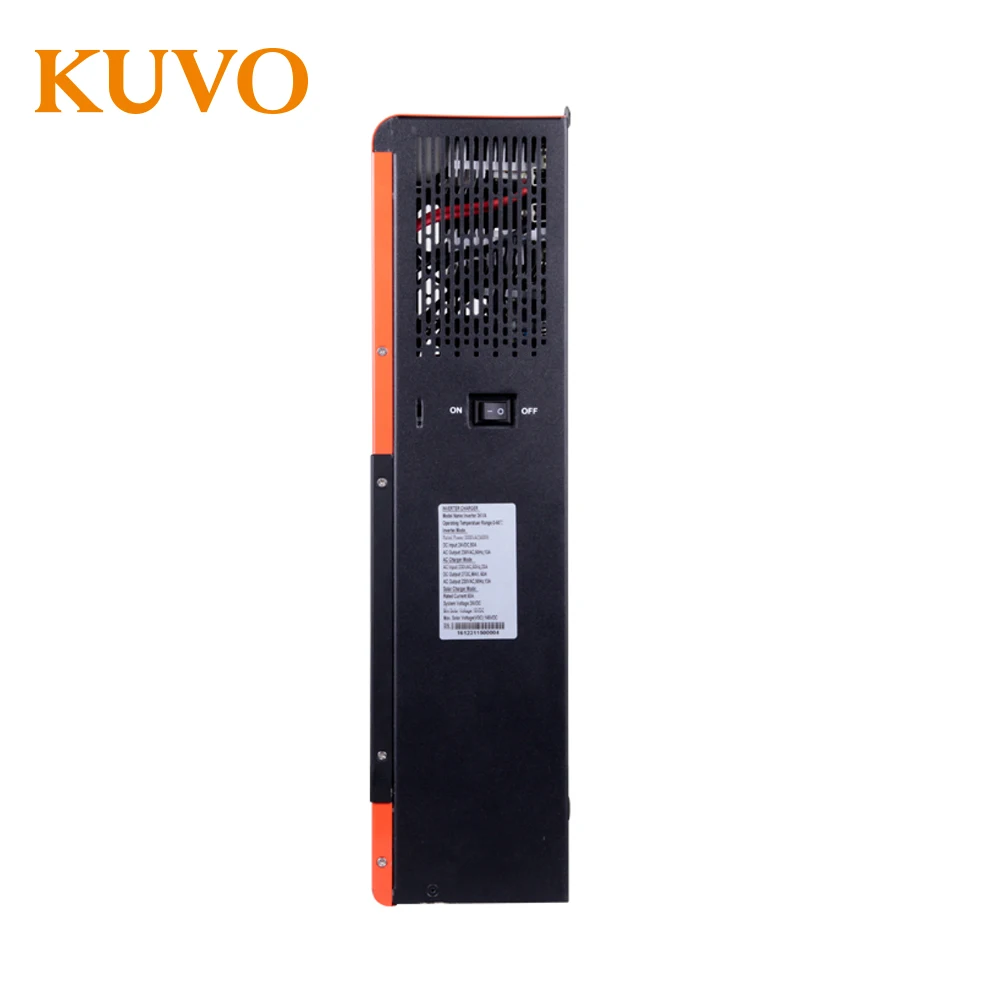

High quality 2400 watt 24v DC to AC pure sine wave off grid hybrid solar inverter with charger and MPPT
MAIN FEATURES
1. Real MPPT charge controller built inside,15%-20% higher than PWM charge controller, use solar utmost. 2. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compitable to grid power or generator power
7. Parallel operation with up to 6 units only available for 4KVA/5KVA
8. Auto restart while AC is recovering, auto charge and switch, unattended operation 9. Smart battery charger and management for optimized battery performance
10. Remote control panel is optional
11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
| Model | SUNSEE-1K | SUNSEE-2K | SUNSEE-3K | SUNSEE-4K | SUNSEE-5K |
| The rated power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT | |||||
| Voltage | 230 VAC | ||||
| Selectable Voltage Range | 170-280VAC (For Personal Computers), 90-280VAC (For Home Appliances) | ||||
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | |||
| Transfer Time | 10ms (For Personal Computers), 20ms (For Home Appliances) | ||||
| Wave form | Pure sine wave | ||||
| BATTERY | |||||
| Battery voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | ||
| Overcharge Protection | 16VDC | 32VDC | 60VDC | ||
| MPPT SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Power | 420W | 1800W | 4800W | ||
| MPPT Range Operation Vol | 15-33VDC | 18-145VDC | 36-145VDC | ||
| Maximum PV Array Open Circuit Vol. | 50VDC | 145VDC | 145VDC | ||
| Standby Power Consumption | 15W | 28W | 56W | ||
| Maxmum Solar Charge Current(standard) | MPPT 30A | MPPT 60A | MPPT 80A | ||
| Maxmum Solar Charge Current(Optional) | PWM 50A | MPPT30A or PWM 80A | MPPT 40A or PWM 80A | ||
| Maxmum AC Charge Current | 10A or 20A | 60A | 60A | ||
| Maxmum Charge Current | 50A | 120A | 140A | ||
| Maxmum Efficiency | 98% | ||||
| BEST PANEL CONFIGUTATION | |||||
| Max. generated from solar charger | 30Amp, 420W | 60Amp, 1800W | 80Amp, 4800W | ||
| Best Panel configuration | 200Wp*2pcs (420Wp) | 250Wp*6pcs *30V(1500Wp) 6pcs in parallel connection | 250Wp*18pcs *30V(4500Wp) 9 strings, and 2pcs in each string in series connection | ||
| PHYSICAL | |||||
| Dimension, D*W*H(mm) | 128*272*355 | 543*394*204mm | 549*394*224mm | ||
| Net Weight (kgs) | 7.5 | 8.4kg | 10.81kg | ||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operation Temperature | 0℃-50℃ | ||||
