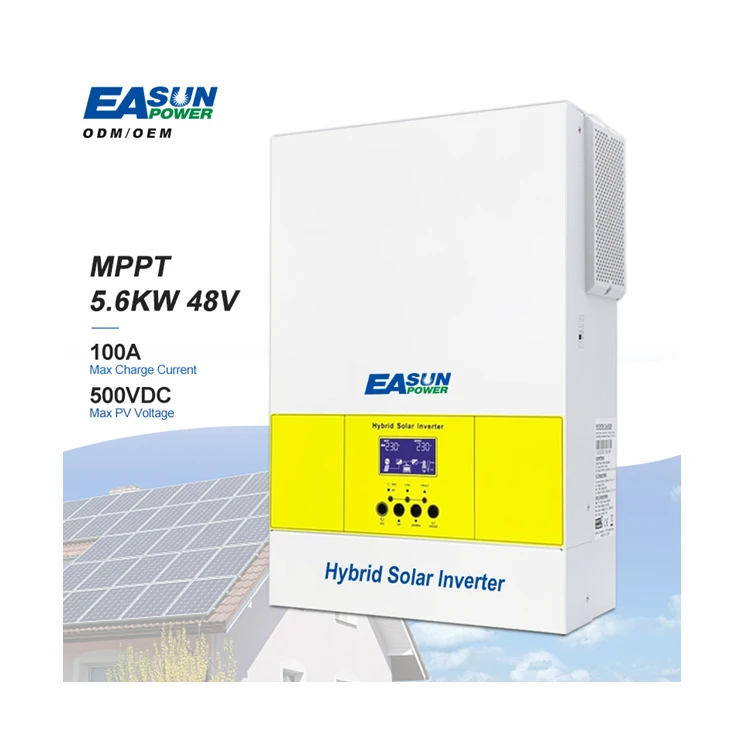

Гибридный солнечный инвертор Easun 5600 Вт 5 6 кВт 48 В с контроллером
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Yishang,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 418.67 $* | 426.83 $* |
| Jul-15-2025 | 339.94 $* | 346.69 $* |
| Jun-15-2025 | 411.14 $* | 419.26 $* |
| May-15-2025 | 408.38 $* | 416.22 $* |
| Apr-15-2025 | 326.49 $* | 333.59 $* |
| Mar-15-2025 | 401.29 $* | 409.65 $* |
| Feb-15-2025 | 398.55 $* | 406.2 $* |
| Jan-15-2025 | 395.30 $* | 403.47 $* |
Характеристики
Specification
MODEL | Isolar SMG II 3.6KW | Isolar SMG II 5.6KW | ||
CAPACITY | 3.6KVA/3.6KW | 5.6KVA/5.6KW | ||
Parallel Capability | NO | Yes, up to 9 units | ||
INPUT | ||||
Nominal Voltage | 230VAC | |||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) | |||
Frequency | 50/60Hz(Auto sensing) | |||
OUTPUT | ||||
Nominal Voltage | 220/230VAC±5% | |||
Surge Power | 7000VA | 11000VA | ||
Frequency | 50/60Hz | |||
Waveform | Pure Sine wave | |||
Transfer Time | 10Ms(For personal Computer);20Ms(For Home Appliances) | |||
Peak Efficiency(PV to INV) | 96% | |||
Peak Efficiency(Battery to INV) | 95% | |||
Overload Protection | 5s@>=150%load;10s@110%-150%load | |||
BATTERY | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating harge Voltage | 27VDC | 54VDC | ||
OverCharge Protection | 33VDC | 63VDC | ||
Charging Method | CC/CV | |||
Solar Charger&AC Charger | ||||
Solar Charger TYPE | MPPT | |||
Max.PV Array power | 4000W | 5500W | ||
Max.PV Array Open Circuit Voltage | 500VDC | |||
PV Array MPPT Voltage Range | 120VDC-450VDC | |||
Max.Charge Current | 100A | 100A | ||
PHYSICAL | ||||
Dimensions,DxWxH(mm) | 482x290x113 | |||
Package Dimensions,DxWxH(mm) | 565x380x190 | |||
Net Weight(Kgs) | 9 | 10 | ||
Communication lnterface | USB/RS232/Dry-contact | |||
ENVIRONMENT | ||||
Operating Temperature Range | -10℃to50℃ | |||
Storage temperature | -15℃to60℃ | |||
Humidity | 5%to95%Relative Humidity(Non-condensing) | |||
Product Description
Certifications
Packing & Delivery
Customer Photos

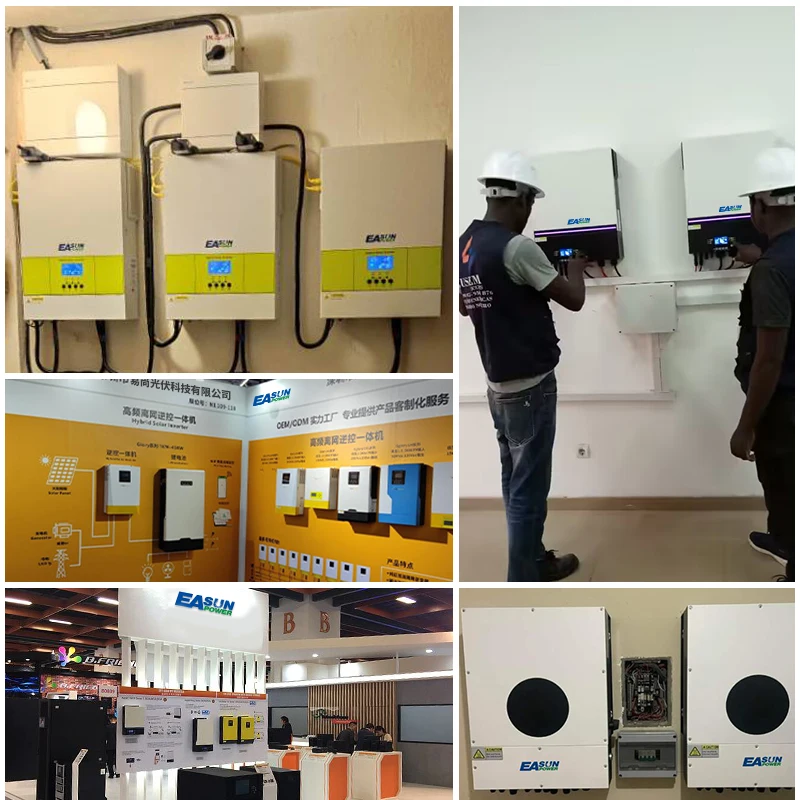

Company Profile
Shenzhen EASUN New Energy is a new energy factory established in 2012, Our Company Has Been Dedicated To Be A Professional High-Tech Enterprises In Solar Energy Field. We Focus On Quality, Efficiency And Stability Of The Solar Energy Products, Which Include Solar Inverters, Panels, Solar Energy Systems , Batteries And Charger Controller. we have an experienced and well-educated R&D team and our products posses more than 100 R&D patents on electronic technology,battery technology and chemical application engineering. We offer OEM,ODM and advanced customization services to meet various needs from different clients. The enterprise has passed ISO9001 quality management system certification, and our products have obtained ROHS,VDE,UL,ISO UI, CE,UN38.3, MSDS, IEC and other international certifications, At present, EASUN New Energy has reached a long-term strategic partnership with thousands of overseas customers in the new energy industry, and has established lots of logistics warehousing bases to efficiently serve customers in Asia,Africa,Europe,the Middle East,the Americas and other regions. We aim to provide the green,energy-saving and safe electrical energy safety solar storage system for global users. and continue to provide competitive products and reduce the intermediate costs for many foreign entrepreneurs,merchants and retailers in the new energy industry.
FAQ
Q1: How long is the warranty period ?
A1: Solar Inverter with 12-24 Months, if you want to extend the period, welcome to contact us .
Q2: How to install and use the solar inverter ?
A2: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q3: What if I don't have export experience ?
A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q4. Do you have solar panel and battery ?
A4: Yes, we offer all in one, one-stop, solar system ESS programme.
Q5: How is your technical support?
A5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary.
you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q6: How can I make sure it's a secure transaction ?
A6: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
Q7: Can you get the the solar inverter ODM/OEM customized for us ?
A7: Of course, brand name, machine color, designed unique patterns available for customization.
Q8:How to become your agent?
A8:Contact us through Alibaba and Sign agency agreement, we will give you the best price and service.
