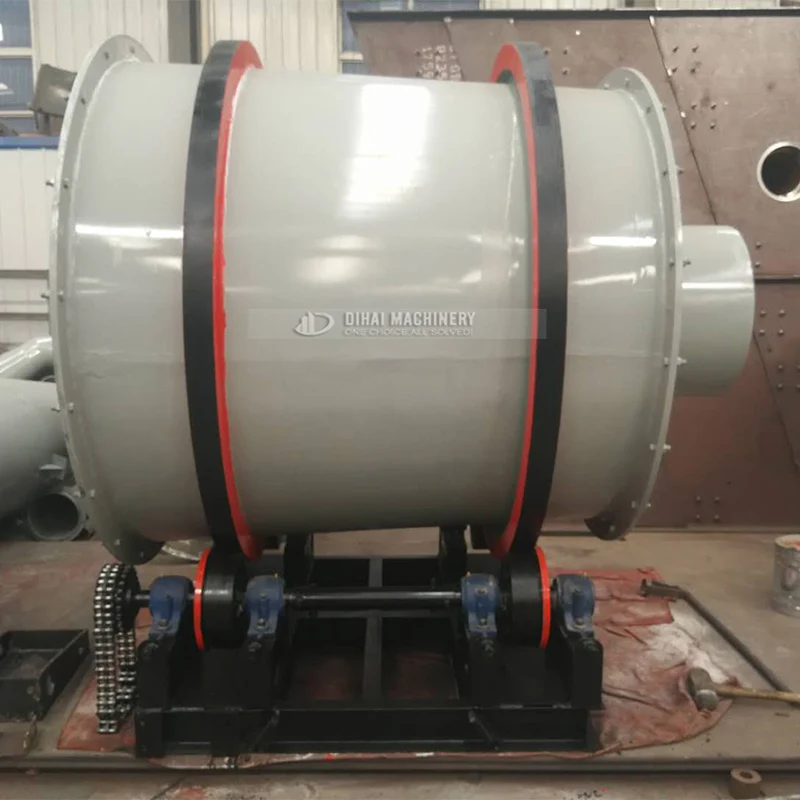

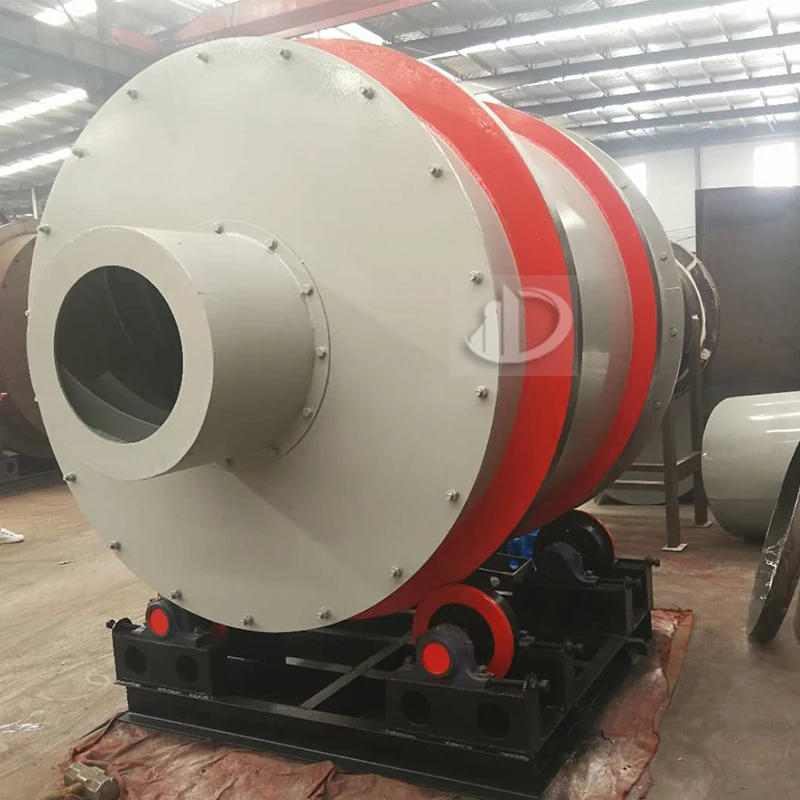

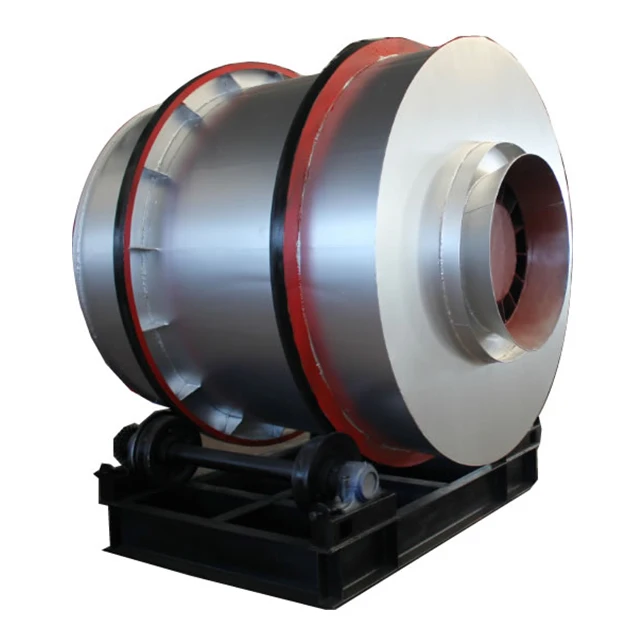

Silica Sand Clay Rotary Dryer Sand Dryer Plant





 Flow Chart





Features

1.Compared to single cylinder dryer this small sand dryer length shortens 60%, in favour of process arrangement. Reduces workshop covered area, reduced the project investment by 40%. Occupation area: about 20m2.

2. Adopted latest technology, cylinder self insulation, thermal efficiency is as high as 80% (single cylinder dryer is only 35 percent), thermal efficiency than single cylinder drying saves coal 68%, yields 100%.

3. Heat-resisting wear-resisting alloy steel plate, four times than ordinary steel wear-resisting. Long service life and easy maintenance.

4. High thermal efficiency, outside shell temperature below 60 °C (single cylinder dryer outside shell temperature as high as 150°C), output of low temperature, discharging temperature below 60 °C.

5. Output of low temperature, be helpful for dust collector to use a long time, can be directly supporting air tank pulse bag filter.

6. Construction investment reduces 50%, power consumption reduces 60%.

7. Adopts roller rotation, no need reducer.

8. Hot air stove can supporting fluidezed bed, spray stove, hands burned furnace, also used in fuel and gas type, can bake the below 20 mm pieces of materials, aggregates, powder material.

9. After drying the moisture content of materials at 1-0.5% and below, which can meet different industries requirement.



 Technical Parameters

Three Pass Dryer	TDS623	TDS625	TDS6210	TDS6220
Drying Capacity	1-3 m3/h	4-6m3/h	10-14m3/h	20-30m3/h
Diameter Of Drum	2200mm	2200mm	2500mm	2600mm
Length	1500mm	2500mm	2700mm	3700mm
Motor Power	4KW	5.5KW	4KWX2	5.5KWX2
Reducer Model	XWD-5	XWD-5	XWD-5	XWD-5
Speed Of Drum Rotation	4-10r/min	4-10r/min	4-10r/min	4-10r/min
Moisture Of End Products	0.1%-0.8%	0.1%-0.8%	0.1%-0.8%	0.1%-0.8%
Max. Temperature Inside	700-750℃	700-750℃	700-750℃	700-750℃
Outlet Temperature	30-60℃	30-60℃	30-60℃	30-60℃
