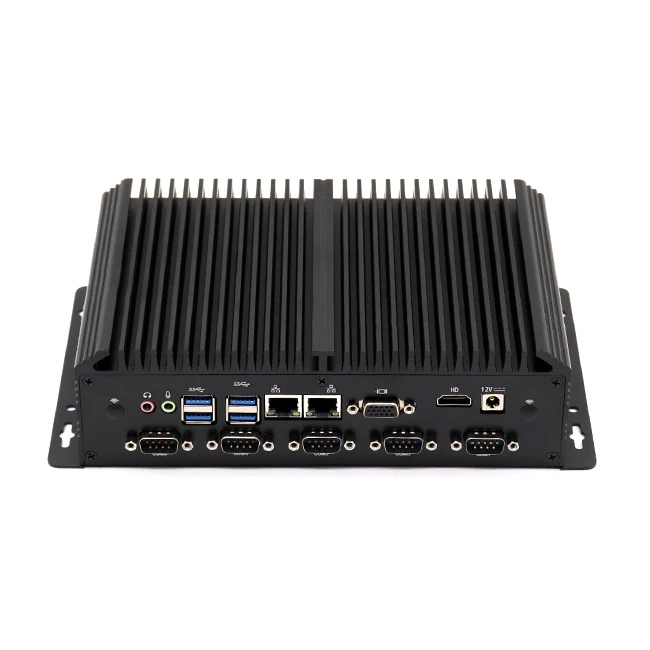

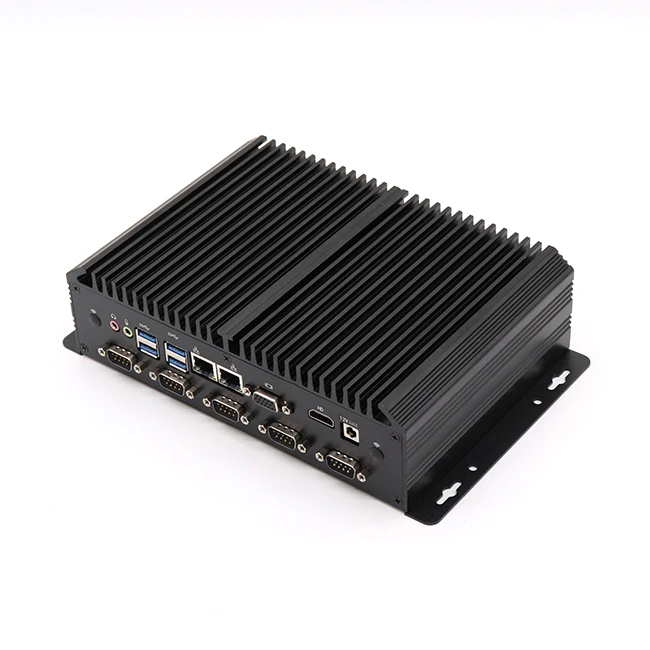

Встраиваемый мини-ПК без вентилятора с 6 последовательными портами rs232 rs 485 com2 lan 8550U промышленный
- Категория: Barebone System >>>
- Поставщик: Shenzhen,Gowin,Industrial,Control,System,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.9 $* | 0.67 $* |
| Aug-16-2025 | 0.85 $* | 0.64 $* |
| Jul-16-2025 | 0.64 $* | 0.2 $* |
| Jun-16-2025 | 0.45 $* | 0.58 $* |
| May-16-2025 | 0.76 $* | 0.78 $* |
| Apr-16-2025 | 0.29 $* | 0.60 $* |
| Mar-16-2025 | 0.58 $* | 0.37 $* |
| Feb-16-2025 | 0.67 $* | 0.26 $* |
| Jan-16-2025 | 0.40 $* | 0.11 $* |
Характеристики
Product Description
Please note: this model can support processor including:4th/5th/6th/7th/8th generation of i3 / i5 /i7.If you want to know more details,please contact us.
| Model name | GY-K81 | |
| Processor | CPU | Core I7 8550U(4 cores, 8 Threads) |
| Base Frequency | 1.8GHz | |
| Burst Frequency | 4.0GHz | |
| Memory | Technology | Dual Channel DDR4L 2400MHz SODIMM |
| Capacity | 4G/8G/16G/32G | |
| Storage | SATA | Support 1*2.5 inch SATA laptop HDD or SDD |
| MSATA | 16G/32G/64G/128G/256G/512G/1T etc | |
| M.2(support nvme) | 16G/32G/64G/128G/256G/512G/1T etc | |
| Graphics | Processor | Intel® UHD Graphics 620 |
| Interface | 1*HDMI+VGA+LVDS (optional) | |
| Ethernet | LAN | 2*RTL8111 Gigabit NIC |
| WAN | Full height Mini PCIE + 2 external antennas (Optional) | |
| 4G | Support (Optional) | |

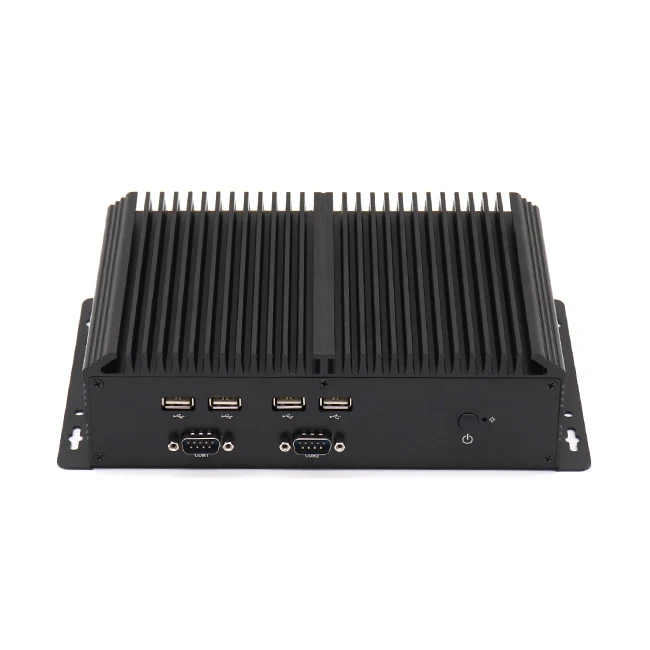

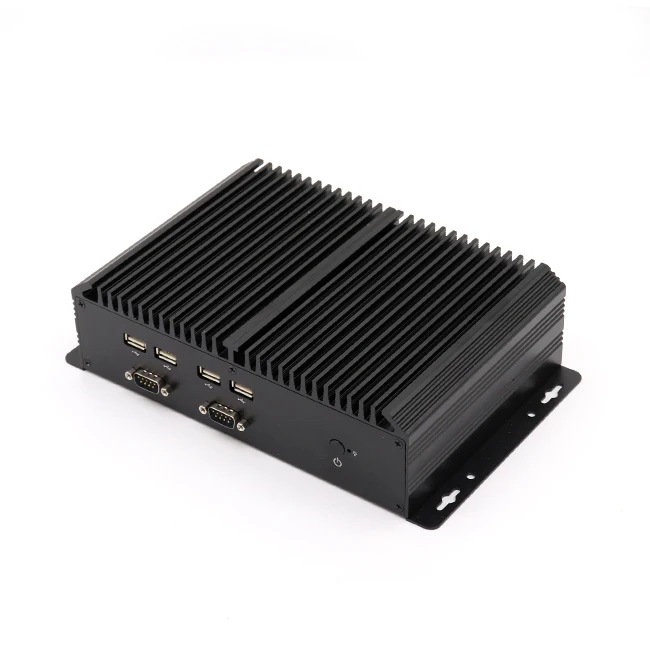

| IO interface | Front side | 4*USB2.0,1*SIM card, 1*power |

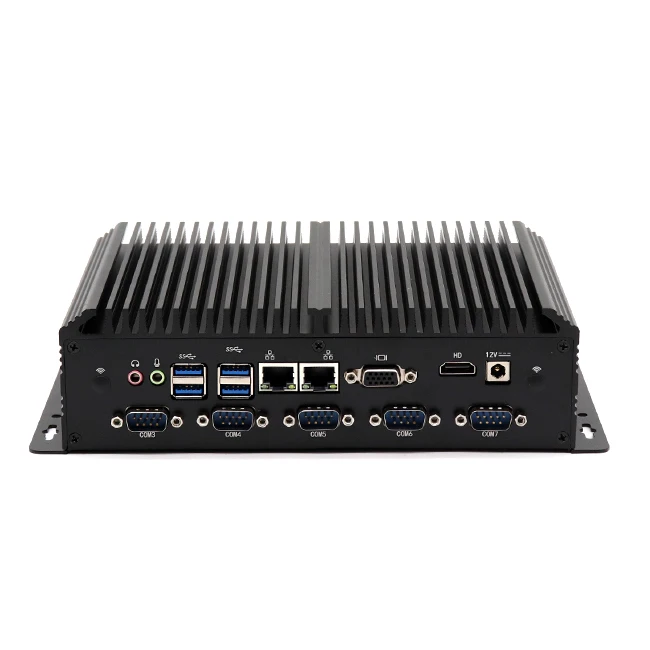

| Back side | 1*DCIN,2*LAN,1*VGA,2*HDMI,4*USB3.0,1*MIC,1*SPK | |
| Power requirement | Power type | External power adapter mode |
| Power adapter | 12V 5A(Huntkey brand) | |
| TDP | 15W | |
| Audio | ALC662 | |
| OS support | Win 7, 8, 10 and all kind Linux OS | |
| Chassis | Construction | Aluminum housing |
| Mounting | 4 wall mounting hole | |
| Dimensions | 230*150*64mm | |
| Weight | N.G 1.4KG | |
| Working environment | Humidity | 5%~95% Relative humidity with non-condensation |
| Storage temperature | -40~80℃ | |
| Working Temperature | -20~60℃ | |
| Gross Weight | 2.0kg | |
Certifications
Packaging & Shipping
Our Services
Company Information
FAQ
Q1. Can I get a sample for testing?
Re: Yes ,you can. After paid sample and shipping cost, we will deliver it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. How many goods in one carton?What is its size?
Re: Our standard carton is 5 sets/ carton, its size is 42*8.5*34.5CM .
Q4. This is my first time buying computers, could you provide some advice?
Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details
Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.
Q6. Can you print my logo on the mini computer and customize logo on boot-screen?
Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.
Q7.What is your warranty?
Re:All of our devices warranty is for 3 years.
Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q9. Do you have FCC,CE,ROSH Certificates?
Re: Yes, we have all of them.
Q10. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty)
