Intel Core i3 4030U Dual 1 9G DDR3 X86 OPS ПК с разрешением 4K * RJ45 Por для интерактивной белой доски
- Категория: Barebone System >>>
- Поставщик: Shenzhen,Inter,Smart,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 126.49 $* | 129.28 $* |
| Jul-15-2025 | 102.39 $* | 104.43 $* |
| Jun-15-2025 | 124.28 $* | 126.54 $* |
| May-15-2025 | 123.29 $* | 125.57 $* |
| Apr-15-2025 | 98.71 $* | 100.60 $* |
| Mar-15-2025 | 121.74 $* | 123.5 $* |
| Feb-15-2025 | 120.16 $* | 122.0 $* |
| Jan-15-2025 | 119.82 $* | 121.75 $* |
Характеристики
Product Description
Inter Smart Intel Core i3 4030U Dual Core 1.9G DDR3 X86 OPS PC With 4K resolution Adn 1*RJ45 Por For Interactive Whiteboard(IWB)
OPS450 Mini PC Specification: | ||
Case size | 180*120*30mm(L*W*H) | |
Intel CPU | Support 4th generation Core i3-4005U,i3-4010U,i3-4030U,i5-4500U, i7-4500U,i7-4510U,etc. Support 5th generation Core i3-5005U,i3-5010U,i5-5200U,i5-5250U,i7-5500U,i7-5600U,etc. | |
Chipset | Haswell-U,Broadwell-U high speed chipset. | |
Memory | 1*NB-DDR3 SODIMM Memory channel,1600MHz,1.35V,Max.8GB RAM. | |
Power Supply |
1*DC_IN | Support 12V/19V;,DC port:5.5*2.5MM; About 35W full-load power consumption; Recommended 12V 5A/7A/10A;19V 6.3A power adapter. |
Display | Integrated Intel HD Graphics 4400/5500; Support single/dual display;Single display in DOS; 1*VGA DB15 port supports Max.resolution 1920 * 1200@60Hz;(2K 1080P,HD) 1*HDMI 1.4 port supports Max.resolution 4096/3840*2160@24/30Hz.(4K,UHD) | |
Ethernet | 1*RJ45 LAN port | Realtek 8111H 10/100/1000Mbps Gigabit RJ45 LAN; Support Wake on LAN and PXE diskless boot function. |
1*Mini-PCIE port | Support WIFI module;If you need Bluetooth,3G,4G,GPS,please contact us to change the signal in advance. | |

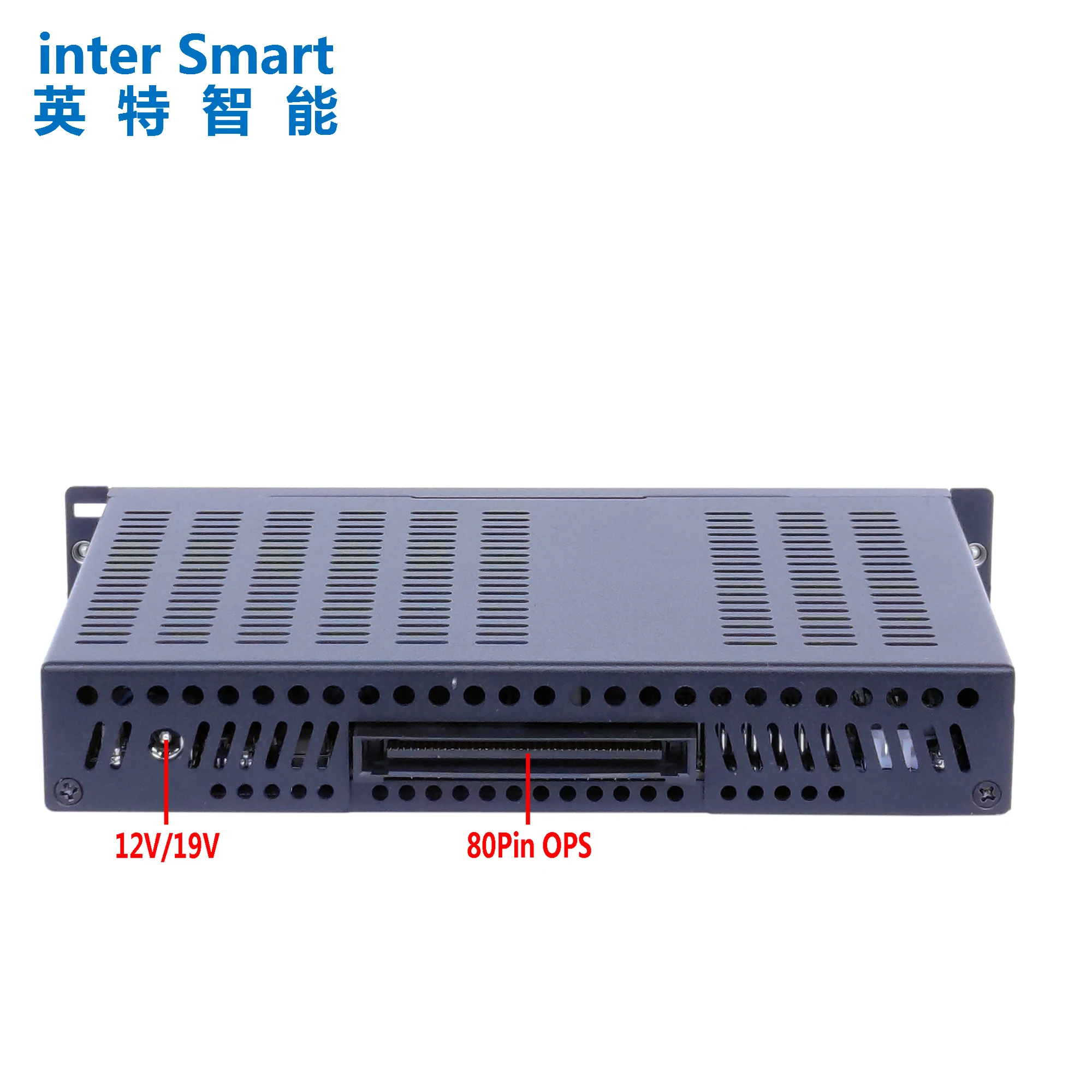

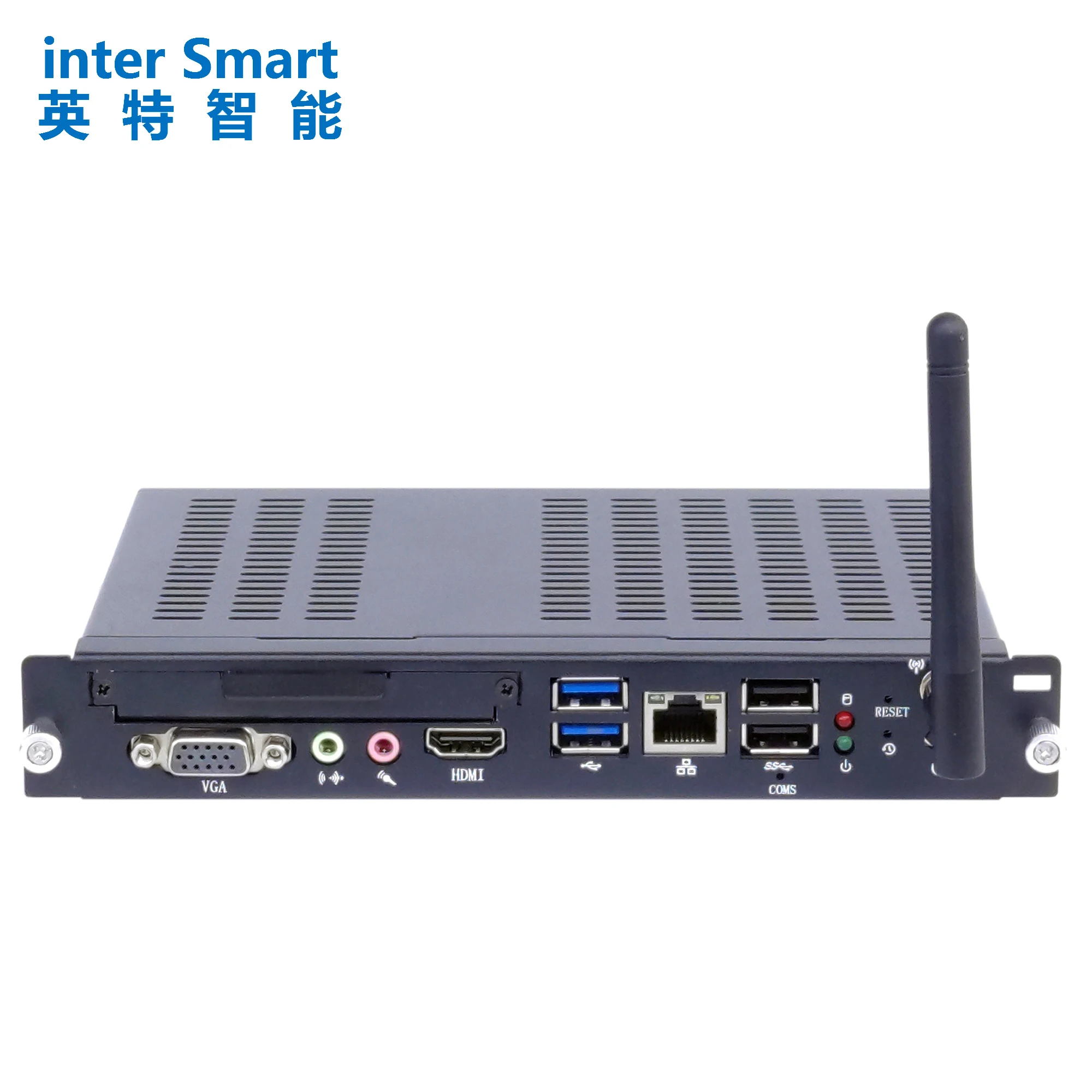

I/O ports | 1*80PIN OPS slot, 1*DC port, 1*HDMI, 1*VGA, 2*USB3.0, 1*RJ45 LAN, 2*USB2.0, 1*Line-out, 1*Mic-in, 1*WIFI hole. | |

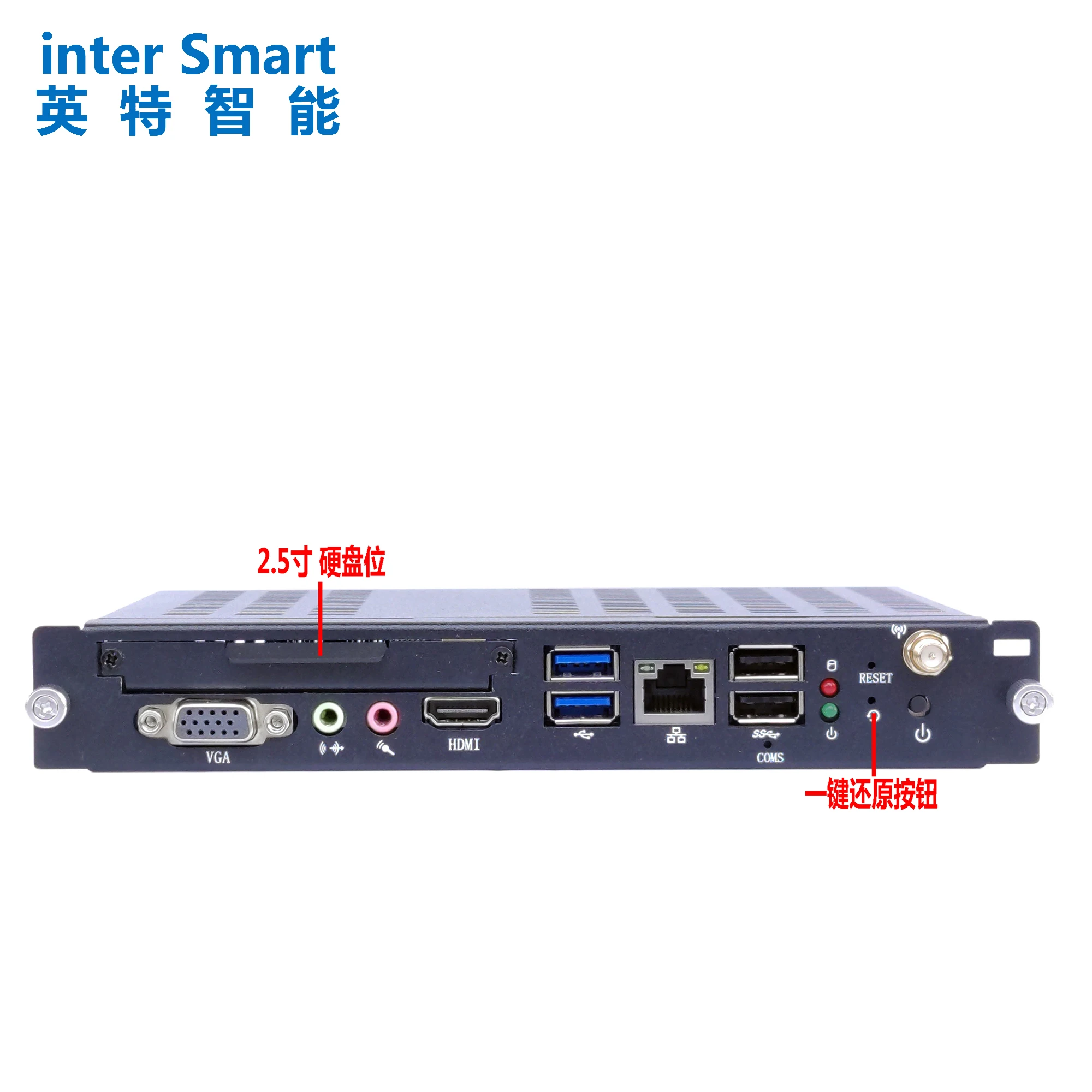

External Button | 1*Restart button, 1*Power on/off button, 1*One-key recovery system button. | |
Hard Disk | 1*JSATA port | It is 2.5inch hard disk slot for SSD,HDD. (SATA3.0) |
1*MSATA slot | Support MSATA hard disk (SATA 3.0) | |
Audio | Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller. | |
1*Line_out port | Support Audio output(Green color) | |
1*Mic_in port | Support microphone input(Red color) | |
USB | 2*USB3.0 ports | Rear USB3.0 ports |
2*USB2.0 ports | Rear USB2.0 ports | |
1*PWR_SW button | Switch button | |
1*SIM_CARD slot | Support SIM card.If you use 3G / 4G, you must have a SIM card. | |
1*CMOS_SW button | Motherboard reset and discharge buttons. | |
Operating Environment | Operating temperature:-20℃~60℃; Working humidity:5%~95% Relative humidity, no condensation. | |
BIOS | AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices. | |
Watch Dog | Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds). | |
Operating System | Support Windows 10,Windows 8,Windows 7,Linux,etc. | |
Applications
HTPC,Soft routing,Thin client,Finance retail,Advertising machine,Network Security,
Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC,Industrial computer,
Embedded industrial computer,Embedded industrial motherboard,Nano PC,NUC PC,
Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.
Packaging/Shipping
Packing:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
Total weight:
1 piece computer about 1.8~3kg;
50 pcs computers about 90~150kg;
100pcs computers about 180~300kg;
200pcs computers about 360~600kg.
Different products have different weights.
Please contact us for detailed weight.
Package size:
25.5*13*24.5CM carton 1 piece mini PC;
26*8*45CM carton 1 piece industrial PC;
53.8*28*26.5CM carton 4 pieces mini PCs;
53.8*28*51.5CM carton 8 piece mini PCs.
Shipping:
1~3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.
Company Infomantion
Shenzhen Inter Smart Co.,Ltd was founded in 2015.
We produce Motherboard,Mini PC, and we have also developed computer-related software technologies.Inter Smart has 10 years of experience in this industry,and already has a keen market insight.
Our products are widely used in HTPC,POS(point of sales terminal), All-in-One computer,Digital Signage,Advertising LCD Displayer,VOD,Network,Medical,
Security,Military,Telecommunications,Metallurgy,Transportation,Electricity,Railways,
Aviation,Communications,Finance,and other industries.
The products are hot-selling in the market,and we get the majority of consumer praise.We have 40 sales staff, 20 engineers, 50 production&assembly staff,
15 after-sales servicers.
For the company to develop better,we moved to a new office address in July 2018,we have expanded our office space,now we have 6000 square meters office space.
We also provide the perfect after-sale, CE /ISO/CCC certification,warranty, technical support, product manuals,etc.
In the domestic market,our company has achieved excellent results and reached long-term cooperation with many famous institutions and enterprises.For example, China Railway,Chinese Academy of Sciences,China Mobile,Bank of China,
Changhong,TCL,Hisense,Skyworth,UOB,Hikvision and Foxconn,etc.
We adhere to the customer as the center,and provide cost performance products and good services for commercial display, industrial control,consumers, and we are committed to enabling the information society in the future and building a better world.
Welcome to contact us!
Thanks!
