Product Description
CE certificate off grid solar inverter 3.5KW 5.5KW 100A MPPT Hybrid Solar Inverter with 6000W PV power
Features:
· High efficiency pure sine wave inverter (PF=1)
· Wide PV input range (120VDC-500VDC) 100A MPPT SCC, intelligent 3 stage 60A AC charger.
· Surges to 2*continuous power for 5 seconds for motor loads.
· Intelligent functionality enables utility and solar input priorization.
· Wide utility input range (90Vac-280Vac) for unreliable gird even in the most challenging environments.
· Monitor, troubleshoot or communication with USB/RS232
· System configures quickly into compact, wall-mounted system.
· Working without batteries in sun day.
Specification:
Model No. | MPS-V-PLUS-3500-24 | MPS-V-PLUS-5500-48 | ||
Rated power | 3500VA /3500W | 5500VA /5500W | ||
Input | voltage | |||
selectable voltage range | 170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances) | |||
Frequency range | 50Hz/60Hz(Auto Sensing) | |||
Output | AC voltage regulation (Batt.mode) | 230VAC ±5% | ||
Surge power | 6000VA | 10000VA | ||
Efficiency (peak)PV to INV. | 97% | |||
Efficiency (peak)Battery to INV. | 94% | |||
transfer time | 10 ms(For Personal Computers);20ms(For Home Appliances) | |||
waveform | Pure sine wave | |||
Battery& AC charger | battery voltage | 24VDC | 48VDC | |
floating charge voltage | 27VDC | 54VDC | ||
overcharge protection | 33VDC | 63VDC | ||
maximum charge current | 80A | 80A | ||
Solar charger | MAX PV array power | 6000W | ||
MPPT range@ operating voltage | 120~450VDC | |||
maximum PV array open circuit voltage | 500VDC | |||
maximum charging current | 100A | |||
maximum efficiency | 98% | |||
Physical | Dimension, D*W*H(mm) | 100x300x400 | ||
Net weight (kgs) | 9 | 10 | ||
Communication interface | USB/RS232/WIFI/GPRS | |||
operating Environment | humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
operating temperature | 0℃-55℃ | |||
storage temperature | -15℃-60℃ | |||
Benefits:

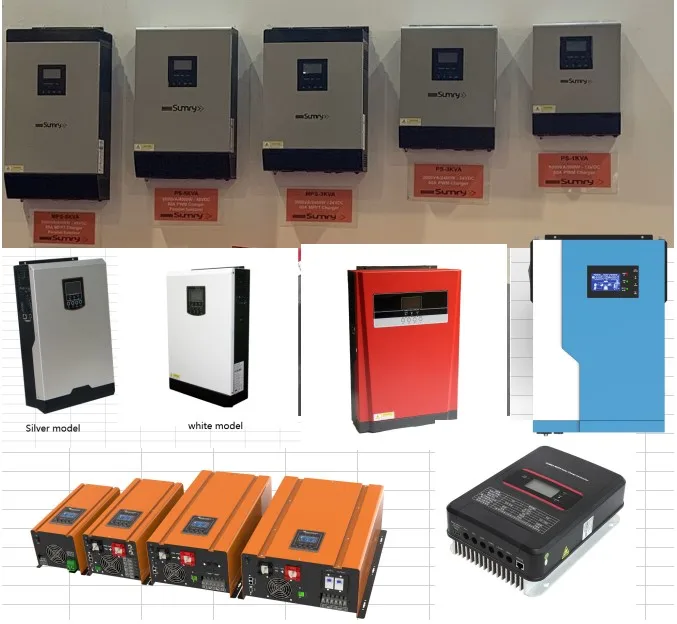

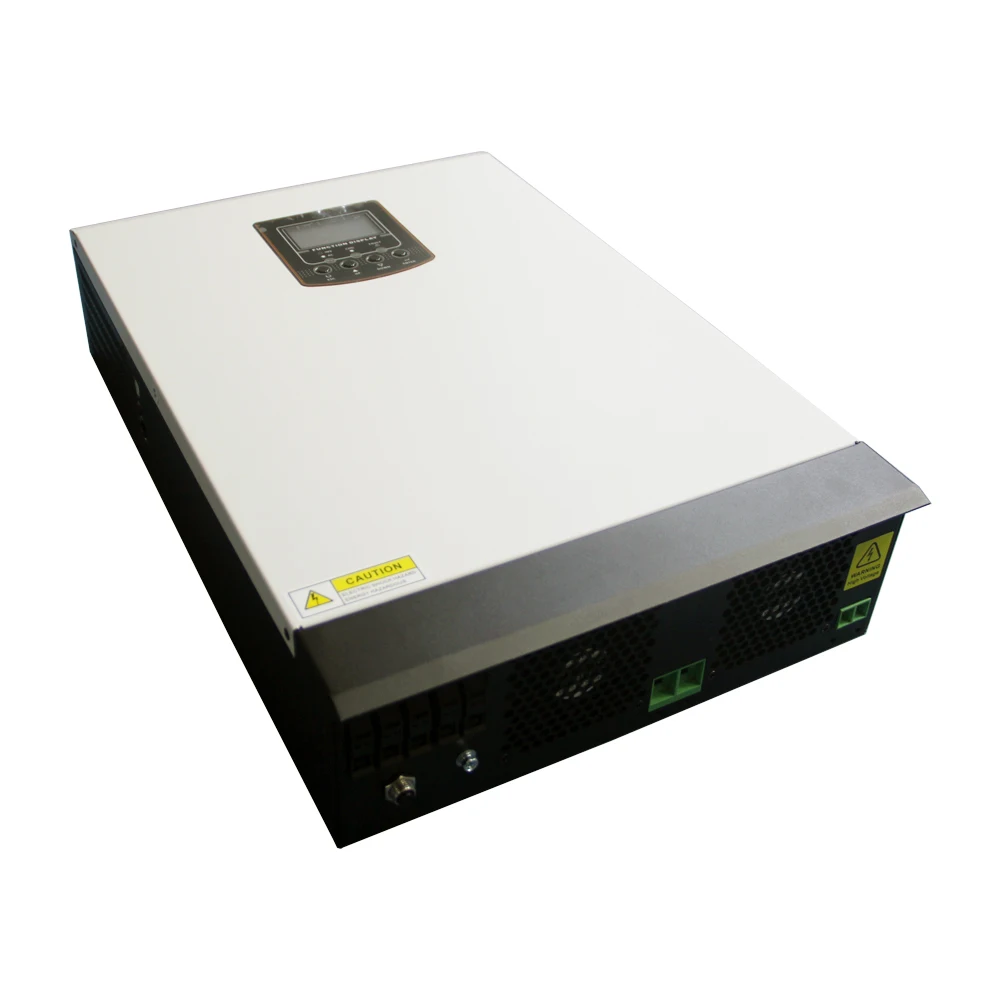

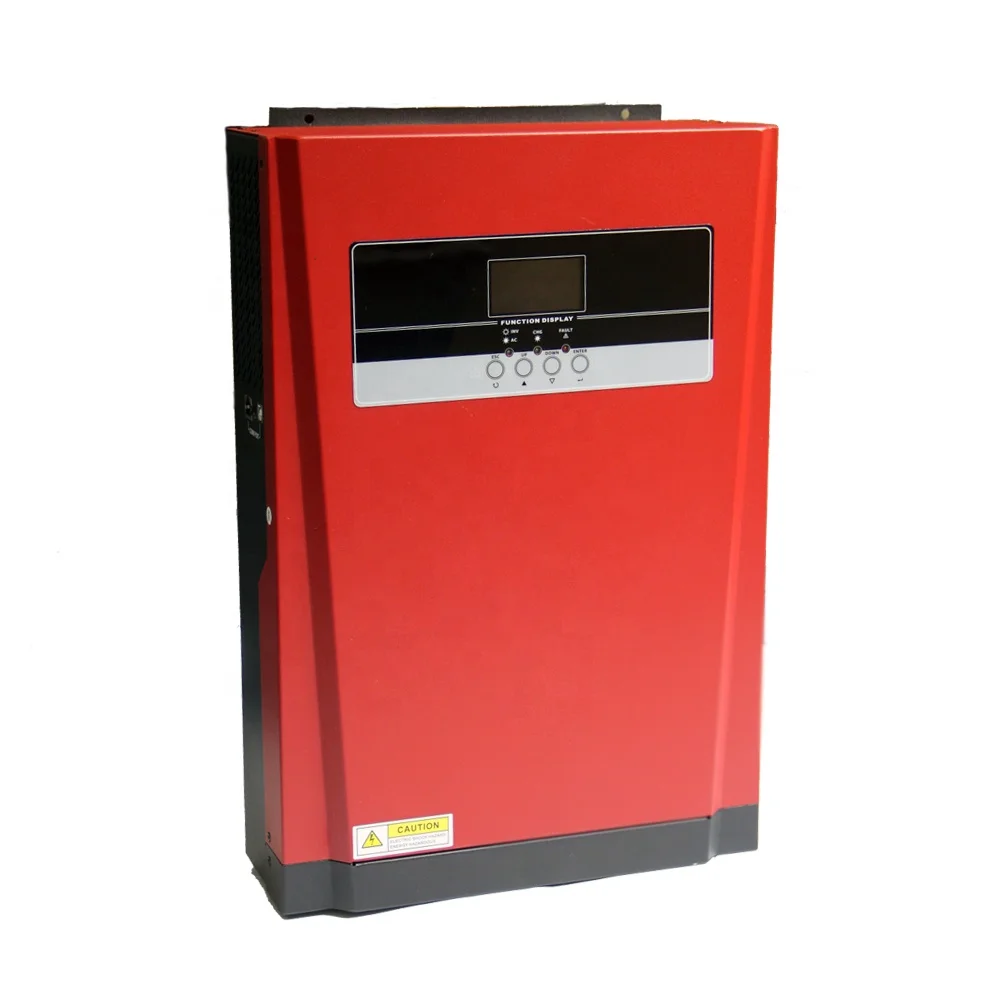

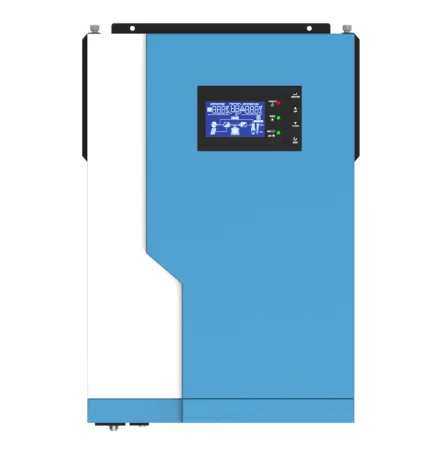

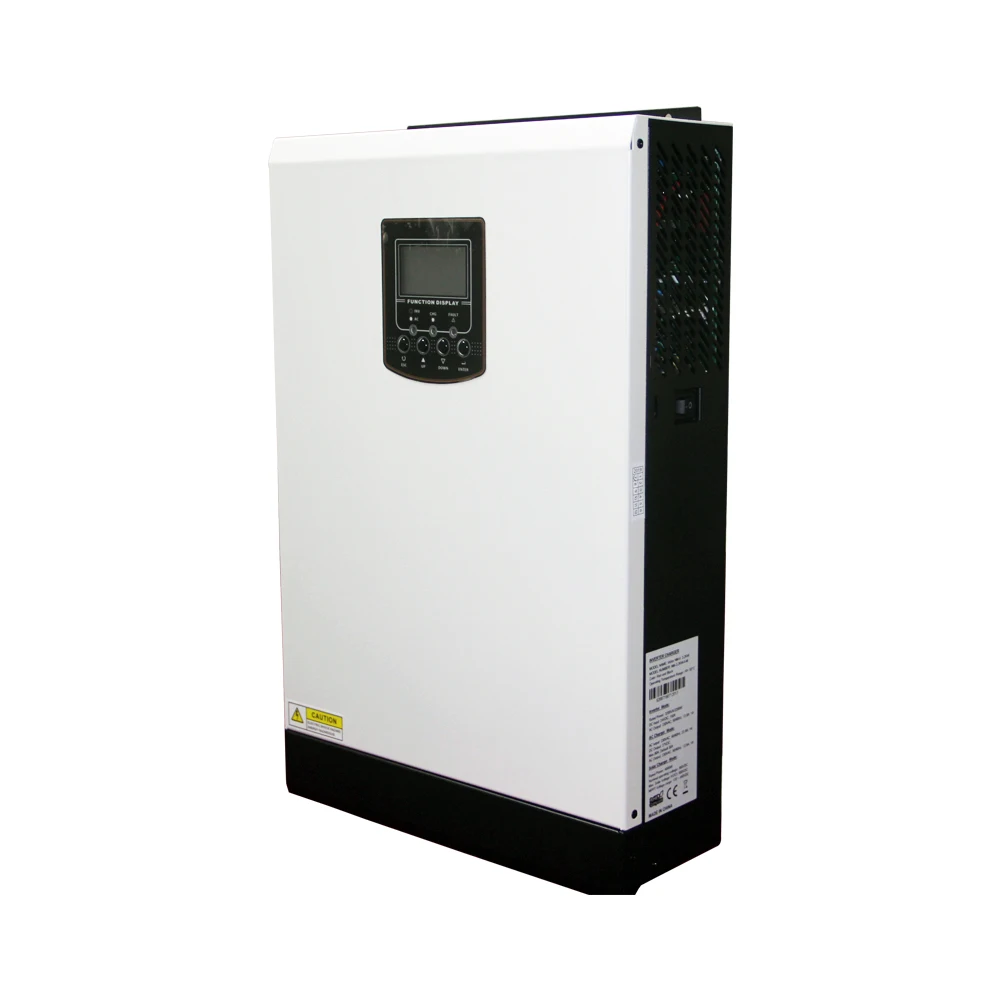

Product photos:
