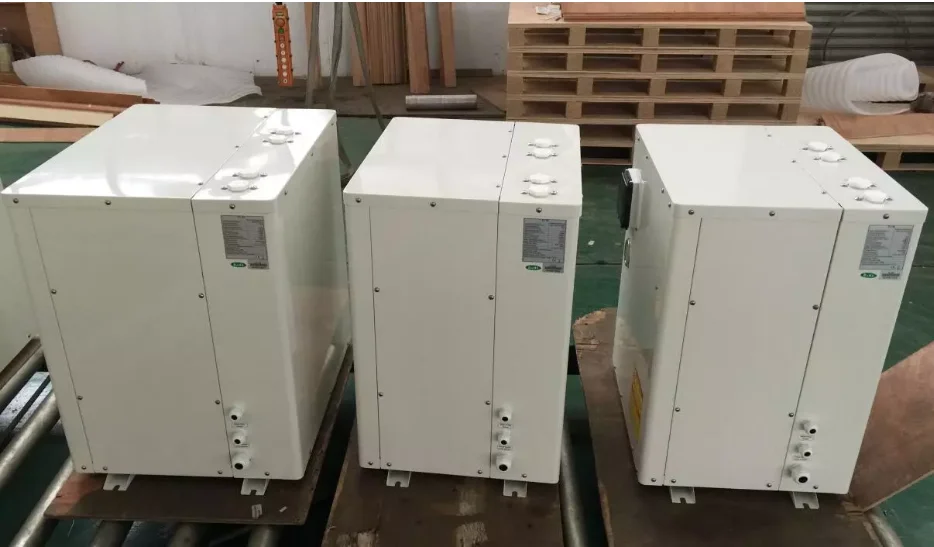

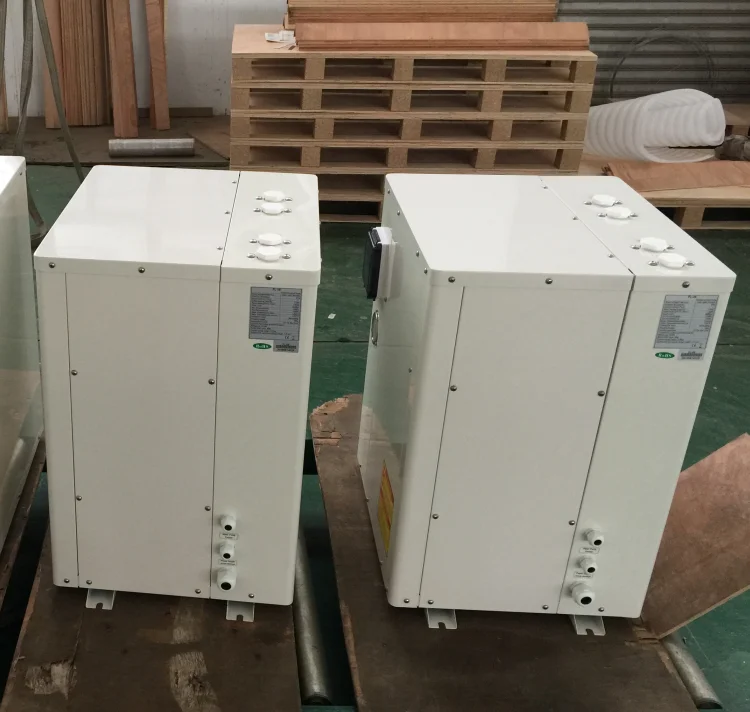

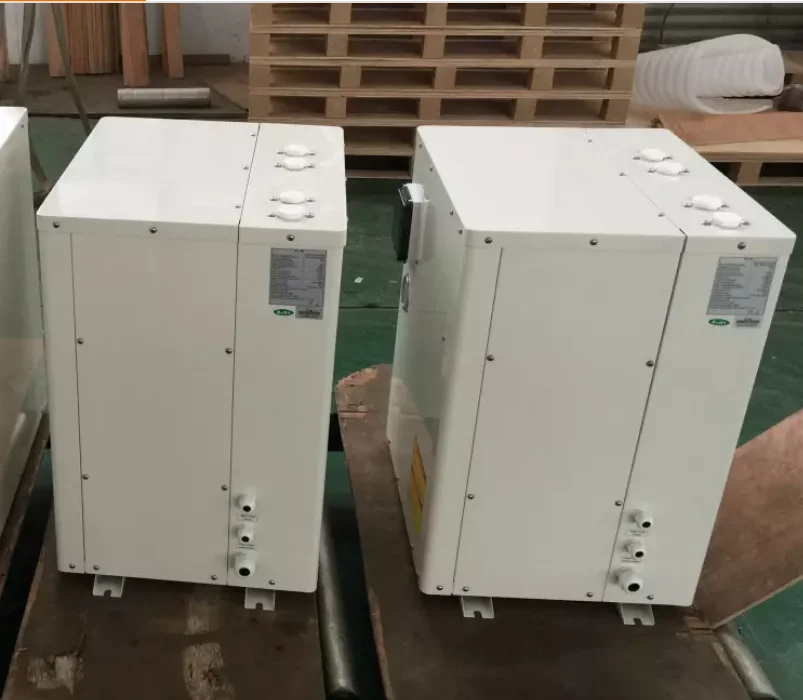

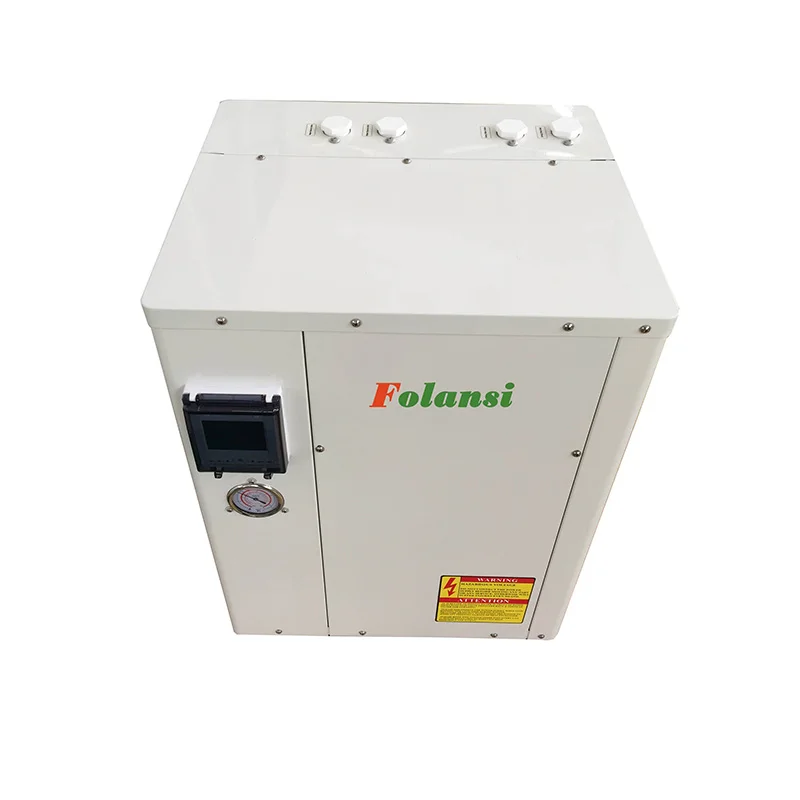

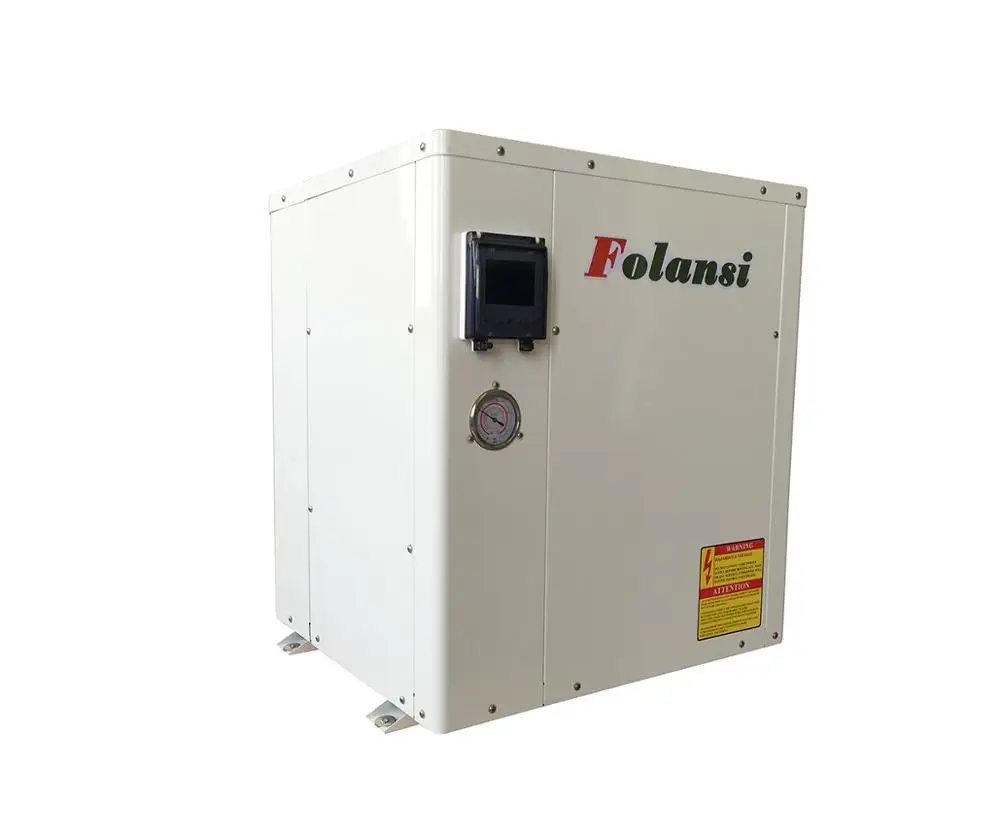

Высокоэффективный промышленный геотермальный отопительный насос 15 кВт водонагреватель для отопительных систем и горячей
- Категория: Нагреватели воды с тепловым насосом >>>
- Поставщик: Guangdong,Folansi,Energy,Saving,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.55 $* | 0.20 $* |
| Aug-15-2025 | 0.2 $* | 0.70 $* |
| Jul-15-2025 | 0.42 $* | 0.93 $* |
| Jun-15-2025 | 0.43 $* | 0.5 $* |
| May-15-2025 | 0.71 $* | 0.62 $* |
| Apr-15-2025 | 0.29 $* | 0.33 $* |
| Mar-15-2025 | 0.30 $* | 0.2 $* |
| Feb-15-2025 | 0.11 $* | 0.33 $* |
| Jan-15-2025 | 0.72 $* | 0.81 $* |
Характеристики
\\Rated heating working condition: heat source side heat exchnage inlet |
| Geothermal heat pump/Water to water heat pump(Heating and hot water) | ||||
| Model | Unit | FW-04 | ||
| Unit function | Rated heating capacity | kw | 15 | |
| BTU | 51195 | |||
| Hot water supply | T/h | 0.3 | ||
| Rated input power | kw | 3 | ||
| Rated heaing input current | A | 5.1 | ||
| COP | 4.66 | |||
| Max running current | A | 7.3 | ||
| Power | V/Ph/Hz | 220-240V/380-415V/50Hz/60hz | ||
| Noise | dB(A) | ≤53 | ||
| Dimension | Width | mm | 660 | |
| Deepth | mm | 530 | ||
| Height | mm | 675 | ||
| Weight | kg | 125 | ||
| Throttle typ | Electronic expansion valves/thermal expansion valves | |||
| Refrigerate | R417A, R407C, R410A,R22 | |||
| Max outlet water temp | 60℃ | |||
| Circulation structure | Compressor | Type | copeland , panasonic | |
| Qty | 1 | |||
| Locked-rotor current | A | 50 | ||
| Security protect functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | |||
| Water source side heat exchange | Type | Efficient tube in shell heat exchanger /plate heat exchange | ||
| Water flow | m3/h | 2.1 | ||
| Water pressure down | kPa | 10 | ||
| Pipe size | Inch | 1 | ||
| Hot water side heat exchange | Type | Efficient tube in shell heat exchanger /plate heat exchange | ||
| Water flow | m3/h | 2.5 | ||
| Water pressure down | kPa | 10 | ||
| Pipe size | DN | 1 | ||
