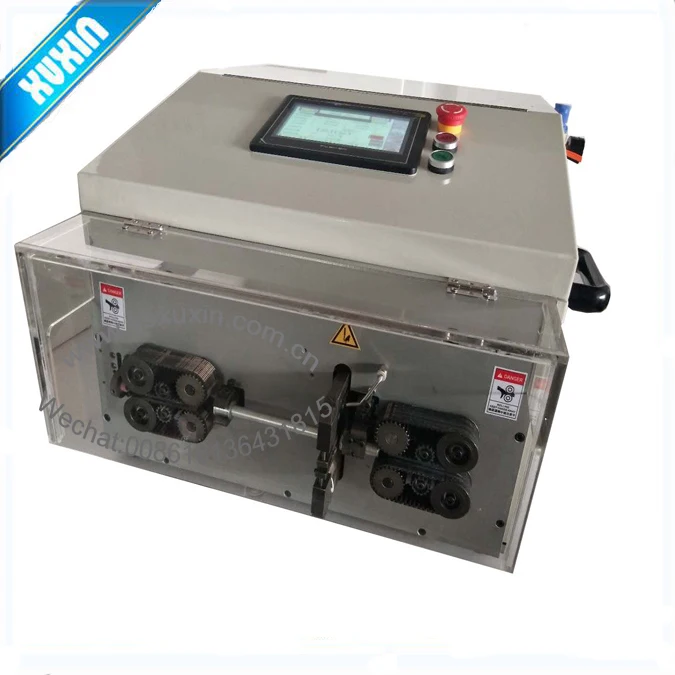

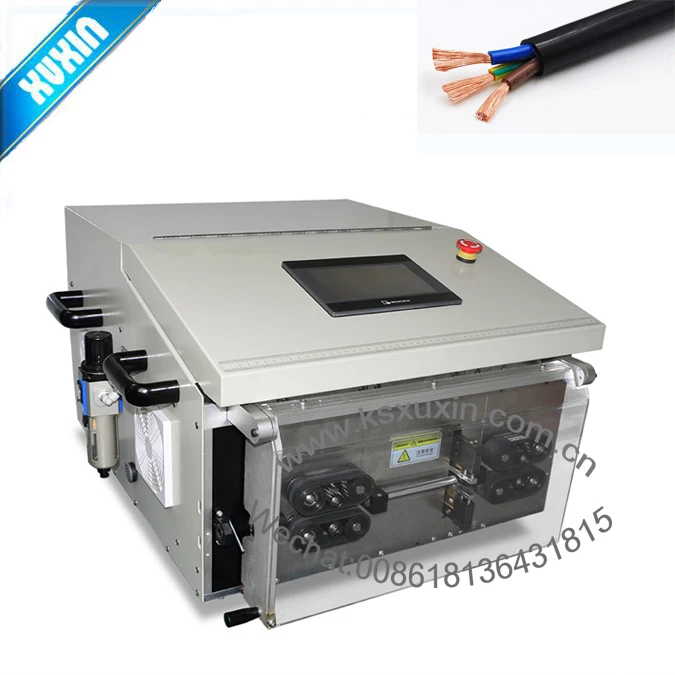

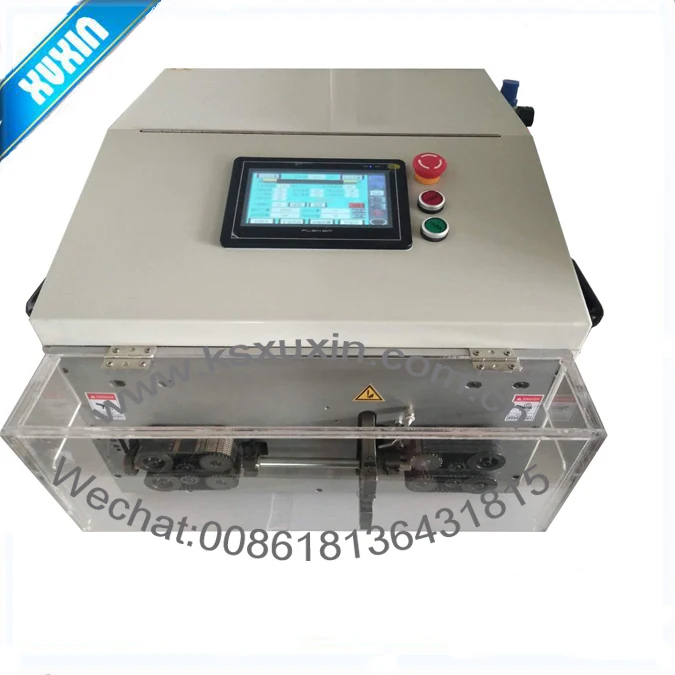

Full Automatic Multi-core sheathed wire stripping machine X-504HT

1. This model is suitable for the processing of multi-core round sheathed wire.

2. Various processes such as cutting, peeling, and stripping of wires can be completed in one operation.

3. The cutting and peeling of the movable tool holder is completed by using two different tools.

4. Store up to 100 different program numbers, so that various processing data can be recalled at any time after saving.



Technical Parameters:

Automatic Wire cutting & stripping machine



Model:X-504HT



*Voltage: AC220/ 50HZ 110V/60HZ

* Power: Rated 850W

Display Way: LED Display , Touch screen

Cut length: 10mm---400meters

Strip length (outside):  20---150mm

Strip inter core : End of a thread 3-10mm        Tail : 3—30mm

Cutting Tolerance:±(0.2+0.0002×L)mm

Wire diameter ( OD) : 3.0—10.0mm

Core cross-section cut-line: 80X20X4mm

Apply wire :Two core ; three core cable ; and four cores Round sheathed wire

Stripper speed (Article / h): 400-1000pcs/h

Size& weight: 660*700*400(mm) , 102KG

Feature : It can cut and strip inter and Jacket cable at one time

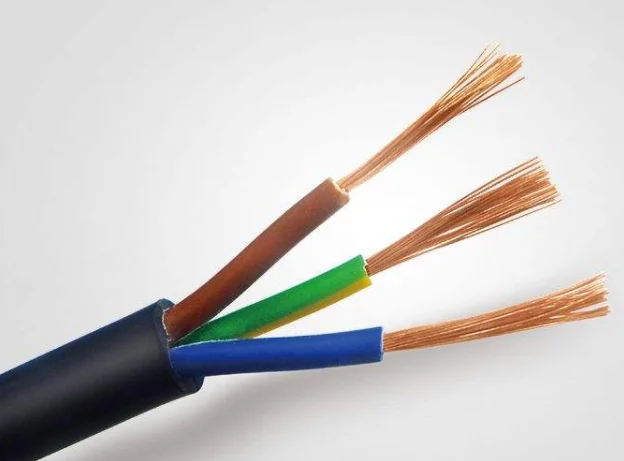

Cut and strip cable :





Related Wire stripping machines



Model Number	X-501HT	X-502HT	X-504HT	X-503HT
Multi-core Wire size OD	within 6 mm diameter	within 12mm	3.0—8.0mm	within 6mm
Conduit diameter	Φ8	Φ13	Φ8	Φ13
Wire model	Round sheathed cable	Round sheathed cable	Automatic stip for inter and outer cable /flat cable	Automatic stip for 2 core round inter and outer cable/flat cable strip and twisting
Drive Mode	Four-wheel drive	Four-wheel drive	Four-wheel drive	Four-wheel drive
Weight	35kg	35kg	90kg	40kg
