Сборная бетонная плита с полым сердечником легкая панельная машина по разумной

Сборная бетонная плита с полым сердечником легкая панельная машина по разумной

Категория: Board Making Machinery >>>
Поставщик: Shandong,OYADE,New,Building,Material,Co.,Ltd.

Цена:20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	23800.36 $*	24990.24 $*
Aug-18-2025	23600.19 $*	24780.7 $*
Jul-18-2025	19800.0 $*	20790.98 $*
Jun-18-2025	23200.48 $*	24360.91 $*
May-18-2025	20200.46 $*	21210.56 $*
Apr-18-2025	22800.12 $*	23940.57 $*
Mar-18-2025	22600.96 $*	23730.26 $*
Feb-18-2025	22400.49 $*	23520.71 $*
Jan-18-2025	22200.80 $*	23310.49 $*

Характеристики

Main parameters

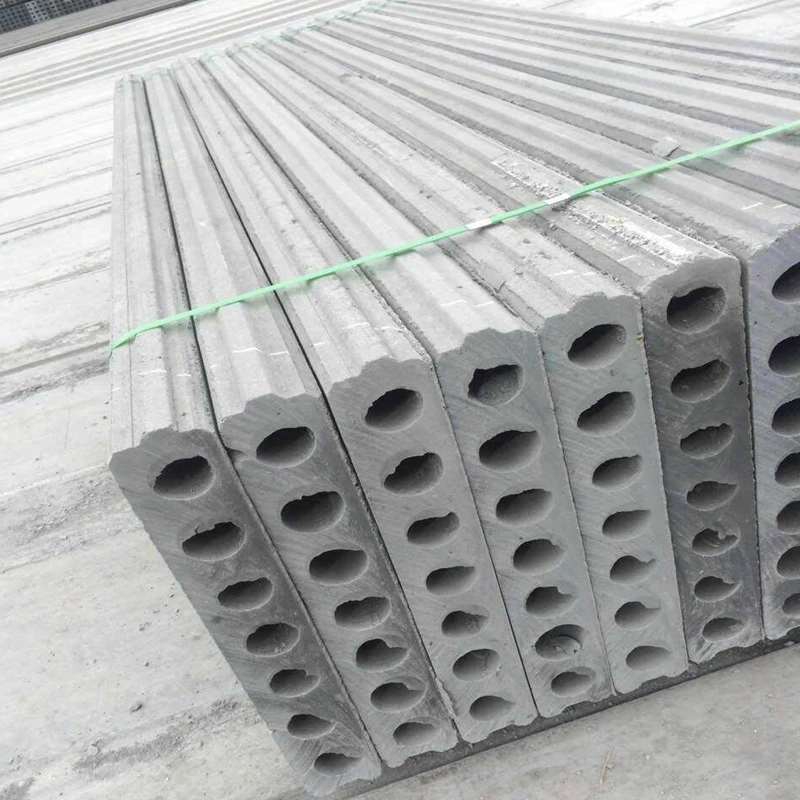

wall panel Specifications

EPS Lightweight wall panel

Raw material

Name

Cement

Fly ash

Sand

Polystyrene particles

Admixtures

Calcium silicate board

Water

Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C

Mold car specification
Panel thickness	Panel width	Panel length	Quantity(block/each car)	Sqm/car
75	610	2440	44	65.49
90	610	2440	40	59.54
100	610	2440	36	53.58
120	610	2440	32	47.63
150	610	2440	24	35.72
180	610	2440	20	29.77
200	610	2440	20	29.77

Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.

Manufacturing Technique

Full Automatic Mixing Platform

Automatic raw material feeding --metering -mixing system,

It can accurate measurement to ensures proportion stability

Double Shaft mixer and second mixing

The Mixer is double -shaft, stable and convenient operation . Beside, the blade is only 3mm to the mixer wall so that can
guarantee mixing even.End of shaft has four seal, no oil leakage, no slurry leakage , automatic oil filling maintenance.

2..For big capacity, we will equip second mixer
shorten the mixing time, increase the production capacity, and the third is to prevent the slurry from solidifying and
make the slurry more uniform.

Pumping System

1.We use the pump to cast the slurry into the mould car, in this way, the slurry will be more even
2.Reduce the bubble of the wall panel ,to make sure the flatness of both surface
3.to protect the integrity of the calcium silicate board, ensure the compactness on both sides of the panel
4.It can keep the working platform clear without wasted raw material.

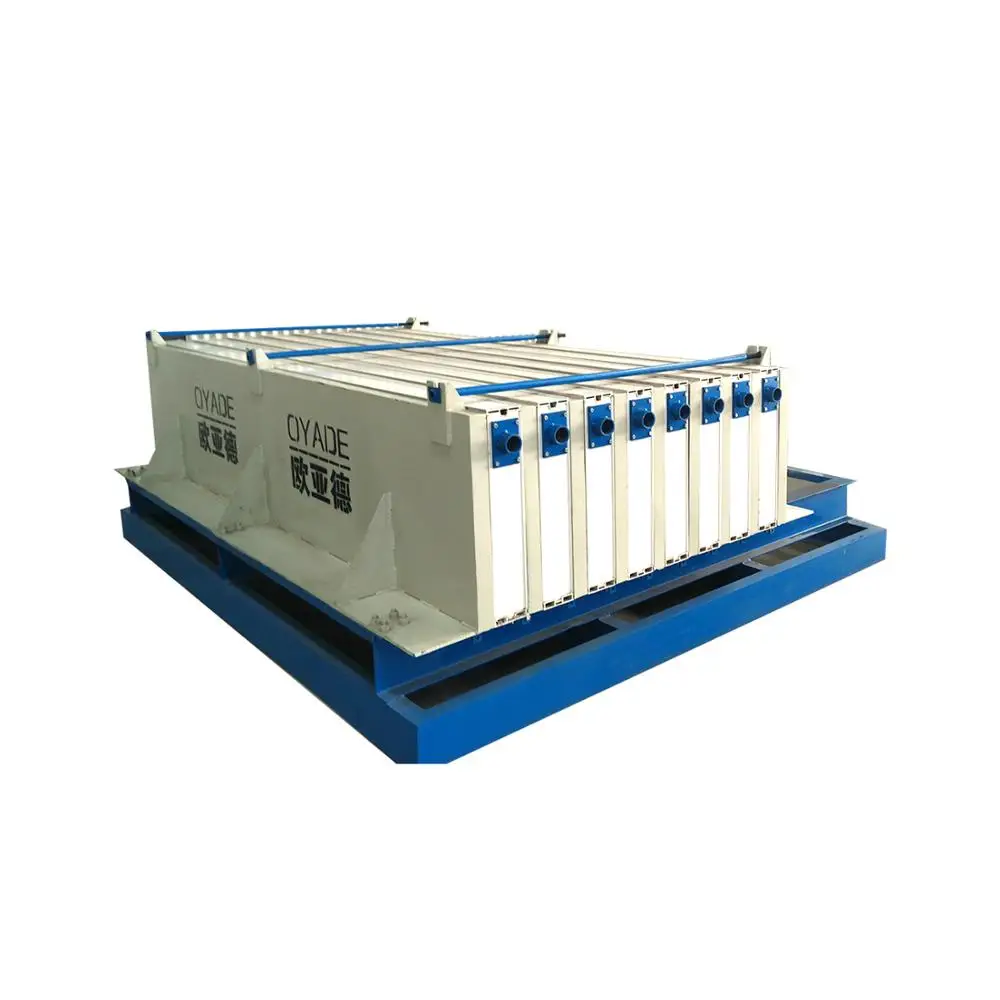

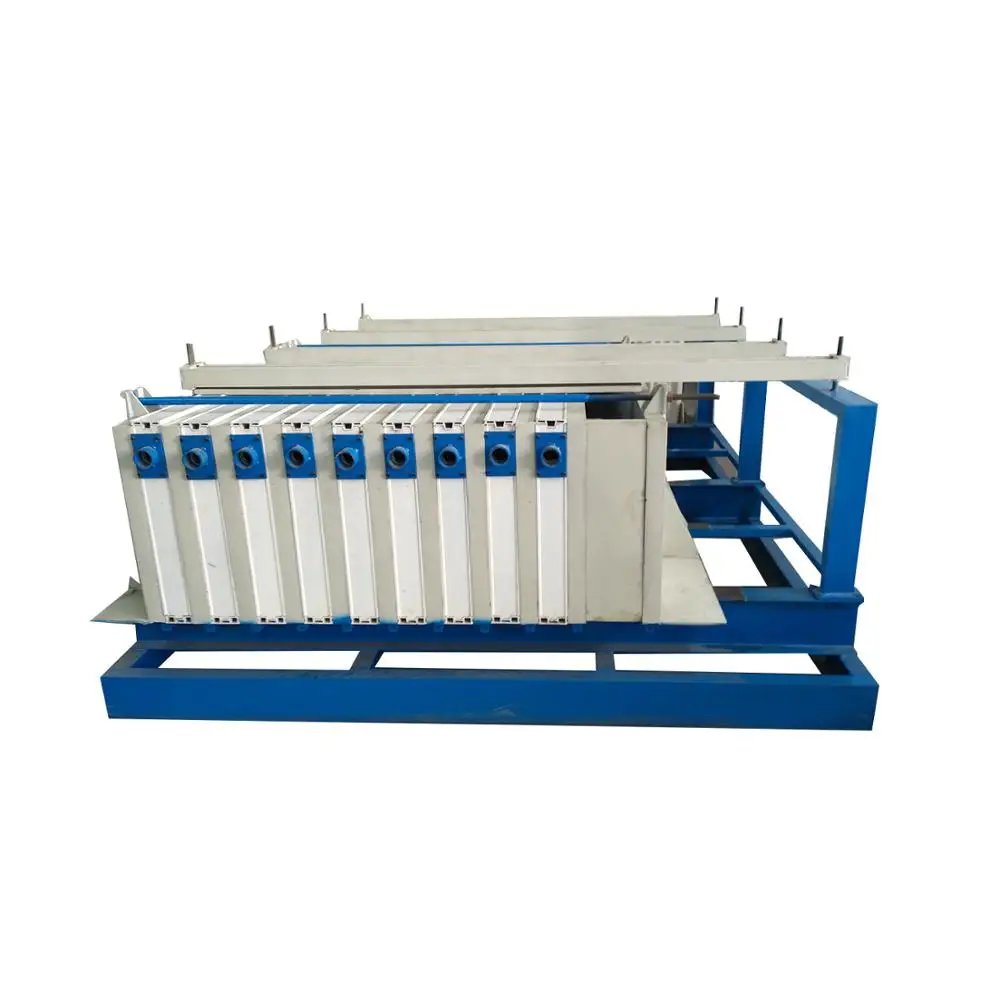

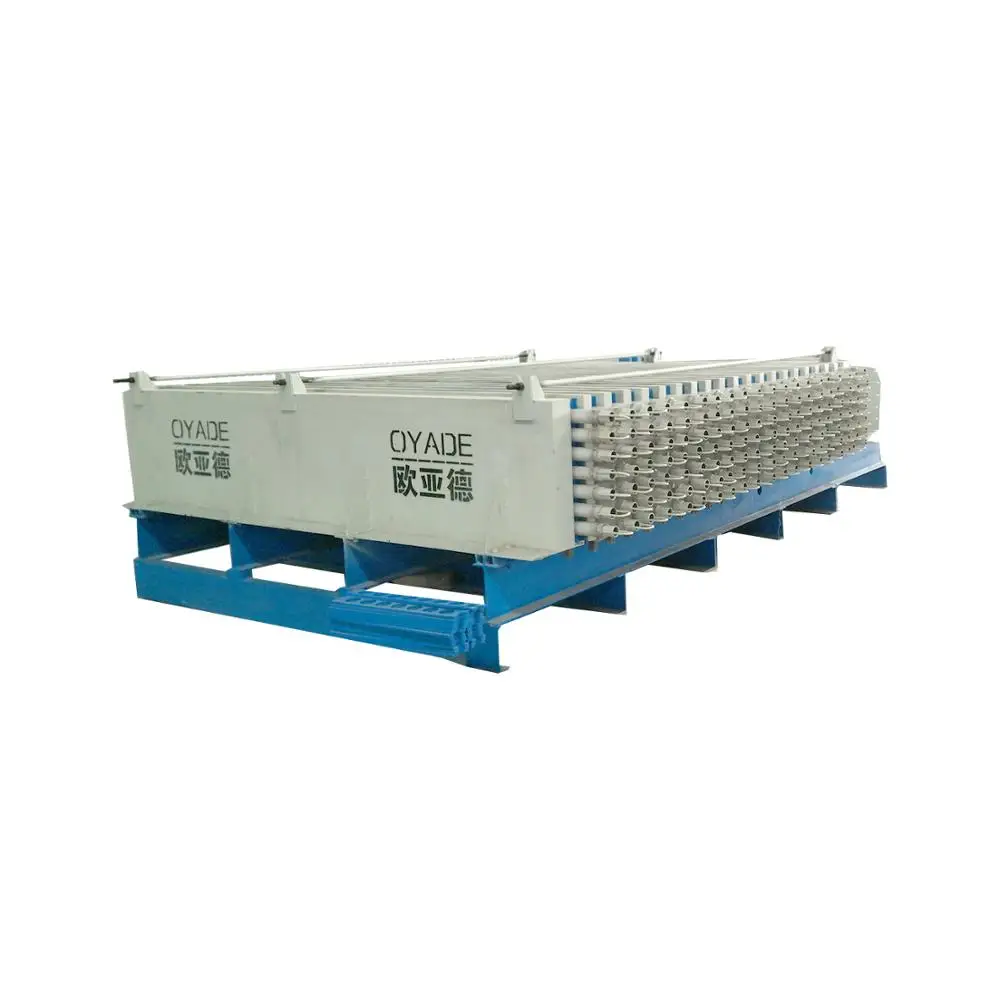

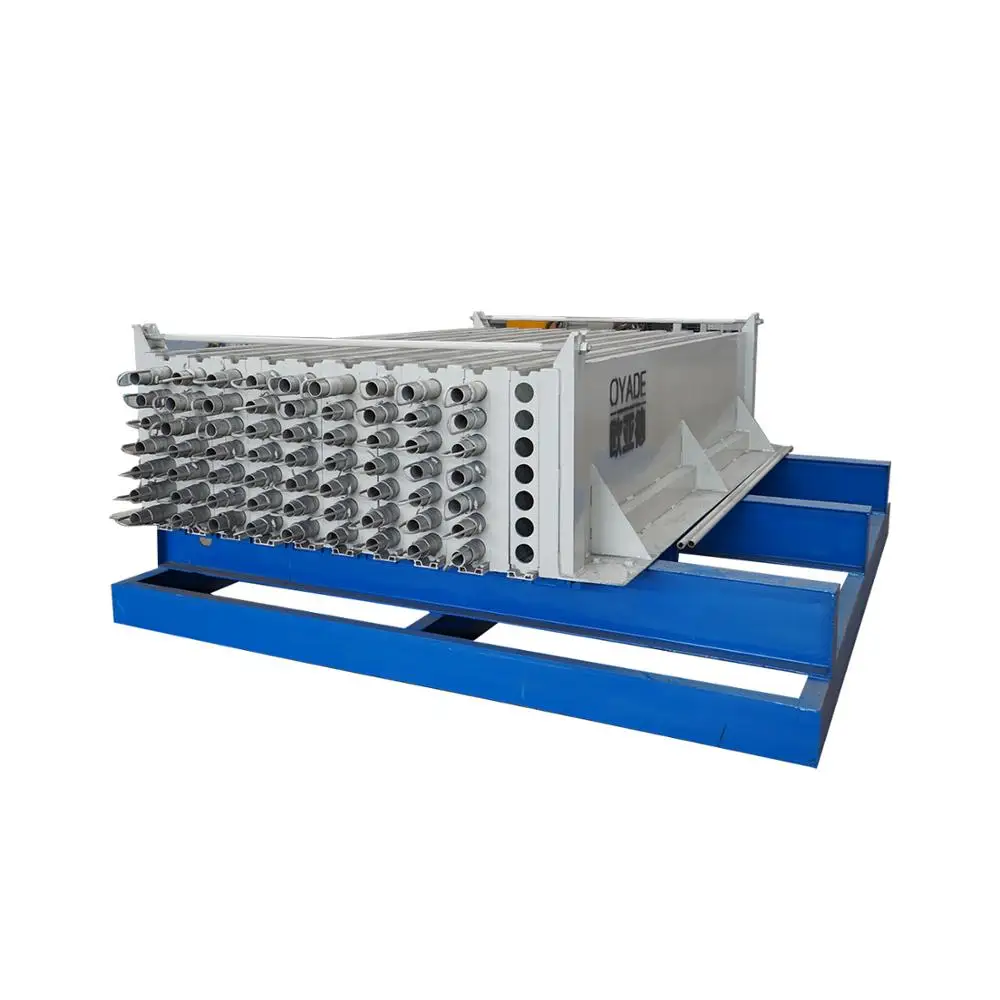

Mult-function Mould Car

Product type :solid wall panel and composite wall panel

Size :2400-3000mm *610*45-200mm

Feature :

1.large capacity than horizontalmould car

2.automatically and more effecient

3.Small land space .vertical type mould car can save land area

4.About demoulding :each time can de-mould 20 pcs panel ,Saving working strength

Automatic demould machine

1.20pcs /time
2.need3-4person,1 person control the PLC ,another two assist demoulding
3.8-10minutes/car

Packing & Delivery

Packaging
1. 20FT/40FT standard land and sea package; 2. The PLC controller covered by foam film; 3. Spare parts and some some parts packed in box; 4.All components fixed by steel wire in container.

Projects

We have over 20 patented technology in our country.Would love to show to you when you come.

Certifications

OYAD Factory Contact

Products
Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise
After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
