Резервуар из нержавеющей стали емкость для брожения пива Пивоваренная система 1000
- Категория: Fermenting Equipment >>>
- Поставщик: Shandong,HG,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6628.35 $* | 6959.90 $* |
| Aug-15-2025 | 6573.77 $* | 6902.45 $* |
| Jul-15-2025 | 5514.86 $* | 5790.9 $* |
| Jun-15-2025 | 6461.99 $* | 6784.72 $* |
| May-15-2025 | 5626.43 $* | 5907.68 $* |
| Apr-15-2025 | 6350.41 $* | 6668.39 $* |
| Mar-15-2025 | 6294.77 $* | 6609.73 $* |
| Feb-15-2025 | 6238.49 $* | 6550.65 $* |
| Jan-15-2025 | 6183.49 $* | 6492.41 $* |
Характеристики

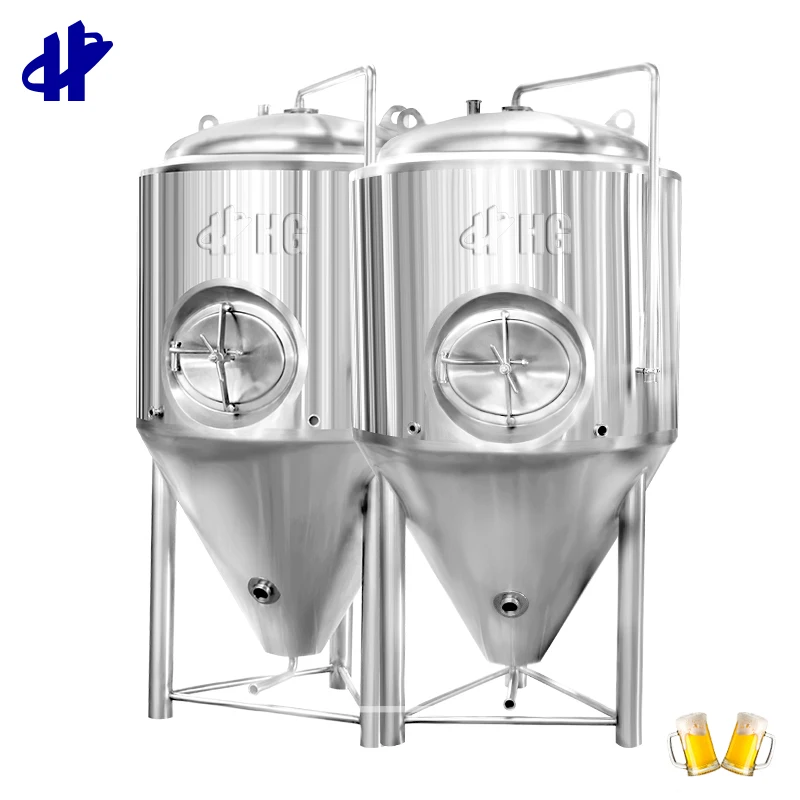

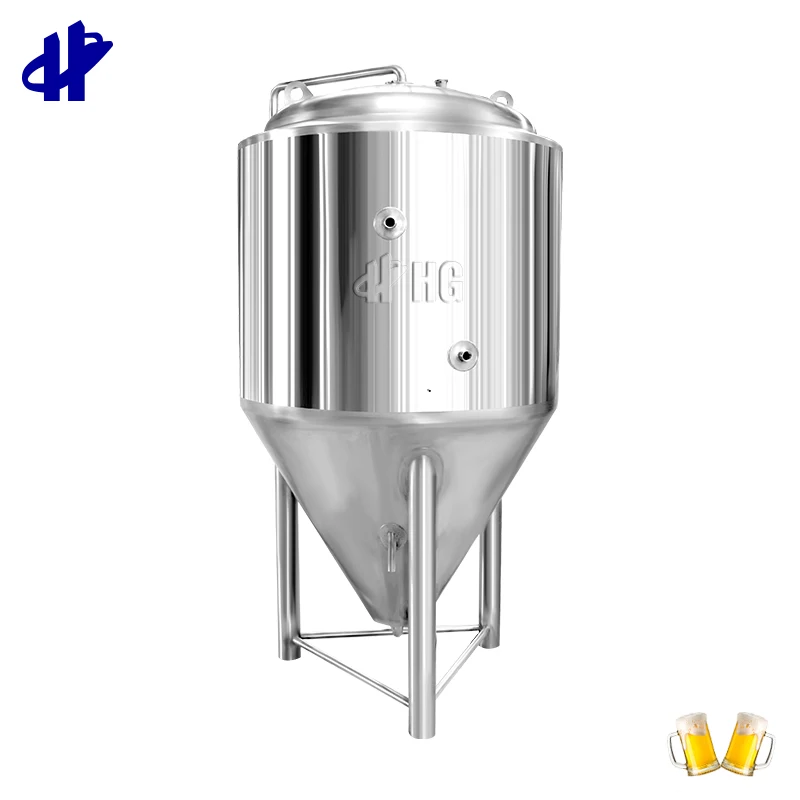

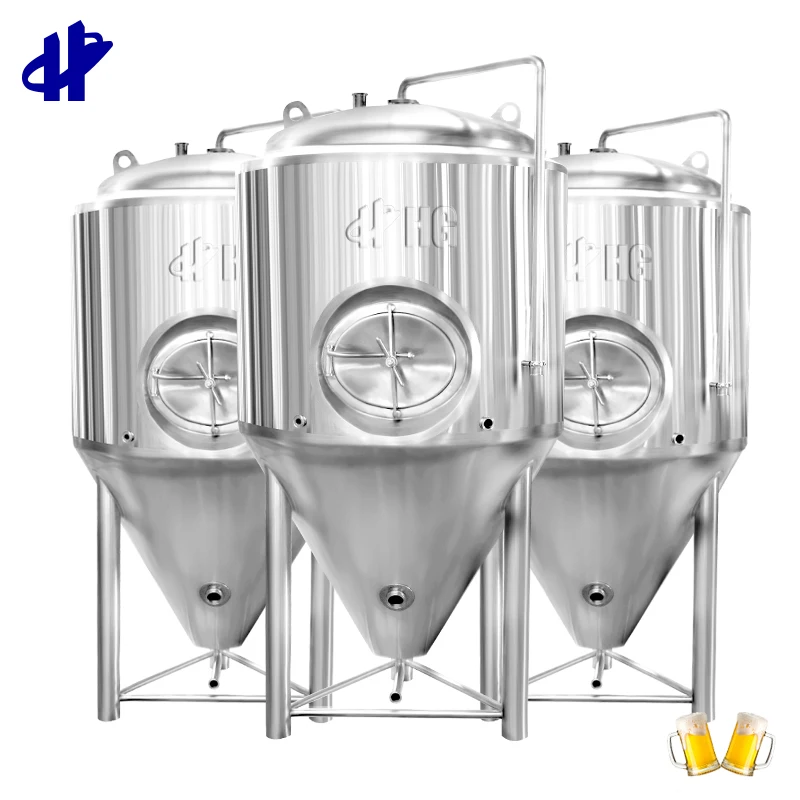

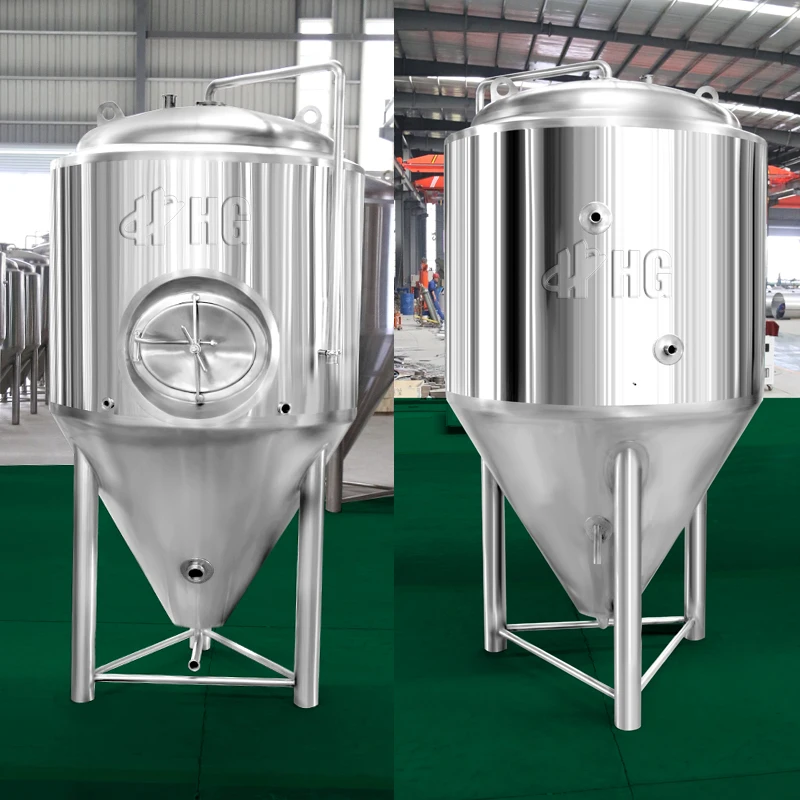

Stainless Steel Tank Pot Beer Fermentation tank Brew 1000L Brewery System
Model | HG-FJ-1000L |
Gross capacity | 1300L |
Useful capacity | 1000L |
Thickness | Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm |
Material | Stainless steel 304 |
Cooling way | Dimple jacket plate |
Cleaning way | CIP in situ cleaning, with rotary spray cleaning ball |
Insulation | Polyurethane-thickness: 100mm |

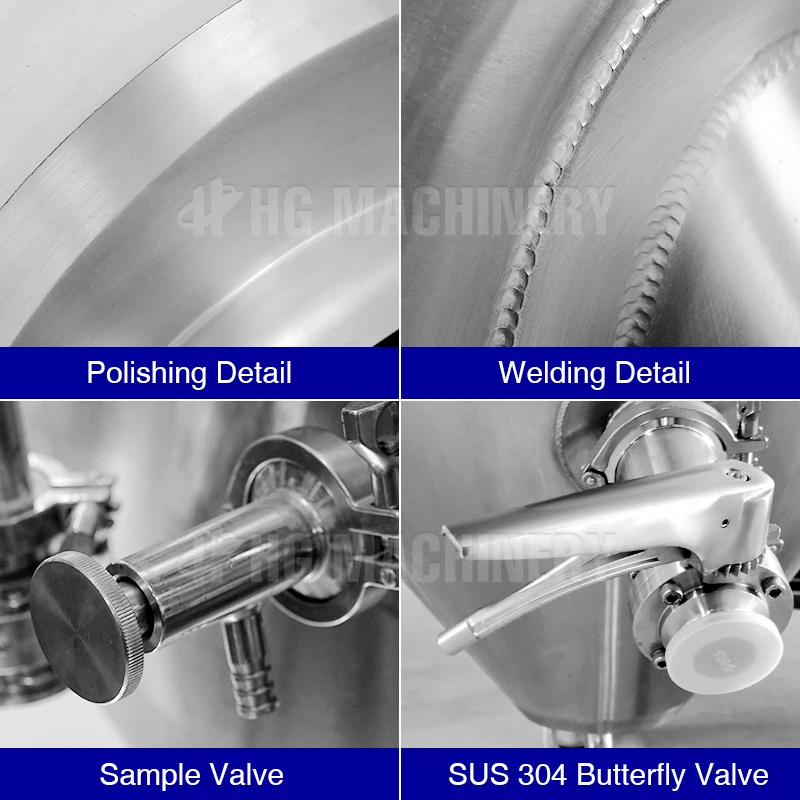

Accessories | Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on |
Fermenter advantage :
1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China2. The cooling efficiency of Maitreya plate jacket is greatly improved.
3. Two stage cooling mode
4. The insulation layer material is high-grade polyurethane with a thickness of 80mm
5. Polishing accuracy up to Ra0.4μ m
6. Strict tank pressure test
7. Energy conservation and pollution emissions
1000L fermentation tanks suitable for hotels and restaurants and brewery. The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure.
Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
HG-100 | 100L/day | 26US Gallon | 0.5㎡ | 650mm | 1500mm |
HG-200 | 200L/day | 53US Gallon | 0.8㎡ | 850mm | 1600mm |
HG-300 | 300L/day | 79US Gallon | 1.2㎡ | 960mm | 1700mm |
HG-400 | 400L/day | 106US Gallon | 1.5㎡ | 1060mm | 2000mm |
HG-500 | 500L/day | 132US Gallon | 1.8㎡ | 1160mm | 2300mm |
HG-5BBL | 5BBL/day | 155 US Gallon | 1.9㎡ | 1200mm | 2350mm |
HG-600 | 600L/day | 158US Gallon | 2.0㎡ | 1220mm | 2350mm |
HG-700 | 700L/day | 185US Gallon | 2.4㎡ | 1260mm | 2380mm |
HG-800 | 800L/day | 212US Gallon | 2.5㎡ | 1260mm | 2400mm |
HG-7BBL | 7BBL/day | 216US Gallon | 2.5㎡ | 1280mm | 2450mm |
HG-1000 | 1000L/day | 264US Gallon | 2.6㎡ | 1360mm | 2500mm |
HG-10BBL | 10BBL/day | 310 US Gallon | 2.8㎡ | 1460mm | 2700mm |
HG-1500 | 1500L/day | 396US Gallon | 3.2㎡ | 1520mm | 2900mm |
HG-2000 | 2000L/day | 528US Gallon | 3.6㎡ | 1560mm | 2850mm |
HG-2500 | 2500L/day | 660US Gallon | 3.8㎡ | 1650mm | 3200mm |
HG-3000 | 3000L/day | 792US Gallon | 4.5㎡ | 1760mm | 3800mm |
HG-4000 | 4000L/day | 1057US Gallon | 4.9㎡ | 1900mm | 4100mm |
HG-5000 | 5000L/day | 1320US Gallon | 7.2㎡ | 1960mm | 4400mm |
1.How to achieve temperature control?
The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.The brewing tanks with rock wool to keep warm,the fermenters and bright beer tank with PU as cooling jacket to keep cool.
2.Which countries your products are exported to?
Our stainless steel microbrewery equipment are sold all over the world and with related certifications.
3.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4.How long is your delivery time?
Usually it takes about 50 working days to manufacture a brewery.Depending on the size of the brewery,the amount of custom designed equipment,our general workload and the way of shipping this period can be shorter or longer.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing
The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.The brewing tanks with rock wool to keep warm,the fermenters and bright beer tank with PU as cooling jacket to keep cool.
2.Which countries your products are exported to?
Our stainless steel microbrewery equipment are sold all over the world and with related certifications.
3.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4.How long is your delivery time?
Usually it takes about 50 working days to manufacture a brewery.Depending on the size of the brewery,the amount of custom designed equipment,our general workload and the way of shipping this period can be shorter or longer.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing
1. Container loading(20GP/40GP/40HQ)
2. Packed with plastic film and iron frame for main tank.Fittings use iron cabinet.
3. Customer's requirements available.
2. Packed with plastic film and iron frame for main tank.Fittings use iron cabinet.
3. Customer's requirements available.
