Advantages of energy storage bolt welding  machine

Energy-storage type bolt welding machine can weld bolt, threaded stud, dowel to metal workpiece. During the welding process, through element point discharge energy storage capacitor discharge, discharge time, 0.001 to 0.003 seconds. Don't need gas or ceramic ring protection, penetration is about 0.1 MM.  This method is applicable to the thickness of more than 0.4 mm plate, the plate on the back of weld, indentation, discoloration, deformation and other defects,the most suitablesurface for decorative effect, plate thicknessand stud diameter smaller than electricity to1:10

Main features energy storage bolt welding machine

1) Use large aluminumelectrolytic capacitor group,a single capacitance damage affects only 2% performance.

2) Machine adopts R type transformer, it has the characteristics ofhigh efficiency, less heat production, save energy consumption, etc.

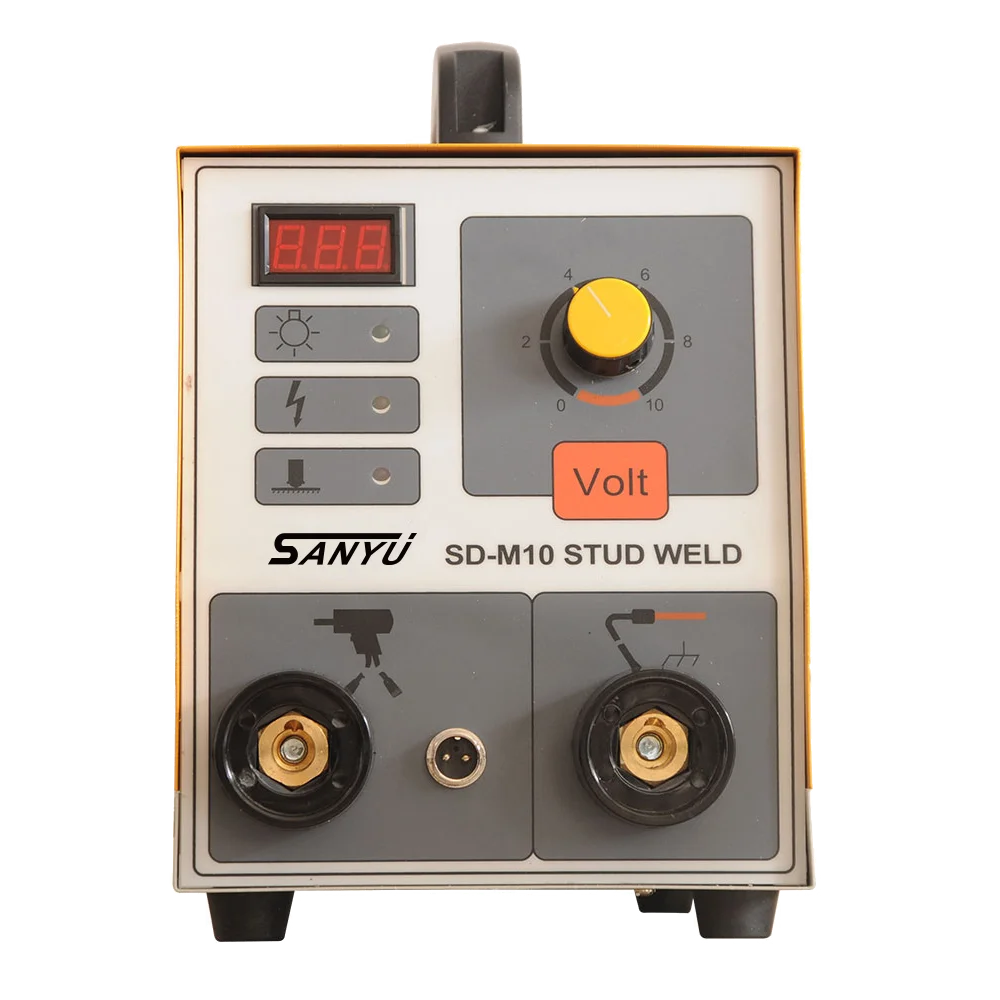

3) Adopt international advanced way of knob to adjust operation and precise control of the microcomputer, the voltage regulation accuracy up to 1V.

4) By EMC, high voltage test, prevent repeated welding, conduct temperature monitoring of transformer part inside the equipment, when the equipment internaltemperature is too high, automaticshutdown to protect the equipment.

Parameters of energy storage bolt welding machine

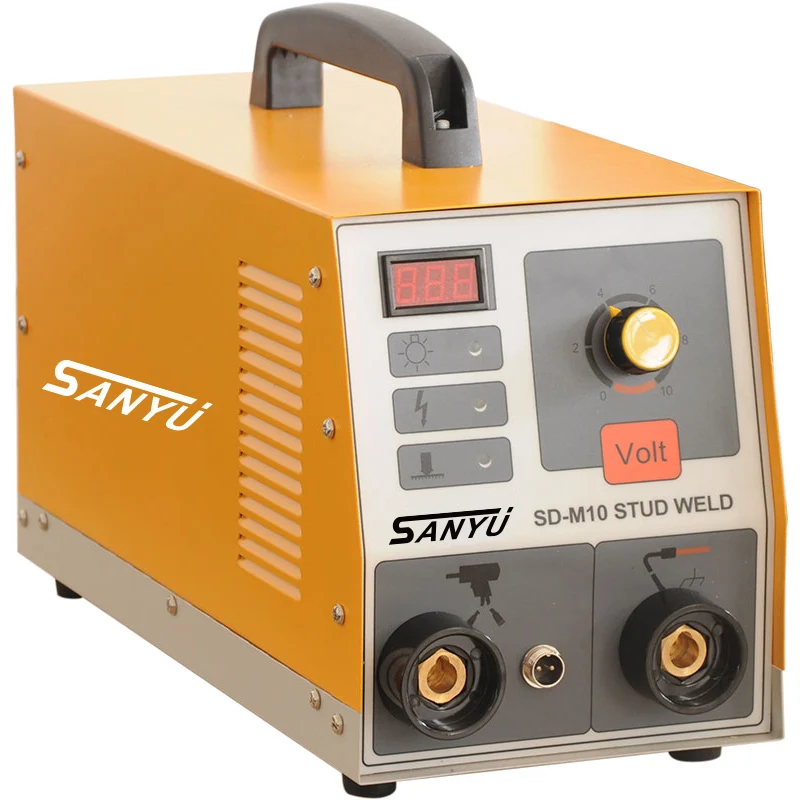

SY-M10 Parameters
Input power,voltage	220V AC 50-60Hz
Input power	500VA
Rated input insurance	13A
Power	Large aluminum electrolytic capacitor group 10,000uf
Output voltage	25-200V DC
Body case	Steel casing powder spraying
Protection level	IP31
Size	430x191x246mm
Weight	18.35kg
Welding speed	Maximum 40/min
Welding range	2mm-10mm
Welding material	Carbon steel, stainless steel, aluminum, etc
bolt length range	35mm

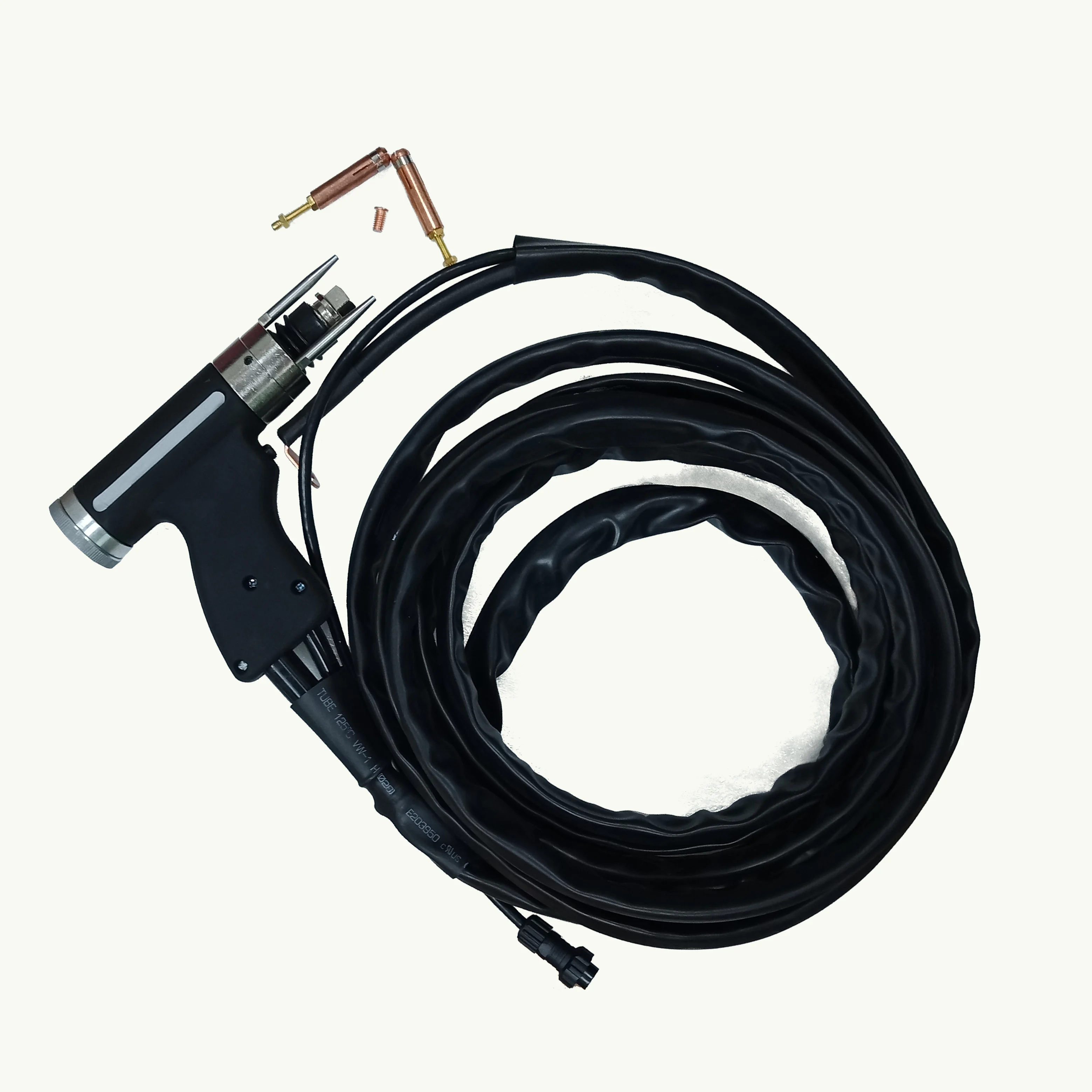

Torch brand	Black wolf
Length of torch	202mm
Cable length of torch	4m



Inner pictures of energy storage bolt welding machine

Stud welding effect different from Arc welding

Accessories
