product description

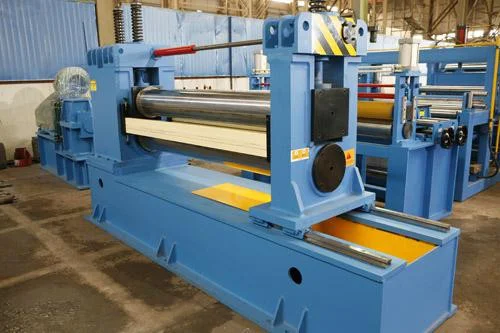

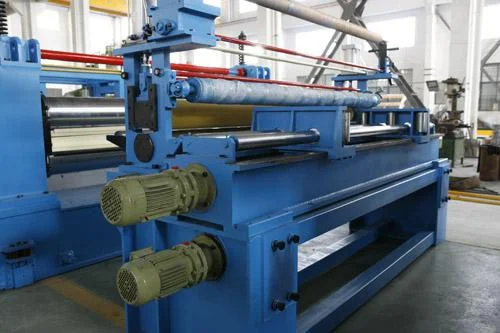

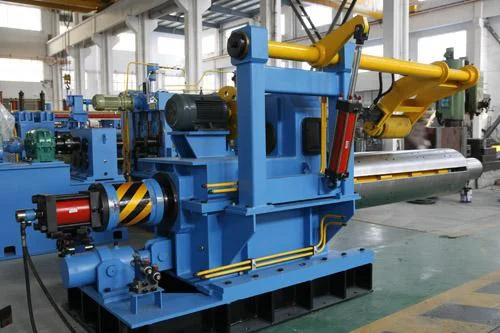

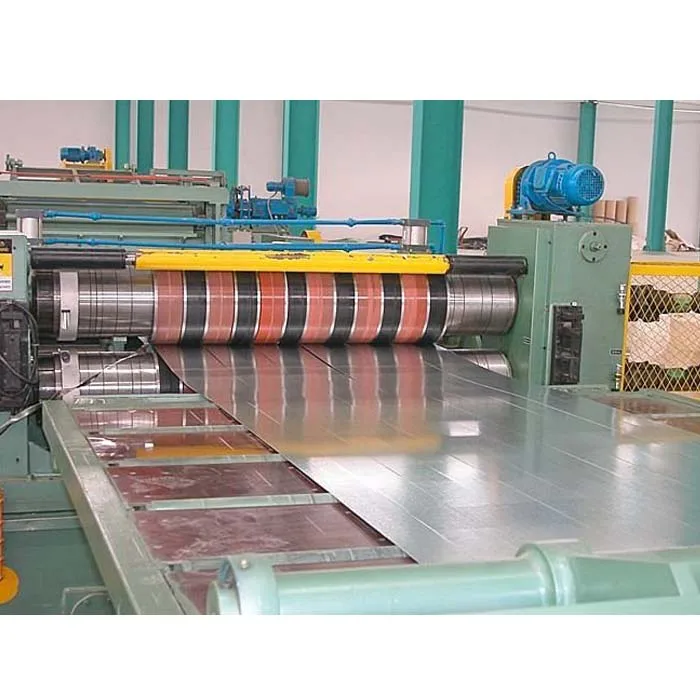

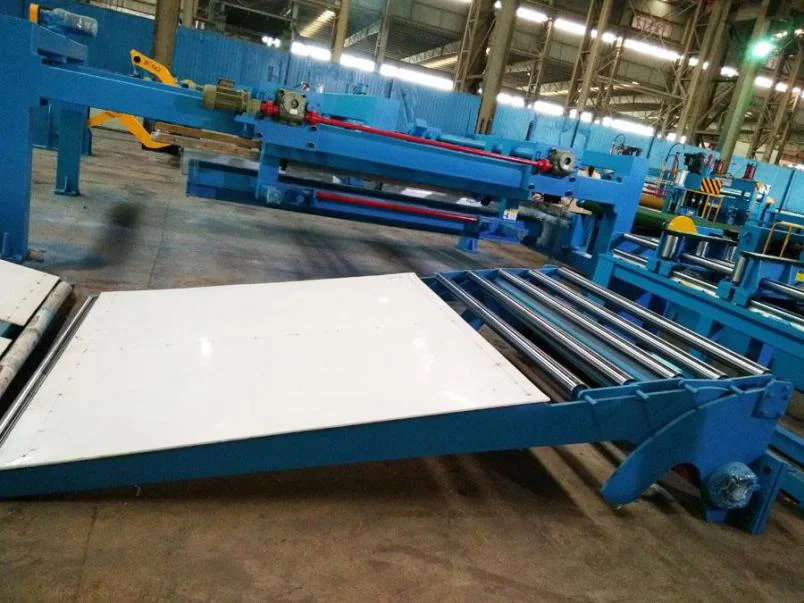

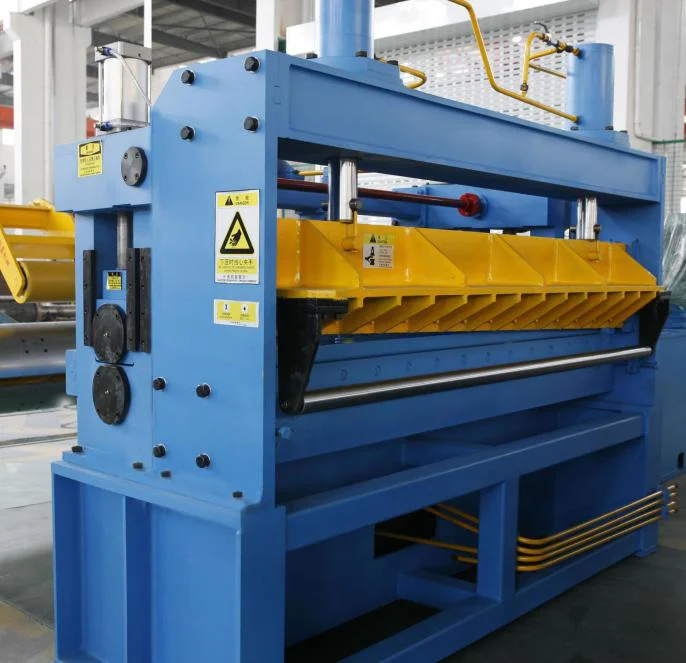

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries.
According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine.
According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Item	material thickness/mm	Material width	speed/mpm
1	0.2-2	400-2000	0-50-80-100-150
2	0.3-3	400-2000	0-50-80-100-120
3	0.4-4	500-2500	0-50-80-100-120
4	0.5-5	500-2500	0-50-80-100-120
5	1.0-6	500-2500	0-50-80-100
6	2.0-8	500-2500	0-30-50
7	3.0-10	800-2500	0-30-50
8	4.0-12	800-2500	0-30-50
9	8-16	800-2500	0-30-50
10	6.0-20	800-2500	0-30

The whole lineflowchart Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car

Basic technical datas of the Slitting Line

Steel coil grade	common carbon steel,galvanized steel,HR,CR etc
Coil thickness	0.5-4mm
coil diameter	max 2000mm
Coil width	600mm--1600mm
Coil inner diameter	φ508,φ610,φ760
Coil weight	max 30000kgs

Technical specifications

1. Thickness of the coils: 0.5-4mm;
2. Width of the slitting coils:max 1600mm
3. Precision of slitting width tolerance: ±0.03mm
4. Slitting speed: 0—100m/min(adjustable)
5. Coil Inner.Diameter: 460mm-610mm-760mm
6. Coil Outer.Diameter: max 2100mm
7. Slitting motor power:90kw DC motor
8. Recoiler motor power:110kw DC motor
9. Min slitting width : ≥30mm
10. Slitting blade quantity: 22 pcs

Recommend Products

Click Here Send Me Inquire

Back To Homepage

Company Profile

Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you.

Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.

"Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.

We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"

Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development of you.

certified product

product Packing

Customer Photos

FAQ

1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6. You are a trade company or factory?
We are a Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
