Fully automatic gypsum board manufacturing making machine

 The gypsum board production line includes hot oil type and direct burning type, the capacity is from 2million square meters per year to 30million square meters per year, ajusted by customers' request.Our production line consists of the parts below:



1.Paper supplying system of plasterboard production line

It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and high precision electro hydraulic alignment device, along with the automatic marking device played very big roles for shaping, and ensured the good appearance quality.

2.Gypsum powder supply system of plasterboard production line

 It takes the exclusive impeller feeder and high precision weighing belt as the core of powder feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of powder additive storages, discharging and metering feeding systems; glass fiber cutting and its metering feeding systems.etc.

3.Water supply system of plasterboard production line

It has the accurate screw measurement pump and visual liquid flow meter device which lead great convenience for operation.

4.Foaming system of plasterboard production line

It adopts high volume pressostat for gas supply, got screw metering pump and advanced foaming station. The foaming station adopts advanced dynamic and static combined foaming system which makes the foam uniformly enter into the mixer.Thus it has a key effect on improving product quality and testing products’ weight.

5.Forming System of plasterboard production line

The vertical mixer and the pneumatic forming device are made of special wearable stainless steels which enhance the system’s wearable ability and prolonged its life span. The vertical mixer got pin type, none-pin type and other types to choose.

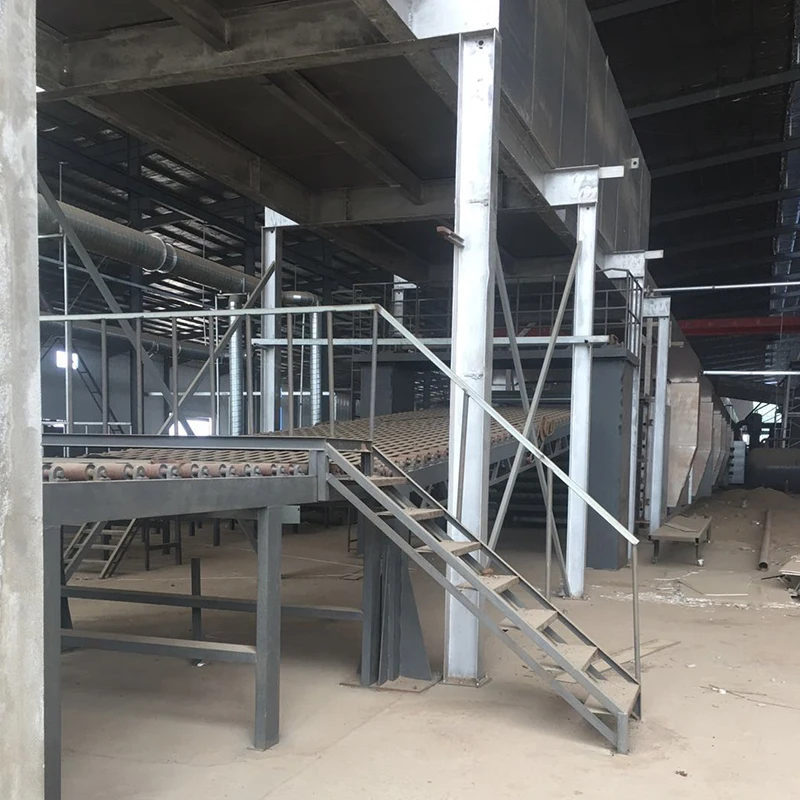

6.Conveying System of plasterboard production line

 This system added the waste board dumping device which reduces the workers’ labor intensity and ensures

 the cleaness of workshop.

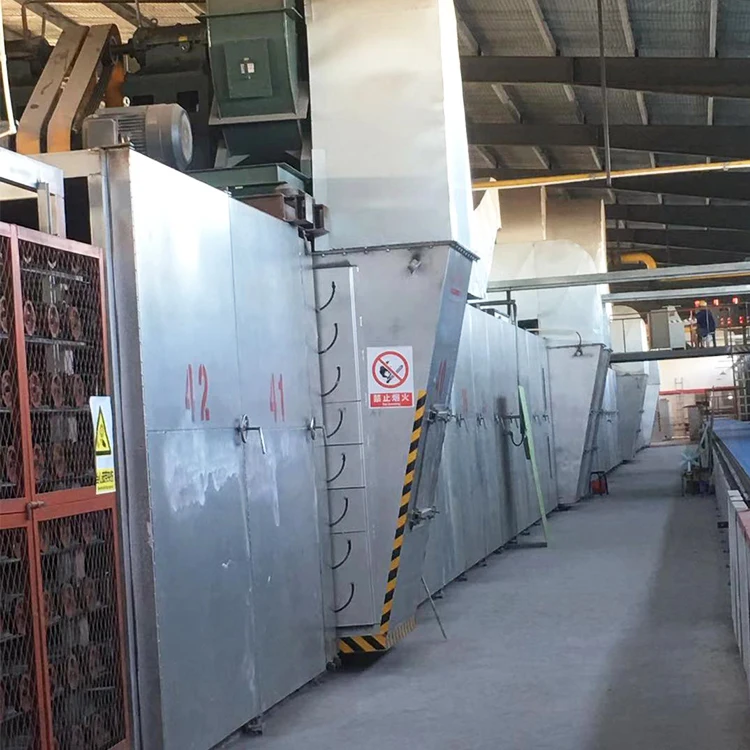

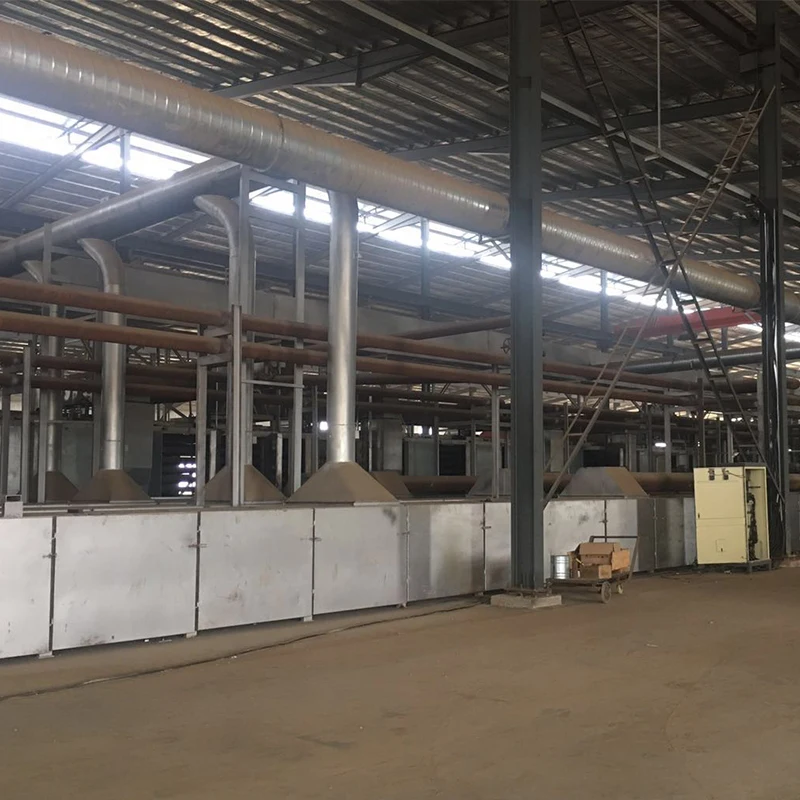

7.Drying System of plasterboard production line

 The drying system is the core of the whole production line and it affects the quality and the energy consumption of the products. It has interior mutilayer coiler heat releasing type, external finned  heat exchanging type, and hot air direct drying type. According to the airflow direction, it has longitudinal airflow type, transverse airflow type, and Longitudinal, Transverse combined airflow type. And it also can configure waste heat recovery system under customer’s demand. Inside of the dryer, there are various regulation and controlling mechanisms to stabilize the temperature and airflow of each layer freely, thus it guarantees the quality of the gypsum board, and reduces energy consumption.

8.Heating System of plasterboard production line

Most of this system uses the organic thermal carrier boiler (thermal oil boiler and hot air boiler), which takes coal, oil, and nature gas as main fuels. The thermal oil type boiler takes thermal oil as the carrier and the oil is carried into the heat exchanger of the dryer by the high pressure oil pump.

9.Edge Cutting and Sealing System of plasterboard production line

 After turning over and folding the board, the system cuts the folded board and seals it together. The waste rawmaterial after cutting is chopped into powder, let this powder absorb slurry, then can be used as accelerator.

10.Dust removal system of plasterboard production line

This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard.

11.Finished gypsum board Specification:

Dimension of gypsum board: Thickness: 7mm-22mm
Width: 1200mm or 1220mm
Length: 1800mm~3600mm
Types of Gypsum Board
a) Common paper surface gypsum board
b) Fireproof paper surface gypsum board (H)
c) Waterproof paper surface gypsum board (S)

12.Advantages of Gypsum Board

1) Product quality: product quality is priority to the international standard GB/T9775-1999 (equal to European Standard).
2) The gypsum board which produced by the gypsum board production line is heat-resistant, fire-resistant, insulated, light, nonpoisonous, little pollution, adjusting the humidity of the room.
