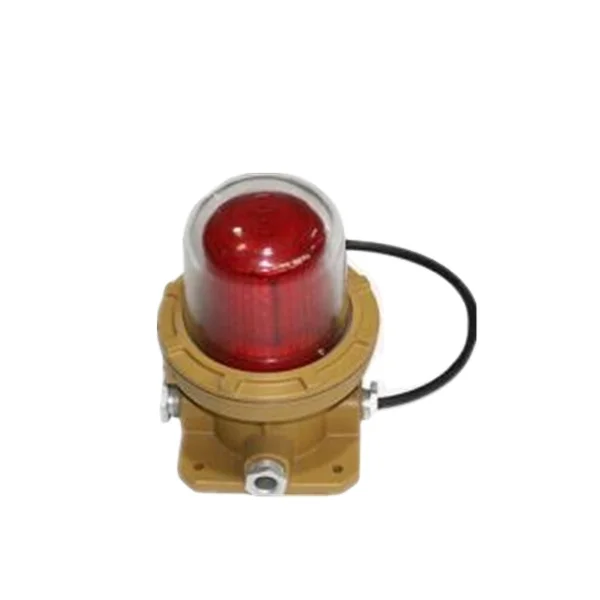

FB40 Explosion proof Medium Intensity Obstruction Light

Descriptions:

The FB40 explosion-proof medium intensity aviation Obstruction Light adopts aluminum alloy die-casting shell with high-voltage electrostatic spray on the surface;



Features:
• Steel glass transparent cover, can work normally in various harsh environments such as  exposure, rain, snow and hail;
• Explosion-proof aviation flashing Obstruction Light has three kinds of low light intensity,  medium intensity light and high intensity light;
• Equipped with long-life and high-brightness LED light source, low power consumption, high brightness, long life of 100,000 hours, and meet the requirements of energy saving and environmental protection;
• With integrated chip, it has multiple protection circuits, which can realize synchronous flashing of multiple lights through synchronous signal line connection or adding GPS wireless synchronization module.
• It can be made into wireless synchronization mode according to requirements, which is convenient to use and install. Please specify when ordering;

• Highly protective structural design, equipped with anti-aging silicone rubber gasket, to achieve P66 protection level requirements;
• It can be equipped with solar panels and is powered by solar energy. It can be used for more than 15 hours on a single charge. Please indicate when ordering if necessary.
• Steel pipe or cable wiring can be used.

• With built in Photocell(optional)

• With GPS function (optional)



Explosion Protection to EN, IEC

• Can be used in Zone 1,2,21,22,Class I, Zone 1,2,Division 2, Groups A, B, C, D.
• Ultra bright LED lamp, low consumption and long service life up to 50,000 hours,integrated

 chip control with various circuit protection.
• Synchronous flashing of light fittings through signal lines.



 Specification:

Mode	FB40	Work Voltage	85-265VAC, 12VDC; 24VDC;30-60VDC;
Peak light intensity	≥2000cd	Production level	IP66
Power consumption	40W	Environment temperature	-40℃~70℃
Light source	LED	Explosion-proof mark	ExdeIICT6Gb/DIP A20 TA,T6
Led color	red	Flash pattern	Steady burning or flashing
Flashing frequency	20-60 times/min	Anti-corrosion level	WF1 *WF2
Introduction device	G3/4" inlet specification, suitable for ∅10mm-∅14mm cable.	Access terminal	≤2.5mm 2 wire reliable connection
Packing size	360mm×250mm×200mm	Dimensions	170x170x230mm
