Product Description
Aokux good price high quality ICAO FAA high intensity tower aircraft led aviation obstruction light - aol

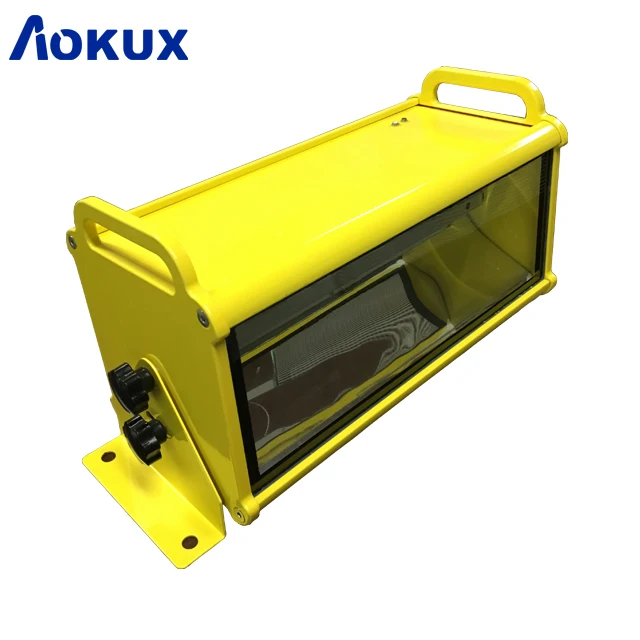

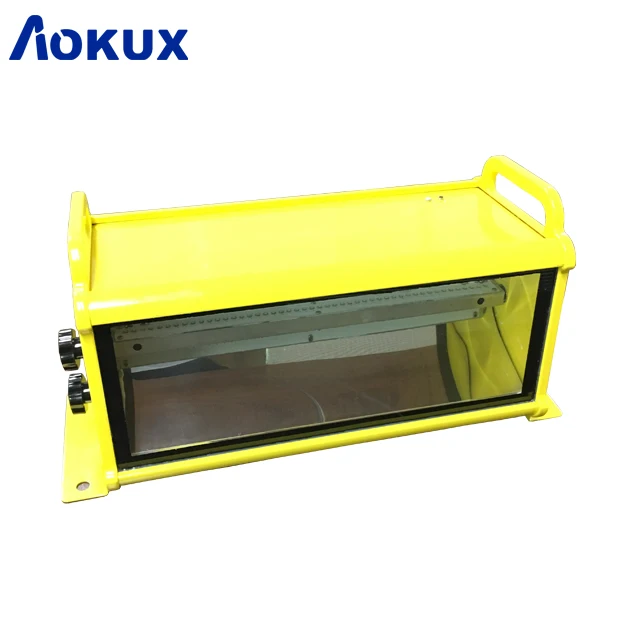

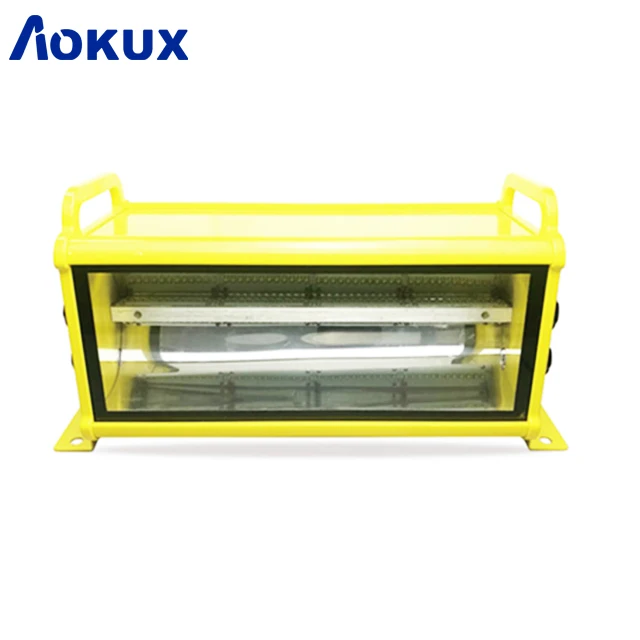

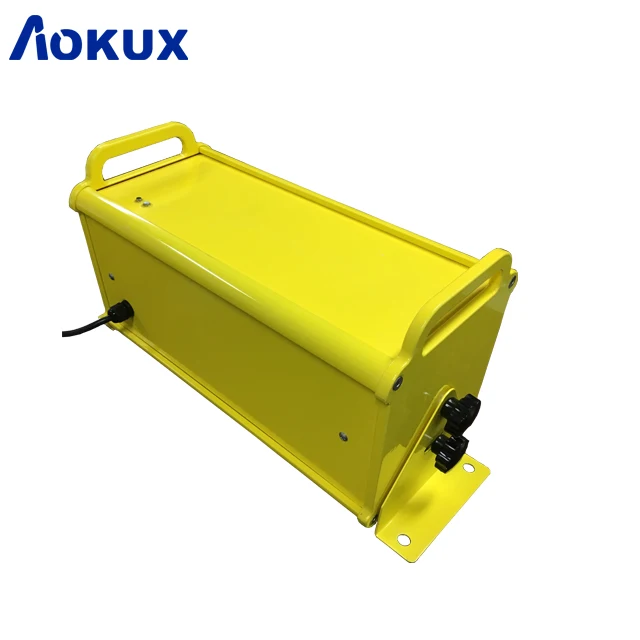

Model AO-HI-A3 Type A High Intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height. Ultra high intensity LED is used for the light source ensure light’s long life experience and good performance.
Compliance:
1. ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2016, table 6.3 High-intensity Type A White Obstacle Light.
2. FAA L-856.
Features:
1. Ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp.
2. Power supply available in DC(12-48V DC) or AC(110-240V AC).
3. Unique design and UV protected reflector for converging light and saving LED power.
4. UV protection Powder coated bright yellow color base make better visibility
5. Body material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection.
6. Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light.
8. Built-in photocell for day/twilight/night operation.
9. Surge and lightning protection.
| Model NO.: | AO-HI-A3 |
| Light Source | CREE high intensity LED |
| Available Colors | White |
| Light Intensity(cd) | 200,000cd±25%(Daytime) 20,000cd±25%(Twilight) 2,000cd±25%(Night) |
| Horizontal Output(degrees) | 120 |
| Vertical Divergence(degrees) | 3-7 |
| Flash Characteristics | 40-60 flashes per minute |
| Operation Mode | 24 hours operation, 3 different modes |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | DC(12-48V DC) or AC(110-240V AC) |
| Power(W) | <80W |
| Circuit Protection | Integrated |
| Body Material | aluminum |
| Base Material | Powder coated die-casting aluminum |
| Mounting | 540×160×θ12 |
| Dimension(mm) | 580×290×365 |
| Weight(kg) | 9KG |
| Product Life | 5 years Plus |
| Ambient Temperature(℃) | -40℃~+60℃ |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| IP grade | IP67 |
| Available Options | 1. Powder-coated color 2. Infra-Red (IR) for NVG(Night Vision Goggles) 3. GPS Sync Flashing |
Dimension:
Application:
AO-HI-A3 Type A High intensity light is is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150m, and most time work with low intensity lights & medium intensity light installed on the lower place.
Company Information
Aokux is a professional manufacturer and exporter for green navigational aids products in China,
such as aviation obstruction light, Marine Lantern, Low Intensity Lights, Medium Intensity Lights, High
Intensity Warning Lights, Helipad Lights, solar obstruction light, windsock etc.
such as aviation obstruction light, Marine Lantern, Low Intensity Lights, Medium Intensity Lights, High
Intensity Warning Lights, Helipad Lights, solar obstruction light, windsock etc.
We have more than 10 years production-manufacturing experience, Aokux Strictly follow ISO 9001
:2008 standard, and most of our products are approved by ICAO and CAAC certificate. As pioneer in
China, Aokux products have been exported over 65 countries and areas all over the world, and win a
good reputation in local market.
Aokux, Your Reliable Aviation and City Guard
