Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
Конкурентное преимущество большое оборудование для сушки титановой руды и
- Категория: Rotary Drying Equipment >>>
- Поставщик: Zhengzhou,Shuguang,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.60 $* | 0.20 $* |
| Aug-15-2025 | 0.21 $* | 0.46 $* |
| Jul-15-2025 | 0.53 $* | 0.21 $* |
| Jun-15-2025 | 0.81 $* | 0.59 $* |
| May-15-2025 | 0.6 $* | 0.49 $* |
| Apr-15-2025 | 0.9 $* | 0.92 $* |
| Mar-15-2025 | 0.97 $* | 0.38 $* |
| Feb-15-2025 | 0.54 $* | 0.94 $* |
| Jan-15-2025 | 0.91 $* | 0.81 $* |
Характеристики
Product Description
Product Application
1.We supply the following dryer: wet material rotary dryer, sand dryer, sawdust dryer, coal dryer, coal slime dryer, bentonite dryer, ore concentrate dryer, wood chip dryer, cassava dryer, gypsum dryer, cow dung dryer
2.The entire machine can be divided into five parts:bracket parts,transmission parts,the ring gear,roll band,the body part.
3.The main motordriven belt and pulley, to drive through the reducer shaft, take the initiative by installing the gear off the shaft on the body with a fixed gear in meshing phase, opposite of work. Adding material from the feed end, through the internal cylinder. Within the cylinder under the action of lifting plate, the bottom even reveal the material to achieve uniform drying purposes. After drying the material from the material flow, with continuous rotation motor, the material continues to enter in order to achieve mass production.
Shuguang Rotary dryer | ||||||||||||
Type | Gradient(%) | Speed (r/min) | Inlet air temperature | Power(kw) | Capacity(t/h) | Weight (kg) | ||||||
Φ600*6000 | 3-5 | 5-6 | ≤700℃ | 3 | 0.5-1.5 | 2.9 | ||||||
Φ800*8000 | 3-5 | 5-6 | ≤700℃ | 4 | 0.8-2.0 | 3.5 | ||||||
Φ800*10000 | 3-5 | 5-6 | ≤700℃ | 4 | 0.8-2.5 | 4.5 | ||||||
Φ1000*10000 | 3-5 | 5-6 | ≤700℃ | 5.5 | 1.0-3.5 | 5.6 | ||||||
Φ1200*10000 | 3-5 | 5-6 | ≤700℃ | 7.5 | 1.8-5 | 14.5 | ||||||
Φ1200*12000 | 3-5 | 5-6 | ≤700℃ | 11 | 2-6 | 14.8 | ||||||
Φ1500*12000 | 3-5 | 5-6 | ≤700℃ | 15 | 3.5-9 | 17.8 | ||||||
Φ1800*12000 | 3-5 | 5-6 | ≤700℃ | 18 | 5-12 | 25 | ||||||
Φ2200*12000 | 3-5 | 5-6 | ≤700℃ | 18.5 | 6-15 | 33 | ||||||
Φ2200*18000 | 3-5 | 5-6 | ≤700℃ | 22 | 10-18 | 53.8 | ||||||
Φ2400*20000 | 3-5 | 5-6 | ≤700℃ | 37 | 18-30 | 60 | ||||||
Φ3000*20000 | 3-5 | 5-6 | ≤700℃ | 55 | 25-35 | 78 | ||||||
Φ3000*25000 | 3-5 | 5-6 | ≤700℃ | 75 | 32-40 | 104.9 | ||||||
Main Features
1.High capacity,low consumption and low cost.
2.High temperature resistance,can make the material dry quickly by hot air.
3.Extensible ability, the design considering the production surplus, even a modest yield increase, also need not replace the equipment.
4.Equipment structure of selfaligning type tug, tug with roller ring fit well, greatly reduces the wear and power consumption.
5.Resistance to overload ability, cylinder smooth operation, high reliability

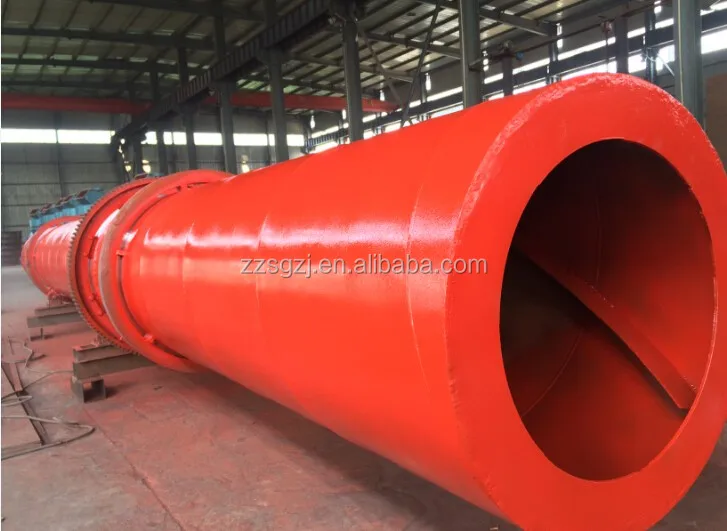

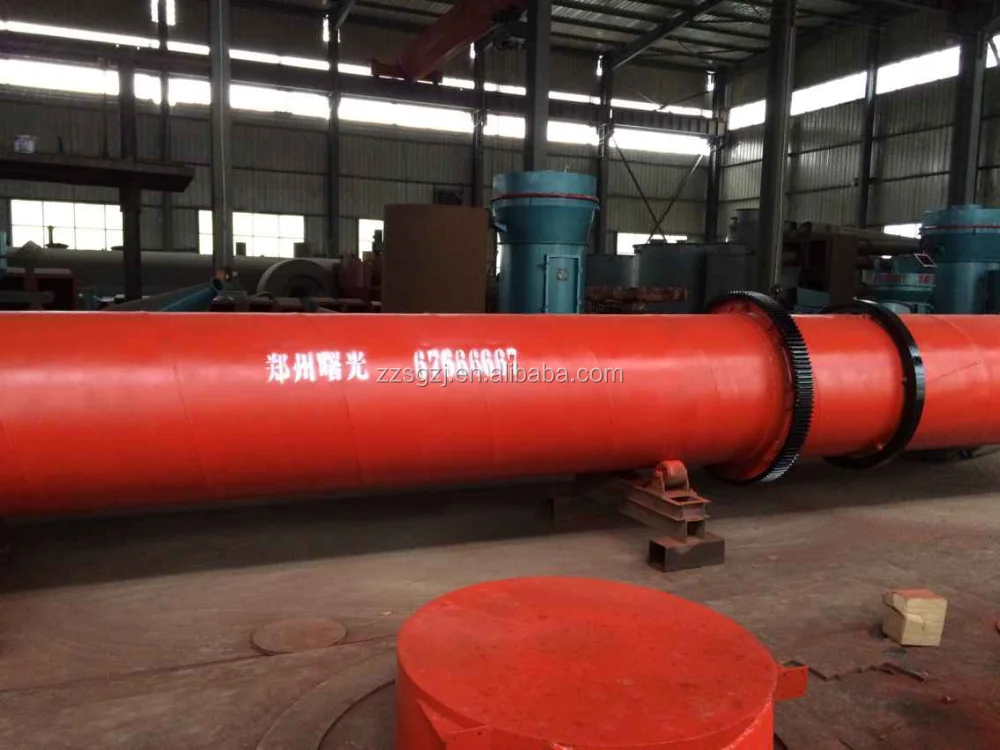

Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
Our Company
Zhengzhou Shuguang Heavy Machinery Co.Ltd id founded in 1993, which is a specialized enterprise dedicated to R & D and production of the raymond mill, calcium powder machine, all kinds of crushing machines, and mixer. our company by eputation first, service first, customer first is an objective and take integrity as life.All for customer's satisfaction efforts, all for the company's long term healthy development efforts. We solemnly promise that we will depelope us with good quality and credible after sale service!
We sincerely welcome you to our company and give us suggestions and directions!!!
Contact
Contact：Candice
whatsapp/TEL: +0086-15890169291
If you interested,please contact us
Choose us, we will do our best.
FAQ
Q: Are you trading company or manufacturer of Sawdust Rotary Dryer Rotary Drum Dryer Addis Rotary Dryer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide free design solution?
A: Yes, we could offer design solution for free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
