Гелевая солнечная батарея 12 В Vrla Deep Cycle 150 Ач для системы солнечных панелей
- Категория: Lead Acid Batteries >>>
- Поставщик: Jingjiang,Alicosolar,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 171.91 $* | 174.13 $* |
| Jul-16-2025 | 139.80 $* | 142.40 $* |
| Jun-16-2025 | 169.53 $* | 172.4 $* |
| May-16-2025 | 167.98 $* | 170.41 $* |
| Apr-16-2025 | 134.37 $* | 137.44 $* |
| Mar-16-2025 | 165.22 $* | 168.93 $* |
| Feb-16-2025 | 163.4 $* | 166.50 $* |
| Jan-16-2025 | 162.81 $* | 165.22 $* |
Характеристики
You May Like

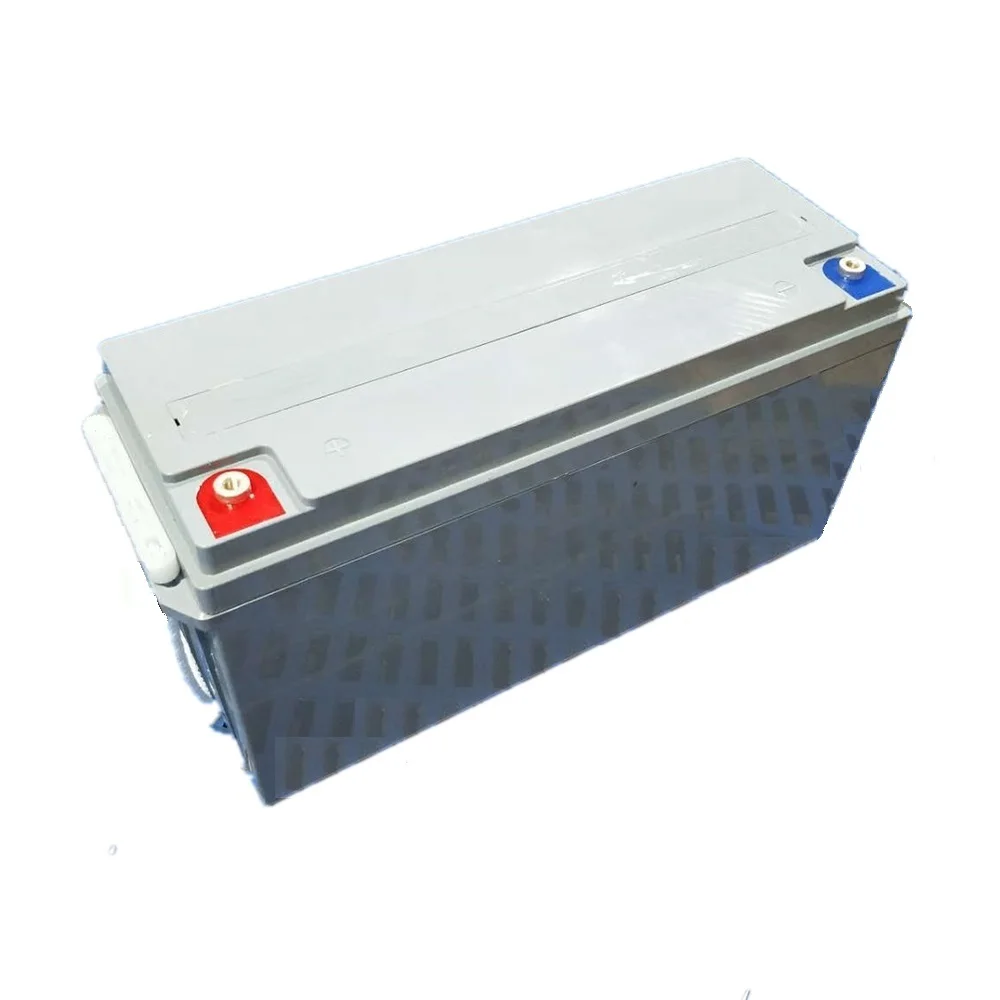

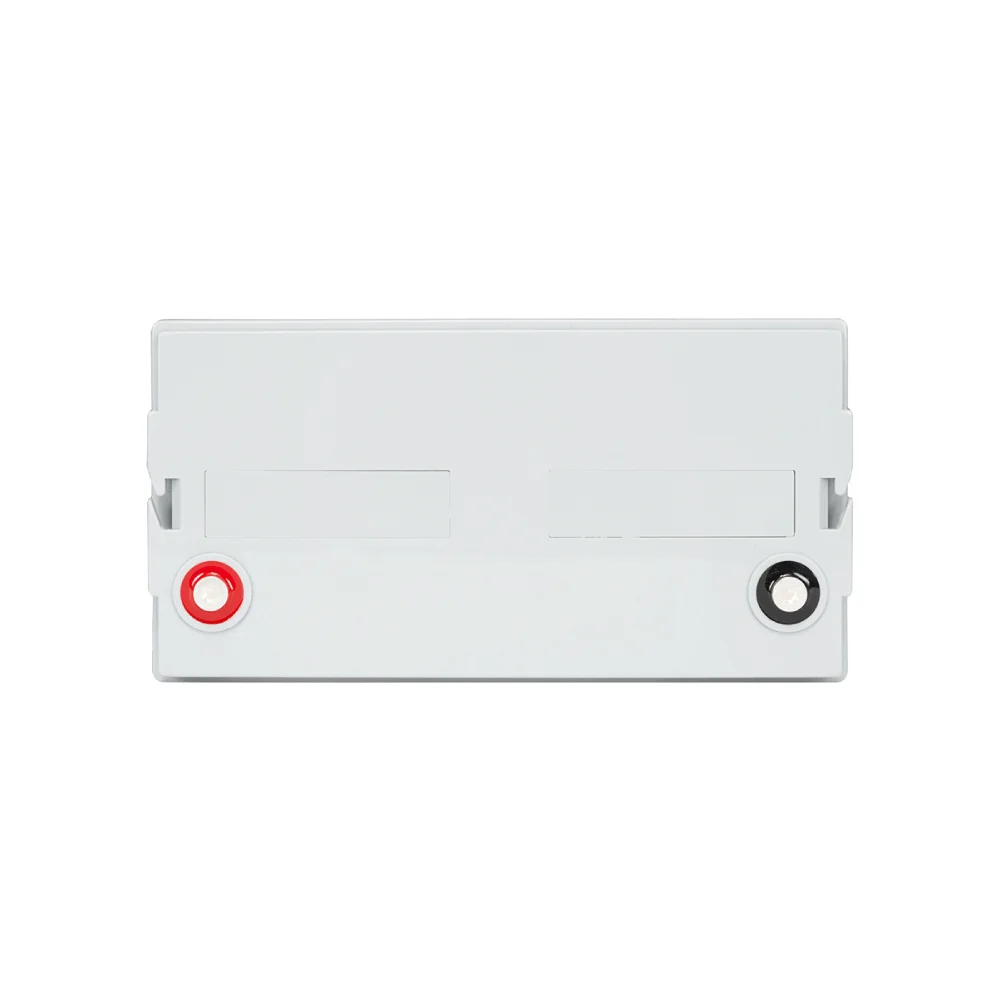

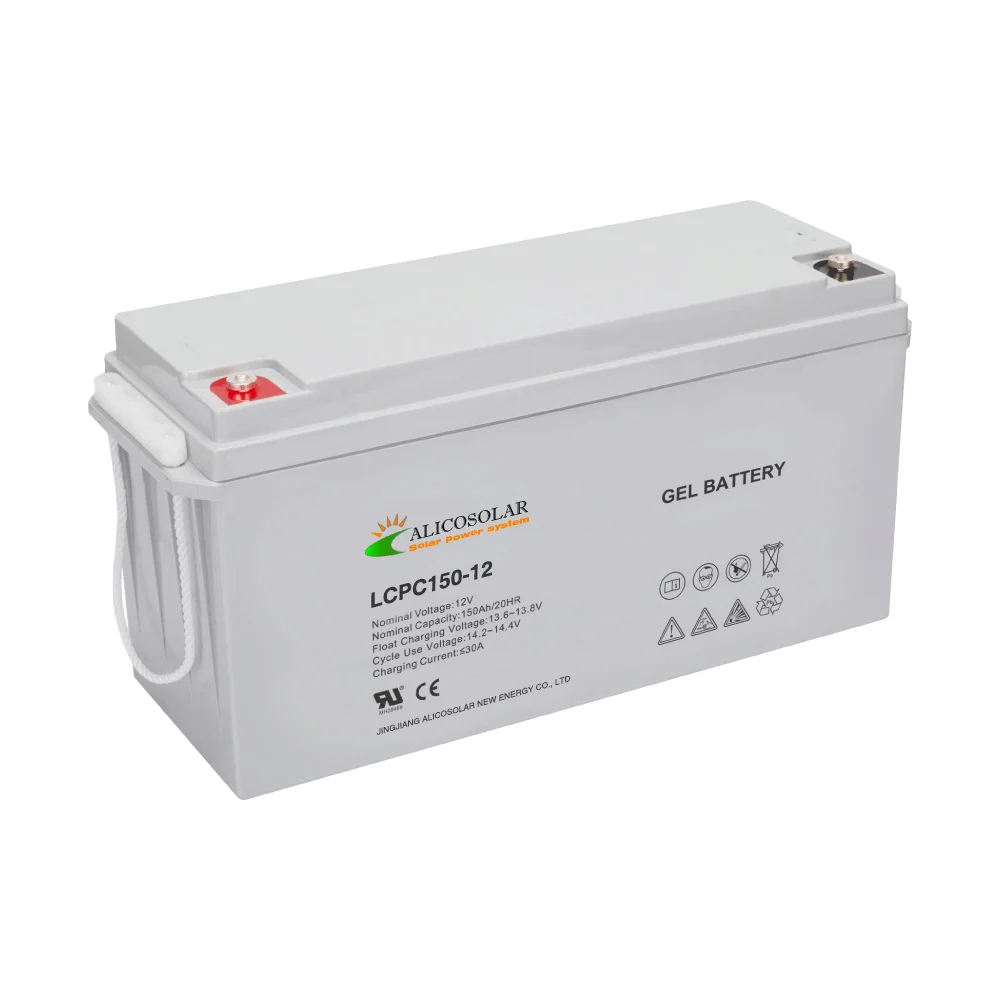

Product Introduction
GEL 12V 150AH Specification
Model | LCPC150-12 |
Cells Per Unit | 6 |
Voltage Per Unit | 12 |
Capacity | 150Ah@20hr-rate to 1.75V per cell @25℃ |
Weight | Approx. 44.5Kg (Tolerance±1.5%) |
Internal Resistance | Approx. 6 mΩ |
Terminal | F5(M8)/F12(M8) |
Max. Discharge Current | 1500A (5 sec) |
Design Life | 15 years (floating charge) |
Maximum Charging Current | 30.0A |
Reference Capacity | C3 102.3AH C5 113.5AH C10 130.0AH C20 150.0AH |
Float Charging Voltage | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell |
Cycle Use Voltage | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell |
Operating Temperature Range | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ |
Normal Operating Temperature Range | 25℃±5℃ |
Self Discharge | Alicosolar Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. |
Constant Current Discharge Characteristics : A(25℃)
F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 4HR | 8HR | 10HR | 20HR |
1.60V | 205.2 | 137.5 | 83.8 | 50.2 | 28.4 | 16.0 | 13.5 | 8.25 |
16.5V | 201.0 | 136.4 | 83.5 | 49.8 | 28.3 | 15.9 | 13.4 | 7.95 |
1.70V | 197.9 | 136.4 | 82.7 | 49.4 | 28.2 | 15.8 | 13.3 | 7.73 |
1.75V | 190.6 | 133.4 | 81.9 | 49.0 | 27.9 | 15.6 | 13.2 | 7.50 |
1.80V | 177.7 | 128.8 | 80.0 | 48.2 | 27.2 | 15.4 | 13.0 | 7.05 |
1.85V | 161.3 | 121.8 | 76.0 | 46.0 | 25.9 | 14.7 | 12.6 | 6.75 |
Constant Power Discharge Characteristics : WPC(25℃)
F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 4HR | 8HR | 10HR | 20HR |
1.60V | 376 | 261 | 161 | 98.6 | 56.5 | 31.9 | 27.0 | 14.6 |
16.5V | 370 | 258 | 161 | 98.0 | 56.4 | 31.7 | 26.8 | 14.3 |
1.70V | 366 | 259 | 160 | 97.4 | 56.3 | 31.5 | 26.6 | 14.1 |
1.75V | 353 | 255 | 158 | 96.7 | 55.7 | 31.3 | 26.3 | 13.8 |
1.80V | 330 | 247 | 155 | 95.5 | 54.5 | 30.7 | 26.1 | 13.5 |
1.85V | 301 | 234 | 149 | 92.0 | 51.8 | 29.4 | 25.3 | 12.7 |
Our Factory
Alicosolar, specialized in R&D. We are concentrated on on-grid system, off-grid system and intergrated solar system.We have our own factory to product solar panel,solar battery,solar inverter etc.
Alicosolar has introduced advanced automatic production equipment from Germany,Italy and Japan.Our products are global and trusted by users.
We can provide one-stop service for design, production, sales, and after-sales service.We are looking forward to cooperating with you sincerely.
Alicosolar has introduced advanced automatic production equipment from Germany,Italy and Japan.Our products are global and trusted by users.
We can provide one-stop service for design, production, sales, and after-sales service.We are looking forward to cooperating with you sincerely.

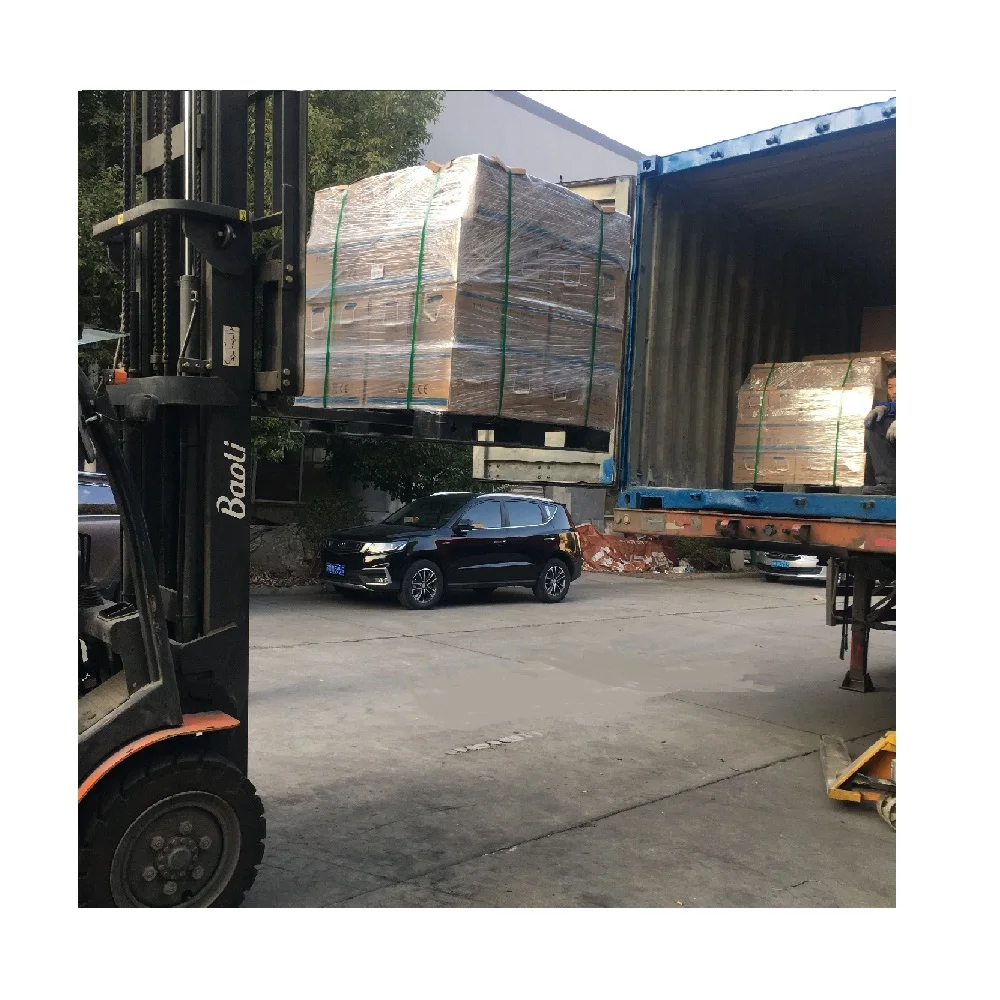

Product Packing
Note: The Above packing information contained in this web is subject to change without notice.
Applications
50KW Off Grid System Install in Malaysia For a Farm With Battery Bank.
10KW Off Grid System Install in South Africa Use Poly Solar Panels And ETS 10K
30KW Off Grid Solar System Install in Indonesia Use ETS 30K With Gel Battery
