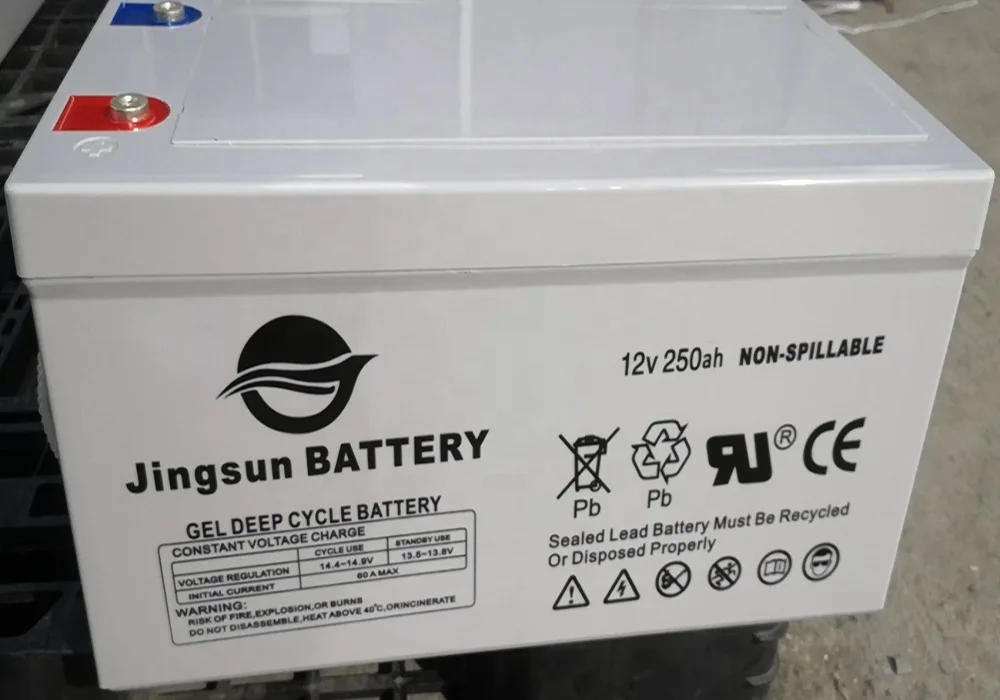

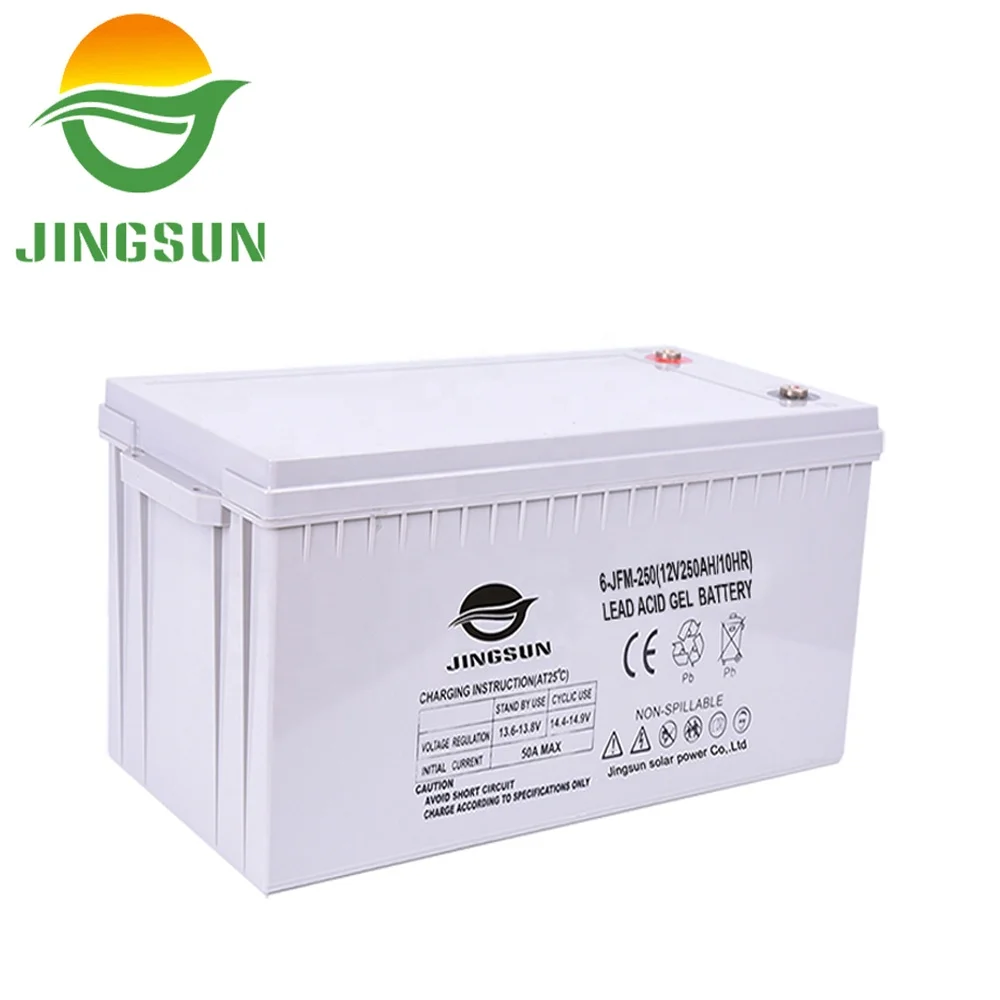

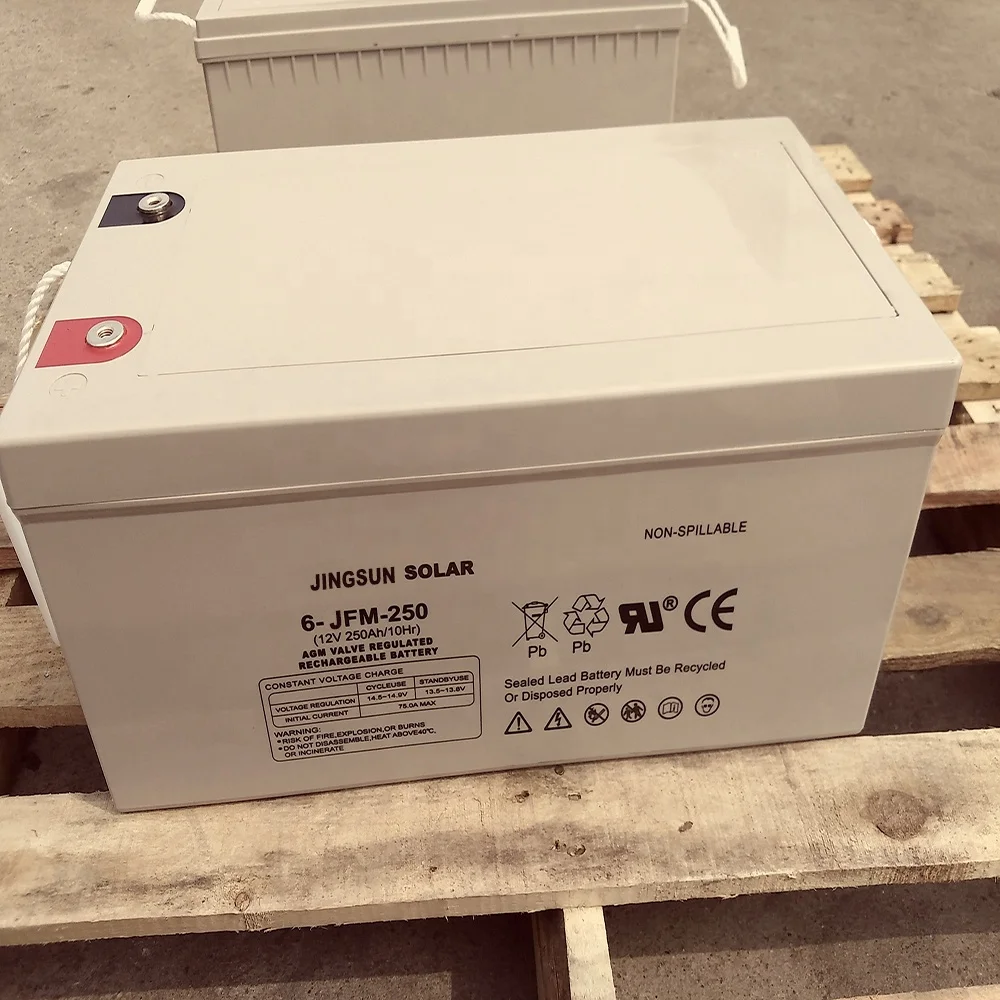

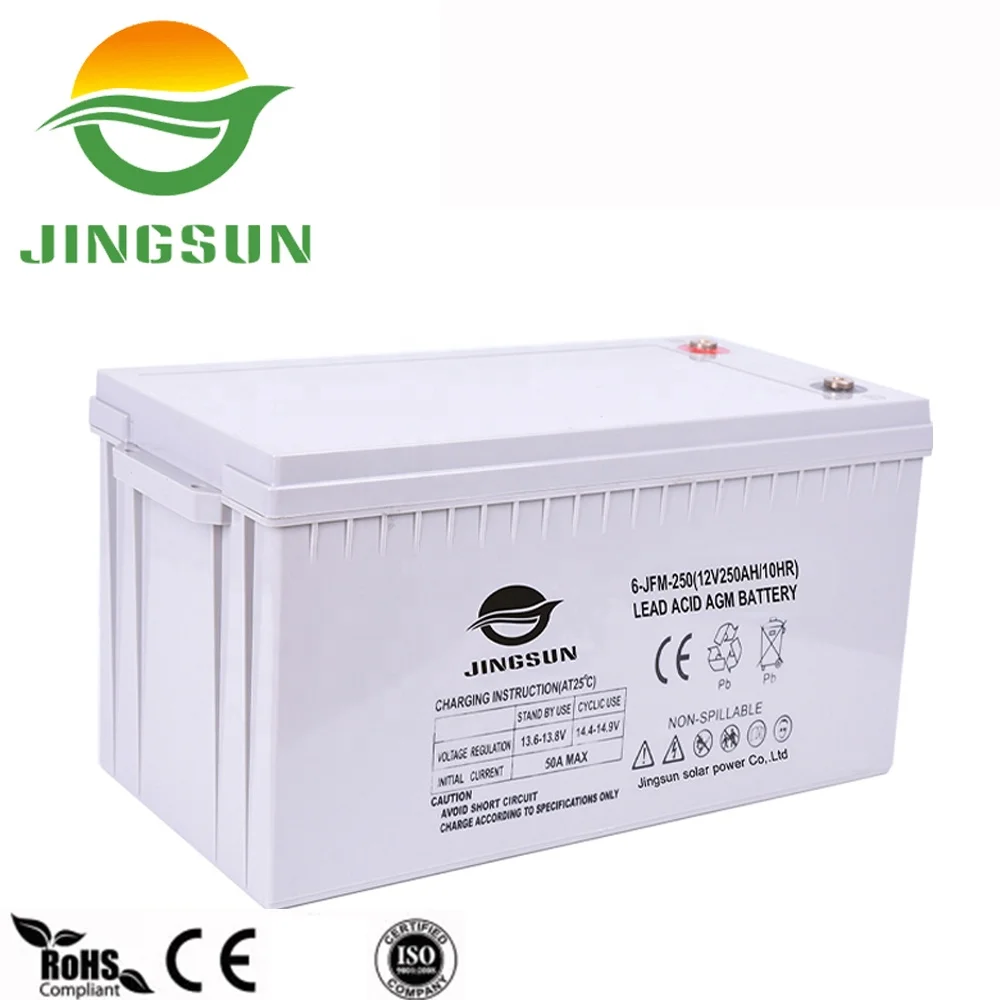

Jingsun глубокий цикл AMG/гелевая солнечная батарея 12V 250ah для солнечных
- Категория: >>>
- Поставщик: Anhui,Jingsun,New,Energy,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 179.81 $* | 188.29 $* |
| Aug-16-2025 | 177.18 $* | 186.96 $* |
| Jul-16-2025 | 149.59 $* | 156.79 $* |
| Jun-16-2025 | 174.42 $* | 183.98 $* |
| May-16-2025 | 152.74 $* | 160.96 $* |
| Apr-16-2025 | 171.29 $* | 180.72 $* |
| Mar-16-2025 | 170.51 $* | 179.58 $* |
| Feb-16-2025 | 168.49 $* | 176.4 $* |
| Jan-16-2025 | 167.52 $* | 175.73 $* |
Характеристики
Products Description
1. Functional Parameter | 5. Environment Temperature | ||||
Nominal Voltage | 12V | Discharge Temperature | -15~50ºC | ||
Nominal Capacity (10 hour rate) | 250Ah | Charge Temperature | 0~40ºC | ||
Number of Cells | 6cells | Storage Temperature | -15~40ºC | ||
2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current | ||||
10 hour rate (0.1C, 10.8V) | 250Ah | Fully Charged battery at 25ºC | 2mΩ | ||
3 hour rate (0.25C, 10.8V) | 191.7Ah | Max. Discharge Current | 3750A (5s) | ||
1 hour rate (0.55C, 10.5V) | 138.1Ah | Short Circuit Current | 12500A | ||
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25ºC (77° F) | ||||
40ºC (104° F) | 103% | Capacity after 3 month storage | 91% | ||
25ºC (77° F) | 100% | Capacity after 6 month storage | 82% | ||
0ºC (32° F) | 85% | Capacity after 9 month storage | 73% | ||
-15ºC (5° F) | 65% | Capacity after 12 month storage | 64% | ||
4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) | ||||
Length | 522mm | Cyclic use | 14.4~14.9V | ||
Width | 269mm | Maximum charging current | 62.5A | ||
Height | 220mm | Temperature compensation | -30mV/ºC | ||
Total Height | 225mm | Float use | 13.6~13.8V | ||
Temperature compensation | -20mV/ºC | ||||
Other Products
7KW OFF GRID SYSTEM
The off-grid photovoltaic system is generally composed of a photovoltaic square array composed of solar cell components, a solar charge and discharge controller, a battery pack, an off-grid inverter, a DC load, and an AC load.
7KW ON GRID SYSTEM
Photovoltaic grid-connected power generation system converts light energy into electrical energy, and does not go through storage battery energy, directly through grid-connected inverter to send electrical energy to the grid.
Company Profile
Jingsun is group,which has some factories and warehouse. Jingsun group,founded in 1994,have supplied more 2GW photovoltatic solar panels and million units of batteries,solar charge controller,inverters, mounting bracket and other solar products. Jingsun group is focusing on product development,production, system intergration,sales and service. Products include Poly-crystalline PV panel, mono-crystalline. We aim to develop, manufacture and deliver the most reliable and cost-effective solar energy solution to every corner in the world.
Our Advantages | ||||||||
Various | We supply most of the solar related products in the market | |||||||
Special | Not only products , but also a Solution supplier | |||||||
Efficient | One-Stop Customer Service | |||||||
Partner | Jinko,Longi,JA,Trina,GCL,Q-cell. Rocket,Narada,Ritar. Huawei, Goodwe, Growatt. | |||||||
Certifications
Factory Display

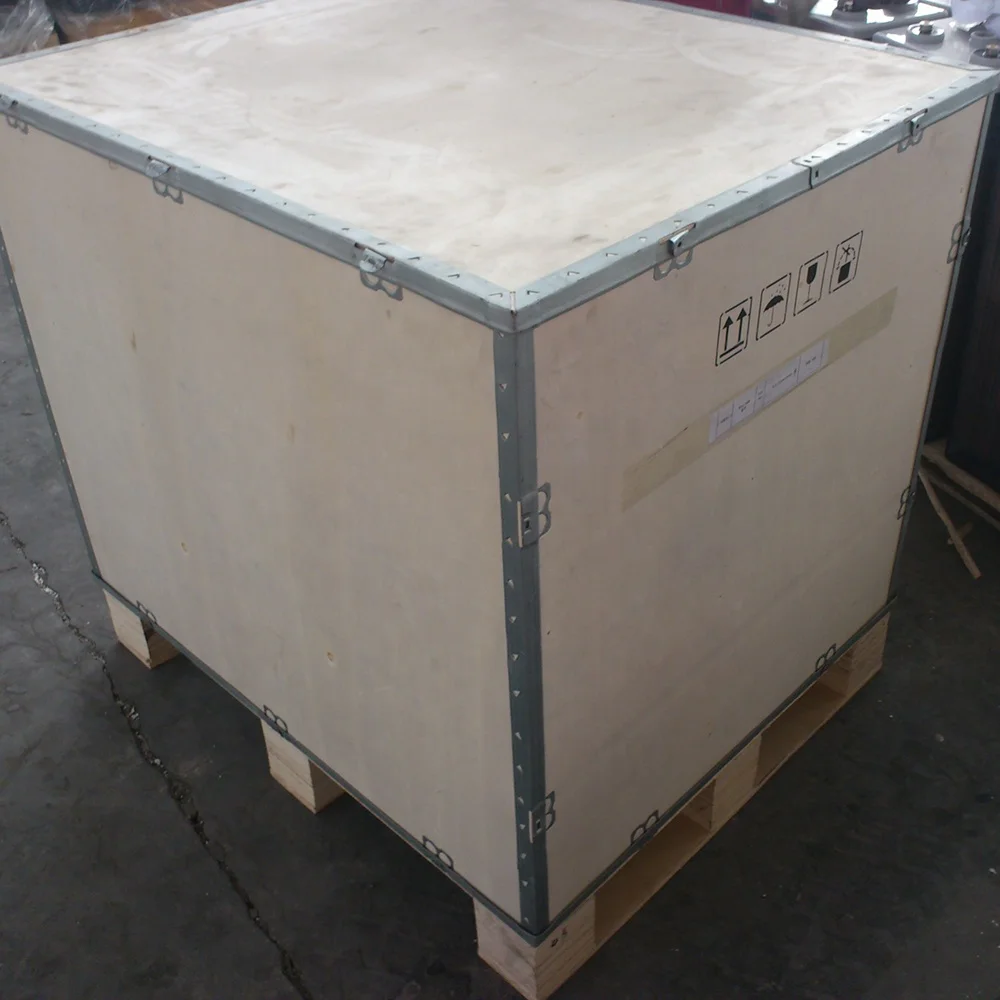

Product packaging
FAQ
A: What's your main products?
Solar system, solar panel, inverter, controller, battery and mounting system and all the related soar power accessories.
B: Are you a factory or trading company?
C: Could you print our company logo in nameplate and package?
D: Can you support OEM and on-site installation?
E: How does your factory carry out quality control?
F: What is your advantage in Solar Energy System
B: Are you a factory or trading company?
We are a manufacturer with export license.And we have certificates.
C: Could you print our company logo in nameplate and package?
Yes, we can do it according to your design.
D: Can you support OEM and on-site installation?
Yes,as a professional solar system manufacturer, we can offer our clients OEM and on-site installation, fully support and assistance in service.
E: How does your factory carry out quality control?
Quality is priority. We have professional QC feam to carry out the Quality control.
F: What is your advantage in Solar Energy System
Automatic production line with international advanced production equipment from Japan and Germany. Price is competitive.
