Product Description
pneumatic tractor mounted driling machine water drilling rig for air compressor
The tractor mounted well drilling rig is integrated together with tractor which is a well drilling machine and a transportation machine, air compressor can be hung behind,you just need to equip a trailer to load drill pipes. The system uses hydraulic power from tractor as the driving force to realize the function of drilling well. You do not need to turn on the air compressor when lifting the pipes,just use the hydraulic power of tractor.Make water well drilling cost lower and economic benefit is higher.
Two stage rail carriage
The deep water well drilling machine frame adopts two level track slide frame, while the rotary water well drilling rig frame is not working, the height is 1.4m, the height is1.8m when at drilling working state.
Automatic dust removal system---optional
The water well drilling machine comes with automatic dust removal system, using high pressure automizing water to achieve the purpose of dust removal.When machine works, automatic dust removal function is on, and the effect of dust removal can be achieved, which is beneficial to the personal safety and protect environment and operation staff.
The deep water well drilling machine frame adopts two level track slide frame, while the rotary water well drilling rig frame is not working, the height is 1.4m, the height is1.8m when at drilling working state.
Automatic dust removal system---optional
The water well drilling machine comes with automatic dust removal system, using high pressure automizing water to achieve the purpose of dust removal.When machine works, automatic dust removal function is on, and the effect of dust removal can be achieved, which is beneficial to the personal safety and protect environment and operation staff.
Main parameter
pneumatic tractor mounted driling machine water drilling rig for air compressor
Specifications of water well drilling rig machine as follows
Model | TQZ150 | TQZ200 | ||||||
Overall weight | 3.5T | 4.2T | ||||||
Diemension | 3400*1500*2200mm | 3400*1500*2200mm | ||||||
Drilling diameter | 130-219mm | 130-219mm | ||||||
Drilling depth | 150m | 200m | ||||||
One-time advance length of the drill | 1500mm | 1500mm | ||||||
Traveling speed | 30km/h | 30km/h | ||||||
Climbing capacity | 25° | 25° | ||||||
Minimum ground clearance | 250mm | 250mm | ||||||
Working Air pressure | 1.45-2.5mpa | 1.45-2.5mpa | ||||||
Air consumption | 15-27m3/min | 15-27m3/min | ||||||
Main machine power | 30HP | 40HP | ||||||
Rotation speed | 38-80rpm | 38-80rpm | ||||||
Rotary torque | 3500-4000Nm | 4000-5000Nm | ||||||
Detailed Images

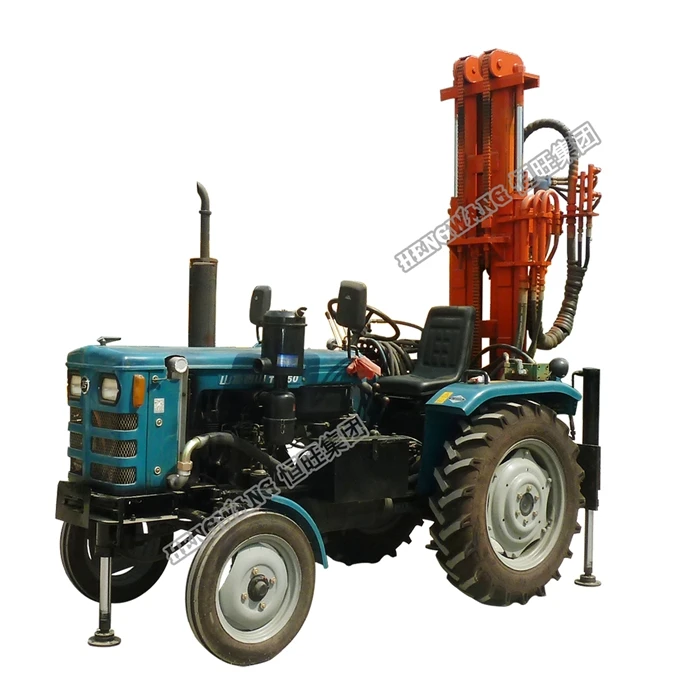

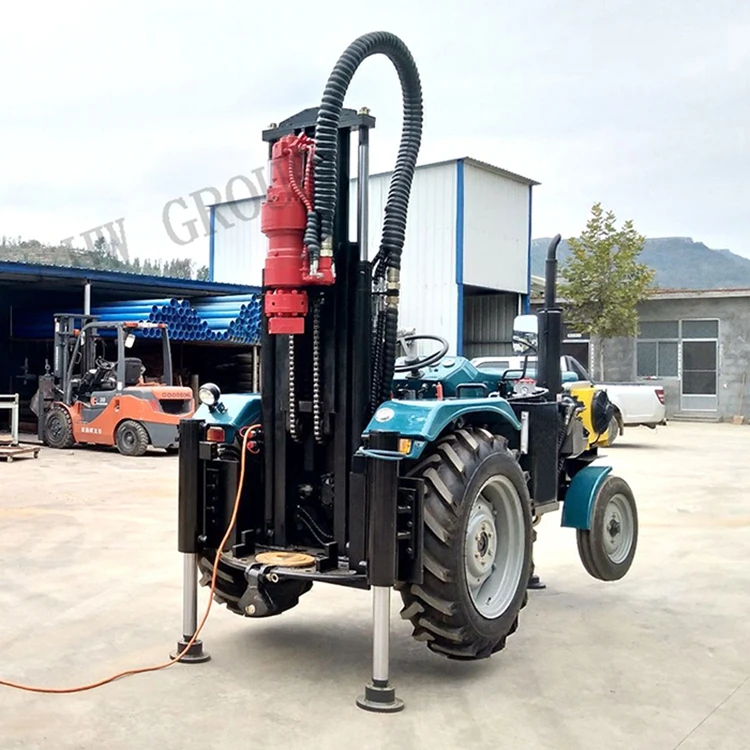

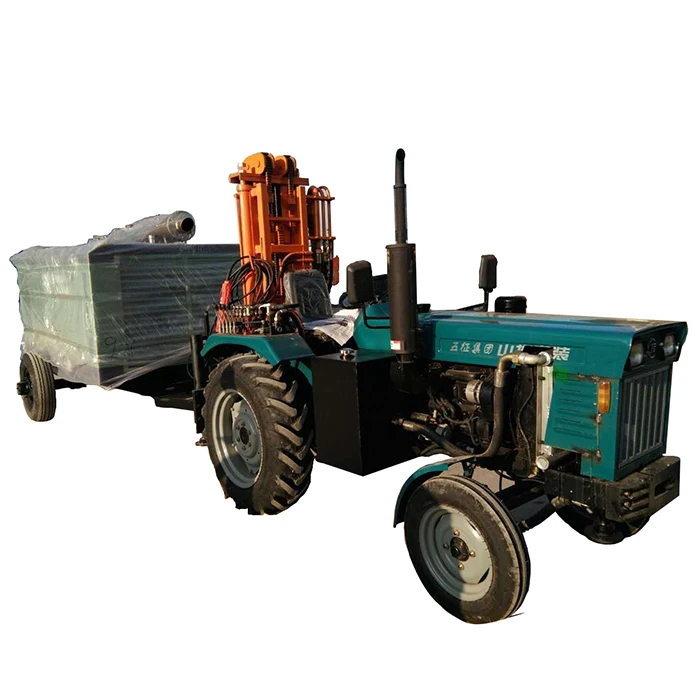

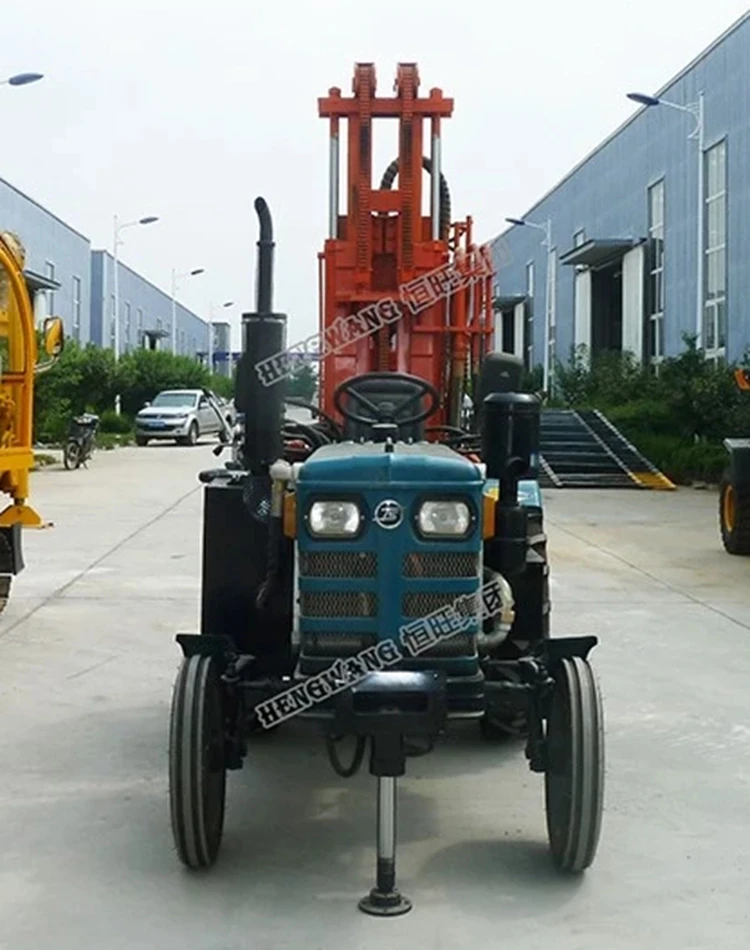

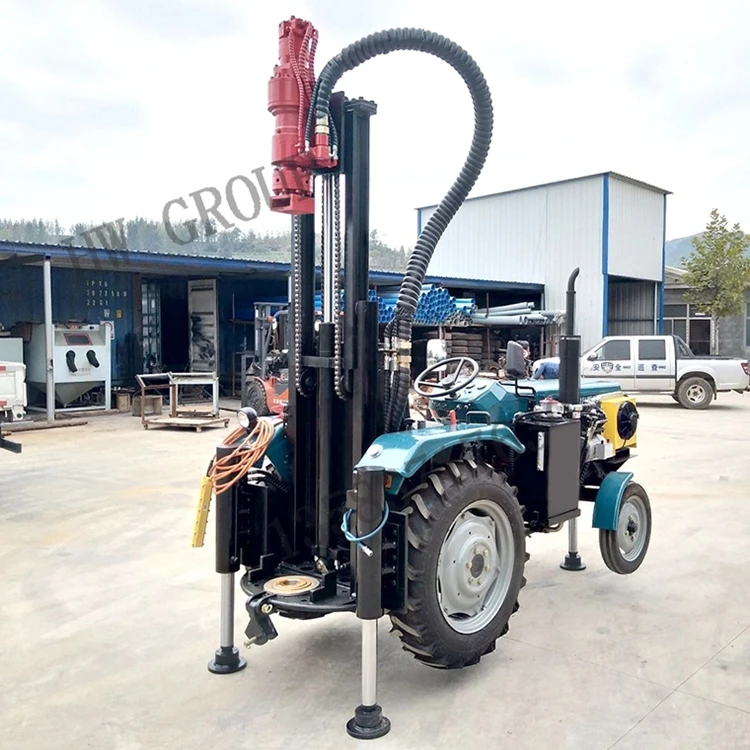

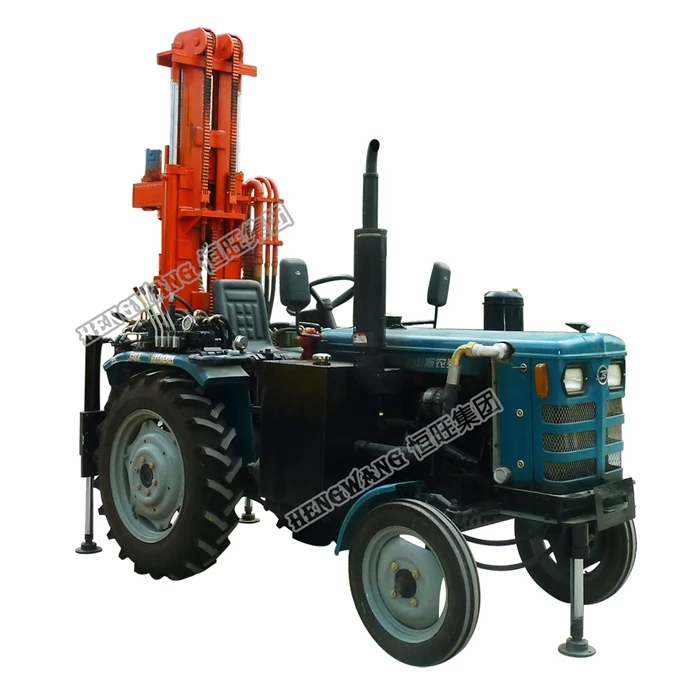

pneumatic tractor mounted driling machine water drilling rig for air compressor
Related Products
pneumatic tractor type borehole water well drilling rig
Packing&Shipping
pneumatic tractor mounted driling machine water drilling rig for air compressor package as follows
Company Introduction
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of water well drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
