Хорошее съемное оборудование gps внешнее радио gnss высокоцелевое V30 PLUS станции 440 каналов расширяемый до
- Категория: Other Test Instruments >>>
- Поставщик: Huipu,Opto-Electronic,Instrument,(Zhenjiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3820.91 $* | 4011.94 $* |
| Aug-16-2025 | 3788.76 $* | 3977.95 $* |
| Jul-16-2025 | 3178.4 $* | 3337.34 $* |
| Jun-16-2025 | 3724.80 $* | 3910.10 $* |
| May-16-2025 | 3242.22 $* | 3404.30 $* |
| Apr-16-2025 | 3659.27 $* | 3842.84 $* |
| Mar-16-2025 | 3627.45 $* | 3808.64 $* |
| Feb-16-2025 | 3595.8 $* | 3775.29 $* |
| Jan-16-2025 | 3563.31 $* | 3741.35 $* |
Характеристики
Product Description

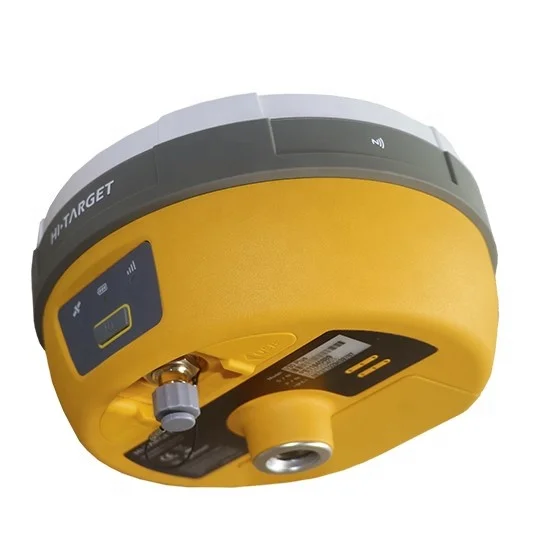

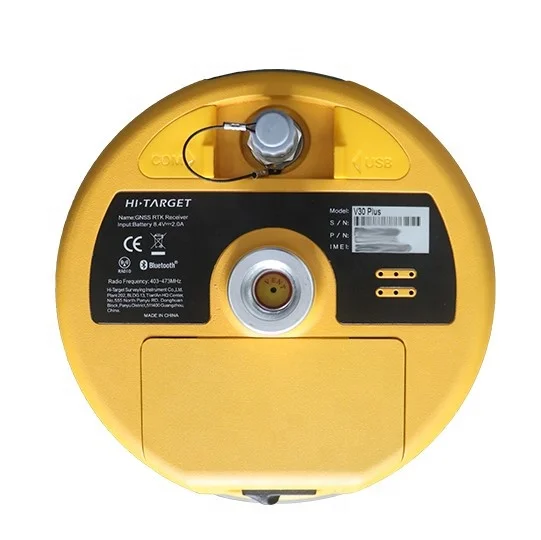

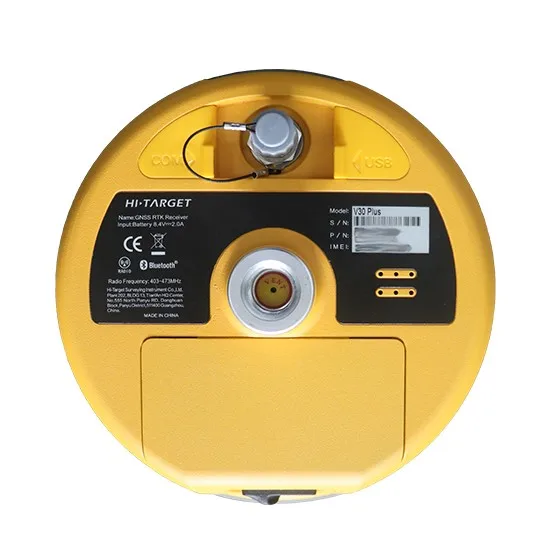

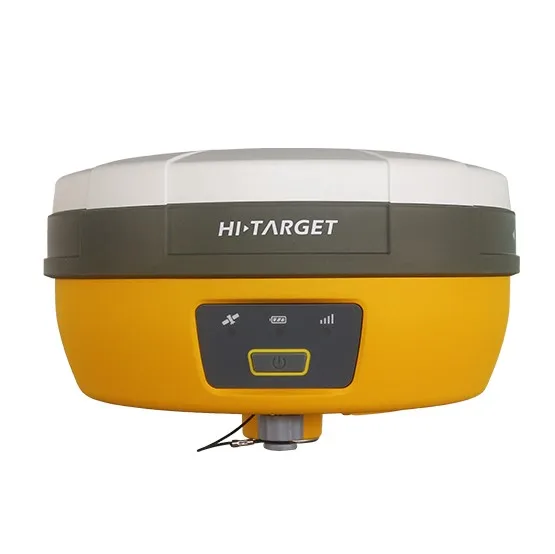

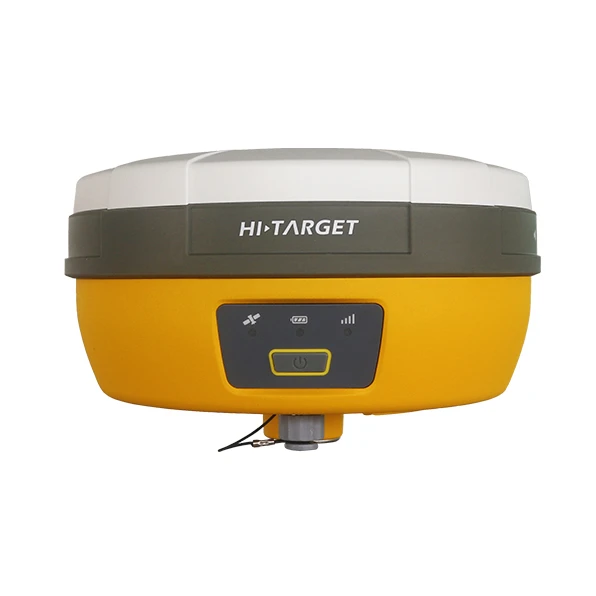

GNSS RTK SYSTEM
With its built-in multi-constellation GNSS engine, smaller dimension, and industrial-grade compact design, V30Plus provides a fexible GNSS work solution. It also integrates with the WebUI, WIFI, Bluetooth and 4G module to make data management and transmission more convenient and faster. Accompanied by Hi-Target professional feld surveying software and its up-to-10-hours working time, V30Plus meets users’ needs of effcient and convenient surveying experience.
| model | V30 PLUS | |
| Gnss | Channel | 440 |
Satellite Tracked | GPS | |
| L1, L2C/L2P, L5 | ||
| GLONASS | ||
| L1C/L1P, L2C/L2P | ||
| GELILEO | ||
| Reserved | ||
| BEIDOU | ||
| Bl, B2, B3 | ||
| SBAS :Reserved | ||
POSITIONING PERFORMANCE | ||
Static Accuracy | ||
| Horizon: | ±(2.5+0.5×10-6D)mm | |
| Vertical: | ±(5+0.5×10-6D)mm | |
| RTK Accuracy | ||
| Horizon: | ±(8+1×10-6D)mm | |
| Vertical: | ±(15+1×10-6D)mm | |
Network RTK | ||
| Horizon: | ±(8+1×10-6D)mm | |
| Vertical: | ±(15+1×10-6D)mm | |
| Initialization time | Typically 2-10s | |
| Initialization reliability | Typically > 99.9% | |
Internal Battery | ||
Battery | 5000mAh lithium-ion rechargeable and removable battery | |
Working time | RTK Rover (UHF/Cellular) for 10 hours | |
Communication | ||
Frequency | 403-473MHz | |
Transmitting power | 1W/2W/4W adjustable Supports multiple protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III,TRANSEOT, SATEL-3AS, etc. | |
Working Range | 3-5km typical, 5-8km optima | |
Bluetooth | 4.0/2.1+EDR, 2.4GHz | |
| 4G | cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM) Wi-Fi frequency 2.4GHz, supports 802.11b/g/n protocol | |
Physical | ||
Dimensions | 164mm×83.5mm | |
Weight | ≤1.4kg (includes battery) | |
Interface | ||
I/O Interface | 1 × Mini USB port | |
1 × TNC antenna connector | ||
1 × DC power input (5-pin) | ||
1 × SIM card slo | ||
| Control Panel | ||
| Physical button | 1 | |
LED lamp | Satellite, Signal, Power | |
Environment | ||
Work Temperature | -45℃~+75℃ | |
Storage Temperature | -55℃~+85℃ | |
Dustproof&Waterproof | IP67 (Customizable IP68) | |
Humidity | 100% non-condense | |
Company Information
Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd
Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd is located in Zhenjiang. Zhenjiang, the core location of the Yangtze River Delta economic development zone. East to Shanghai and west to Nanjing are all within one hour's drive, with convenient traffic and high degree of modernization.
The company has specialized in opto-electronic laser measurements &surveying Instruments and has a strong R & D, production, sales, management team and perfect after-sales service system. The company has 5 production shops and 2 R & D centers. Our main products: Multiline laser level, 3D laser level, Rotary laser level, Auto level, Total Station, electronic theodolite, distance meter and other Opto-Electronic instrument components and accessories.
Since the establishment of the company, the performance of sustained and rapid growth, has established a good relationship with the customers throughout the country, has been the majority of users of the trust and support, and establish a good reputation. In the excellent quality of the instrument, preferential prices, good and efficient after-sales service, professional technical support, has become the most sincere instrument cooperation suppliers. The company in a rigorous, pragmatic and efficient concept, and constantly improve, and continuously forge ahead, hoping to provide customers with satisfactory service in the field of measuring instruments.
Our Service
Our warranty policy:
1.For GNSS/RTK products we offer one year and half a year warranty.
2.For optical instruments (total station, theodolite, Level), we offer 1 years warranty. For
accessories we offer 6 months warranty.
3.Product in warranty please sends us photos to show the problem. And then will decide to
send you parts or you send the instrument back to us to repair, We are responsible for the double-run freight and other cost, Please make sure to contact us first instead of sending the damaged parts directly to us. Sometime, our service people can repair your product local.
4.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
5.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man made damage of the instrument is notcovered in warranty liability.
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference. We offer GNSS raw data process and CAD drawing for survey field end users. If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, MoneyGram and PayPal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
