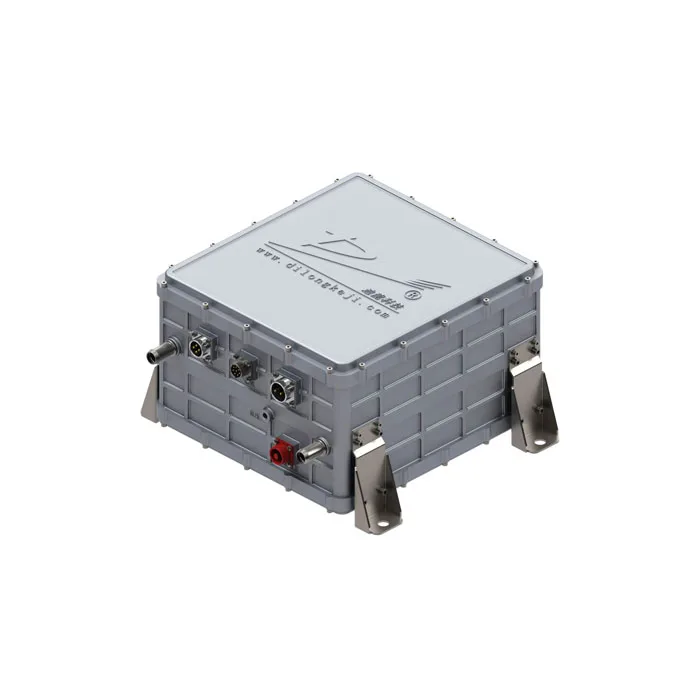

11 кВт OBC & DCDC комбинированный блок жидкости

DA10KM32B-380S700C

Mains Input

Rated Voltage

Vac

220 single phase input(Below AC175V, power derates to 4KW)

380 three phase four wire(Below AC245V, power derates to 4KW)

Voltage Range

Vac

AC147V-AC480V; three phase 4 wire

AC85V-AC277V; single phase

FREQ RANGE

HZ

47~63

Efficiency(MAX)

%

≥94

Power Factor

≥0.99@380Vac, rated power

Current

A

≤16A@380Vac

Mains output

Rated output voltage

Vdc

700

Constant voltage output range

Vdc

400~850(Between DC400V-DC550V power derates to 5KW)

Maximum current

A

16@560Vdc

Maximum power

W

9000

Output voltage accuracy

V

≤±1%Vo   input 176Vac-264Vac,output 10%-100% load

Line regulation

%

≤±0.2%Vo   input 176Vac-264Vac,output 100% load

Load regulation

%

≤±0.5%   input 220Vac,output 10%-100% load

Ripple and noise

mV

≤±3%Vo  20M oscilloscope, twisted-pair cable test.

Auxiliary supply

Rated output voltage

Vdc

12 (For BMS awaken signal )

Rated output power

W

2 (optional)

Model NO.

DE2KS15-700S14RC

NO.

Item

Specification

Remark

1

Nominal input voltage/current

DC:700V/3A

2

Input voltage range

DC:400V~850V

3

Output DC nominal value

DC:14V

14V output- is shell

4

 Output current

 142A(nominal)  170A(peak/6mins)

5

Output power

2000W(nominal);2400W(peak/6mins)

6

Output voltage accuracy

≤±1%

7

Source effect

<±0.2%

Input and output full range

8

Load effect

<±0.5%

Input and output full range

9

Output over current protection

180A

 Power off protection

10

Input over voltage protection

Normal

Hardware limit≥860V Power off

11

Input under voltage protection

Normal

Hardware limit≤390Power off
